Product Model | AP100 Ultrapure Fogger | AP35 Ultrapure Fogger | Other Ultrapure Foggers | FOG Minutes | ~ 90 minutes | ~ 70 minutes | ~ 20-40 minutes | FOG Volume Meters/Min. | ~ 15.5 cu. M/min, 2 or 4 fog hose outputs | ~ 5.0 cu. M/min, 1 or 2 fog hose output | ~ 0.8 to 1.5 cubic meters / minute | Total FOG Volume | ~ 1162 cubic meters | ~ 350 cubic meters | ~ 16 to 60 cubic meters | Fog Density (ml/minute) | ~ 1520 mL / minute | ~ 571 mL / minute | ~ 150ml to 260 mL / minute | Visual Fog Distance | ~ 30 to 40 feet | ~ 20 to 30 feet | ~ 10 to 15 feet | Adjustable Fog Volume | Yes, thru mechanical valve control | Yes, thru mechanical valve control | No fog volume control | Adjustable Airflow Velocity | Yes, thru touchpad and wireless | Yes, thru touchpad and wireless | No airflow control | Fogger Technology | Ultrapure | Ultrapure | Ultrapure | Liquids Used | LN2 + DI Water or WFI | LN2 + DI Water or WFI | LN2 + DI Water or WFI | Clean Room Class | Class 1 - 10,000 and stage Fog | Class 1 - 10,000 | Class 1 - 10,000 | Compatible Guidelines | USP 797 | USP 797 | USP 797 | Compatible Guidelines | ISO 14644-3, Annex B7 | ISO 14644-3, Annex B7 | ISO 14644-3, Annex B7 | Compatible Guidelines | Federal Standards 209E | Federal Standards 209E | Federal Standards 209E | Compatible Guidelines | ISO Standard 14644-1, 14644-2 | ISO Standard 14644-1, 14644-2 | ISO Standard 14644-1, 14644-2 | DI / WFI Water Volume | 10.0 liters, 2 water heaters | 5.0 liters, 1 water heater | 1-3 liters | Liquid Nitrogen Volume | 100 liters | 35 liters | 6-10 liters | Operator Control | Touchpad control of airflow | Touchpad control of airflow | Power Switch, no fog controls | Remote Control | Wireless Remote control of airflow | Wireless Remote control of airflow | No Wireless Remote Control of fog | Handling | Rolling Enclosure | Rolling Enclosure | Carry Handle | Enclosure | 316L Stainless Steel, electro-polish | 316L Stainless Steel, electro-polish | Stainless Steel | Power VAC | 220 VAC | 120, 220, 100 VAC | 120, 220, 100 VAC | Full Weight | ~ 398 lbs | ~ 250 lbs | ~ 50-75 lbs | Accessories | 1-8 Accs | 1-9 Accs | Several Accs |
|

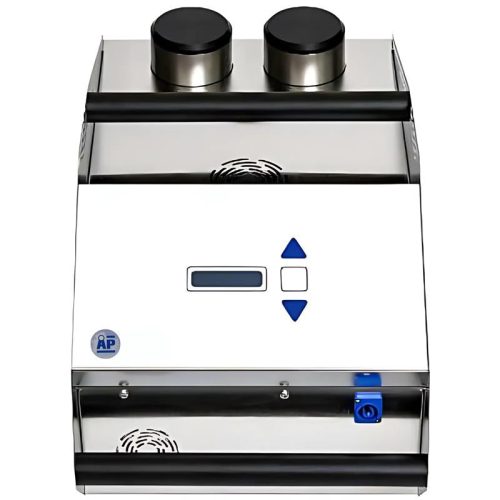

Cleanroom Ultrapure Fogger FeaturesUltrapure Fog Generator with Fog Curtain Wand - Adjustable fog to describe direction, velocity and patterns in airflow

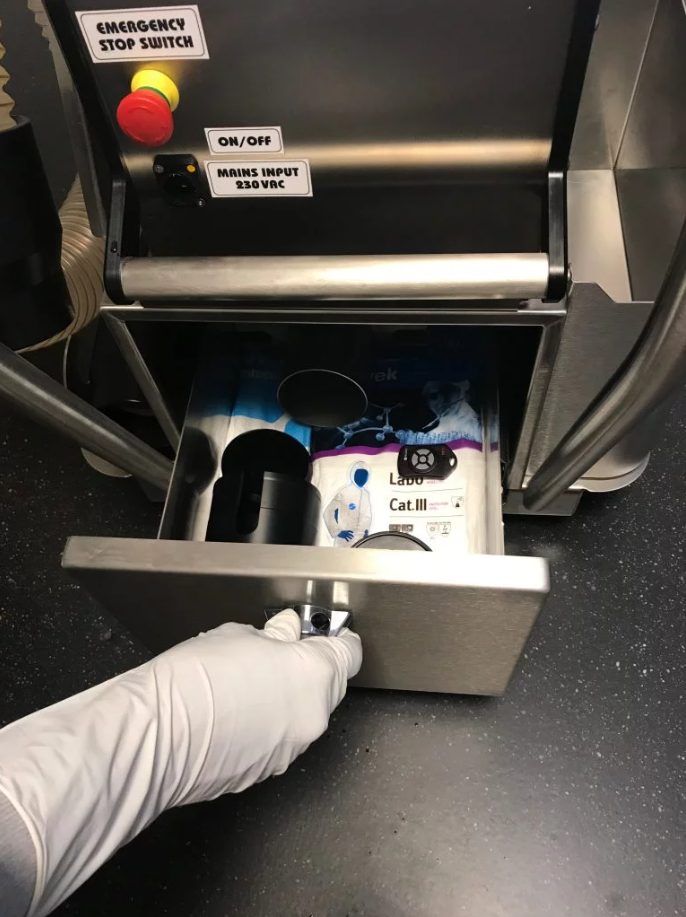

- Modular design for simple operation and maintenance
- Dual wall, liquid nitrogen Dewar
- Dual water heaters for maximum fog production
- Direct fogger control to adjust fog volume and airflow velocity
- Wireless remote control for controlled operation behind a wall
- Visualization of unwanted gas emission locations and dead zones
- Supports test for ISO 14644-3 ANNEX B7 airflow visualization
- Supports analysis for Pharmaceutical USP 797 Guidelines and airflow visualization
- Supports airflow visualization test for Semiconductor Semi-Standards Guidelines
- Supports stage hands and stage actors providing ultrapure, breathable theatrical stage fog
- Tracking routes of unwanted air flow infiltration into clean rooms
- No contamination created, no contamination left behind
- No cleanup of any kind after fog visualization
- Superb 3D airflow modeling capabilities with high density fog
- Very low fog exit pressure, no exit turbulence as fog enters airflow
- Compact, transportable, shipping case
- Fog stream output and fog curtain output
- For use in sterile rooms, ISO suites and clean rooms
- High density fog visualization provides the best airflow visualization of any fogger in the market
- Exhaust and ventilation studies around wafer handling systems
- Air balance studies in Pharmaceutical suites and clean rooms
Cleanroom Ultrapure Fogger AdvantagesVery dense, Stream Fog - Highest fog density by converting 1520 ml of liquid per minute to an ultrapure fog
- Greatest visible airflow distances of 30-40 feet
- Excellent volume of ultrapure fog at 15.5 cubic meters per minute
- Total volume of 1162 cubic meters of ultrapure fog per operating cycle
- Longest operating time of 90 minutes
- No contamination is created, no cleanup is required, no contamination to the process
- No turbulence created as fog enters the airflow
- Roller castors for easy movement over floor
- Two 80mm, 3.15", fog outlets with 2 Y Adaptors each providing 4 fog hose outputs
- User Friendly display and touch pads
- Stainless steel contacts the liquid nitrogen and DI Water for best purity of fog
- very low fog exit pressure that does not create a disturbance to airflow
- No metal contamination to fog using Stainless Steel water heater and Dewar
- Included LED Light accessory to provide high contrast between visualized airflow and background
- Included 350mm Fog Nozzle accessory to spread standard fog stream out around equipment as it enters air flow
- Included 2 Y Adaptors to easily convert the two fog outlets into total of 4 fogger hose outputs for your smoke studies
- Included 2 T Adaptors to easily onvert two fog hose outputs into two Fog Curtain Wands to create a 2.5 Meter wide fog curtain
- Included four fog hoses, 5 meters x 80mm to use with the 2 Y Adaptors
- Included four fog wands at 1.25 M x 80mm to spread fog stream out into a wide fog pattern
- Using DI Water or WFI water and liquid nitrogen
* Fog distance measured at 40% humidity and air velocity of 90fpm. Visual fog distance decreases as humidity decreases or as airflow velocity increases. 30-40 feet of visual airflow distance Which Clean Room Fogger or Smoke Generator Is Best For My Applications?AP100 Ultrapure Fogger, 15.5 cubic meters fog / minute, 1520 ml fog density / minute, 30-40 feet visual airflow, 90 minutes. | - When high fog purity, high fog volume and long visible airflow is needed for large cleanrooms
- To visualizing airflow from ceiling to floor
- To control fog to enter into airflow as needed
- To provide high volumes of pure stage fog for stage hands and actors
- For 3D airflow modeling of airflow
- For visual smoke studies and Video Smoke studies in large cleanrooms
- When about 90 minutes of high purity fog duration is needed
- When fog visibility of 30-40 feet distance is desired
- For Class 1 to Class 10,000 semiconductor cleanrooms, medical suites, ISO suites
|
* Use Hand Gloves and Face Shield when filling Liquid Nitrogen Use 16M ohm DI water or WFI Pharmaceutical Water | AP35 Ultrapure Fogger, 5 cubic meters fog / minute, 571 ml fog density / minute, 20-30 feet visual airflow, 70 minutes. | - When high purity smoke with less fog volume is needed for regular cleanrooms
- To visualize airflow from ceiling to floor
- To adjust fog volume and airflow velocity to tune fog output to airflow needs
- For visual, video and 3D airflow modeling of airflow
- For smoke studies supporting ISO and USP guidelines
- When about 70 minutes of high purity fog duration is needed
- When fog visibility of 20-30 feet distance is preferred
- For Class 1 to Class 10,000 semiconductor clean rooms, medical suites, ISO suites
|
CO2 Fogger,
Vapor DiH2O Fogger, average 4cfm over 10 minutes | - When Fogging Hazardous areas, No Electrical Outlet Available
- When fog visibility for 5-6 feet distance is acceptable
- When 10 minutes of fog duration is useful
- Class 10 or above in semiconductor or pharmaceutical clean rooms
- When fogging work benches
|
16 Meg ohm DI water is standard or Water for Injection, WFI Water Do not permit DI Water to go stagnant in the water chamber ** Use gloves when handling CO2 ice |
|
