Description

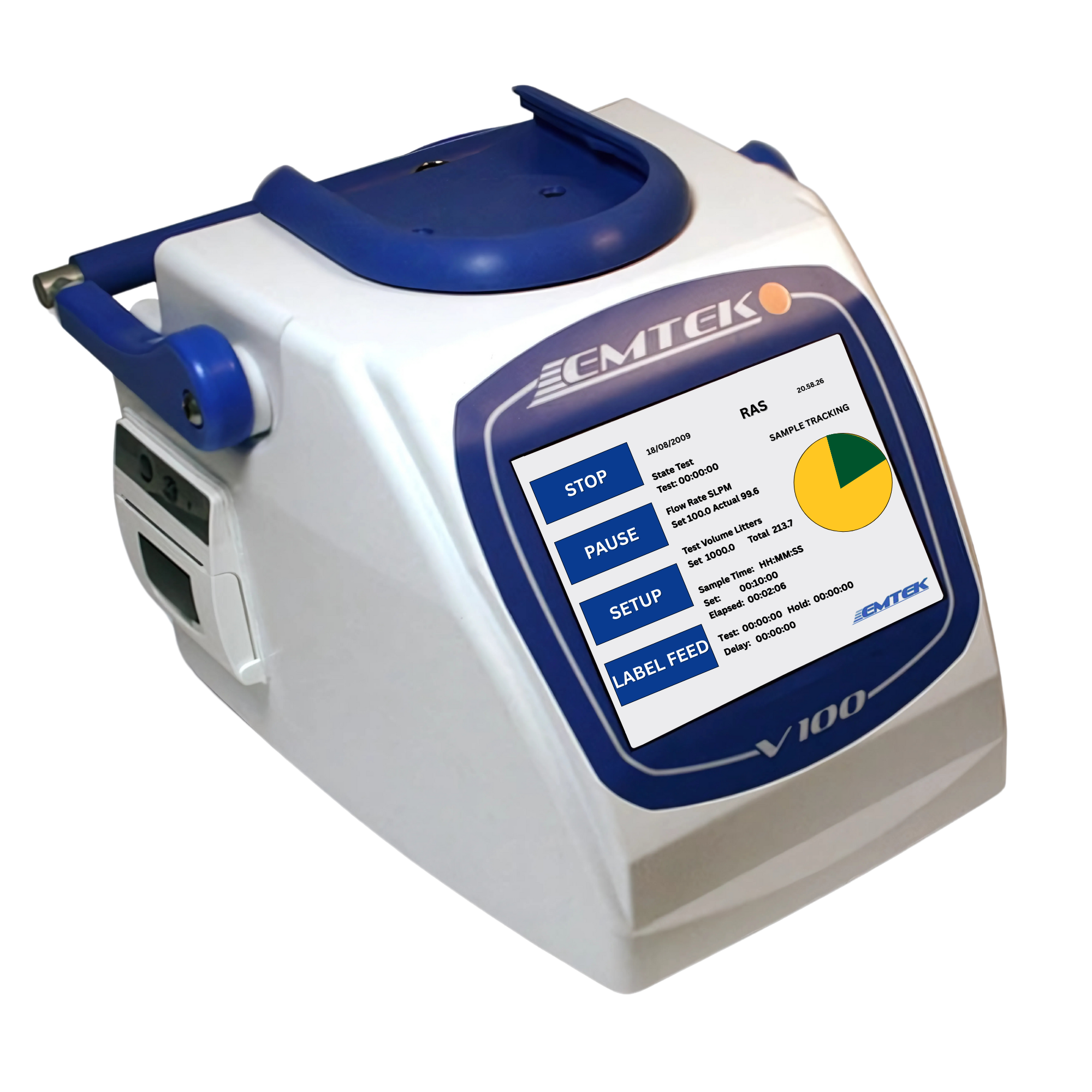

The V100 Controller operates remote air sampling heads from outside the critical work zone. By keeping the vacuum pump, electronics, and exhaust outside laminar flow hoods, isolators, and filling lines, it prevents motor heat and air turbulence in Grade A spaces.
The controller connects to remote sampling heads through vacuum tubing and power cables, allowing you to run single or multi-point sampling setups from one central location.
Available Package Configurations
V100.01: V100 Air Sampler Controller (Base Unit) Includes the standalone V100 Controller with mass flow control (28.3, 50, and 100 LPM), color LCD touchscreen, internal 0.2 micron HEPA exhaust filter, 21 CFR Part 11 compliant audit trail and data export software, and primary power cord. Remote sampler heads, vacuum lines, and cables are available separately.
V100.R2S.PACK: V100 Controller and R2S Air Sampler Complete Package Includes the V100 Controller plus one R2S Slit-to-Agar sampler (white epoxy-coated aluminum base, 316 stainless steel components, blue silicone seal, polycarbonate dome with distance indicator, and choice of 28.3, 50, or 100 LPM inlet dome). Also includes a 12-foot vacuum and cable assembly, 5-channel infrared remote, thermal label and paper rolls, USB drive with documentation and software, IQ/OQ/PQ templates, NIST-traceable calibration certificate, and a 2-year warranty.
V100.R2SX2.PACK: V100 Controller and Dual (2) R2S Air Sampler Complete Package Includes the V100 Controller plus two R2S Slit-to-Agar samplers with 28.3 LPM or 50 LPM inlet domes for simultaneous two-location sampling. Also includes two 12-foot vacuum and cable assemblies, a two-way vacuum and power splitter, 5-channel infrared remote, thermal label and paper rolls, USB documentation, calibration certificate, and a 2-year warranty.
V100.RAS.PACK: V100 Controller and Remote Air Sampler (RAS) Complete Package Includes the V100 Controller plus one RAS sieve impactor (clear anodized 6061-T6 aluminum base, adjustable media stage, 3/8-inch 316 stainless steel vacuum barb, tripod mount, Delrin port plug, and choice of 28.3, 50, or 100 LPM inlet cover). Also includes a 12-foot vacuum line, 5-channel infrared remote, thermal label and paper rolls, USB documentation, calibration certificate, and a 2-year warranty.
V100.RASX2.PACK: V100 Controller and Two (2) Remote Air Sampler (RAS) Complete Package Includes the V100 Controller plus two RAS sieve samplers with 28.3 LPM or 50 LPM inlet covers for dual-point sampling. Also includes two 12-foot vacuum lines, a two-way vacuum splitter, 5-channel infrared remote, thermal label and paper rolls, USB documentation, calibration certificate, and a 2-year warranty.
V100.RASX3.PACK: V100 Controller and Three (3) Remote Air Sampler (RAS) Complete Package Includes the V100 Controller plus three RAS sieve samplers with 28.3 LPM inlet covers for three-point sampling. Also includes three 12-foot vacuum lines, vacuum splitters, 5-channel infrared remote, thermal label and paper rolls, USB documentation, calibration certificate, and a 2-year warranty.
V100.RASX4.PACK: V100 Controller and Four (4) Remote Air Sampler (RAS) Complete Package Includes the V100 Controller plus four RAS sieve samplers with 28.3 LPM inlet covers for four-point sampling. Also includes four 12-foot vacuum lines, three two-way vacuum splitters, 5-channel infrared remote, thermal label and paper rolls, USB documentation, calibration certificate, and a 2-year warranty.
V100.RCG.PACK: V100 Controller and RCG Compressed Gas Air Sampler Complete Package Includes the V100 Controller plus one RCG compressed gas sampler (white epoxy-coated base, blue silicone seal, polycarbonate dome with barbed inlet, Delrin retention clip, and choice of 50 or 100 LPM dome). Also includes an HPD2 high pressure diffuser, sanitary drop assembly with clamps, gaskets, and 30-inch Hytrel tubing, a 12-foot vacuum and cable assembly, 5-channel infrared remote, thermal label and paper rolls, USB documentation, calibration certificate, and a 2-year warranty.
Standard Inclusions for All Complete Packages
All V100 complete packages come equipped with:
- 5-Channel Infrared Remote Control
- 3 Black Mark Label Rolls and 2 Thermal Paper Rolls
- User Manual and Supplemental Documents on USB drive
- NIST-Traceable Calibration and Official Certificate
- Custom Fitted Shipping Box
- Suggested IQ/OQ/PQ Protocol Template (PDF or Word)
- Standard 2-Year Manufacturer Warranty
Key Features and Operation
- Mass Flow Control: Automatically maintains calibrated flow rates at 28.3 LPM (1 CFM), 50 LPM, or 100 LPM regardless of line restrictions or tubing lengths.
- Multi-Sampler Operation: Runs a single air sampler, up to 2 heads simultaneously at 28.3 or 50 LPM, or up to 4 RAS heads at 28.3 LPM.
- Operating Distance: Operates a single sampler up to 85 feet (25 m) at 28.3 LPM, up to 65 feet (19 m) at 50 LPM, or up to 15 feet (4.5 m) at 100 LPM. Dual heads can run up to 20 meters at 28.3 LPM or 12 meters at 50 LPM. Up to 4 RAS heads can run at 12 meters each.
- Sample Run Times: User-defined sample periods with maximum run times of 240 minutes (6,792 liters) at 28.3 LPM, 135 minutes 50 seconds (6,792 liters) at 50 LPM, or 76 minutes 55 seconds (6,792 liters) at 100 LPM. Includes pause and resume capability, plus programmable delay, hold, and test cycles.
- Cleanroom-Safe Exhaust: Vacuum exhaust air passes through an internal 0.2 micron HEPA filter before leaving the unit so it does not compromise surrounding clean areas.
- Built-in Printer: Thermal paper and label printer outputs sample parameters, date, time, volume, and run status directly after each test.
- Durable Housing: Made from wipe-down cleanroom-grade Kydex with Microban antimicrobial protection. Includes a retractable handle and transport mounts for samplers.
- Touchscreen Interface: Color LCD touchscreen with full alphanumeric and symbol keypads for setting up sites, recipes, and user logins.
21 CFR Part 11 Compliance and Data Management
- Audit Trail: Stores up to 5,000 system and security events.
- Sample Data Storage: Retains data for up to 3,000 individual sample runs.
- User Accounts: Supports up to 100 password-controlled Admin and User accounts with required login and access permissions.
- PC Export Software: Exports encrypted PDF reports and CSV spreadsheets through USB for audit logs and run data.
- Site and Program Memory: Stores up to 500 sample site descriptions and up to 100 customizable sample programs.
- Calibration Alarm: Notifies operators when calibration is due.
Technical Specifications
- Flow Rates: 28.3 LPM (1 CFM), 50 LPM, 100 LPM (Mass Flow Controlled)
- Maximum Sample Volume: 6,792 Liters per test run
- Compatible Samplers: RAS, R2S, RCG
- Exhaust Filter: Internal 0.2 Micron HEPA
- Dimensions: 10 inches Long x 9 inches Wide x 8 inches High
- Weight: 12 lbs
- Power: 100-240 VAC, 50/60 Hz Universal Input
- Construction: Kydex with Microban Antimicrobial Protection
- Standard Warranty: 2-Year Manufacturer Warranty
