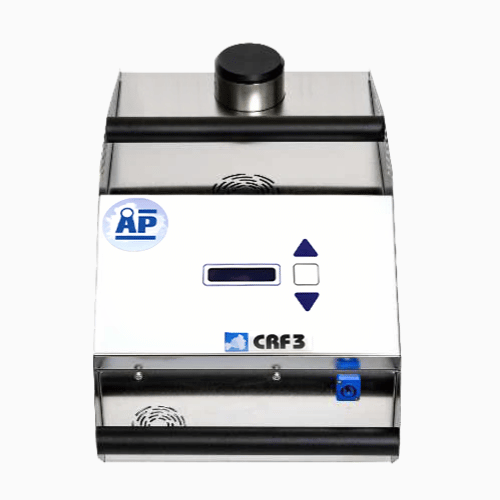

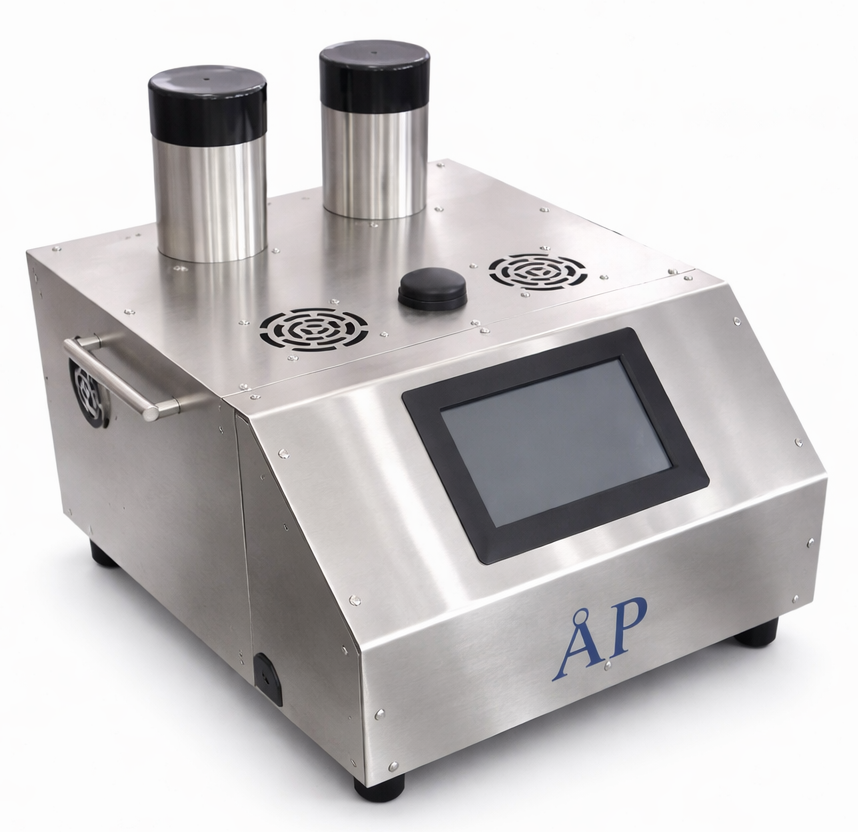

The CRF3 Cleanroom Fogger is a low cost, ultrasonic fogger using 25 high performance, piezo devices to create 0.89 cubic meters per minute of pure fog with a fog density of 133.57 ml fog density per minute for a typical 70 minute operation. This provides about 10 feet of visual fog for for smoke studies and air flow characterization in cleanrooms, BSCs, Barrier Isolalators, glove boxes, fume hoods and bio-safety cabinets. The CRF3 is compatible with USP 797 Pharmaceutical In-situ Airflow Analysis; USP 800 Compound Pharmacy airflow tests; Airflow Recovery Tests in ISO 14644-3 Annex B12; Airflow Visualization Tests for ISO 14644-3 Annex B7; NSF 49 for Bio-Safety Cabinets; and Semi-Standards Clean Room Guidelines, Federal Standard 209E.

CRF3 Cleanroom Fogger produces ≈ 0.89 cubic meters of fog / minute, ≈ 123 ml fog density / minute, ≈ 70 minutes operation, ≈ 10 feet visual fog distance, 1 80mm fog output.

Cleanroom Fogger, CRF3 Features

• 25 transducers converting DI Water or WFI water directly to 0.89 cubic meters of of pure fog for about 70 minutes
• Quick refill of Di Water or WFI water for continuous fog use
• Easy to Fill 9.5 liters of DI water, sterile water or WFI water
• Hold Handle provides easy carry of tool
• Stainless steel enclosure is particulate free, no finger prints, sturdy design
• Fog Curtain Wand, optional, plugs into end of Fog Hose to create a wide fog wall, while reducing the fog velocity and maintain a constant fog output
• 80mm fog hose Diameter, 5 meters in length
• Fog Tube, internal power supply (120VAC, 100VAC or 220VAC compatible) and 10 foot power cable provided
• Easy to use, quick operation set up, instant On/Off fogging operation
• Rolling Carry Case, optional, for carry and storage of Cleanroom Fogger
• Remote Control Key FOB with ON/OFF switch to operate fogger behind closed walls or in a barrier isolator
• PDF Manual - instructions and applications

In 2001 cleanroom foggers were developed, and since then, Applied Physics has supported smoke studies and smoke tests using a variety of cleanroom foggers. You can review cleanroom fogger performance for your smoke study. Our CRF3 portable fogger is low cost using ultrasonic piezo devices to visualize airflow and turbulence in fume hoods, airflow hoods, glove boxes, etc. The CRF3 is our newest, low cost smoke machine due to its portability and adjustable fog output. Fog volume is a primary requirement for a customer when purchasing a smoke machine. Fog density is adjustable, as well as fog velocity, controlled on the CRF3 control panel. The CRF3 clean room fogger uses 9.5 liters of purified water with 25 piezo devices to produce a pure fog that can be used in cleanrooms, BSCs and Barrier Isolators to visualize airflow and air balance. 123 ml of water per minute can be converted to fog to produce a very gooed fog density. Up to 0.89 cubic meters of fog per minute can be produced for smoke studies during a typical 70 minutes of operation. The Cleanroom Fogger is a low cost device and typically used in fume hoods, airflow ducts and similar small areas. The Cleanroom Fogger uses sterile water, de-ionized water or WFI water to produce a pure fog to visually describe airflow movement, imbalance and areas with poor air movement in semiconductor clean rooms, pharmaceutical ISO suites, bio-safety cabinets, compound pharmacies and medical rooms. This low cost, CRF3 fogger is used in Pharmaceutical fume hoods, flow hoods, glove boxes and similar small areas. The Cleanroom Fogger uses DI water, Sterile water or WFI water to produce a pure fog to visually describe airflow movement, imbalance and areas with poor air movement in semiconductor cleanrooms, pharmaceutical ISO suites, bio-safety cabinets, compound pharmacies and medical rooms. This low cost, CRF3 clean room fogger is used in Pharmaceutical fume hoods, flow hoods, glove boxes and similar small areas.The CRF3 is used in smoke studies and often referred to as a smoke generator or smoke machine used to model airflow movement and visualize airflow patterns and turbulence in fume hoods, airflow hoods, glove boxes etc. used in ISO 3, ISO 5, ISO 7 and ISO 9 suites. The CRF3 provides instant on and instant off operation plus adjustable fog volume and adjustable fog velocity, perfect to tune the fog output to your smoke study requirements.

Smoke Studies in Cleanrooms, ISO Suites, Bio Safety Cabinets, Sterile Rooms

• Supports 100:1 Airflow Recovery Test, as defined in ISO 14644-3, B12
• Supports airflow visualization tests supporting ISO 14644-3, B7
• Supports airflow visualization analysis, USP 797 Guidelines
• Supports airflow tests, NSF 49 National Safety Foundation
• Supports airflow visualization, USP 800 Hazardous Drug Compounding
• Supports Semiconductor Semi-Standards Guidelines
• Air flow and pressure balance between two clean areas
• Leak detection of exhaust ducts
• BSC (Bio Safety Cabinets), Barrier Isolator and laminar flow tests
• Wet bench exhaust tests
• Air Balance tests between walk areas and clean rooms
• Chemical process equipment, exhaust ventilation tests

Compare Cleanroom Fogger (Details)

SMOKE STUDY INFORMATION The CRF3 smoke machine is used in smoke studies as a smoke generator. It is a low cost device providing excellent volumes of fog in smoke studies. It provides a lower weight using a stainless steel enclosure. Operation instructions are stored as a PDF file, so there is no paper paper manuals used in the pharmaceutical ISO 9 suites, laboratory or clean room. Theory of Operation: Ultrasonic cavitation and DI water or Pharmaceutical WFI Water. Use of any other liquids or chemicals voids the warranty. The transducer life is ~3,000 hours. To protect the transducers from damage there is a level sensor that will interrupt the input voltage to the transducer module, should the water level drop to a low level. This ensures long life and reliability. Notes:

1. The fog generated by this device contains microscopic droplets of DI water. AVOID USING IN IMMEDIATE VICINITY OF ELECTRICAL APPLIANCES, WATER SENSITIVE PRODUCTS AND EQUIPMENT.
2. The fan will operate with no water in the reservoir with the power switch in the ON position. This will aid in drying when the chamber is drained.
3. Drain Water using the optional Drain pump. Dry the water cavity using the internal fan or optional Air Dry tool.
4. The CRF3 is intended to be used on a flat surface, on its feet. Tipping the fogger with water in the reservoir will damage the fogger. DO NOT OVERFILL OR TIP THE FOGGER.

Which Cleanroom Fogger or Smoke Generator Is Best For Smoke Studies?

Fogger Technology

The three types of foggers manufactured for use in cleanrooms, ISO suites and sterile rooms are described below.

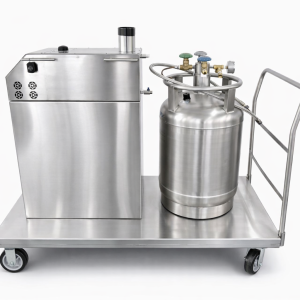

Ultrapure LN2 Fogger: LN2 foggers use liquid nitrogen and DI Water or WFI water, providing the highest fog volume, highest fog density and best level of fog purity fog. Fog purity is allowing the LN2 to boil, while heating the water. nitrogen and water molecules form and combine at high rates to create a fog vapor. This process removes any bacterial agents and residual particulate matter from the water vapor. The volume of fog produced depends on the version of LN2 fogger purchased. The AP35 Ultrapure Fogger converts 571 ml of water per minute, a high fog density, which generates 5 cubic meters of fog for about 70 minutes to visualize airflow for 20-30 feet. The AP100 LN2 Fogger converts 1520 ml of water per minute, a very high fog density, to produce 15.5 cubic meters of ultrapure fog for about 70 minutes visualizing air flow for about 30-40 feet using 4 fog outputs. The fog is ultrapure leaving minimal, if any, trace particles behind. It evaporates to its gaseous hydrogen, oxygen and nitrogen components, which are natural to the cleanroom environment. LN2 foggers are used in a Class 1 - 10,000 cleanrooms.

DI Water Fogger: This type of fogger has less fog density (less capability to visualize airflow) than the LN2 ultrapure foggers described above. But a DI Water Fogger has more fog density than the CO2 fogger described below. The DI water fog is generated by cavitation in water, producing a water vapor of 8-10 microns in diameter. If the facility manager operates a class 10 to Class 10000 Clean room, the use of a DI Water Fogger poses no problem. However, Cleanroom Engineers who manage facilities operating at Class 1 to Class 10 performance may desire to use an ultrapure fogger. Although some DI Water foggers are described as ultrapure, but unless the DI water is heated or boiled to remove bacterial agents, the fog is not ultrapure. The 2-3 lb output pressure of a DI water fogger may also distort the airflow patterns. The temperature output is typically less than the surrounding room temperature, thus a fog generated from an ultrasonic fogger will sink momentarily in a typical 70 degree room temperature.

CO2 Fogger: This type of CO2 Smoke Generator produces an excellent volume of fog during the first minute, then begins to lose fog volume and fog den sity as the CO2 ice evaporates. CO2 fogger is used for low volume, non-process critical applications such as bench airflow testing. The fog is created using CO2 ice as the fogging agent. The fog contains elements of the CO2 and the user must determine if the residual CO2 components are acceptable in a process environment operating Class 100 to Class 10,000. The 2-3 lb output pressure of a CO2 fogger also distorts the airflow patterns, thus adding to the turbulence. The output starts at about 3cfm and slowly decreases to 0 CFM in about 10 - 12 minutes.
