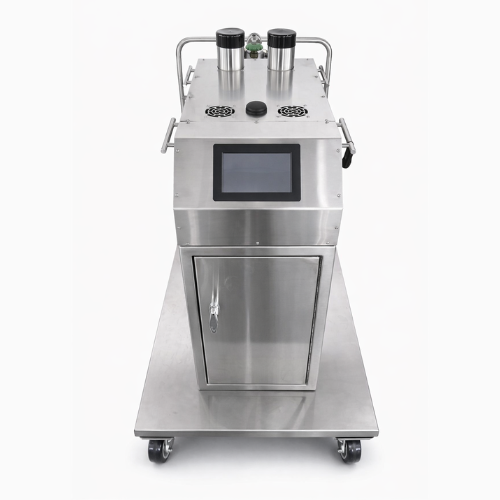

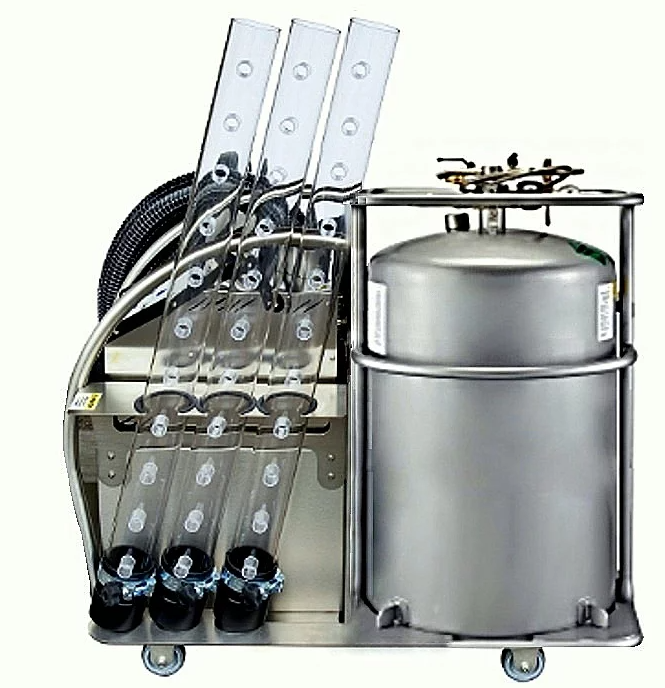

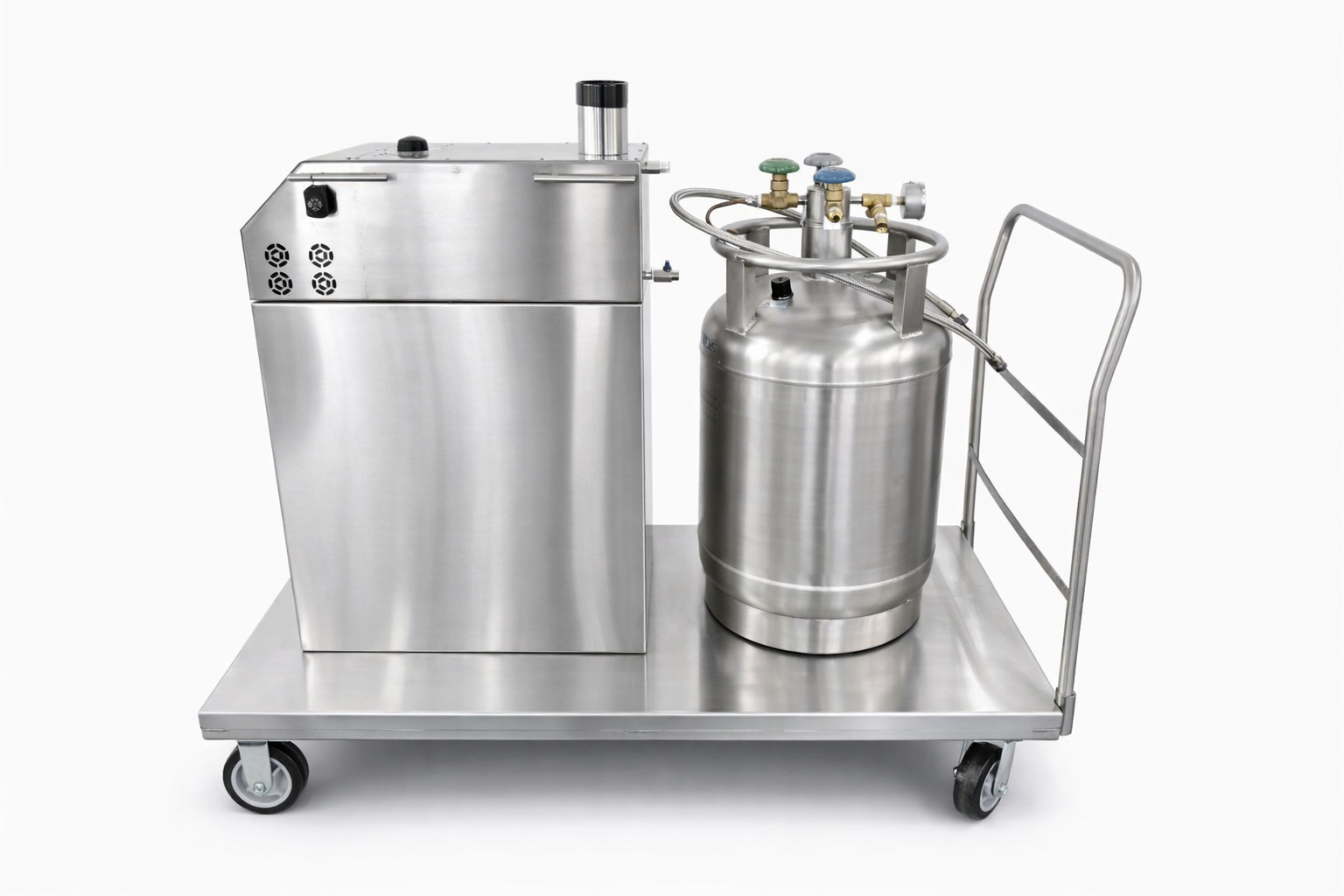

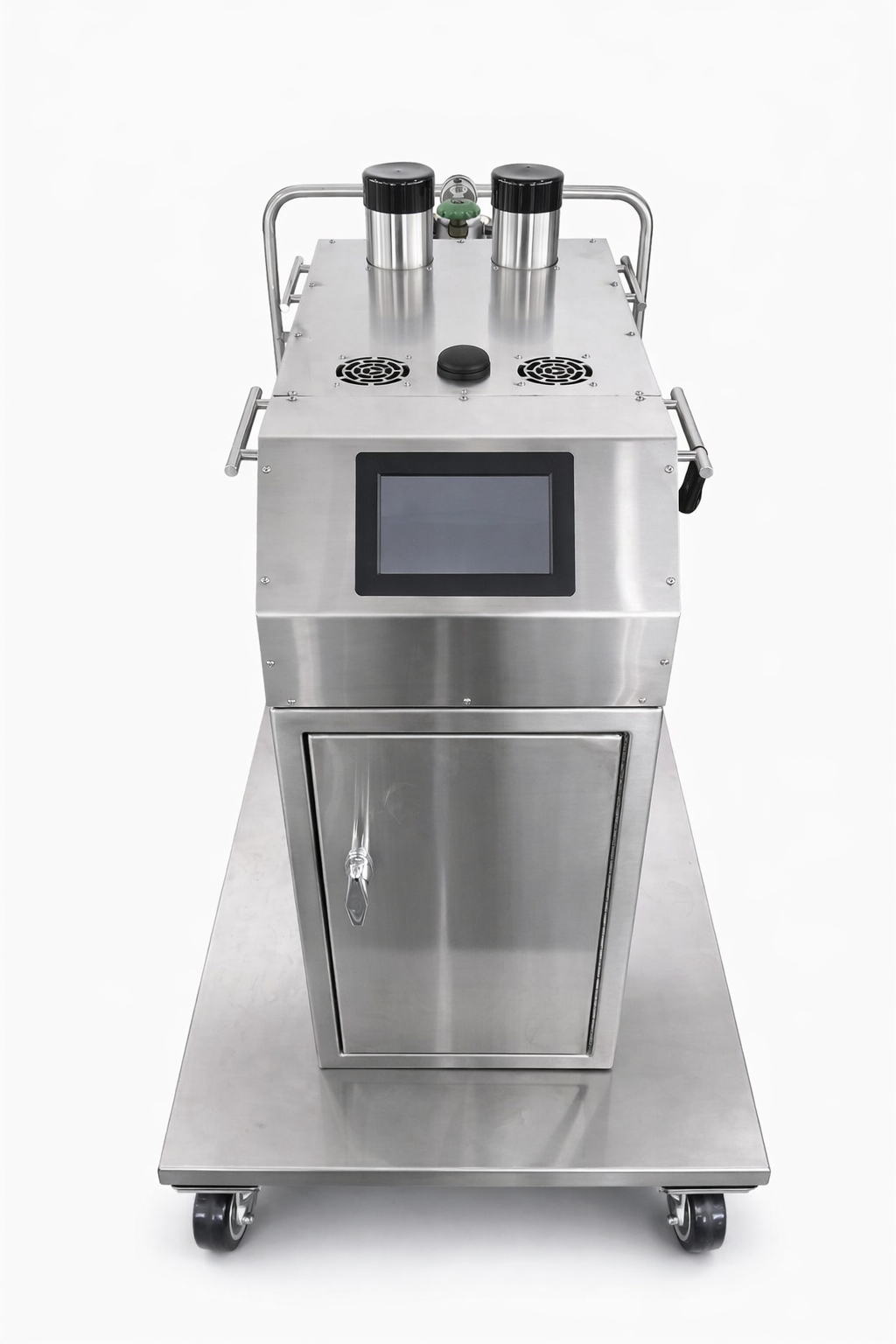

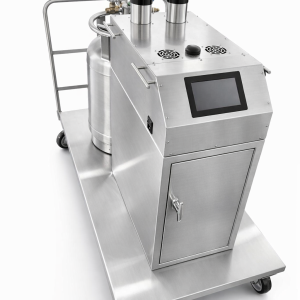

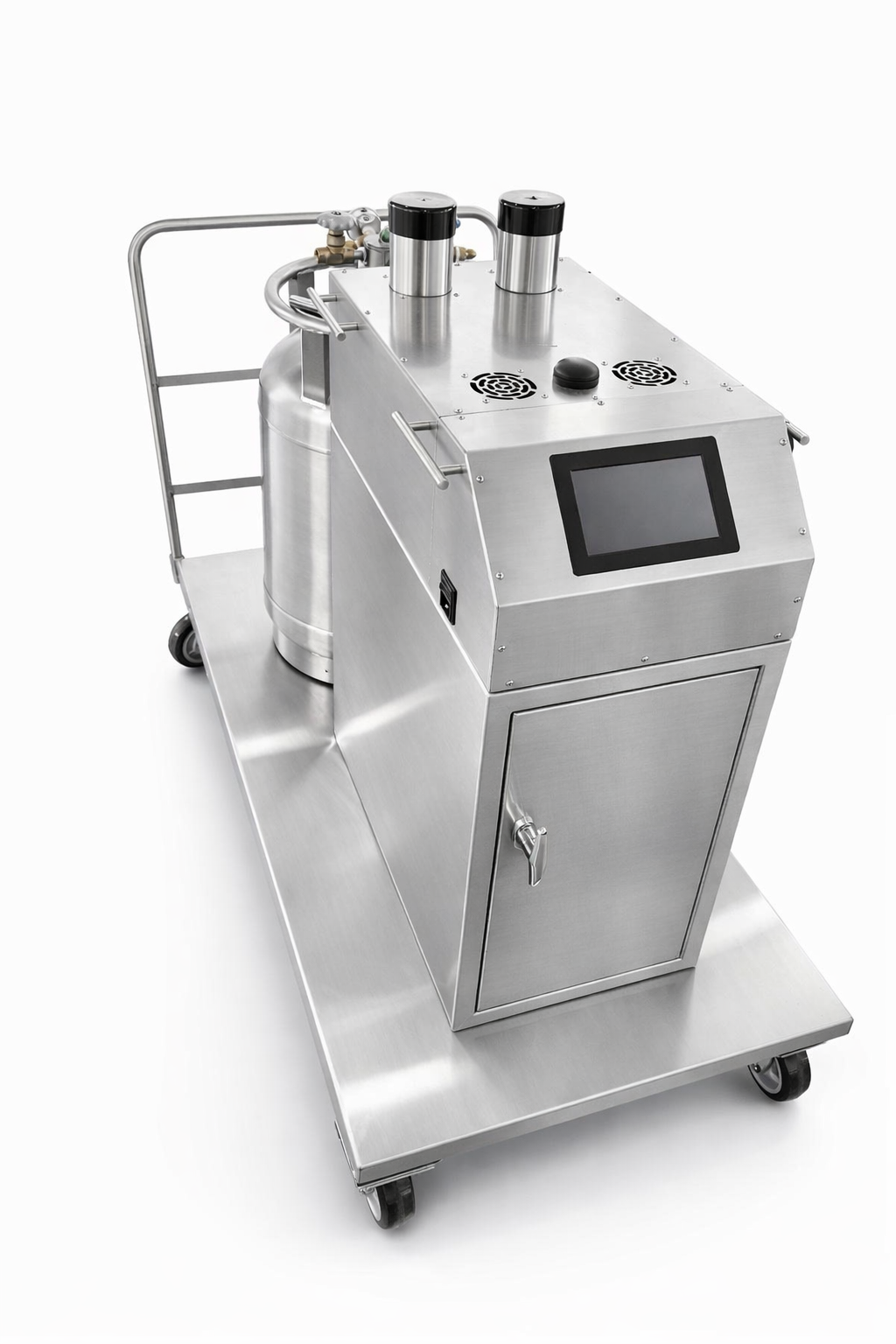

AP100 LN₂ Ultrapure Fogger with rolling, stainless steel enclosure, ≈ 20–21 M³ / Min. ultrapure fog, ≈ 22–26 ft. visual distance, ≈ 1800–1900 M³ fog during typical 90 minute operation cycle to visualize airflow turbulence in Large Clean Rooms, ISO Suites and Semiconductor Facilities. Dual 80mm fog outputs with velocity control and volume control.

AP Series LN2 Fogger Product Sheet 1

SKU AP100 Categories , , Tags , , , , , , , , , , , , , , , , ,

Description

Clean room AP100 ultrapure fogger to generate a dense fog to visualize airflow turbulence in ISO suites, sterile rooms, and cleanrooms.



The AP100 Ultrapure Fogger is superb for video and 3D modeling, as it provides adjustable fog output, wireless remote control, and a variety of accessories to achieve your clean room smoke studies. The AP100 can be used in the largest pharmaceutical ISO suites and semiconductor clean rooms. It is also used for stage fog applications, since the fog produced is ultrapure, breathable, theatrical stage fog for stagehands and actors.

Ultrapure Fogger was developed in the 2001 era.

Ultrapure Foggers were developed to provide higher levels of fog density, and it is the fog density that provides the highly visual airflow for long distances. FOG DENSITY determines how well the airflow can be visualized to the eye or video camera. By combining the total liquid volume of water and Liquid Nitrogen, dividing the volume (in milliliters) by the typical minutes of operation, the fog density is easily calculated. The AP100 provides 1520 ml of fog density; i.e., the AP100 converts 1.520 liters of liquid per minute to ultrapure fog vapor with a droplet diameter of 2-3 microns. It is the fog density that provides visual airflow and visible distance. An Ultrapure fogger uses liquid nitrogen and DI Water or WFI water, and when power is turned on, a highly dense fog is produced, which floats into the airflow to visualize patterns, turbulence,e and dead spots. Which ultrapure fogger is best for the money spent? The AP100 uses 100 L of Liquid Nitrogen and 10L of water, which is converted directly to a highly dense fog for about 90 minutes. Small ultrapure foggers generate between 150 and 250 ml per minute fog density. So if you need a fogger for large cleanroom spaces or stage fog, the AP100 Ultrapure fogger is the right choice.

The AP100, clean room ultrapure fogger, provides the highest volume high-purity fog to visualize airflow for about 90 minutes of airflow visualization with 30-40 feet of visual airflow distance. No cleanup of any kind is required after fogging with a high-purity fogger! If visual airflow modeling is needed, the AP100 produces more fog than any other fogger and is used specifically in large clean rooms, providing the highest levels of fog density, fog volume, and visual airflow distance to achieve your visual airflow goals and 3D airflow modeling.

Cleanroom Ultrapure Fogger generates an adjustable 15.5 cubic meters fog/minute for about 90 minutes with 1520 ml fog density per minute to provide a visible ultrapure fog of 30 to 40 feet using 4 fog hoses output. Adjustable fog volume, adjustable airflow velocity, and wireless remote control.

Cleanroom UltraPure fogger – The AP100 nitrogen fog generator is used in clean rooms, ISO suites, and sterile rooms to provide visualization of airflow, flow patterns, dead spaces, and turbulence. Nitrogen fog generators support Pharmaceutical guidelines, USP 797 In-Situ Airflow Analysis, ISO 14644-3 Annex B7 guideline,s and semiconductor clean room guidelines. A nitrogen fog generator creates the purest form of fog, particle-free, non-contaminating, leaving no contamination or residue behind; thus, no cleanup after fog use is required. The ultrapure fog enters the airflow at very low pressure and does not create airflow turbulence. The AP35 ultrapure fogger is CE Mark and compliant to ISO and USP guidelines, and can be used in Class 1 – 100,000 clean rooms for airflow, turbulence visualization, flow balancing,g and contaminant transport studies. Ultrapure foggers produce higher levels of fog, and Applied Physics provides two different nitrogen foggers: theAP35P,35 producing 5 cubic meters per minute of ultrapure fog for 70 minutes,tes and the AP100, producing 15.5 cubic meters per minute for about 90 minutes.

Performance of the AP100 Ultrapure Fogger

Product Model AP100 Ultrapure Fogger AP35 Ultrapure Fogger Other Ultrapure Foggers
FOG Minutes ~ 90 minutes ~ 70 minutes ~ 20-40 minutes
FOG Volume Meters/Min. ~ 15.5 cu. M/min, 2 or 4 fog hose outputs ~ 5.0 cu. M/min, 1 or 2 fog hose output ~ 0.8 to 1.5 cubic meters/minute
Total FOG Volume ~ 1162 cubic meters ~ 350 cubic meters ~ 16 to 60 cubic meters
Fog Density (ml/minute) ~ 1520 mL/minute ~ 571 mL/minute ~ 150ml to 260 mL/minute
Visual Fog Distance ~ 30 to 40 feet ~ 20 to 30 feet ~ 10 to 15 feet
Adjustable Fog Volume Yes, through mechanical valve control Yes, through mechanical valve control No fog volume control
Adjustable Airflow Velocity Yes, through the touchpad and wireless Yes, through the touchpad and wireless No airflow control
Fogger Technology Ultrapure Ultrapure Ultrapure
Liquids Used LN2 + DI Water or WFI LN2 + DI Water or WFI LN2 + DI Water or WFI
Clean Room Class Class 1 – 10,000 and stage Fog Class 1 – 10,000 Class 1 – 10,000
Compatible Guidelines USP 797 USP 797 USP 797
Compatible Guidelines ISO 14644-3, Annex B7 ISO 14644-3, Annex B7 ISO 14644-3, Annex B7
Compatible Guidelines Federal Standards 209E Federal Standards 209E Federal Standards 209E
Compatible Guidelines ISO Standard 14644-1, 14644-2 ISO Standard 14644-1, 14644-2 ISO Standard 14644-1, 14644-2
DI / WFI Water Volume 10.0 liters, 2 water heaters 5.0 liters, 1 water heater 1-3 liters
Liquid Nitrogen Volume 100 liters 35 liters 6-10 liters
Operator Control Touchpad control of airflow Touchpad control of airflow Power Switch, no fog controls
Remote Control Wireless Remote control of airflow Wireless Remote control of airflow No Wireless Remote Control of fog
Handling Rolling Enclosure Rolling Enclosure Carry Handle
Enclosure 316L Stainless Steel, electro-polish 316L Stainless Steel, electro-polish Stainless Steel
Power VAC 220 VAC 120, 220, 100 VAC 120, 220, 100 VAC
Full Weight ~ 398 lbs ~ 250 lbs ~ 50-75 lbs
Accessories 1-8 Accs 1-9 Accs Several Accs

Cleanroom Ultrapure Fogger Features

  • Ultrapure Fog Generator with Fog Curtain Wand
  • Adjustable fog to describe direction, velocity, and patterns in airflow
  • Modular design for simple operation and maintenance
  • Dual-wall, liquid nitrogen Dewar
  • Dual water heaters for maximum fog production
  • Direct fogger control to adjust fog volume and airflow velocity
  • Wireless remote control for controlled operation behind a wall
  • Visualization of unwanted gas emission locations and dead zones
  • Supports test for ISO 14644-3 ANNEX B7 airflow visualization
  • Supports analysis for Pharmaceutical USP 797 Guidelines and airflow visualization
  • Supports airflow visualization test for Semiconductor Semi-Standards Guidelines
  • Supports stagehands and stage actors, providing ultrapure, breathable theatrical stage fog
  • Tracking routes of unwanted air flow infiltration into clean rooms
  • No contamination created, no contamination left behind
  • No cleanup of any kind after fog visualization
  • Superb 3D airflow modeling capabilities withhigh-densityy fog
  • Very low fog exit pressure, no exit turbulence as fog enters the airflow
  • Compact, transportable, shipping case
  • Fog stream output and fog curtain output
  • For use in sterile rooms, ISO suites, and clean rooms
  • High-density fog visualization provides the best airflow visualization of any fogger in the market
  • Exhaust and ventilation studies around wafer handling systems
  • Air balance studies in Pharmaceutical suites and clean rooms

Cleanroom Ultrapure Fogger Advantages

  • Very dense, Stream Fog
  • Highest fog density by converting 1520 ml of liquid per minute to an ultrapure fog
  • Greatest visible airflow distances of 30-40 feet
  • Excellent volume of ultrapure fog at 15.5 cubic meters per minute
  • Total volume of 1162 cubic meters of ultrapure fog per operating cycle
  • Longest operating time of 90 minutes
  • No contamination is created, no cleanup is required, and no contamination to the process.
  • No turbulenceis  created as fog enters the airflow
  • Roller castors for easy movement over the floor
  • Two 80mm, 3.15″, fog outlets with 2 Y Adaptors each providing 4 fog hose outputs
  • User-friendly display and touch pads
  • Stainless steel contacts the liquid nitrogen and DI Water for the best purity of fog
  • very low fog exit pressure that does not create a disturbance to airflow
  • No metal contamination to fog using a stainless steel water heater and a Dewar
  • Included an LED Light accessory to provide high contrast between the visualized airflow and background
  • Included a 350mm Fog Nozzle accessory to spread a standard fog stream around the equipment as it enters the air flow
  • Included 2 Y Adaptors to easily convert the two fog outlets into a total of 4 fogger hose outputs for your smoke studies
  • Included 2 T Adaptors to easily convert two fog hose outputs into two Fog Curtain Wands to create a 2.5 Meter wide fog curtain
  • Included four fog hoses, 5 meters x 80mm, to use with the 2 Y Adaptors
  • Included four fog wands at 1.25 M x 80mm to spread the fog stream out into a wide fog pattern
  • Using DI Water or WFI water and liquid nitrogen
  • Fog distance measured at 40% humidity and air velocity of 90fpm. Visual fog distance decreases as humidity decreases or as airflow velocity increases.

30-40 feet of visual airflow distance

Which Clean Room Fogger or Smoke Generator Is Best For My Applications?

AP100 Ultrapure Fogger, 15.5 cubic meters fog/minute, 1520 ml fog density/minute, 30-40 feet visual airflow, 90 minutes.
When high fog purity, high fog volume, and long visible airflow is needed for large cleanrooms

To visualize airflow from the ceiling to the floor

To control fog from entering the airflow as needed

To provide high volumes of pure stage fog for stagehands and actors

For 3D airflow modeling of airflow

For visual smoke studies and Video Smoke studies in large cleanrooms

When about 90 minutes of high-purity fog duration is needed

When fog visibility of 30-40 feet is desired

For Class 1 to Class 10,000 semiconductor cleanrooms, medical suites, and ISO suites

* Use Hand Gloves and Face Shield when filling Liquid Nitrogen

Use 16M ohm DI water or WFI Pharmaceutical Water
AP35 Ultrapure Fogger, 5 cubic meters fog/minute, 571 ml fog density/minute, 20-30 feet visual airflow, 70 minutes.
When high-purity smoke with less fog volume is needed for regular cleanrooms

To visualize airflow from the ceiling to the floor

To adjust fog volume and airflow velocity to tune fog output to airflow needs

For visual, video, and 3D airflow modeling

For smoke studies supporting ISO and USP guidelines

When about 70 minutes of high-purity fog duration is needed

When fog visibility of 20-30 feet is preferred

For Class 1 to Class 10,000 semiconductor clean rooms, medical suites, and ISO suites
CO2 Fogger,
Vapor DiH2O Fogger, average 4cfm over 10 minutes
When Fogging Hazardous areas, No Electrical Outlet Available

When fog visibility for a 5-6 feet distance is acceptable

When 10 minutes of fog duration is useful

When fogging small areas

Class 10 or above in semiconductor or pharmaceutical clean rooms

When fogging workbenches

16 Meg ohm DI water is standard or Water for Injection, WFI Water

Do not permit DI Water to go stagnant in the water chamber

** Use gloves when handling CO2 ice
