FH1000 PL Fume Hood: Corrosive-Chemical Use and Safety Limits

Handling volatile reagents, strong acids and alkalis requires controls selected for the chemicals and procedures involved. A suitable fume hood is one part of a laboratory’s chemical hygiene program.

Hood materials must be compatible with the chemicals, concentrations and operating conditions. Corrosion resistance varies with the material and exposure.

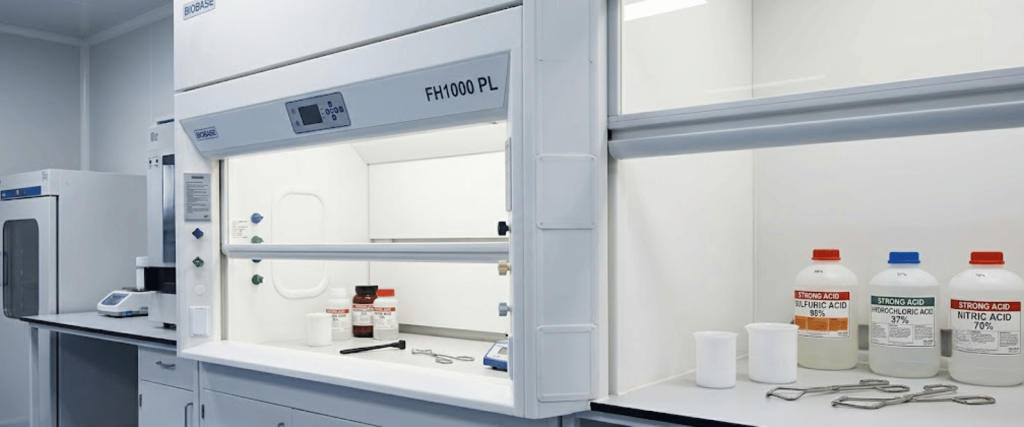

BIOBASE’s FH1000 PL is a polypropylene spray fume hood marketed for corrosive-acid work. Suitability must be confirmed for the specific process and installed exhaust system.

How FH1000 PL Technology Helps Control Corrosive Fumes

The FH1000 PL system combines a PP body, inward exhaust airflow and a circulating spray system. These features must be evaluated together with the installation and the proposed chemicals.

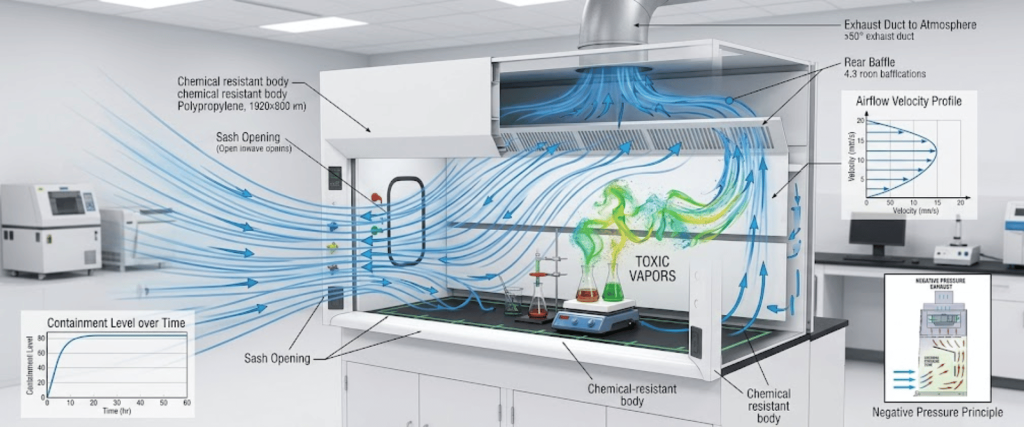

Inward Airflow and Exhaust

A ducted fume hood draws room air through its sash opening to help carry airborne contaminants into the exhaust system. The open sash is not an airtight barrier.

Containment depends on the sash position, airflow distribution, work arrangement and room air currents. Verify performance in the installed setting rather than treating a fan setting as proof of protection.

Integrated Polypropylene Body Construction

BIOBASE specifies an integrally welded main body made from 8 mm porcelain-white polypropylene (PP) sheet. The worktop and front window use separately specified materials.

PP offers useful resistance to many acids and alkalis, but it is not universally inert. Confirm compatibility with the exact chemical mixture, concentration, temperature and exposure duration, especially for strong oxidizers.

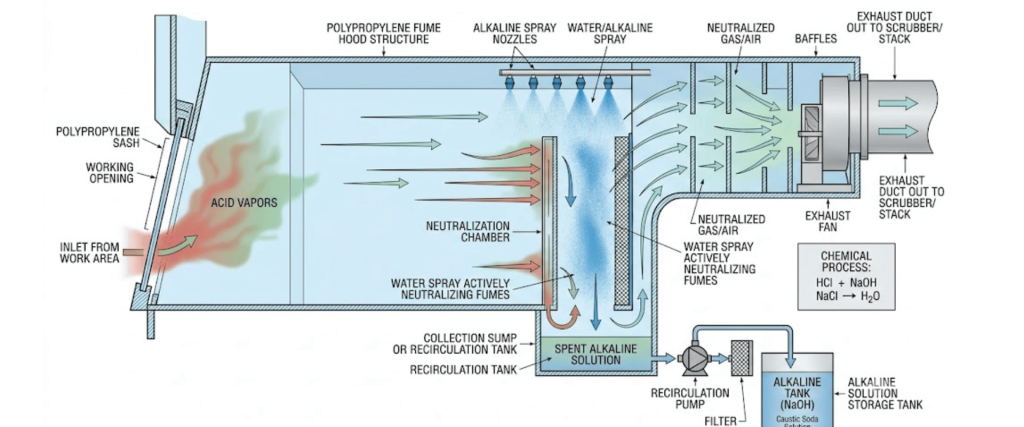

Circulating Spray System

BIOBASE describes an alkaline-water circulation and spray system behind the deflector, intended to treat acid gas. Its listing includes a circulation pump, tank and water circuit.

BIOBASE markets the PL hood for perchloric acid, but its public listing does not establish complete hood-and-exhaust wash-down coverage or explosion-proof construction. Specialized perchloric-acid systems require appropriate materials, dedicated exhaust equipment and wash-down provisions. Obtain the exact configuration and safety review before approving perchloric-acid work.

Structural Core Specifications of the FH1000 PL System

The specifications below retain published FH1000PL values and identify conflicting manufacturer listings. Compare the current linked brochure with the alternative BIOBASE listing, then confirm the supplied unit’s revision, dimensions and installation requirements before planning the layout.

Technical Parameter	Specification Detail
Model	FH1000PL
External Dimensions (W × D × H)	1047 mm × 800 mm × 2450 mm in one BIOBASE listing; current English listings and linked brochure give 1047 mm × 800 mm × 2675 mm. Confirm supplied revision.
Internal Dimensions (W × D × H)	787 mm × 500 mm × 700 mm in one BIOBASE listing; current English listings and linked brochure give 787 mm × 470 mm × 700 mm. Confirm supplied revision.
Main Body Material	8 mm thick porcelain white polypropylene (PP)
Worktop Surface	Chemical-resistant phenolic resin; optional ceramic or epoxy surface
Manufacturer-Listed Airflow Velocity Range	0.3 m/s to 0.8 m/s
Exhaust Air Volume	560 m³/h
Operational Noise Level	≤ 68 dB(A)
Exhaust Duct Diameter	250 mm, PVC material

Key Engineering Safety Features

The manufacturer lists the following components. Their presence does not by itself verify containment performance or uninterrupted operation.

Control Panel: The brochure shows an LED display and describes controls for lighting, electrical circuits and airflow adjustment. Automatic airflow regulation and power-recovery memory are not verified in the reviewed PL documentation.
PP Centrifugal Blower: A built-in, speed-adjustable PP centrifugal blower is listed. BIOBASE publications differ on the included PVC duct length: 4.3 m in one listing and 5 m in the current English listings and brochure. Confirm the supplied accessory and engineered exhaust route.
Adjustable Front Window: BIOBASE lists a manual, height-adjustable 5 mm toughened-glass sash. Use the approved operating opening; changing sash height does not establish that face velocity or containment remains adequate.

Primary Industrial Applications

Potential applications require process-specific review. Neither a PP body nor a spray feature establishes suitability for every corrosive or flammable chemical.

Acid Digestion & Wet Etching: Confirm the acids, temperatures and materials involved. Perchloric-acid digestion requires a suitable perchloric-acid hood and exhaust arrangement; do not approve it solely from the PL product name or internal spray feature.
Pharmaceutical Quality Control: Solvent extraction needs a separate compatibility, ventilation and fire-hazard assessment. The reviewed PL documentation does not establish explosion-proof equipment or suitability for every flammable-solvent process.
Analytical Chemistry Testing: Evaluate the hood for the actual reagents and emission load. Confirm suitable outdoor exhaust, any necessary treatment, and the laboratory’s operating and verification procedures.

Conclusion

The FH1000 PL combines corrosion-resistant construction with a manufacturer-described acid-gas spray system. It is an equipment option to evaluate for a defined laboratory process.

Its 8 mm PP main body, exhaust blower and spray system do not guarantee leak-free containment. Protection depends on verified installation performance, chemical compatibility and correct use.

Follow the chemical hygiene plan, use task-appropriate protective equipment, and maintain and test the hood. Purchasing a hood alone cannot ensure complete protection or indefinite service life.

Frequently Asked Questions (FAQs)

1. What makes the FH1000 PL highly resistant to severe corrosion?

The main body uses 8 mm PP sheet, which resists many corrosive chemicals. Resistance is conditional, especially with oxidizing acids, elevated temperatures or prolonged exposure. Obtain compatibility information for the actual process and all exposed components.

2. How does the active spray system protect the operator?

BIOBASE describes a recirculating spray intended to treat acid gas behind the deflector. That function is separate from capture at the sash and does not prove complete neutralization or full exhaust-system wash-down. Follow the exact unit’s approved operating and maintenance instructions.

3. What is the recommended airflow velocity for this unit?

BIOBASE lists 0.3–0.8 m/s. This is a published product range, not a universal safe operating setpoint. Use the sash position and airflow criteria established for the installed hood and process, and verify performance before relying on it.

4. Can this fume hood be used for acid digestion procedures?

Only after the specific digestion process and installed system have been approved as suitable. Heated or concentrated acids need chemical- and temperature-specific review. For perchloric-acid digestion, require documented suitability of the dedicated hood and exhaust wash-down system; a spray feature alone is insufficient evidence.
