HVAC testing is essential for ensuring efficient airflow and maintaining optimal indoor climates. Accurate airflow measurement can significantly impact system performance, energy consumption, and comfort levels.
The Handheld 6850 Micromanometer is a cutting-edge tool designed to simplify HVAC testing while providing precise measurements for professionals in the field.

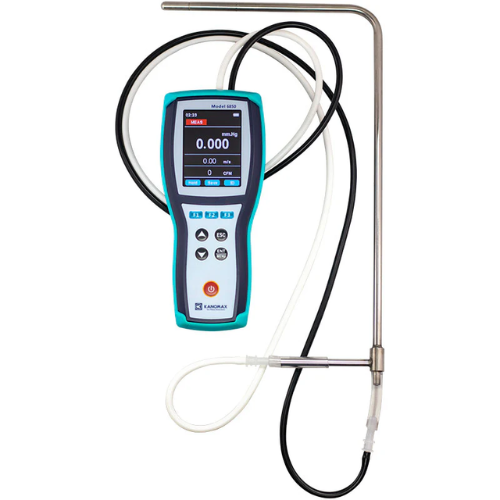

The Handheld 6850 Micromanometer is a portable, user-friendly device designed for accurately measuring airflow and pressure in various HVAC applications. Featuring an ergonomic design and optional strap for easy handling, it is ideal for duct traverses and HVAC system testing.
The device uses a pitot tube to capture precise readings, making it an essential tool for HVAC professionals needing reliable and efficient measurements in the field. With capabilities such as high-resolution pressure readings, average airflow measurement, and data logging, the Handheld 6850 Micromanometer ensures accurate diagnostics and system optimization.
The Handheld Micromanometer Model 6850 works by measuring airflow and pressure using a pitot tube.
The Handheld 6850 Micromanometer offers high-resolution airflow and pressure measurements using a pitot tube. It has an accuracy of ±1.5% of reading (at 10 m/s) for airflow and ±0.5% for pressure measurements, making it an incredibly reliable instrument for HVAC professionals.
With its ergonomic form factor, the 6850 is designed for ease of use. Lightweight and portable, it includes an optional attachable strap for hanging from a technician’s person or a nearby fixture, allowing easy access while traversing ducts.
The 6850 is suitable for various applications, including:
| Feature | Details |
|---|---|
| Model | 6850 |
| Measurement Range | Low to High-Pressure Measurements |
| Accuracy | ±0.5% of Reading |
| Display Type | Digital LCD Screen |
| Power Source | Rechargeable Battery or AAA Cells |
| Connectivity | USB for Data Transfer |
| Weight | Lightweight (Approx. 200g) |
| Applications | HVAC Testing, Environmental Monitoring, Duct Pressure Testing |
The Handheld 6850 Micromanometer provides high-resolution measurements with an accuracy of ±1.5% for airflow and ±0.5% for pressure readings.
This level of precision is crucial for HVAC professionals when diagnosing issues or optimizing system performance. Accurate measurements help ensure that HVAC systems operate efficiently, reducing energy costs and improving indoor air quality.
Designed with professionals in mind, the Handheld 6850 is lightweight and ergonomically shaped, making it easy to carry and operate in various environments. It includes an optional strap for convenient hanging, allowing technicians to have their hands free while testing.
This portability combined with its intuitive interface means that even less experienced technicians can navigate the device quickly and effectively, streamlining the testing process.
HVAC (Heating, Ventilation, and Air Conditioning) Testing, Adjusting, and Balancing (TAB)
| Step | Action | Details |
|---|---|---|
| 1. Setup | Ensure the device is charged or install 4 AA batteries. | Check battery level and replace if necessary before use. |
| 2. Connect | Attach the pitot tube securely to the micromanometer. | Ensure a tight fit to avoid air leaks that can affect readings. |
| 3. Power On | Turn on the Handheld 6850 Micromanometer. | Wait for the device to initialize and display the main screen. |
| 4. Select Mode | Choose the desired measurement mode (airflow or pressure). | Use the device's interface to navigate menu options. |
| 5. Position the Pitot Tube | Insert the pitot tube into the duct at the correct angle and location. | Follow manufacturer guidelines for placement to ensure accuracy. |
| 6. Take Measurements | Record the airflow and pressure readings displayed on the screen. | Make sure to note any fluctuations for a comprehensive analysis. |
| 7. Review Data | Analyze the collected data to determine if the HVAC system is operating efficiently. | Check measurements against expected values for troubleshooting. |
| 8. Document Findings | Log the measurements and any observations for future reference or reporting. | Use a digital or paper log to maintain records of performance. |
The Handheld 6850 Micromanometer enables quick and accurate measurements, significantly reducing the time required for HVAC testing. Professionals can perform duct traverses faster and with greater confidence.
With precise readings, technicians can make informed decisions during testing and adjustments, leading to improved HVAC performance and satisfied clients.
| Feature | Handheld Micromanometer Model 6850 | Typical Other Handheld Micromanometers |
|---|---|---|
| Airflow Range | 0.2 to 60 m/s | Varies, typically 0.1 to 30 m/s |
| Pressure Range | -2500 to 2500 Pa | Varies, typically -1000 to 1000 Pa |
| Airflow Accuracy | ±1.5% of reading (at 10 m/s) | Varies, typically ±2.0% to ±3.0% of reading |
| Pressure Accuracy | ±0.5% of reading ±1 Pa | Varies, typically ±1.0% to ±1.5% of reading |
| Data logging | 10,000 Measurements | Varies, some models may have less or no data logging |
| Portability & Ergonomics | Ergonomic design with an optional strap for easy duct traverse | Varies, some may be less ergonomic |
| Duct Traverse Capability | Yes, designed for easy duct traverse with a pitot tube | Some models may require additional accessories or be less suited for duct traverse |
| Common Applications | HVAC testing, adjusting & balancing, duct traverse | General HVAC testing, basic airflow measurement |
To understand the data collected by the Handheld 6850 Micromanometer, focus on the airflow and pressure readings. Airflow is measured in meters per second (m/s), accurately indicating the speed of the air.
Pressure is measured in Pascals (Pa), representing the air pressure within the duct system. By comparing these readings, you can assess the HVAC system’s performance and make informed decisions for adjustments to improve airflow and optimize energy consumption.
