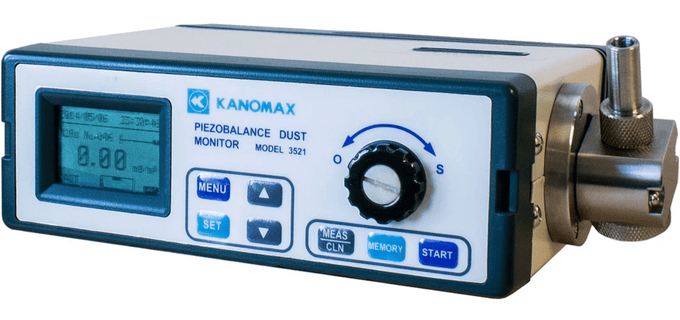

What is the Piezobalance Dust Monitor Model 3521?

The Piezobalance Dust Monitor Model 3521 is an advanced device for measuring air quality, using piezoelectric crystal technology to measure the mass concentration of particulate matter directly.

Unlike conventional dust meters that only count particles, it “weighs” them by detecting frequency changes in the crystal as particles settle on it, providing precise readings in the range of 0.01 to 10 mg/m³ without K-factor adjustments.

Equipped with 10μm and 4μm impactors, it can monitor PM10 and respirable particles, making it ideal for industrial environments and specialized uses like oil mist monitoring.

How does the Piezobalance Dust Monitor work?

The Piezobalance Dust Monitor measures actual particle mass instead of estimating through particle counts. Air samples enter at a controlled flow rate of 1 L/min and pass through impactors (4µm or 10µm) to separate larger particles.

Smaller particles are electrically charged and deposited on a piezoelectric crystal, altering its vibration frequency based on their mass. This frequency change is measured and converted into a direct mass concentration reading (mg/m³), eliminating the need for K-factors used in light-scattering methods. Regular cleaning (about hourly) is required for optimal performance

What are the key features of the monitor model 3521?

Dual Impactor Technology: Comes equipped with both 10μm and 4μm impactors to effectively measure PM10 and respirable particles in a single device
Direct Mass Measurement: Uses piezoelectric crystal technology to actually "weigh" particulate matter rather than merely counting particles, providing more accurate concentration readings
Specialized for Oil Mist: Particularly effective for monitoring oil mist concentrations in industrial environments, a capability that distinguishes it from many other dust monitors
High Accuracy Measurement: Delivers precision with ±10% accuracy in the 0-5 mg/m³ range, measuring concentrations from 0.01 to 10 mg/m³
Comprehensive Data Management: Features storage capacity for 500 time-stamped measurements and includes data processing software with RS-232C interface
No K-Factor Required: Unlike light-scattering methods, requires no density correction factors, eliminating a significant source of measurement error
Portable Design: Compact dimensions (180 × 150 × 65mm) and lightweight construction (4.4 lbs/2 kg) with rechargeable Ni-MH battery for field use
Complete Package: Includes essential accessories such as software, RS232C cable, cleaning kit, battery pack, AC adapter, carrying case, and calibration certificate
Simple Maintenance: Features an easy cleaning mechanism to maintain optimal performance, though requires periodic cleaning (approximately hourly)
NIST Traceable Calibration: Comes with certification ensuring measurement accuracy and reliability to national standards.

Applications: Versatile Solutions for Critical Environments

The Piezobalance Dust Monitor 3521 excels in numerous industrial and environmental applications:

Oil Mist Monitoring

The system’s ability to accurately measure oil mist concentrations makes it invaluable for:

Automotive Engineering Area Monitoring

Automotive manufacturing and testing environments benefit from the monitor’s ability to detect various particulates generated during:

Industrial Hygiene Applications

The direct mass measurement capability provides critical data for:

Technical Specifications: Precision Engineering for Reliable Results

The Piezobalance Dust Monitor 3521 delivers exceptional performance across key parameters:

Parameter	Specification
Measuring Range	0.01 to 10 mg/m³
Accuracy	±10% of reading ±1 digit (0-5 mg/m³) ±20% of reading ±1 digit (5-10 mg/m³)
Sampling Flow Rate	1 L/min
Data Logging Capacity	500 time-stamped measurements
Interface	RS-232C
Power Supply	Rechargeable Ni-MH battery or AC adapter
Dimensions	180 × 150 × 65mm (H7.0" × D5.9" × W2.7")
Weight	4.4 lbs (2 kg)
Warranty	1 year

Benefits of Using Piezobalance Dust Monitor for Particulate Measurement

Direct Mass Measurement: Uses piezoelectric technology to actually "weigh" particles rather than just counting them, providing more accurate concentration readings
No K-Factor Required: Eliminates the need for density correction factors required by light-scattering monitors, reducing potential measurement errors
Specialized Oil Mist Capability: Particularly effective for monitoring oil mist concentrations in industrial environments
Versatile Measurement Range: Measures particles from 0.01 to 10 mg/m³ with high accuracy (±10% in the 0-5 mg/m³ range)
Multiple Particle Size Monitoring: Model 3521 comes with dual impactors (10μm and 4μm) to measure both PM10 and respirable particles
Comprehensive Data Management: Stores up to 500 time-stamped measurements with included data processing software
Real-Time Results: Provides immediate concentration readings for prompt decision-making
Portable Design: Compact size and rechargeable battery make it suitable for field use in various environments
Complete Solution: Includes all necessary accessories including calibration certificate, cleaning kit, and software
Easy Maintenance: Features a simple cleaning mechanism to maintain optimal performance

Importance of Measuring PM 2.5 in Air Quality Monitoring

Monitoring PM 2.5 (particulates smaller than 2.5 micrometers) is essential for air quality assessment as these microscopic particles can reach the lungs and enter the bloodstream, causing asthma, heart attacks, and respiratory issues. They primarily originate from combustion sources like vehicle emissions and industrial processes and can remain suspended in the air for long periods.

Instruments like the Piezobalance Dust Monitor provide accurate PM 2.5 measurements, helping ensure regulatory compliance, issue health advisories during pollution events, and implement targeted control strategies. This data is crucial for identifying pollution sources and guiding public health interventions.

How To Choose The Best Dust Monitor

Verification of Technical Specifications

Compare measurement ranges (e.g., 0.01 to 10 mg/m³).
Check accuracy ratings (e.g., ±10% for 0-5 mg/m³ range).
Ensure monitoring capabilities match your requirements (PM10, PM2.5, or Respirable).
Confirm that the technology used (piezo balance vs. light-scattering) is suitable for your application.

Calibration and Certification Review

Verify that the supplier provides NIST traceable calibration certificates.
Check the availability of calibration services.
Ensure the calibration procedure complies with your industry's regulations.
Inquire about calibration intervals and recalibration options.

Evaluation of Service and Support

Assessment of Product Range and Accessories

Ensure all necessary accessories are available (cleaning kits, software, etc.).
Check the availability of consumables and replacement parts.
Confirm compatibility with your existing equipment.
Verify if specialized models are available for specific applications (e.g., oil mist).

Warranty and Terms Assessment

Researching the Company's Reputation

Focus on Cost and Value

Testing Equipment Performance

How to Maintain and Calibrate a Piezobalance Dust Monitor

Maintain

Regular maintenance ensures accurate readings and extends the device’s lifespan. Follow these steps:

Hourly Cleaning: Clean the piezo-crystal after every hour of continuous use using the provided cleaning kit.

Daily Check: Inspect impactors, air inlet, and outlet ports for dust accumulation.

Weekly Maintenance: Clean impactors with the recommended cleaning fluid and dry them before reinstallation.

Battery Care: Fully recharge the Ni-MH battery every 2-3 days or after heavy use.

Proper Storage: Keep the device in a clean, dry place at a stable temperature (20-25°C).

Calibration

Annual calibration is recommended to maintain accuracy.

Zero Calibration: Before use, verify the device’s baseline by purging air and ensuring a zero reading.

Span Calibration: Use standard test dust or reference material to adjust readings as per industry standards.

Authorized Calibration: For precise results, send the device to an authorized service center for NIST-traceable calibration.

Record Keeping: Maintain logs of calibration dates and results for compliance and performance tracking.

Service Schedule for Monitor Model 3521

Hourly Cleaning: The device should be cleaned every hour during continuous operation, as particles accumulate on the piezo-crystal
Daily Inspection: Perform visual inspection of impactors, air inlet, and outlet ports before each day's use
Battery Maintenance: Fully recharge the Ni-MH battery every 2-3 days or after heavy use
Weekly Cleaning: Thoroughly clean the impactors weekly, especially when used in dusty environments
Monthly Check: Conduct a general check of flow rate and system performance monthly
Annual Calibration: Perform calibration at least annually to ensure accuracy
Environment-Based Adjustment: In dusty or harsh environments, cleaning and maintenance may need to be more frequent (possibly daily)
Post-Heavy Use Service: Comprehensive service is recommended after any extensive monitoring project
Service Based on Company SOPs: Some companies require specific service intervals according to their Standard Operating Procedures
Regulatory Compliance: The calibration schedule may need to be adjusted according to industry regulations.

The Advantage Over Light-Scattering Methods

Unlike light-scattering dust monitors that require K-factor adjustments based on particulate density, the Piezobalance Dust Monitor provides direct mass measurements without this additional calculation step. This eliminates a significant source of potential error and simplifies the monitoring process.

Key differentiating factors include:

Essential Accessories and Support Options

To maximize functionality and operational efficiency, several accessories are available:

Portable Printer (Model DPU-S245): For immediate documentation of readings
Printer Paper (Model TP-5RLPK): Specialized paper for the portable printer
Replacement Ni-MH Battery Pack (Model 3521-01): For extended field operation
Cleaning Supplies: Including replacement sponges (Model 3521-06) and cleaning fluid (Model 3521-07)

Maintenance Tips to Extend Dust Meter Lifespan

Regular Cleaning Schedule: Clean the piezo-crystal after every hour of continuous use to prevent particle buildup that can affect accuracy and strain the instrument.
Proper Impactor Maintenance: Remove, disassemble, and clean impactors weekly using the recommended cleaning fluid, ensuring they're completely dry before reinstallation.
Careful Handling: Always transport the meter in its protective carrying case and avoid dropping or jarring the instrument, as the sensitive piezoelectric crystal can be damaged by impact.
Appropriate Storage: Store in a clean, dry environment with a stable temperature (20-25°C) when not in use, away from extreme temperatures, humidity, and vibration.
Battery Management: Follow proper charging protocols for the Ni-MH battery pack—completely discharge before recharging, and avoid leaving the battery depleted for extended periods.
Flow Rate Verification: Check the sampling flow rate (1 L/min) monthly using a calibrated flow meter to ensure accurate measurements and proper functioning.
Inlet Protection: When operating in extremely dusty environments, consider using pre-filters to prevent excessive particle loading.
Regular Zero Calibration: Perform zero calibration checks before each use to verify baseline performance and catch early signs of drift.
Scheduled Professional Service: Beyond regular maintenance, have the instrument professionally serviced annually by authorized technicians.
Software Updates: Keep the data processing software updated to the latest version to ensure compatibility and access to improved features.
Proper Shutdown Procedure: Always follow the correct shutdown sequence after use, allowing the system to complete its cycle before powering off.
Connection Care: Inspect and clean cable connections regularly, particularly the RS-232C interface, to prevent data transfer issues.
Humidity Control: Avoid using the instrument in environments with excessive humidity that could damage internal electronics.
Filter Replacement: Replace any internal filters according to manufacturer recommendations to maintain proper airflow.
Documentation: Maintain detailed records of all maintenance activities, calibrations, and repairs to track the instrument's history and identify patterns requiring attention.

Conclusion

The Piezobalance Dust Monitor 3521 represents a significant advancement in particulate matter measurement technology. By providing direct mass concentration readings of airborne particulates, it offers industrial hygienists, safety professionals, and environmental specialists a more accurate and reliable tool for assessing potential respiratory hazards.

Its unique piezoelectric measurement principle, combined with comprehensive data management capabilities and specialized applications for oil mist monitoring, positions the 3521 as an essential instrument for organizations committed to maintaining high air quality standards and ensuring regulatory compliance.
