Rotating Vane Anemometers for HVAC Ventilation & Balancing: Best Guide

Understanding Rotating Vane Anemometers in HVAC

Rotating vane anemometers are essential tools for HVAC professionals, delivering precise airflow measurements for system commissioning, troubleshooting, and maintenance.

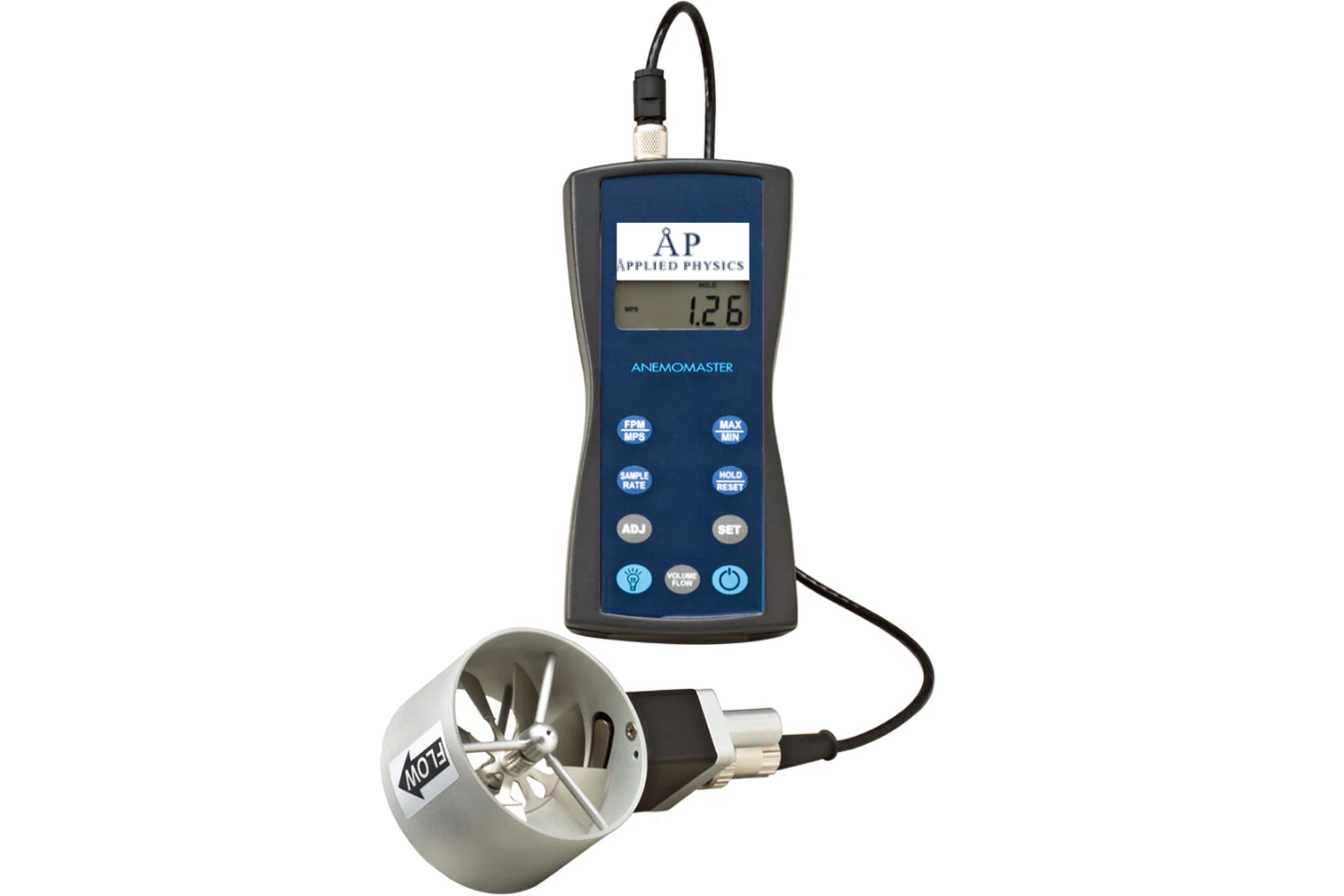

The Anemomaster™ 6820 Series offers high accuracy (±1.0% of reading), making it ideal for reliable performance checks. Unlike basic handheld models, it automatically calculates volume flow in CFM and CMH, streamlining the process and minimizing errors.

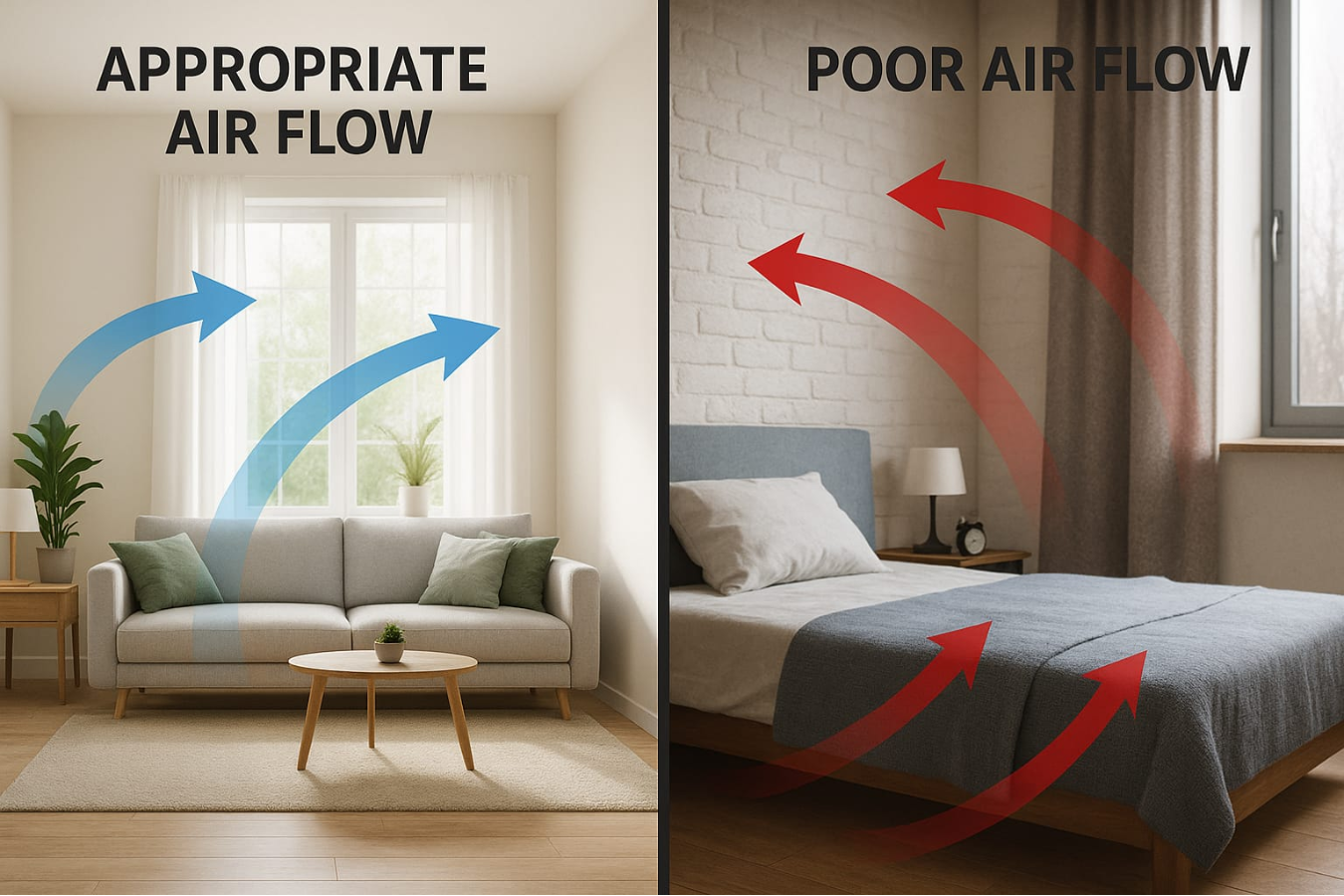

Why Accurate Airflow Measurement Matters in HVAC

Proper airflow is the foundation of every well-functioning HVAC system. Imbalanced or inadequate airflow can result in:

By using precision instruments like the 6820 Series anemometers, HVAC professionals can quantify airflow issues, make data-driven adjustments, and verify system performance against design specifications.

Key Features of the Anemomaster™ 6820 Series

Superior Measurement Capabilities

Exceptional accuracy: ±1.0% of reading gives confidence in measurements
High sensitivity: Can detect air velocities as low as 40 FPM with the 2.75" probe
Extensive range: Measures up to 6890 FPM with the 1" probe
Temperature measurement: Some models offer a temperature range from -4°F to 212°F
Humidity monitoring: Model 6825 measures relative humidity from 5.0% to 95.0%

User-Friendly Design Elements

Memory functions: Can store up to 10 different commonly-used duct sizes
Automatic calculations: Automatically converts velocity measurements to volume flow
Compact size: W 3.07 x D 1.32 x H 6.26 inches – easy to handle
Rugged construction: The Metal probe and vane can withstand tough environments
NIST-traceable calibration: Each unit comes with a calibration certificate

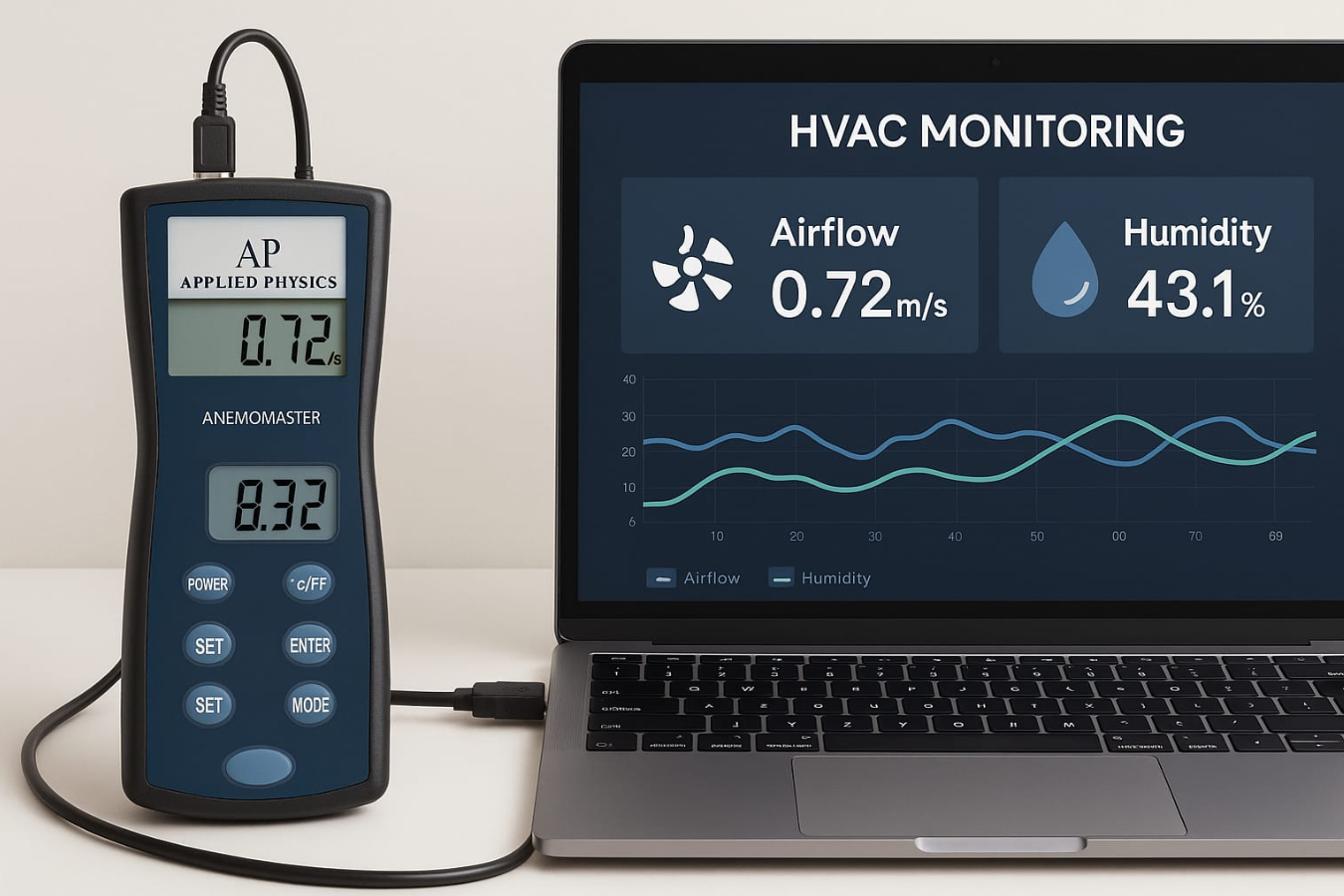

Connectivity and Data Management

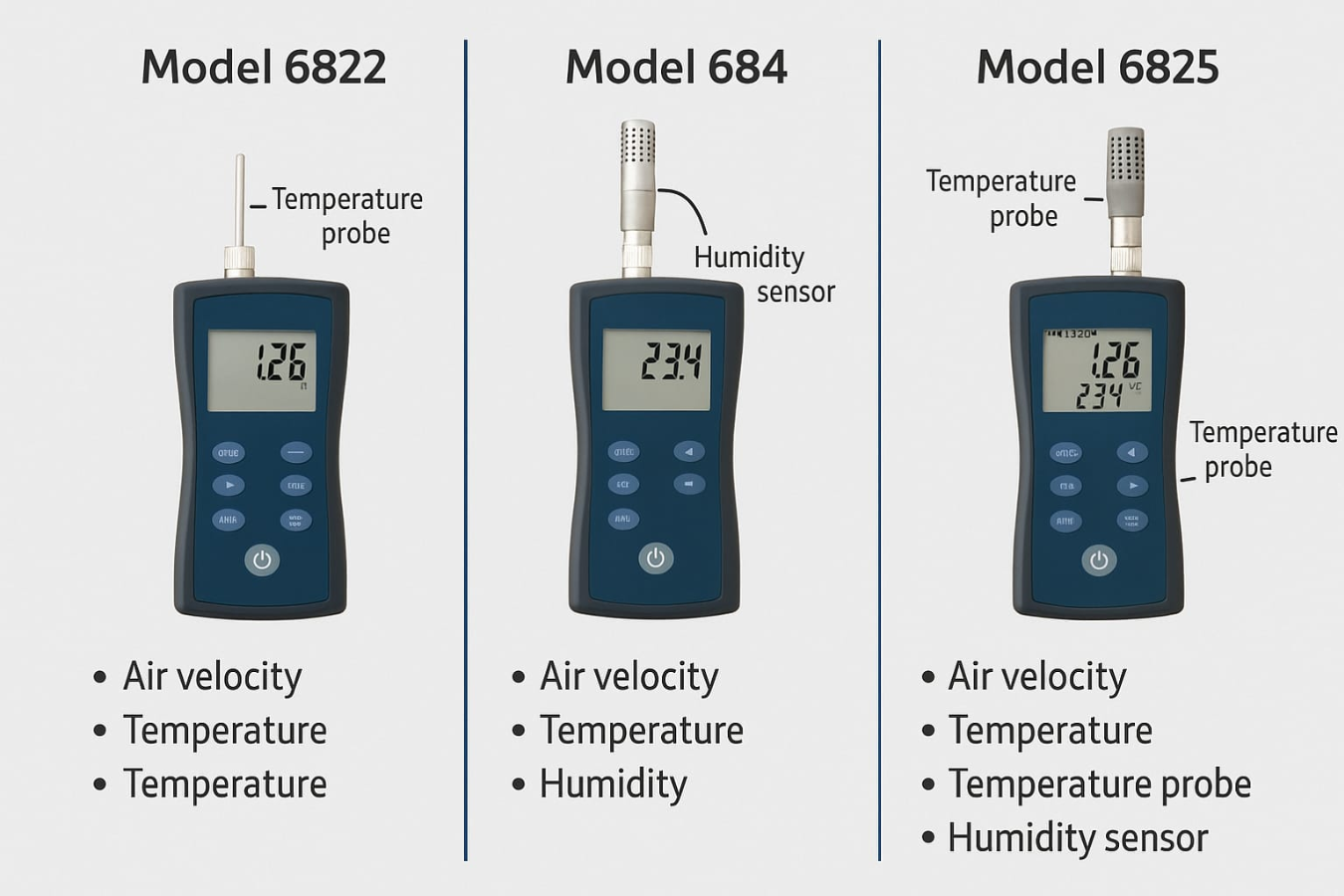

Choosing the Right Model for Your Application

The 6820 Series offers three primary models, each designed for specific measurement needs:

Model 6822: Basic Airflow Measurement

Best for 6822: Standard ventilation testing and balancing

Model 6824: Temperature and Airflow Analysis

Best for 6824: Applications where temperature monitoring is crucial

Model 6825: Complete Environmental Monitoring

Best for 6825: Indoor air quality investigations and critical environments

Practical Applications in HVAC Ventilation and Balancing

Commissioning New HVAC Systems

New system commissioning requires thorough airflow verification to ensure performance meets design specifications. The 6820 Series facilitates this process by:

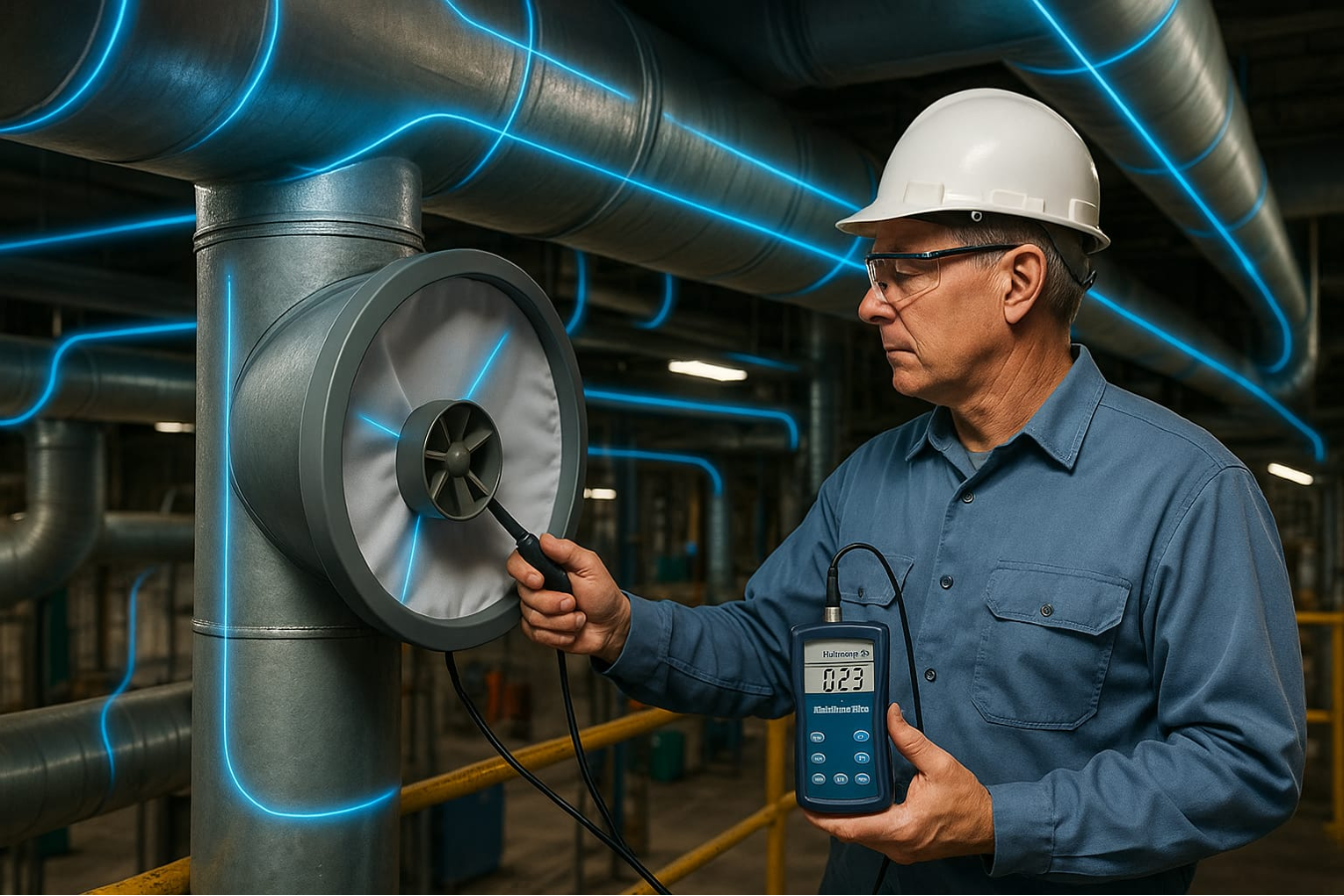

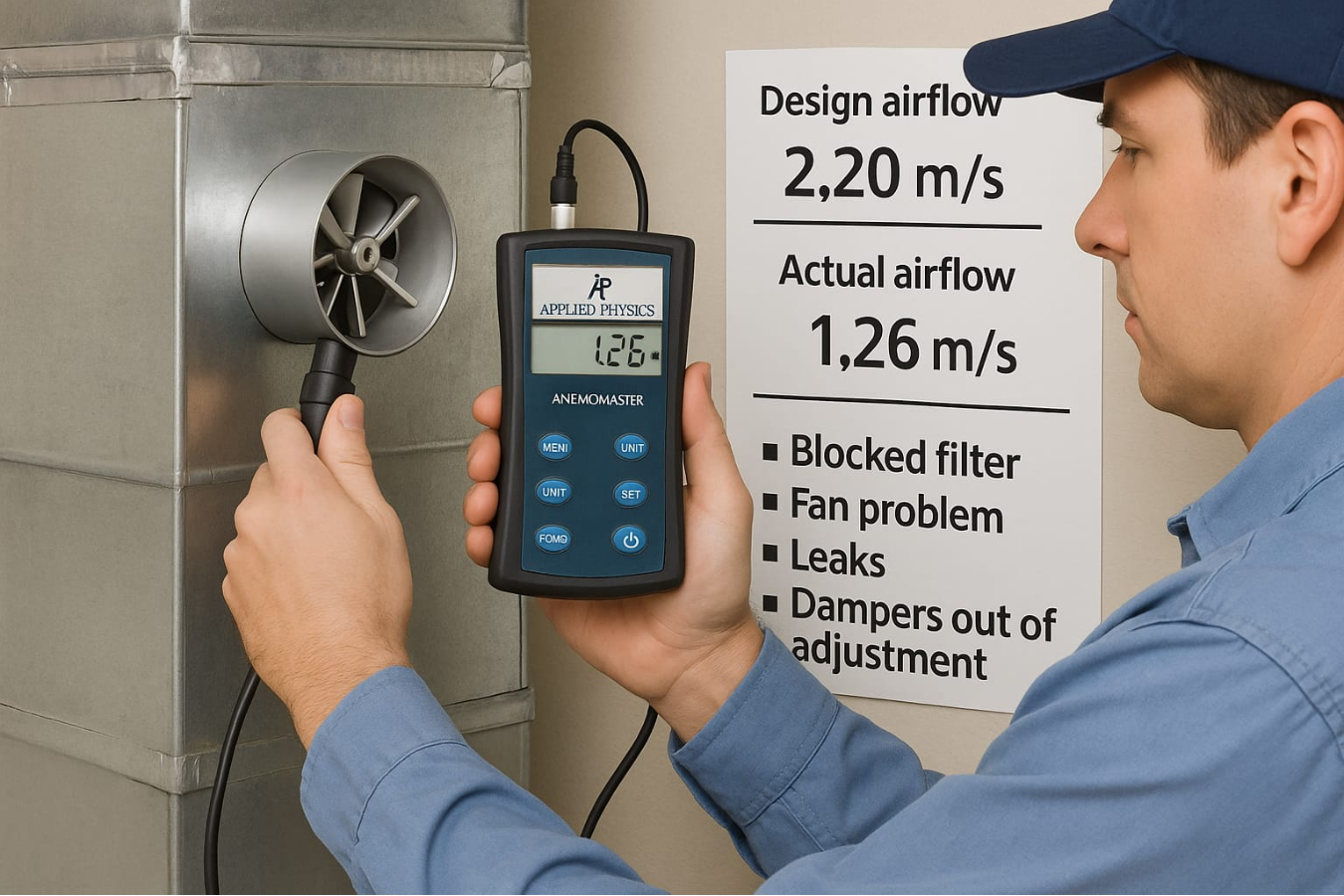

Troubleshooting Existing Systems

When occupant complaints or performance issues arise, the 6820 Series helps identify and quantify problems:

Indoor Air Quality Investigations

Model 6825, with its humidity and temperature capabilities, excels in IAQ applications:

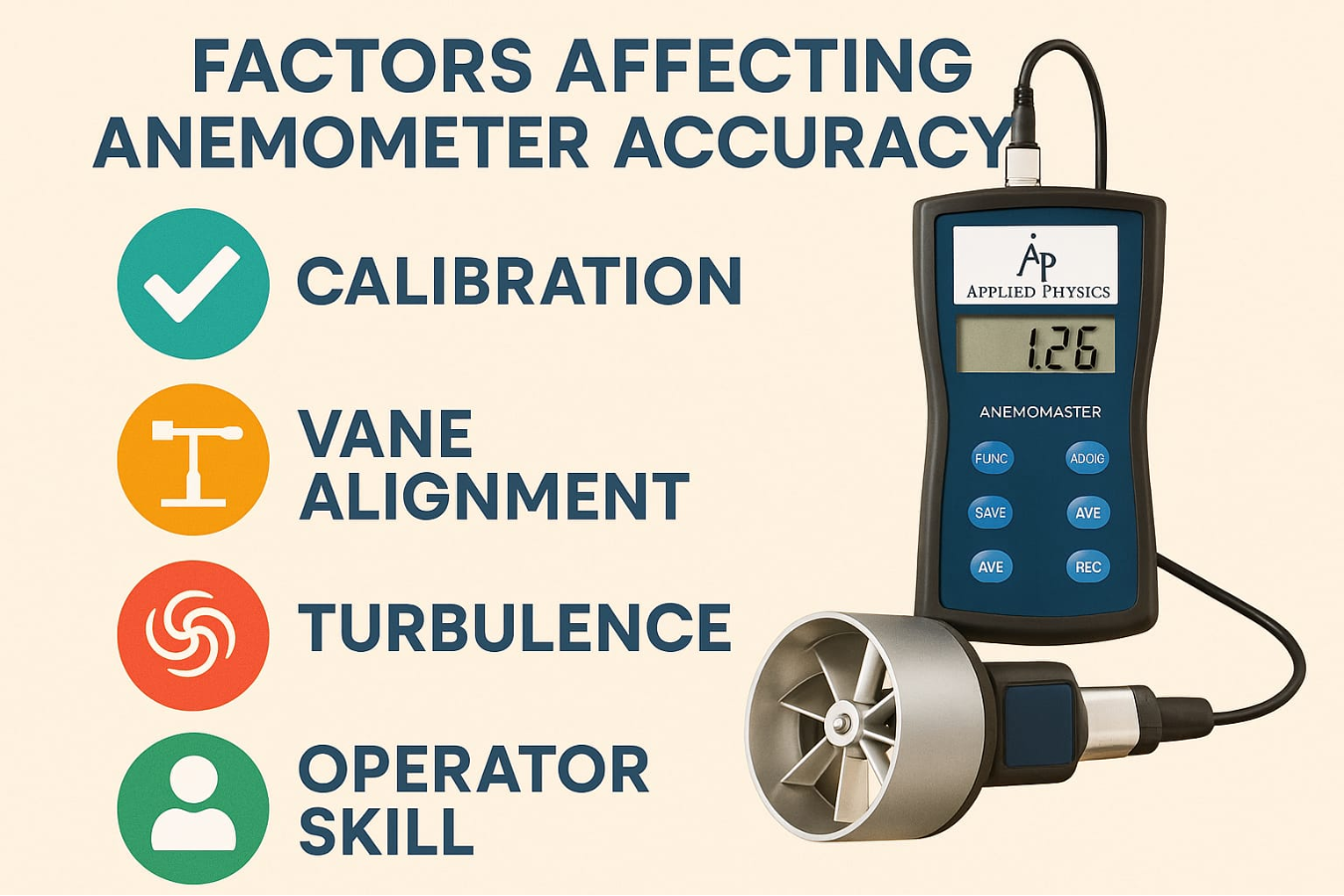

How Accurate are the Readings from a Vane Anemometer?

Airflow Velocity Range: Best accuracy is achieved at mid-range velocities (around ±1%), but it can drop to ±3%-5% at extreme ranges.
Operator Skill: Proper handling and training reduce errors and improve accuracy.
Instrument Quality & Model: High-end models (like Anemomaster™ 6820) have accuracy around ±1%, while basic models may have ±3% or more error.

Best Practices for Obtaining Accurate Velocity Readings

Method	Description	Benefits
Proper Calibration	Regularly calibrate the anemometer against a standard airflow	Ensures accurate and reliable readings
Correct Vane Placement	Position the vane correctly at the duct center or specified point	Measures the true airflow velocity
Take Measurements at Multiple Points	Measure airflow at different points (center, edges)	Averaging these readings improves accuracy
Allow Airflow to Stabilize	Wait for airflow to stabilize before taking readings	Avoids fluctuating or inconsistent measurements
Maintain Proper Angle	Align the vane correctly with the airflow direction	Captures maximum airflow and ensures correct velocity
Control Environmental Factors	Monitor temperature, humidity, and turbulence	Improves the consistency of measurements
Regular Maintenance	Keep the vane and instrument clean and protected from damage	Maintains device performance and accuracy
Operator Training	Provide proper training to the user	Reduces errors and increases data reliability

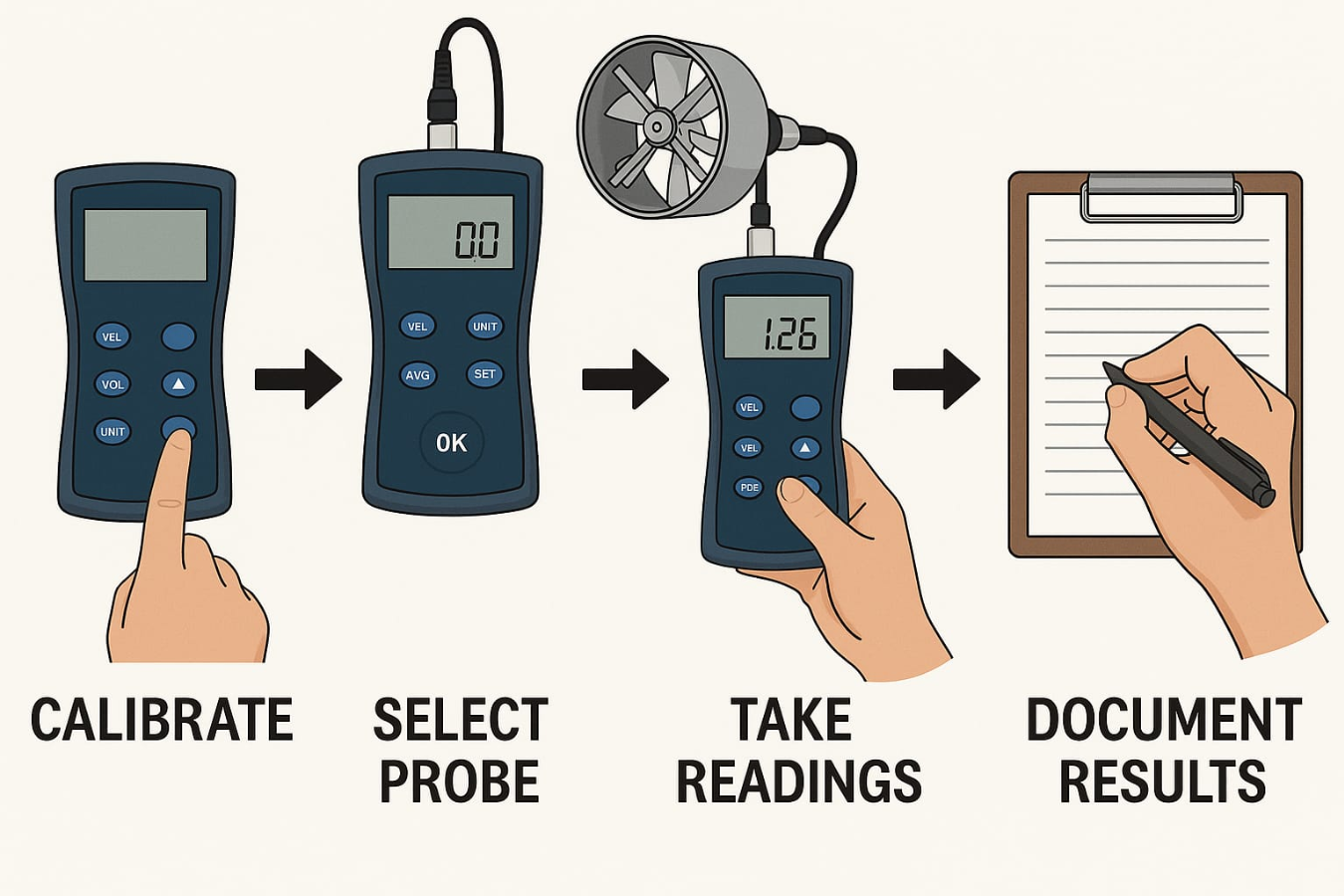

Step-by-Step Guide to Proper Measurement Techniques

Preparing for Accurate Measurements

Ensure proper calibration: Check that the calibration date is current
Check battery level: Replace batteries if the indicator shows low power
Select appropriate probe: Use the 2.75" probe for low velocities, and the 1" probe for high velocities
Assemble extension rods: Attach rigid or flexible extensions for hard-to-reach locations
Allow instrument to acclimate: Give the anemometer time to adjust to the ambient temperature.

Taking Velocity Measurements

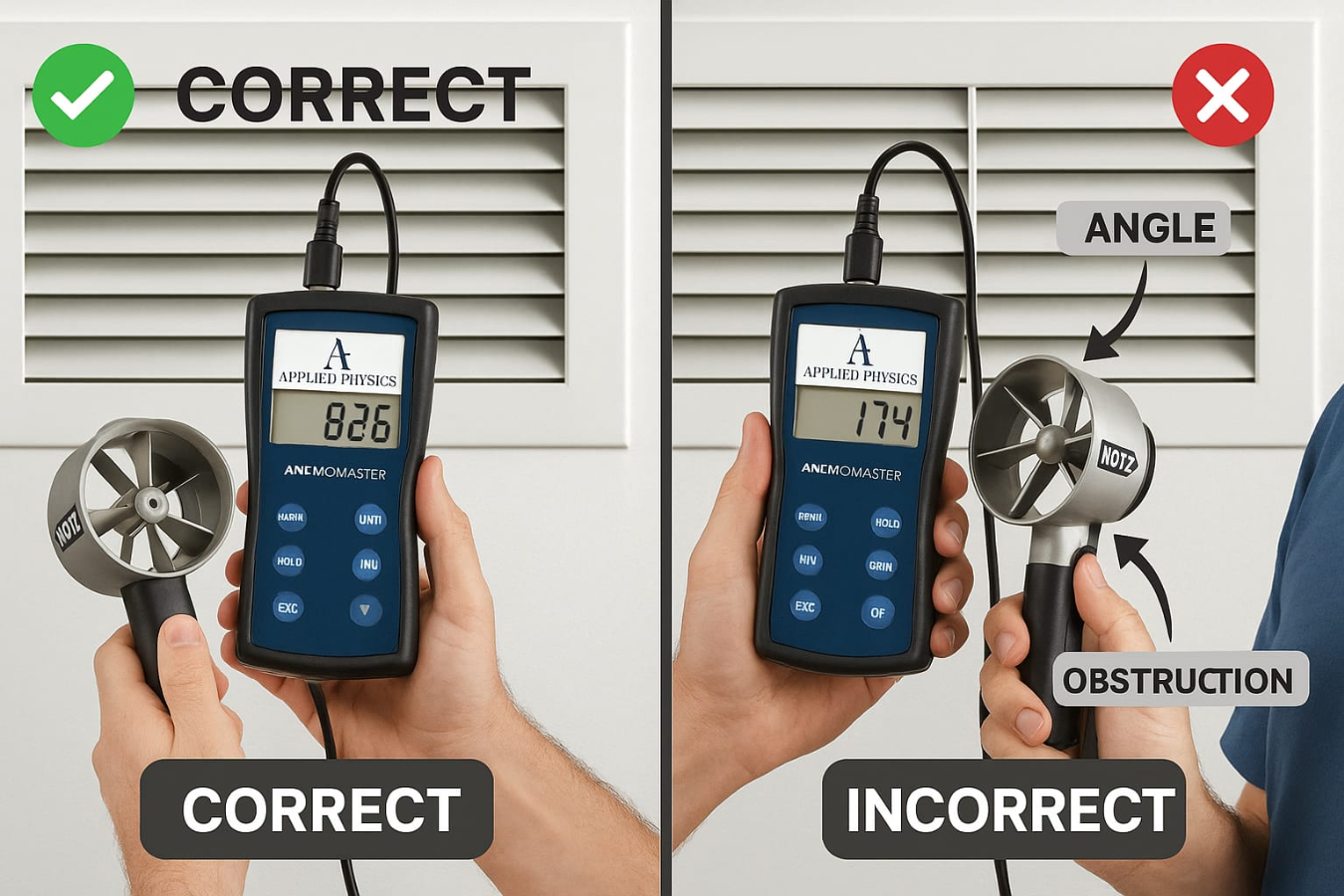

Position the probe correctly: Hold the vane perpendicular to the direction of airflow
Maintain minimum distances: Stay at least 5 duct diameters away from transitions or obstructions
Use proper technique: Hold steady and allow readings to stabilize for 10-15 seconds
Take multiple readings: Sample several points in larger ducts or outlets
Record conditions: Note temperature, humidity, and barometric pressure when relevant.

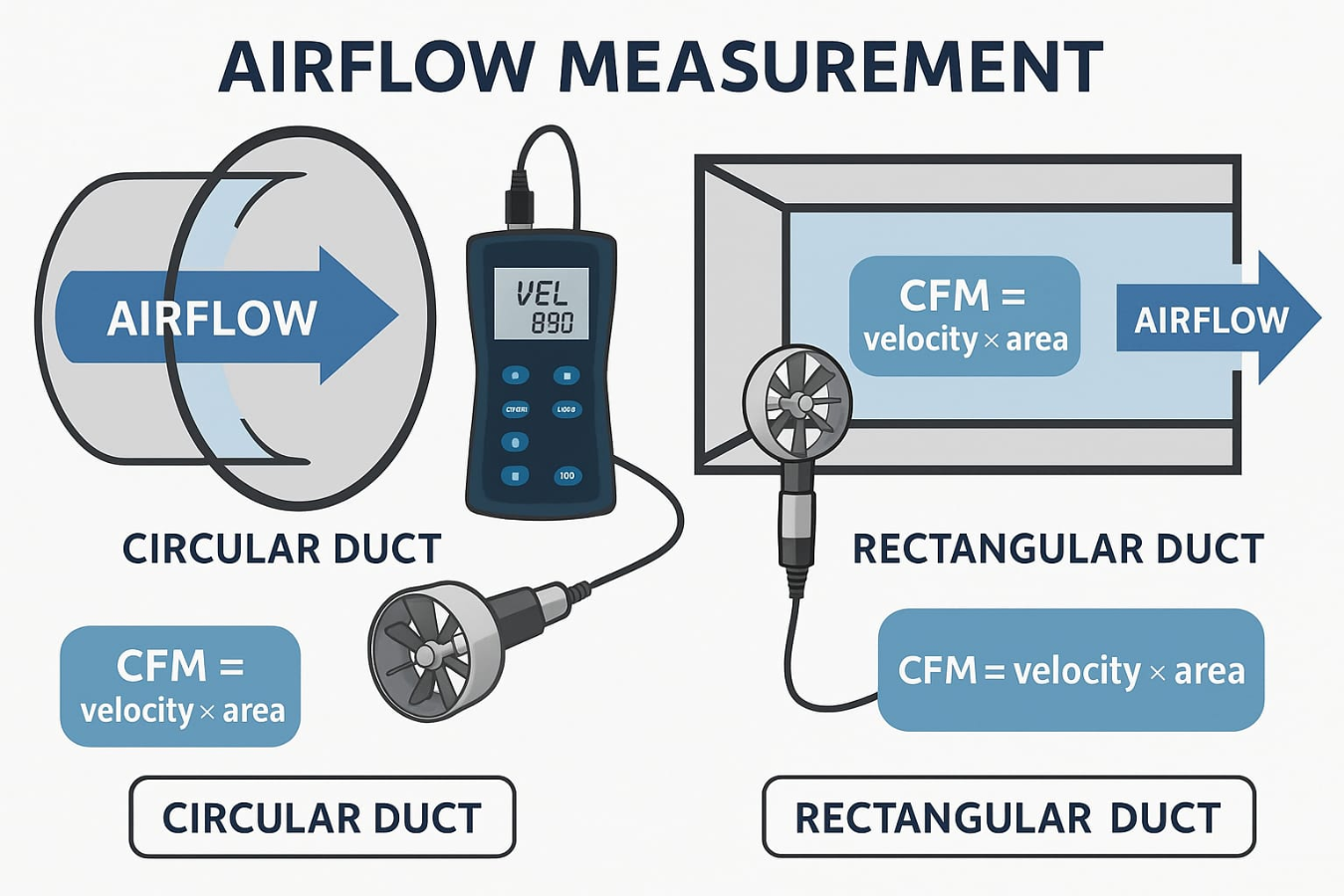

Calculating Volume Flow

1. Enter duct dimensions

2. Use traversing techniques for large ducts

3. Store common duct sizes

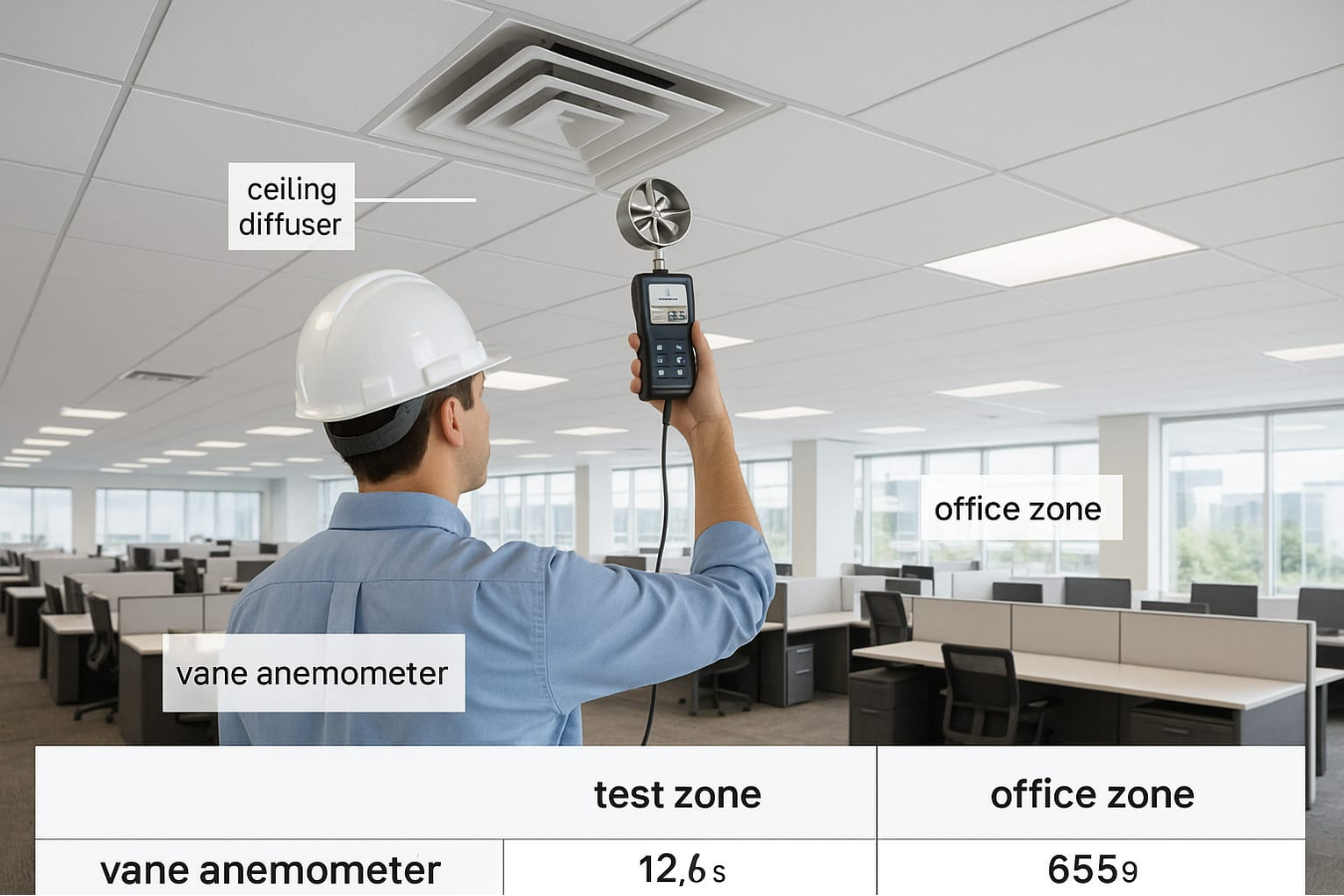

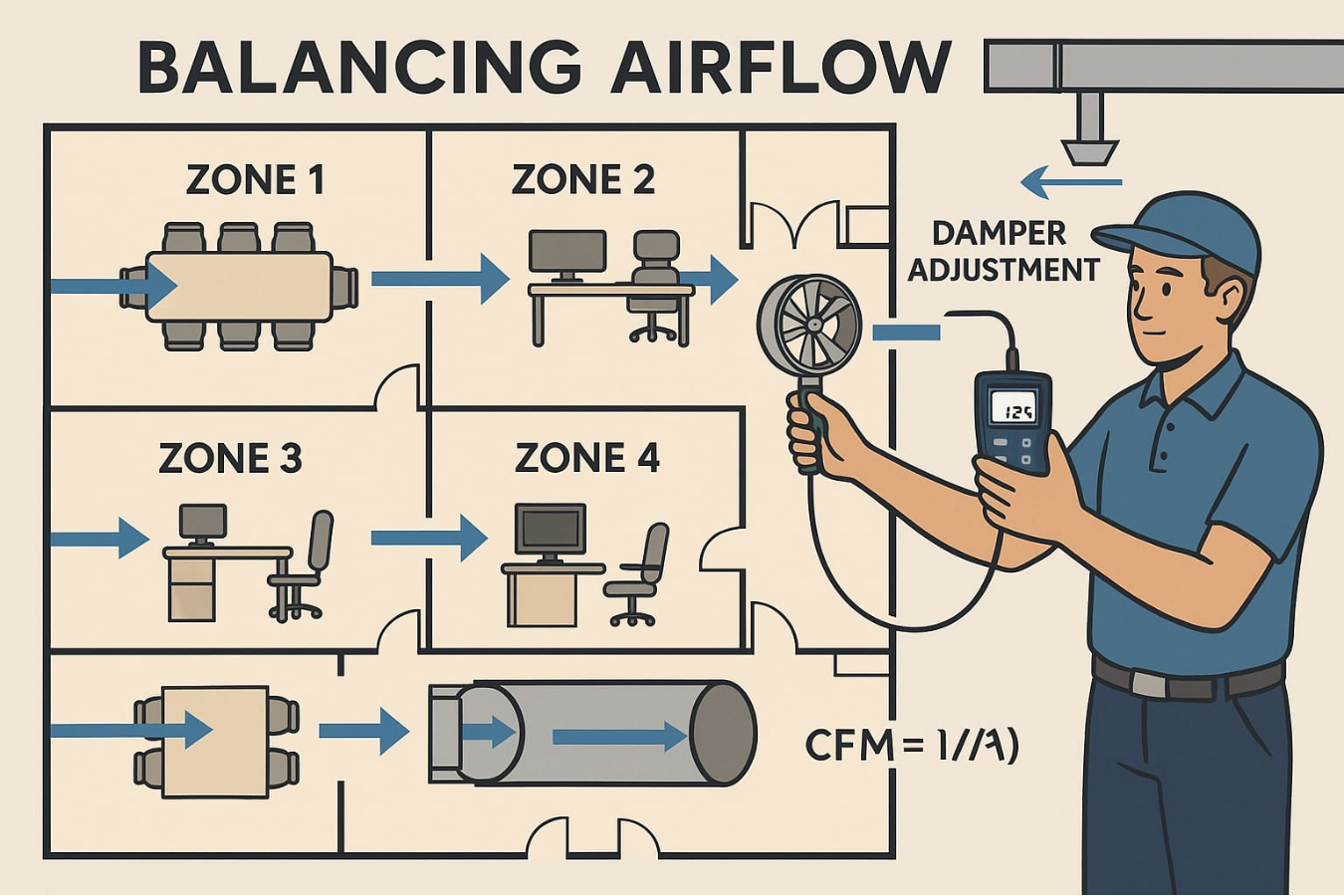

Balancing Multi-Zone Systems

Best Practices for Reliable Results

Avoiding Common Measurement Errors

Proper Care and Maintenance

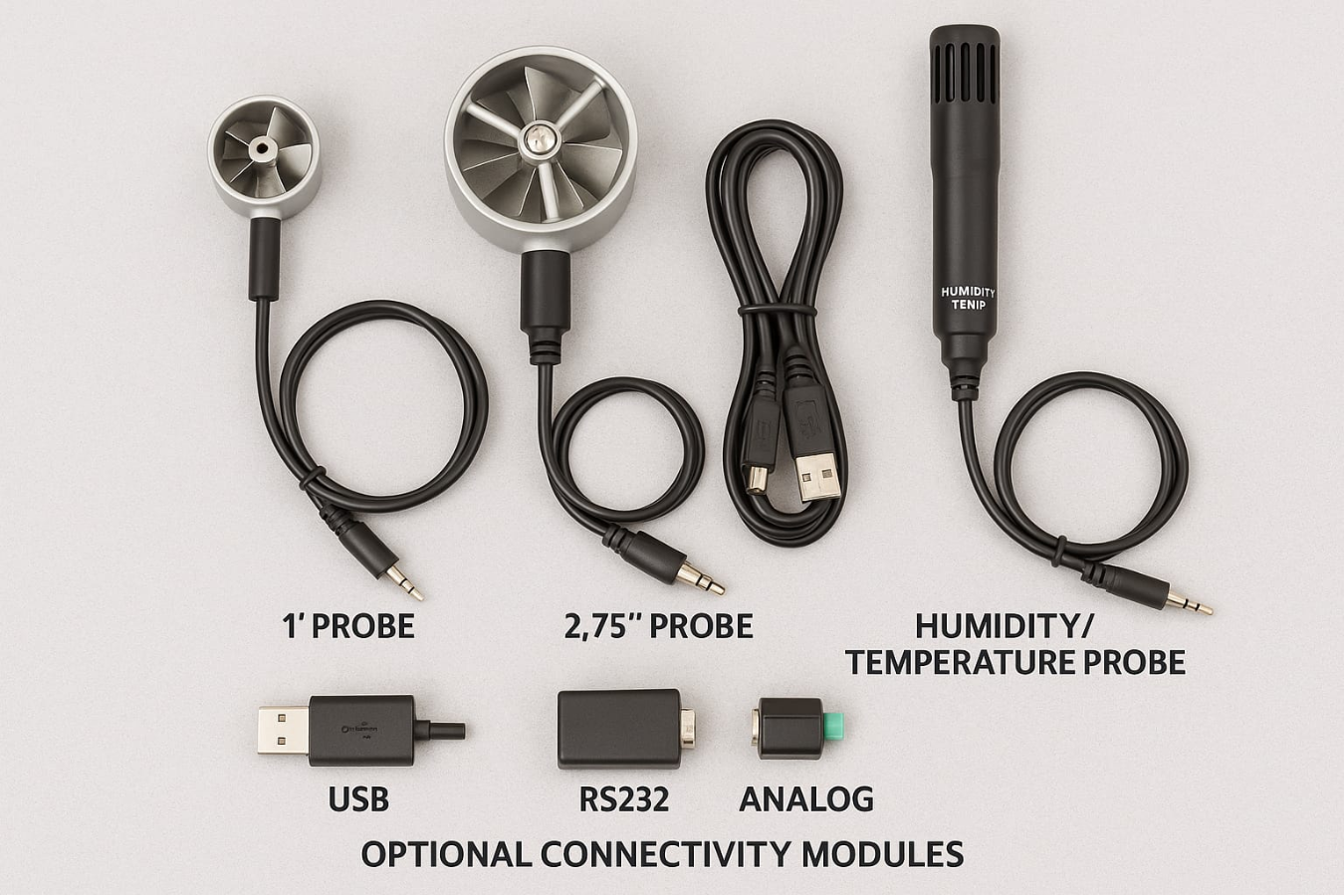

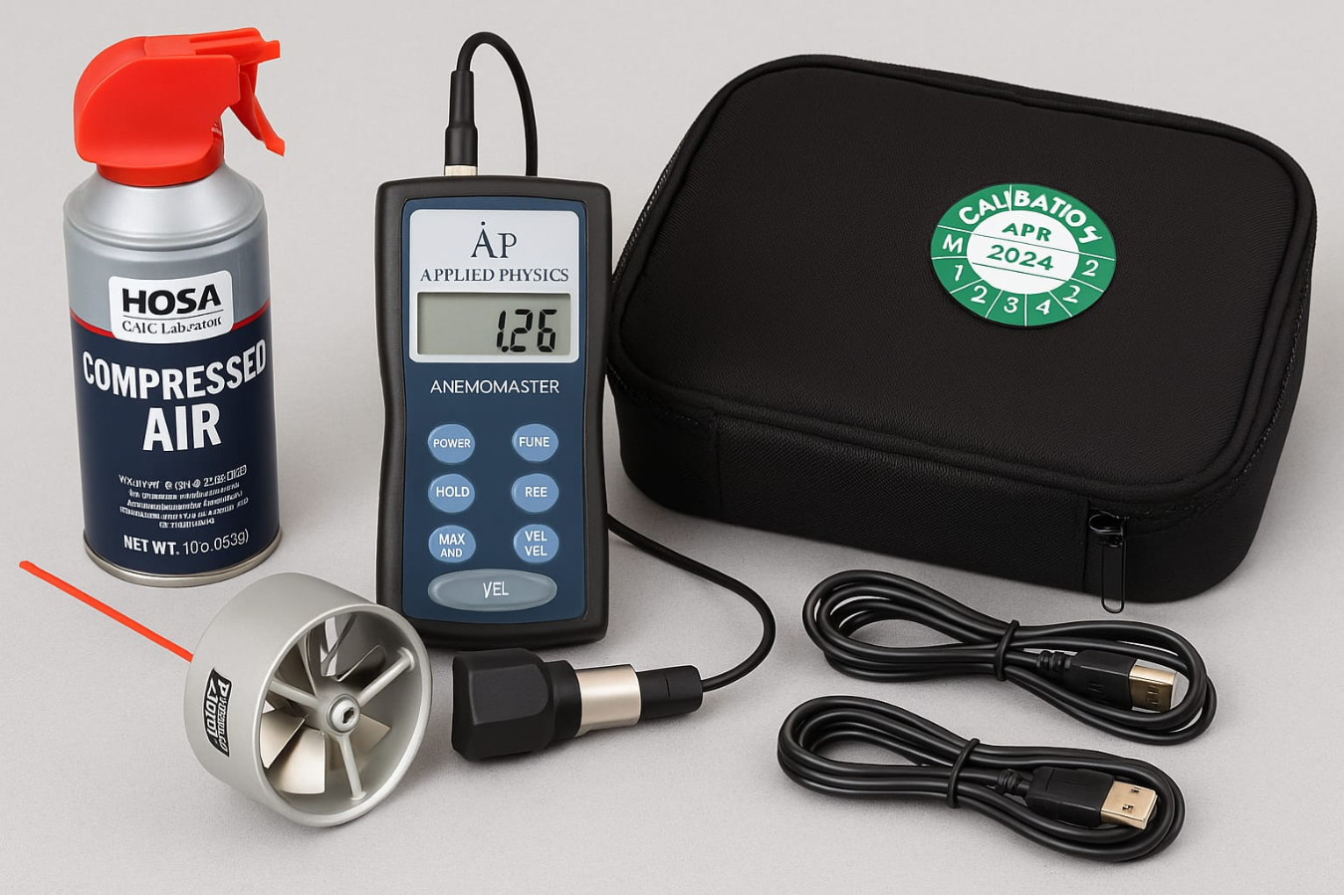

Enhancing Capabilities with Accessories

The 6820 Series can be customized with various accessories to meet specific needs:

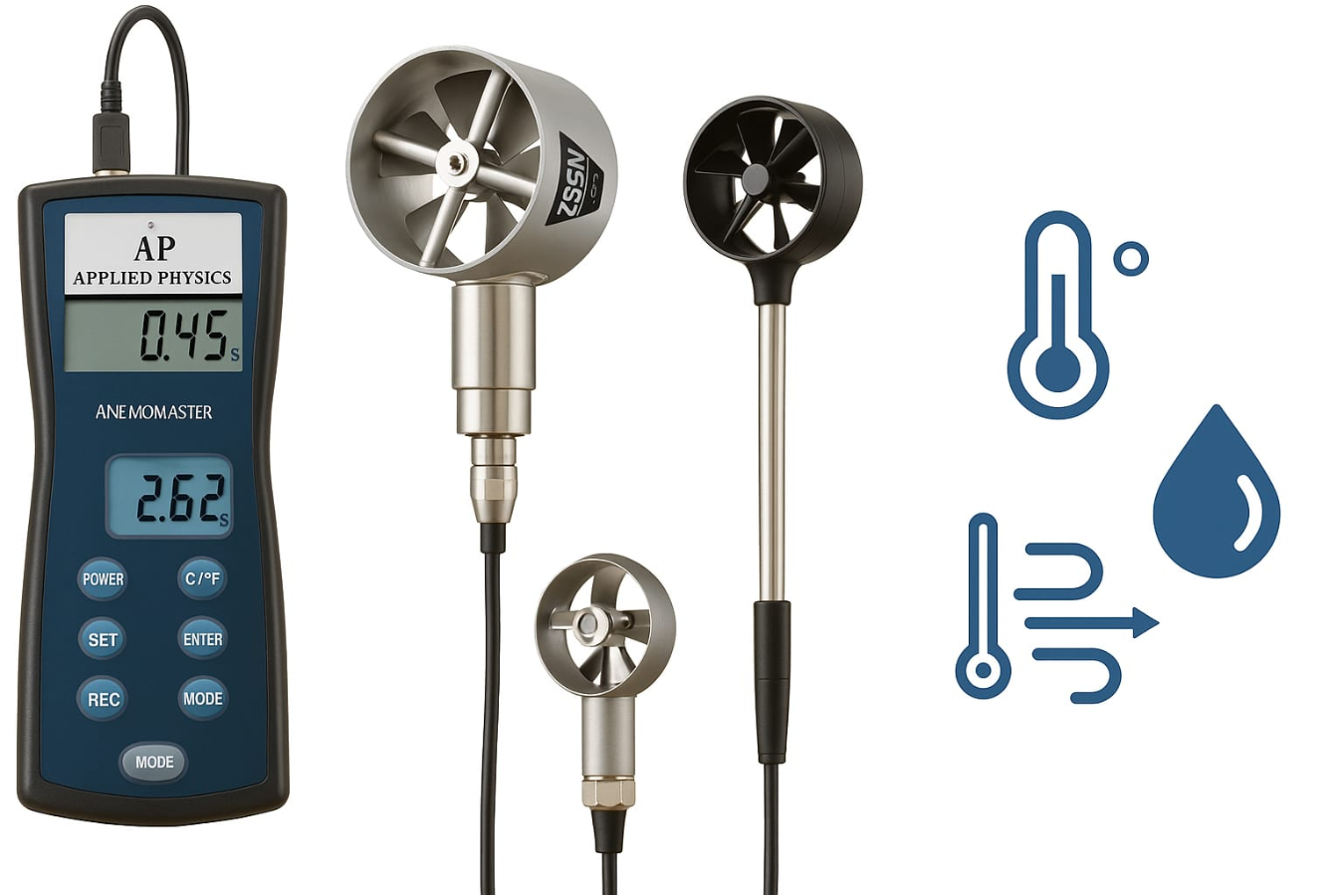

Probe Options

Connectivity Accessories

Field Use Enhancements

Troubleshooting Common Issues

Instrument Challenges

Problem	Possible Cause	Solution
Erratic readings	Turbulent airflow	Move to a more stable location in the duct
No response from Vane	Obstructed vane	Check for debris and clean if necessary
Inaccurate calculations	Incorrect duct dimensions	Verify and re-enter the correct dimensions
Low battery warning	Depleted batteries	Replace batteries immediately
Display issues	Power cycle needed	Turn off, wait 30 seconds, turn back on

Measurement Challenges

Challenge	Solution Approach
Very low airflow	Use a 2.75" probe and a longer averaging time
Pulsating airflow	Take multiple readings and calculate an average
Limited access	Utilize flexible extension rods
High temperature environments	Ensure operation within the specified temperature range
Highly turbulent conditions	Use flow straighteners when possible

Advanced Applications for Experienced Users

Duct Leakage Assessment

Compare supply vs. delivered air: Measure the main supply and the sum of all outlets
Calculate leakage percentage: Supply−DeliveredSupply×100
Locate leakage points: Use a systematic measurement approach to isolate problem areas
Document findings: Record measurements for remediation planning
Verify repairs: Re-measure after sealing to confirm effectiveness.

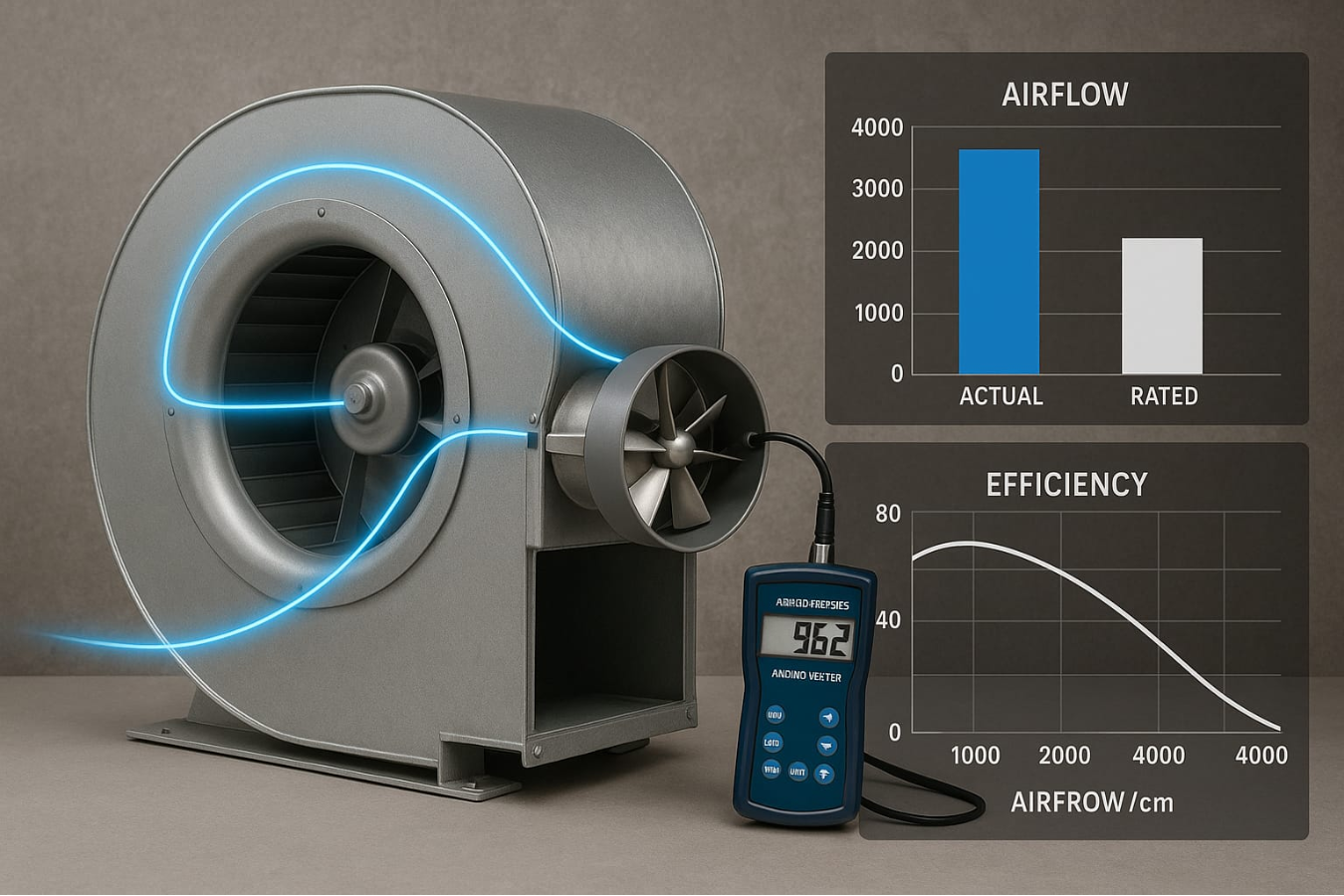

Fan Performance Verification

Measure actual airflow: Place the anemometer at the fan outlet
Compared to manufacturer specifications: Check actual vs. rated performance
Evaluate efficiency: Calculate actual vs. expected energy consumption
Diagnose issues: Identify mechanical or control problems
Document performance: Maintain records for predictive maintenance.

Conclusion

Rotating vane anemometers are essential tools for accurate HVAC ventilation and air balancing. Their reliability, ease of use, and precise airflow measurements make them ideal for ensuring system efficiency, indoor comfort, and energy savings.

FAQs

1. How often should my 6820 Series anemometer be calibrated?
Applied Physics Corporation recommends annual calibration to maintain NIST-traceable accuracy.

2. What’s the difference between the 1″ and 2.75″ vane probes?
The 1″ probe measures higher velocities (300-6890 FPM) while the 2.75″ probe is more sensitive to lower velocities (40-3800 FPM).

3. Can I use the 6820 Series outdoors?
The instrument can be used outdoors within its operating temperature range (32-125°F), though it’s designed primarily for HVAC applications.

4. How many duct configurations can I save in memory?
The 6820 Series can store up to 10 different duct sizes in memory, which are retained even when powered off.

5. Is the calibration certificate included with the purchase?
Yes, all 6820 Series anemometers include a NIST-traceable calibration certificate performed at the manufacturer’s facility in Andover, NJ.
