Refractive index ($n_D$) measurement is an essential analytical method used in quality control, research, and regulatory testing laboratories.
By measuring how a liquid sample refracts light, laboratory technicians can verify liquid purity, monitor concentration changes, and help identify unknown compounds.
Traditional manual refractometers rely on visual scale alignment, which can introduce human error and inconsistent results, especially when measuring dark, viscous, or temperature-sensitive samples.
The BK-R30 Digital Refractometer reduces visual interpretation errors by combining automated signal processing, a linear CCD sensor array, and built-in Peltier temperature control in a single benchtop instrument.

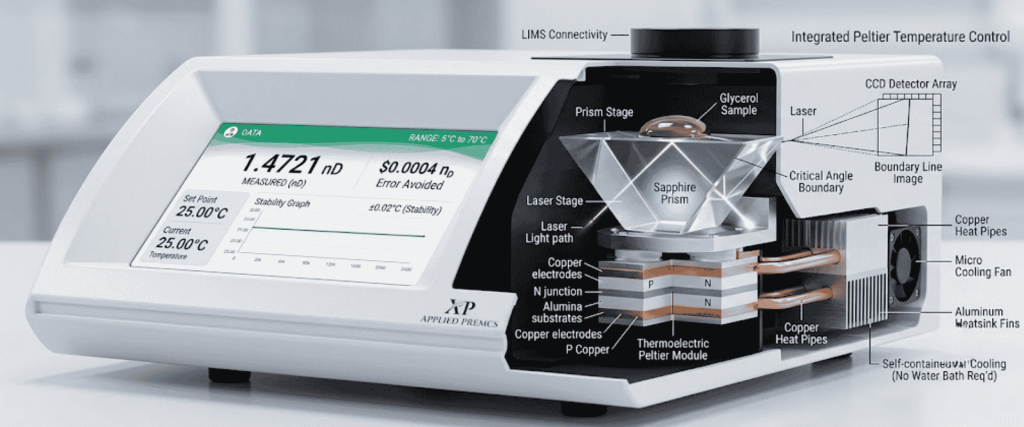

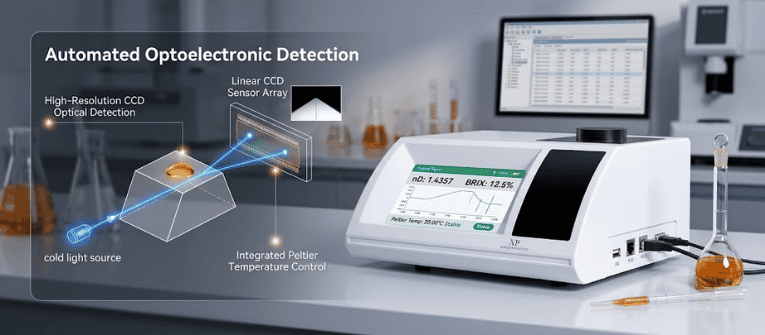

The BK-R30 replaces conventional optical eyepieces with an automated optoelectronic measurement assembly. An LED cold light source passes light through the sample prism, where a high-performance linear CCD photosensitive module records the total reflection boundary line.
This digital optical configuration delivers rapid measurement cycles and consistent results across varying ambient light conditions. It also enables the device to analyze difficult media, including opaque, dark, or highly viscous fluids, that typically obscure the shadow line on analog instruments.

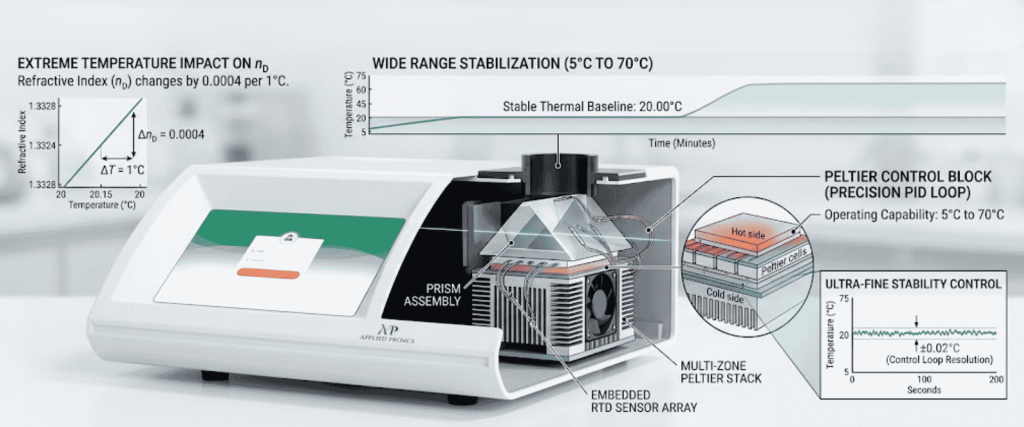

Refractive index values fluctuate significantly with temperature shifts. A change of just $1^\circ\text{C}$ can alter the refractive index of an organic compound by several ten-thousandths ($0.0004\ n_D$), rendering raw measurements inaccurate without strict thermal stabilization.
Instead of requiring external water baths or manual mathematical adjustments, the BK-R30 features an internal Peltier semiconductor temperature-control system. The system regulates the sample prism temperature across a broad range of $5^\circ\text{C}$ to $70^\circ\text{C}$ with a control stability of $\pm0.02^\circ\text{C}$. This precise thermal baseline ensures repeatable testing conditions that conform to pharmacopoeial and industrial standards.

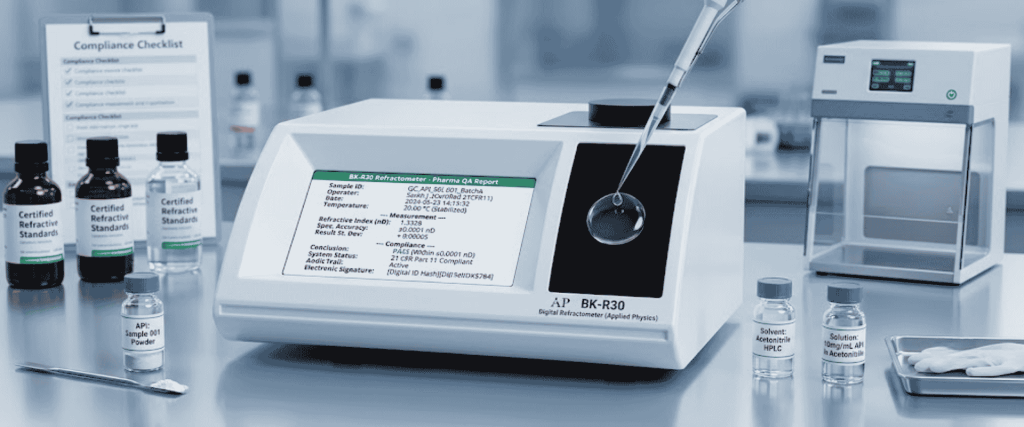

The BK-R30 meets key pharmacopoeia requirements for verifying raw material identity and chemical concentration.
Quality control teams use it to test active pharmaceutical ingredients (APIs), active solutions, solvents, and liquid reagents where strict accuracy ($\pm0.0001\ n_D$) is required for regulatory compliance.

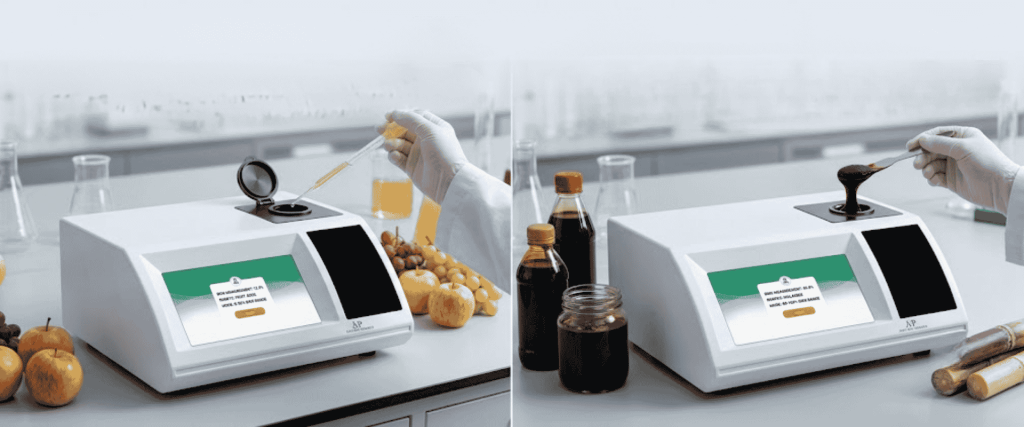

Determining sucrose content (Brix) is central to beverage blending, syrup refining, and fruit juice quality assurance.
The instrument’s $0\%$ to $100\%$ Brix testing range allows technicians to verify incoming raw ingredients and final packaged goods using a standardized protocol.

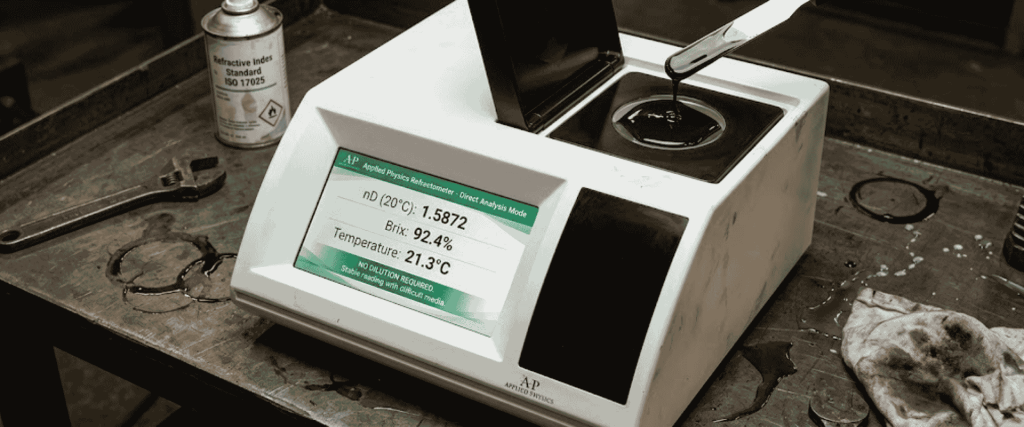

From cutting fluids and synthetic lubricants to polymer solutions and glycol-based coolants, the BK-R30 measures non-water-soluble and dark industrial fluids without manual dilution or sample pre-treatment.
Implementing an automated benchtop refractometer like the BK-R30 offers several concrete operational advantages.
The BK-R30 Digital Refractometer provides a reliable, automated platform for optical liquid analysis.
By integrating a linear CCD sensor array with precise Peltier temperature control, the unit delivers consistent $n_D$ and Brix measurements across clear, dark, or viscous samples.
Its combination of touchscreen operation, wide measuring range, and extensive data connectivity options makes it a practical long-term asset for analytical, pharmaceutical, and industrial quality control laboratories.
The BK-R30 can measure transparent, translucent, dark, and high-viscosity liquid samples across a Refractive Index range of $1.3000$ to $1.7000\ n_D$.
Refractive index varies directly with temperature. Integrated Peltier temperature control maintains a stable test environment ($\pm0.02^\circ\text{C}$) between $5^\circ\text{C}$ and $70^\circ\text{C}$, eliminating measurement errors due to ambient fluctuations or sample heat.
The instrument includes 32 GB of onboard storage alongside USB, RS232, RJ45 Ethernet ports, and an SD card slot. Users can transfer test logs directly to a U-disk or stream data to a network LIMS for audit tracking.
Yes. The BK-R30 interface includes built-in software routines that allow technicians to perform zero-point and multi-point calibrations using standard calibration liquids or distilled water directly from the 7-inch touchscreen.
