Optimizing SMT Assembly with the T960 Infrared Reflow Oven

Surface Mount Technology (SMT) production lines face continuous pressure to deliver high board throughput while meeting strict lead-free soldering standards.

As electronics designs incorporate larger substrates, such as long LED light bars, panelized arrays, and dense multi-layer circuit boards, maintaining flat, consistent temperature profiles across the entire assembly becomes critical.

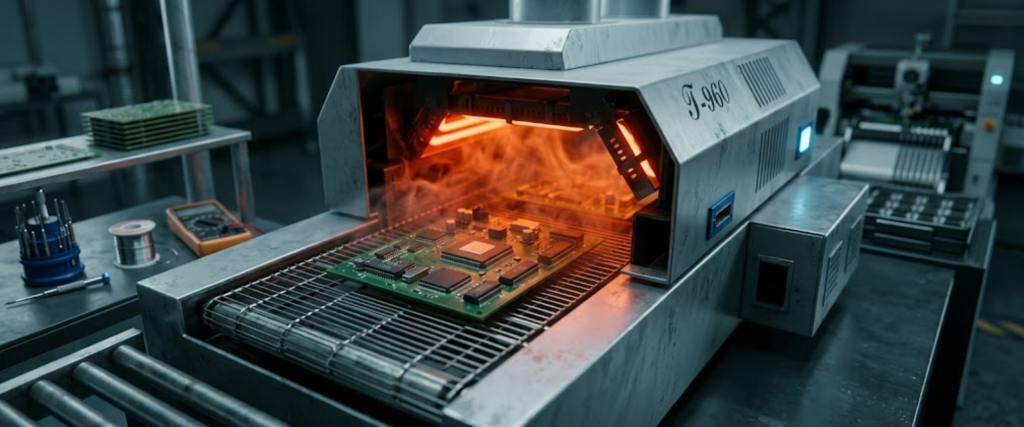

The T960 Lead-Free LED Infrared Reflow Oven directly targets these thermal and dimensional demands.

Combining a 4.5 kW power setup with an expansive 960 × 300 mm soldering area, this conveyorized reflow system provides smaller-to-medium scale manufacturing lines with reliable heat delivery and flexible power configurations.

Overcoming Thermal Challenges in Lead-Free Soldering

Transitioning to lead-free solder pastes (such as SAC305 or Sn-Cu alloys) narrows the acceptable process window.

Lead-free alloys require higher liquidus temperatures, typically between 217°C and 220°C—and demand peak temperatures around 235°C to 245°C to ensure proper wetting without damaging temperature-sensitive ICs.

Preventing Cold Joints and Component Damage

Uniform Heat Transfer: The T960’s upper and lower heating elements distribute thermal energy across both sides of the board. This balance stops large ground planes from acting as heat sinks that cause cold solder joints.
Tight Temperature Delta ($\Delta T$): Forced air circulation reduces temperature variance across the width of the 300 mm mesh belt, ensuring components near the edges reach the same thermal threshold as components in the center.

Key Advantages for Large PCBs and LED Assemblies

Standard benchtop reflow ovens often fall short when processing extended boards. The T960’s physical design solves two specific layout constraints common in SMT production.

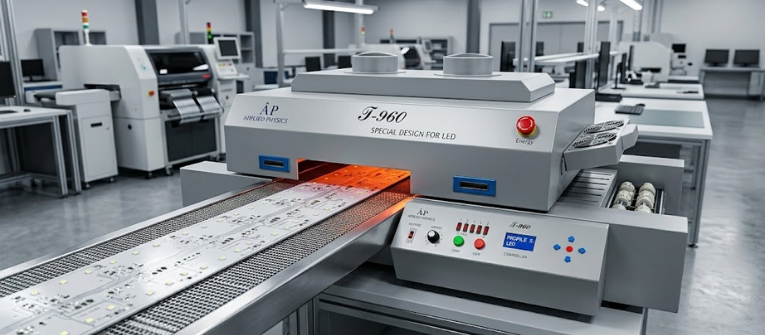

Handling Extended Substrates: With a 960 mm heating tunnel length, long LED aluminum-core PCBs can travel through the heating zones without overhang or premature cooling.

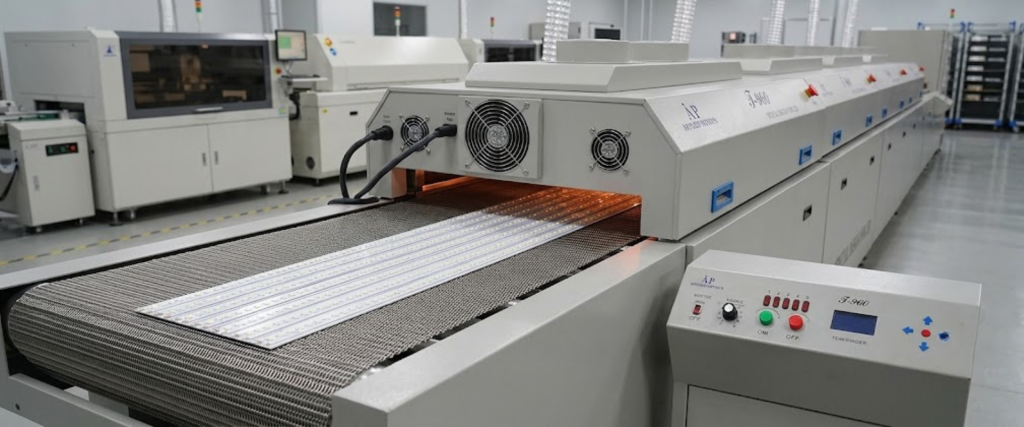

Stable Conveying: The motorized stainless steel mesh belt provides flat support across the full width of the board, reducing mechanical vibration that could dislodge tiny 0402 or 0201 passive components before solder solidifies.

Managing the Four-Zone Reflow Profile

Achieving repeatable solder joints requires setting appropriate belt speeds and temperature parameters across each stage of the process inside the T960.

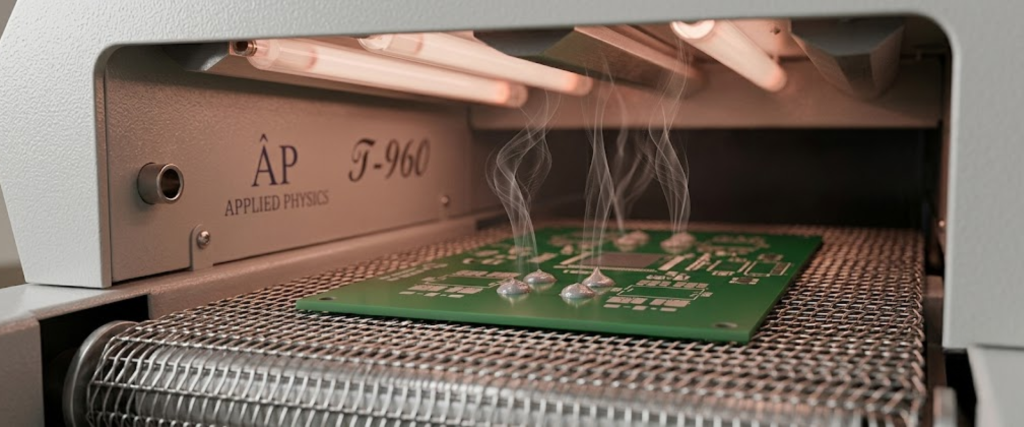

1) Preheat Zone

The board enters the oven and steadily ramps up in temperature at a controlled rate (typically 1°C to 3°C per second).

This gradual rise prevents thermal shock to sensitive ceramic capacitors and prevents solder paste splattering caused by rapid solvent evaporation.

2) Soak / Activation Zone

The temperature stabilizes between 150°C and 180°C. During this phase, flux chemistry activates to strip surface oxides from component leads and PCB copper pads, preparing the metal for bonding.

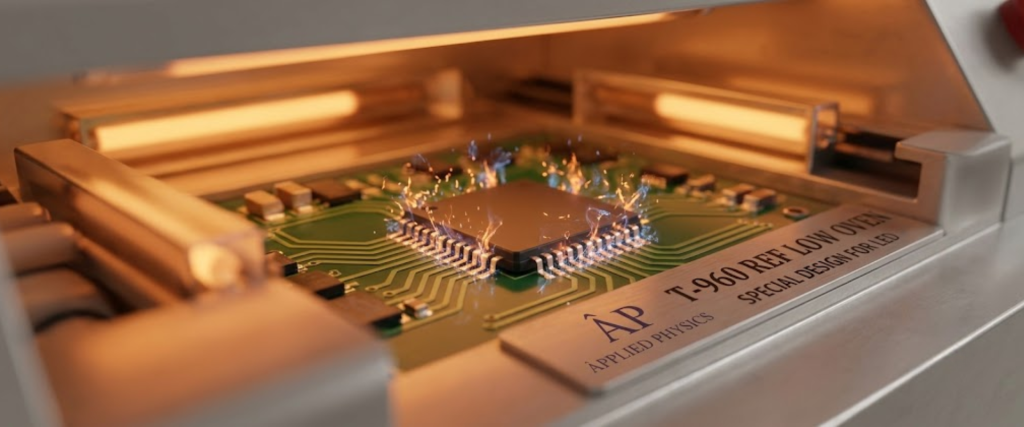

3) Reflow / Peak Zone

Temperatures cross the liquidus point of the solder paste.

The 4.5 kW heating output drives the peak chamber temperature to the required 235°C–245°C range for 30 to 60 seconds, allowing full solder wetting and intermetallic layer formation.

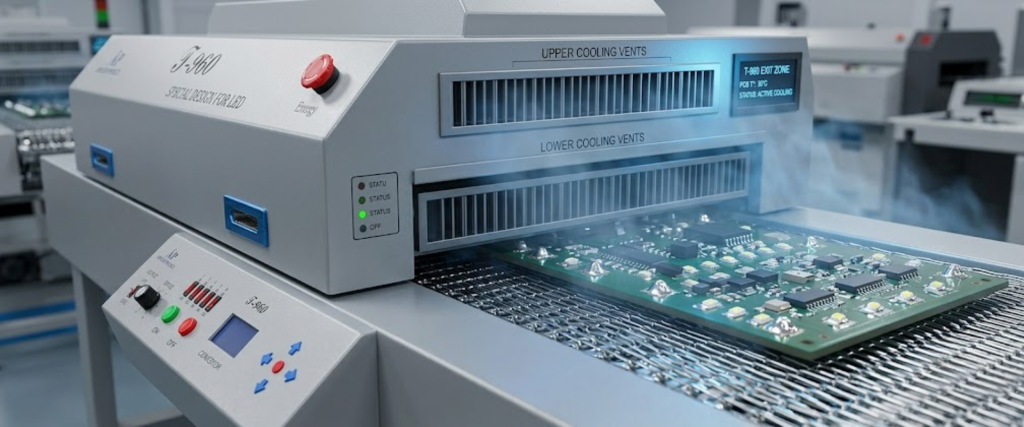

4) Cooling Zone

As the board exits the main heating tunnel, controlled air cooling quickly drops the temperature below the solidus point.

Rapid cooling forms a fine-grained solder microstructure, yielding stronger mechanical joints and bright surface finishes.

Technical Specifications & System Overview

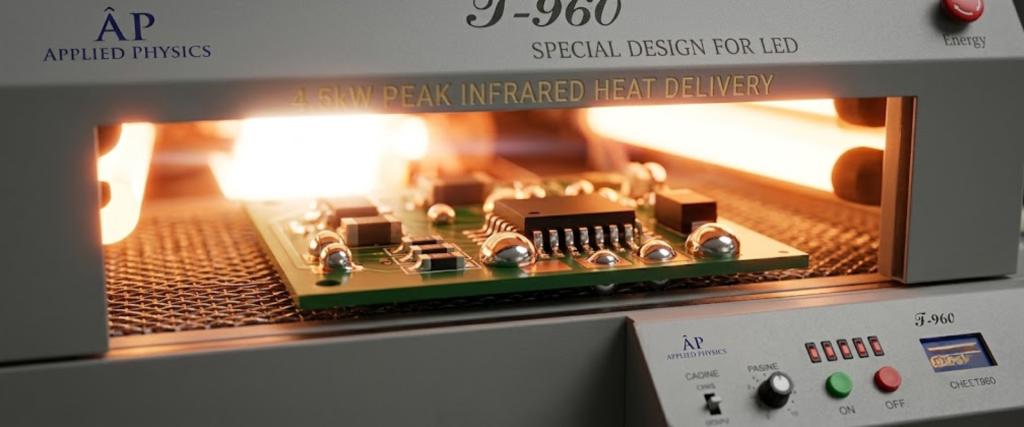

The T960 uses a hybrid heating arrangement, pairing radiant infrared heating elements with internal air circulation.

This balance helps minimize thermal shadowing under larger components like inductors, transformers, and quad-flat no-lead (QFN) packages while ensuring rapid ramp-up rates.

Technical Parameter	Feature / Specification
Effective Soldering Area	960 mm (Length) × 300 mm (Width)
Heating Power	4.5 kW
Voltage Supply	220V AC / 380V AC (Multi-phase compatible)
Heating Method	Far-Infrared Radiation + Forced Hot Air Convection
Maximum Operating Temp	Up to 300°C
Conveyor Type	Variable-Speed Stainless Steel Mesh Belt
Primary Applications	Lead-free SMT, long-format LED PCB assembly, small to medium production batches

Equipment Maintenance for Production Reliability

To keep the T960 running within calibrated tolerances.

Verify Profiles Periodically: Run an external multi-channel thermocouple profiler through the oven weekly to confirm real-time temperature tracking matches panel setpoints.
Clean the Heating Chamber: Regularly remove flux residue build-up from internal surfaces to maintain clean radiant heat transmission.
Inspect the Conveyor Mesh: Ensure the stainless steel belt maintains steady tension and travels smoothly without surging.

Conclusion

The T960 Reflow Oven offers an effective blend of high thermal capacity, long working area, and lead-free profile control.

For assembly facilities handling standard SMT boards, dense prototypes, or continuous LED strip manufacturing, its 4.5 kW heating capability and 960 × 300 mm conveyor bed provide the stability necessary to maintain yield and defect-free solder joints.

Frequently Asked Questions (FAQs)

1. Can the T960 handle lead-free solder alloys like SAC305?

Yes. The oven reaches internal temperatures up to 300°C, providing the thermal energy needed to run lead-free profiles with peak temperatures between 235°C and 245°C.

2. Is the T960 suitable for double-sided PCB assembly?

Yes. As long as bottom-side components are glued or held by surface tension (for smaller passives and ICs), double-sided boards can pass through using a calibrated bottom-zone thermal profile.

3. What type of power connection does the T960 require?

The T960 supports 220V single-phase or 380V multi-phase power connections to suit standard industrial facility outlets.

4. Why is a hybrid infrared and forced-air system preferred over pure IR?

Pure infrared can create uneven heating due to dark components absorbing more heat than light ones. Forced air circulates heat evenly throughout the chamber, smoothing out color-based absorption differences across the PCB.
