In industries like semiconductor manufacturing and biopharmaceuticals, clean is a relative term.
While visible particles were once the primary concern, the focus has shifted to Airborne Molecular Contamination (AMC) and liquid-phase molecular impurities.
In high-purity chemical storage, even parts-per-billion (ppb) or parts-per-trillion (ppt) levels of unwanted molecules can lead to catastrophic yield loss, catalyst poisoning, or compromised drug efficacy.
Managing molecular contamination is not just about filtration; it is a holistic discipline involving materials science, atmospheric control, and rigorous monitoring protocols.
Understanding Molecular Contamination Sources
Molecular contaminants are non-particulate chemical species that can be categorized into four primary groups based on their behavior and impact.
- Acids & Bases: Species like $NH_3$ (Ammonia), $HCl$ (Hydrogen Chloride), and $HF$ (Hydrogen Fluoride) that can corrode sensitive surfaces or alter pH levels.
- Condensables: High-boiling-point organics (VOCs) that deposit on surfaces, forming thin films.
- Dopants: Elements like Boron or Phosphorus that can unintentionally alter the electrical properties of semiconductors.
- Metals: Trace ions (Iron, Copper, Sodium) that migrate into silicon lattices or catalyze unwanted reactions.
Where Does It Come From?
Contamination in storage typically arises from three areas.
- Outgassing: Volatile compounds released from storage tank liners, gaskets, or seals.
- Permeation: Atmospheric gases (like $O_2$ or $CO_2$) diffusing through plastic tank walls.
- Cross-Contamination: Residual chemicals from improper purging or shared distribution lines.

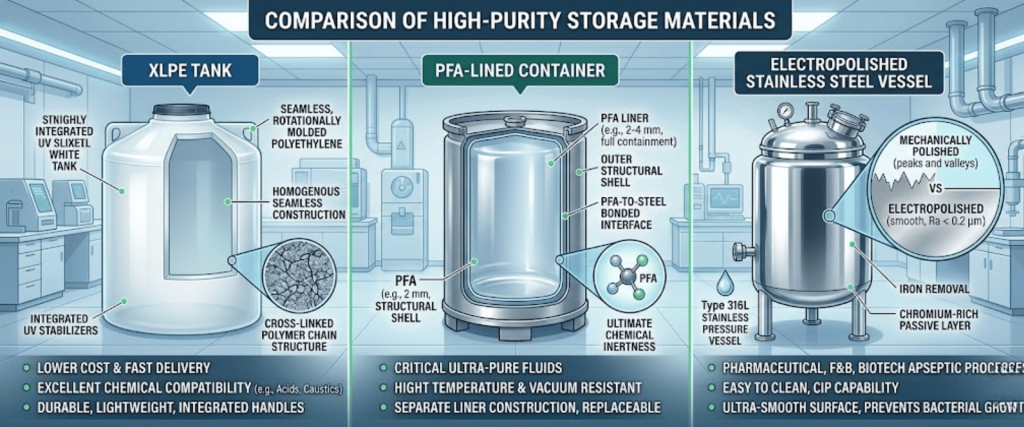

Critical Materials for High-Purity Storage Tanks
Selecting the right Material of Construction (MoC) is the first line of defense. Standard industrial plastics often contain plasticizers and stabilizers that leach into high-purity chemicals.

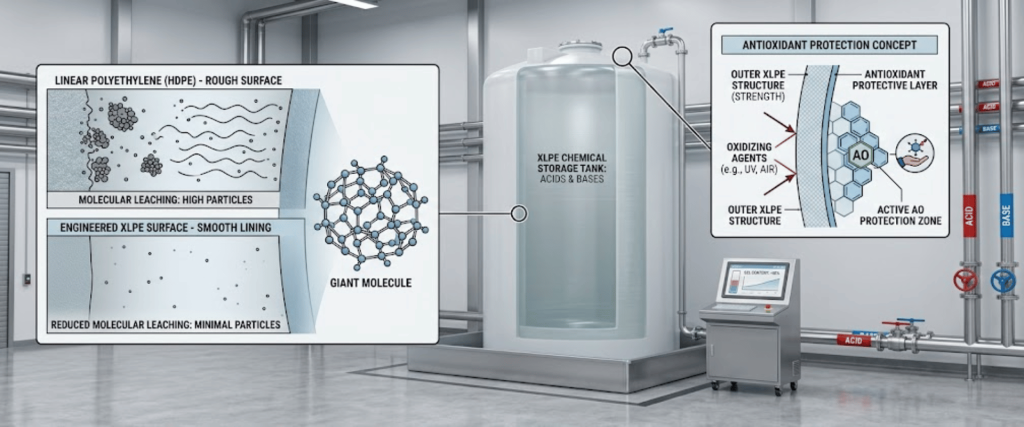

High-Density Cross-Linked Polyethylene (XLPE)
Common for bulk storage of acids and bases. XLPE offers superior structural integrity and is often treated with antioxidant resins to reduce molecular leaching by up to 75%.

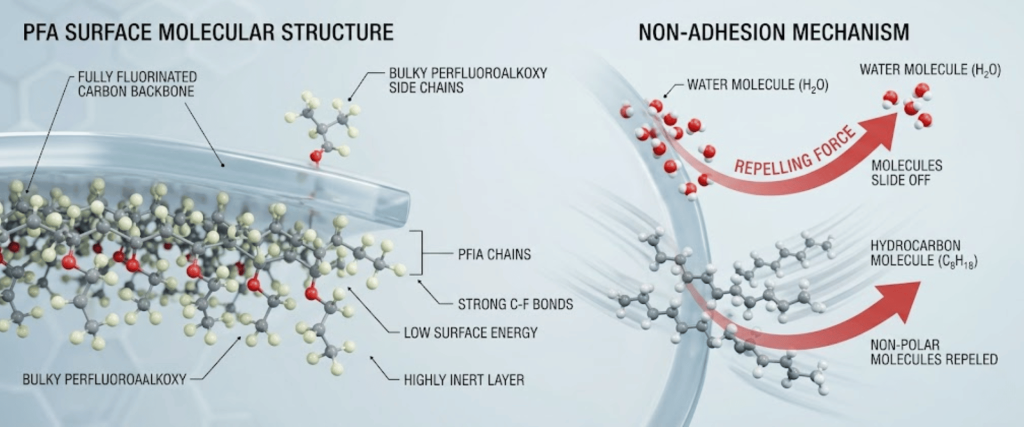

Perfluoroalkoxy (PFA)
The gold standard for ultra-high purity (UHP) chemicals. PFA is chemically inert and has an extremely smooth surface that prevents molecular adhesion and biofilm growth.
Note: SEMI C90 provides the standard test methods for PFA materials used in liquid chemical distribution.

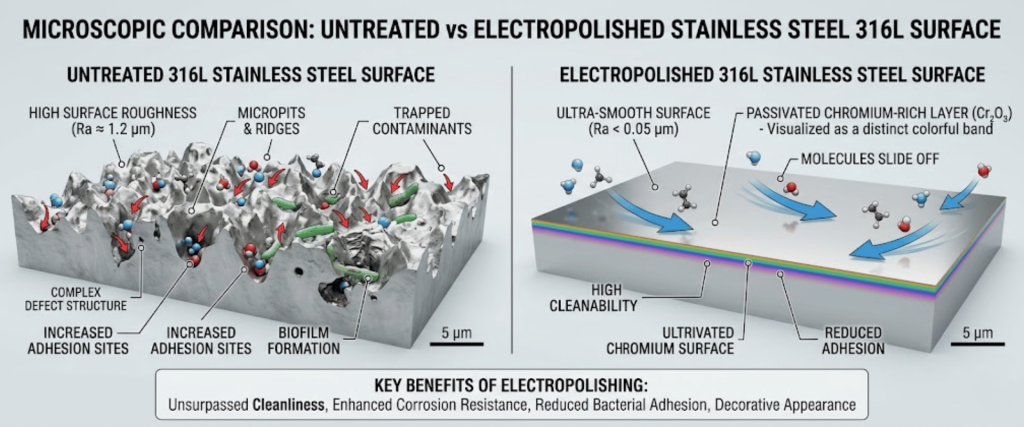

Stainless Steel (316L Electropolished)
Used for solvent storage. The electropolishing process removes surface irregularities, reducing the surface area where molecules can trap and later outgas.
Engineering Controls: Preventing Molecular Ingress
To maintain the integrity of chemicals during storage, facilities must implement active engineering controls.
Nitrogen (N2) Blanketing
By maintaining a positive pressure of ultra-high purity nitrogen in the headspace of a storage tank, you prevent atmospheric moisture and oxygen from contacting the chemical.
This is critical for preventing the formation of $H_2O$ and $CO_2$ related contaminants.
Molecular Filtration & Scrubbing
Standard HEPA filters capture particles but are useless against gas-phase molecules. Advanced storage systems are utilized.
- Activated Carbon Filters: To adsorb organic vapors.
- Ion-Exchange Resins: To strip trace metal ions from liquid streams during transfer.
- Chemical Filters: Specifically designed to neutralize acidic or basic vapors in the tank’s vent line.
Industry Standards: SEMI & ISO Compliance
Following international standards ensures that your storage protocols meet global quality benchmarks.
| Standard | Scope | Key Focus |
|---|---|---|
| SEMI F31 | Bulk Chemical Distribution | Design and operation of bulk systems to minimize contamination |
| SEMI F57 | Polymer Materials | Specifications for polymers used in UHP liquid distribution |
| ISO 14644-8 | AMC Classification | Classification of airborne molecular contamination levels |
| SEMI E49 | UHP Piping | Performance guides for piping systems and subassemblies |
Conclusion
Managing molecular contamination in high-purity chemical storage requires a shift from reactive cleaning to proactive prevention.
By combining inert materials like PFA, rigorous SEMI compliance, and real-time CRDS monitoring, manufacturers can safeguard their yields and ensure the highest product quality.
Frequently Asked Questions (FAQs)
1. What are the primary sources of molecular contamination?
Molecular contamination typically comes from three main sources: outgassing of storage materials, permeation of atmospheric gases through tank walls, and cross-contamination from residual chemicals in distribution lines.
2. Why is PFA preferred for ultra-high purity storage?
PFA (Perfluoroalkoxy) is the industry gold standard because it is chemically inert and has an extremely smooth surface. This prevents molecules from sticking to the walls and ensures no harmful substances leach into the chemicals.
3. How does nitrogen blanketing prevent contamination?
Nitrogen blanketing maintains positive pressure in the tank’s headspace using ultra-pure nitrogen. This creates a physical barrier that stops moisture, oxygen, and other airborne molecules from entering and reacting with the stored chemical.
4. Which standards regulate high-purity chemical storage?
The most critical benchmarks are the SEMI standards (such as SEMI F57 for polymers and SEMI C90 for testing) and ISO 14644-8, which classifies airborne molecular contamination levels in cleanroom environments.
