In automated pharmaceutical packaging, the air is as much a raw material as the active ingredients themselves.
Since many life-saving drugs are sensitive to microbial contamination or particulate matter, the environment where they are sealed must be strictly controlled.
Validation is the documented evidence that a system in this case, the air filtration and distribution within a packaging machine consistently performs according to specified standards.
Without robust validation, even the most advanced automated systems risk introducing contaminants that can lead to batch recalls, regulatory fines, and, most importantly, compromised patient health.

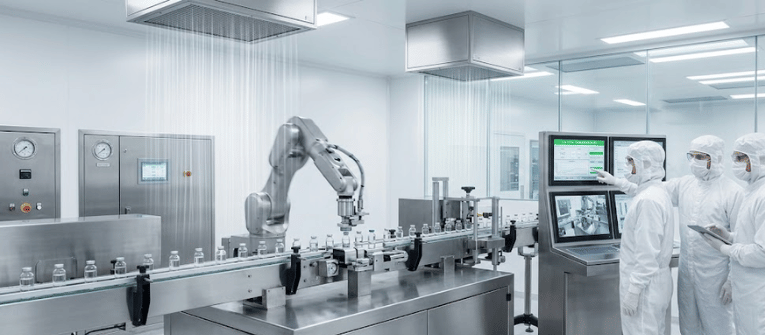

The Role of HEPA Filtration and Laminar Flow
At the heart of sterile air quality are High-Efficiency Particulate Air (HEPA) filters. In an automated setup, these filters must provide a Grade A environment (ISO 5) at the point of fill.
- Laminar Airflow (LAF): This involves air moving in a single, uniform direction at a constant speed. It sweeps particles away from the open product.
- Pressure Differentials: Sterile zones must maintain a higher pressure than surrounding areas to prevent dirty air from leaking into the packaging zone.
Key Regulatory Standards (ISO & GMP)
Pharmaceutical packaging must adhere to international guidelines to ensure global compliance. The two primary frameworks.
- ISO 14644-1: Focuses on the classification of air cleanliness by particle concentration.
- EU GMP Annex 1: Provides specific guidance on the manufacture of sterile medicinal products, emphasizing the Quality Risk Management (QRM) approach.
Comparison of Air Cleanliness Grades
The following table outlines the requirements for different zones within a pharmaceutical facility.
| Grade | ISO Equivalent | Particle Limit (≥0.5 μm/m³) | Recommended Use |
|---|---|---|---|
| Grade A | ISO 5 | 3,520 | High-risk operations (filling, sealing) |
| Grade B | ISO 5 (at rest) | 3,520 | Background environment for Grade A |
| Grade C | ISO 7 | 352,000 | Preparation of solutions for filtration |
| Grade D | ISO 8 | 3,520,000 | Handling of components after washing |

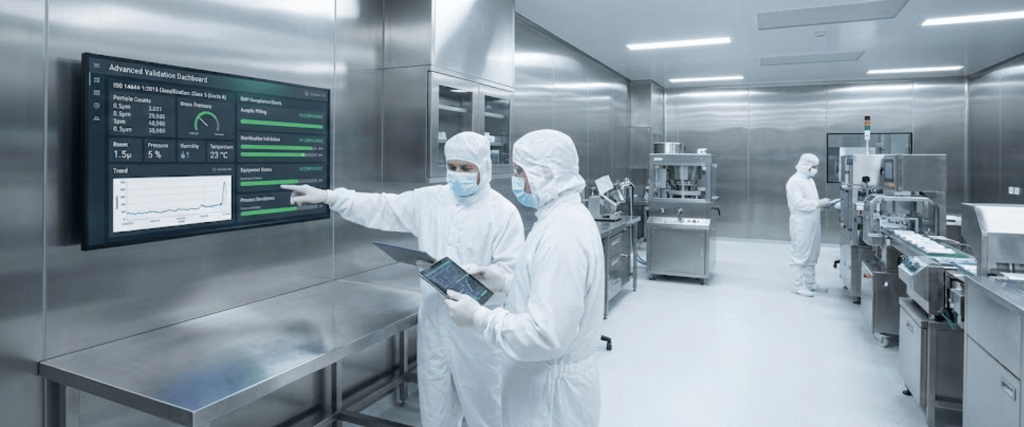

The Validation Process: Step-by-Step
Validating sterile air is not a one-time event; it is a continuous cycle of testing and documentation.
1) Installation Qualification (IQ)
This stage ensures that the air handling units (AHUs), ductwork, and filters are installed correctly according to the manufacturer’s specifications. It involves checking model numbers, duct integrity, and sensor placements.
2) Operational Qualification (OQ)
During OQ, the system is tested to see if it performs as intended under worst-case scenarios.
- Velocity Testing: Measuring the speed of the air coming out of HEPA filters.
- Filter Integrity Testing (DOP/PAO Test): Using an aerosol to ensure there are no leaks in the filter media or seals.
3) Performance Qualification (PQ)
PQ is conducted during actual production runs. This confirms that the air remains sterile even when the automated machinery is moving, generates heat, and creates potential turbulence.

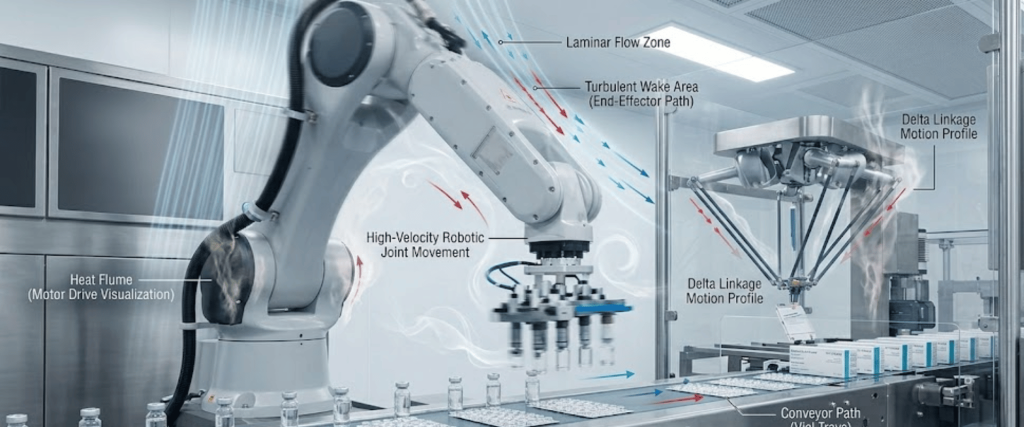

Common Challenges in Automated Packaging
Automation brings efficiency, but it also introduces unique variables.
- Mechanical Turbulence: Rapidly moving robotic arms can disrupt laminar flow.
- Heat Dissipation: Motors can create heat plumes that carry particles upward.
- Access Points: Every door or glove port is a potential point of failure for air pressure.

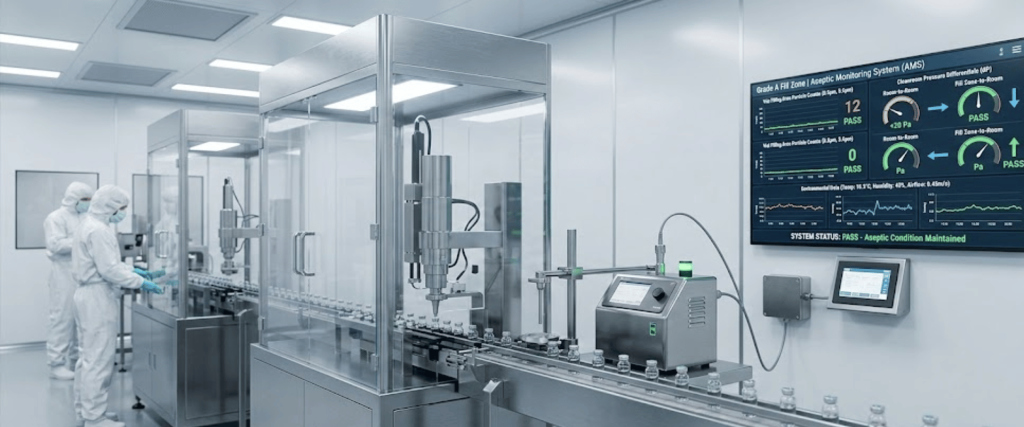

Real-Time Monitoring and Modern Technology

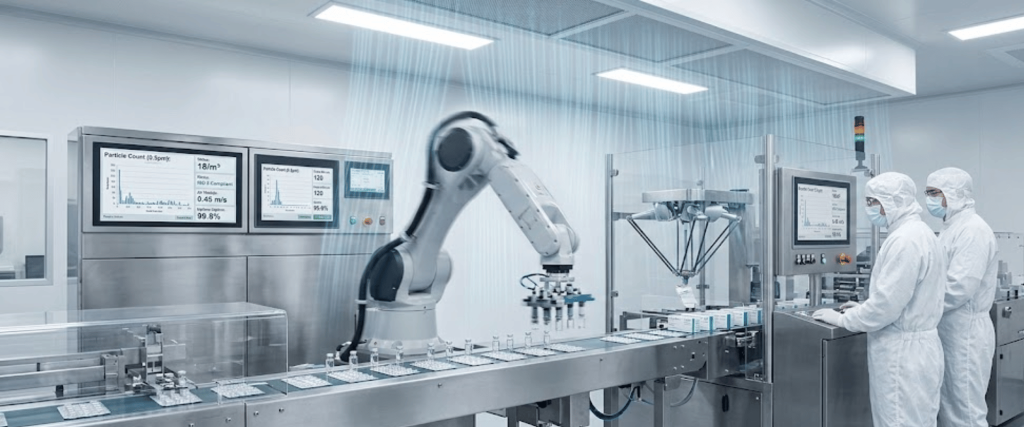

Modern pharmaceutical lines are moving away from manual sampling toward Continuous Environmental Monitoring Systems (CEMS).
- Remote Particle Counters: To provide second-by-second data on air quality.
- Active Air Samplers: To capture viable (living) microbes on agar plates.
- Automated Alerts: If a pressure drop or particle spike occurs, the line can automatically pause to prevent contamination.
Conclusion
Validating sterile air quality in automated pharmaceutical packaging is a blend of rigorous engineering and strict regulatory adherence.
By focusing on HEPA integrity, maintaining pressure differentials, and conducting thorough PQ cycles, manufacturers can guarantee the safety and efficacy of their products.
As automation continues to evolve, the tools we use to validate the invisible environment of air will remain the most critical component of the production line.
Frequently Asked Questions (FAQs)
1. How often should sterile air validation be performed?
Sterile air systems in pharmaceutical packaging should undergo full re-qualification at least every 6 to 12 months. However, critical parameters like pressure differentials and particle counts should be monitored continuously during every production shift to ensure ongoing compliance with ISO 5 standards.

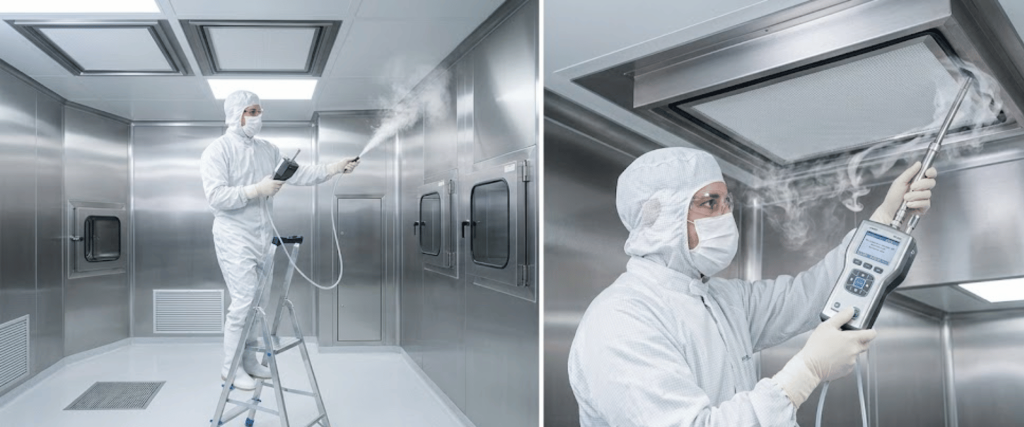

2. What is the primary purpose of a Smoke Study?
A Smoke Study, or airflow visualization, is used to prove that the laminar airflow remains Uninterrupted even when automated robotic arms or conveyors are moving. It ensures that no dead zones or turbulence exist that could potentially trap contaminants near the open drug product.
3. What are the consequences of failing an air quality test?
If air quality exceeds the allowed particle limits, the production line must be stopped immediately. This triggers a Root Cause Analysis (RCA) and usually requires the quarantine of all products packaged since the last successful test. Regular validation prevents these costly batch rejections and regulatory warnings.
