Integrity Verification of PTFE HEPA Filters in High-Temperature Cleanrooms

In the ultra-sensitive environments of semiconductor fabrication and pharmaceutical depyrogenation, air purity is non-negotiable. High-Efficiency Particulate Air (HEPA) filters are the primary defense against contamination.

However, modern manufacturing increasingly relies on Polytetrafluoroethylene (PTFE) media filters rather than traditional glass fiber, especially in high-temperature zones.

While PTFE offers superior chemical resistance and durability, verifying its integrity presents unique challenges, particularly under the thermal stress of high-temperature cleanrooms.

This article outlines the technical methodologies for accurately verifying PTFE HEPA filter integrity, ensuring compliance with ISO 14644-3 and IEST-RP-CC001.

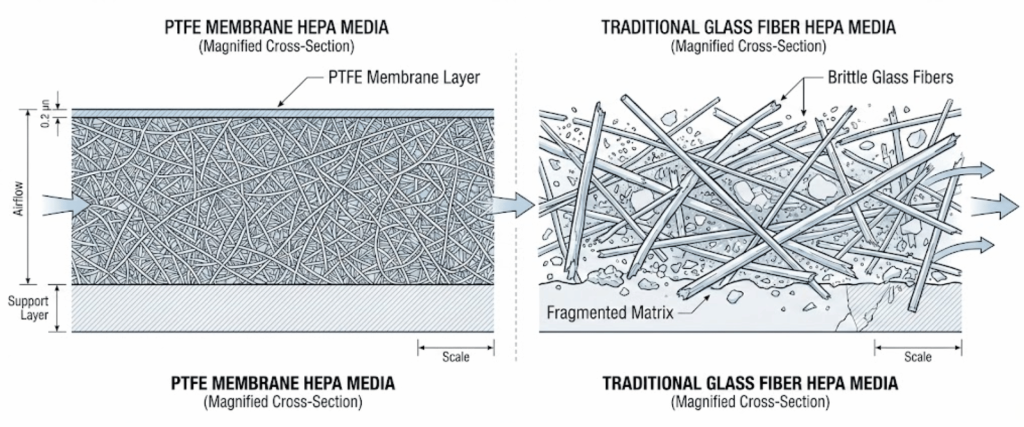

Why PTFE? The Shift from Glass Fiber

Traditional micro-glass media has long been the standard, but it poses significant risks in specific high-tech applications.

Boron-Free Requirement: Glass fibers often off-gas boron, which is a fatal contaminant in semiconductor wafer processing. PTFE is chemically inert and boron-free.
Pressure Drop: PTFE membranes typically offer a lower pressure drop (up to 40% less), reducing energy costs.
Mechanical Strength: PTFE is more resistant to handling damage than brittle glass fibers.

However, in high-temperature applications (up to 260°C or higher), the thermal expansion of the filter housing, sealant, and media can create bypass leaks. Verifying that the filter performs as rated after thermal cycling is critical.

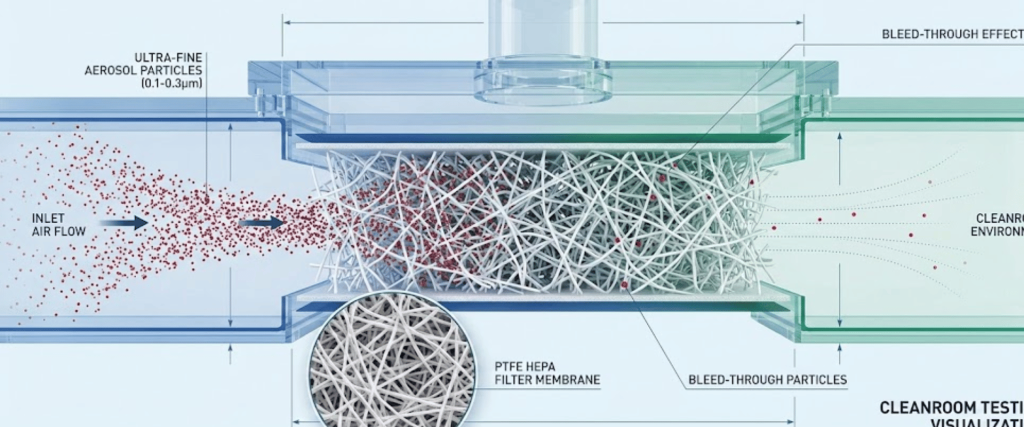

The Bleed-Through Phenomenon & Testing Challenges

Testing PTFE filters is not identical to testing glass filters. Facility managers often encounter false failures due to the physics of PTFE membranes.

The Thermal Aerosol Issue

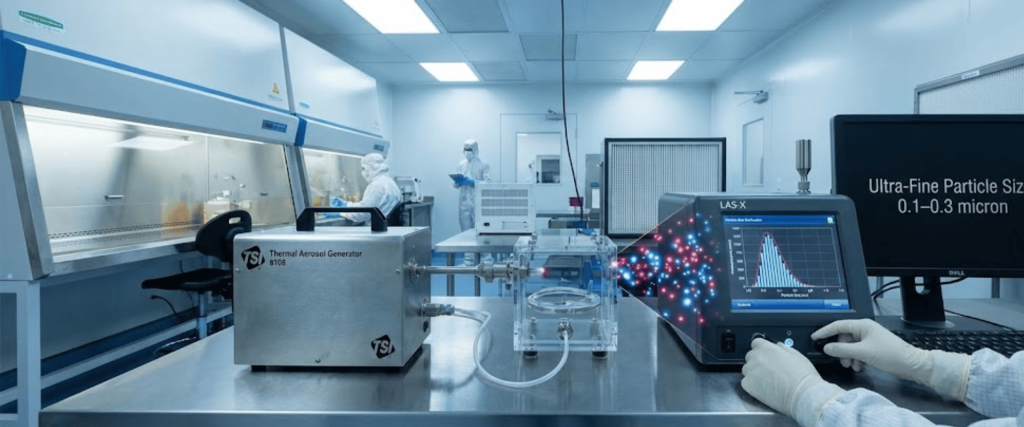

Standard integrity testing often uses a thermal aerosol generator (producing particles via heat).

Problem: Thermal generators produce very fine particles (0.1 µm – 0.3 µm).
PTFE Sensitivity: The Most Penetrating Particle Size (MPPS) for PTFE is often close to this range.
Result: A bleed-through effect occurs where the aerosol penetrates the media naturally, not through a leak. A photometer might register this as a failure (>0.01% penetration), leading to the unnecessary disposal of expensive, functional filters.

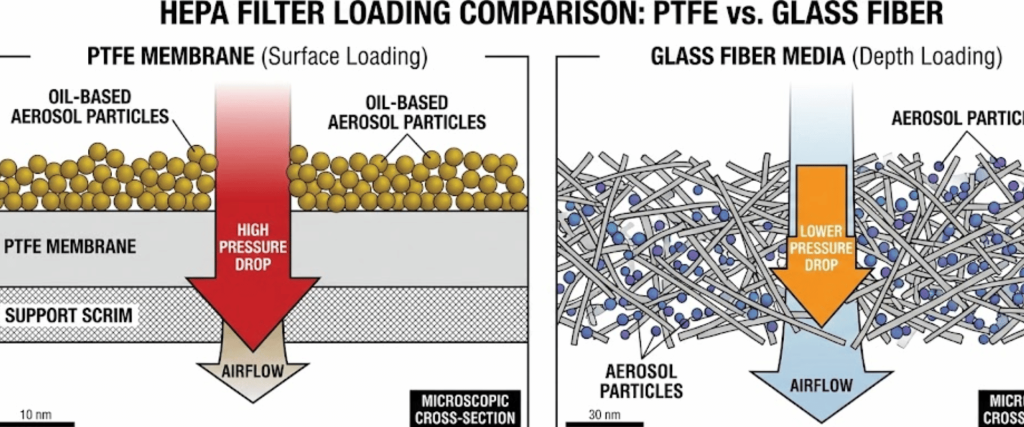

Filter Loading (Clogging)

PTFE is a surface-loading media, unlike glass fiber, which is depth-loading.

High concentrations of oil-based aerosols (like PAO) used for standard photometry can rapidly clog PTFE pores, permanently increasing pressure drop and ruining the filter during the test itself.

Methodology: Integrity Verification Protocols

To ensure valid results without damaging the filtration media, specific protocols must be adopted for PTFE in high-temperature environments.

A. Pre-Test Visual Inspection

Before introducing any aerosol, inspect the gel seal (often silicone or polyurethane for high heat) and the gasket. High temperatures cause expansion and contraction cycles that can delaminate the media from the frame.

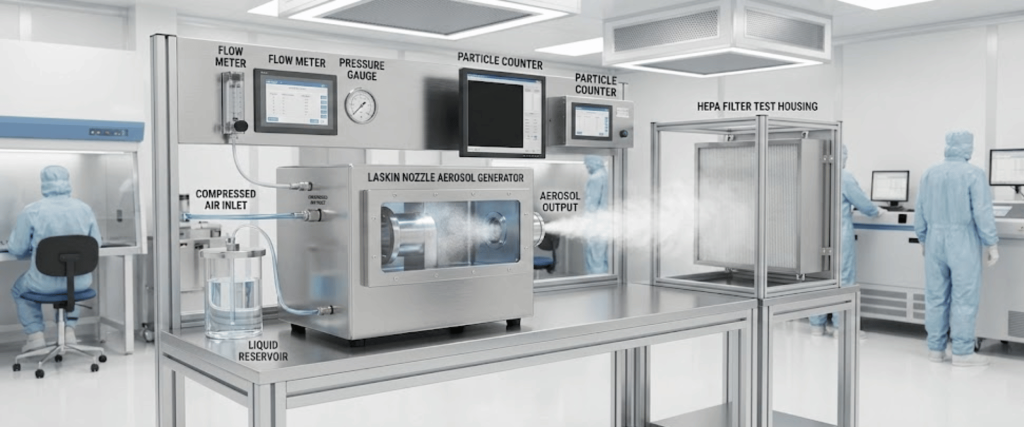

B. Aerosol Selection: Laskin Nozzle vs. Thermal

For PTFE, Laskin Nozzle (Cold) generation is often preferred over thermal generation.

C. Detection: Photometer vs. Discrete Particle Counter (DPC)

This is the most critical decision in the verification process.

Avoid PTFE if possible	Photometer	Discrete Particle Counter (DPC)
Concentration	Requires high concentration (10–20 µg/L)	Works at ultra‑low concentration (<1 µg/L)
Risk to PTFE	High (rapid loading / clogging)	Low (safe for PTFE)
Sensitivity	Measures total mass penetration	Counts individual leaks
Verdict	Avoid for PTFE if possible	Recommended for PTFE

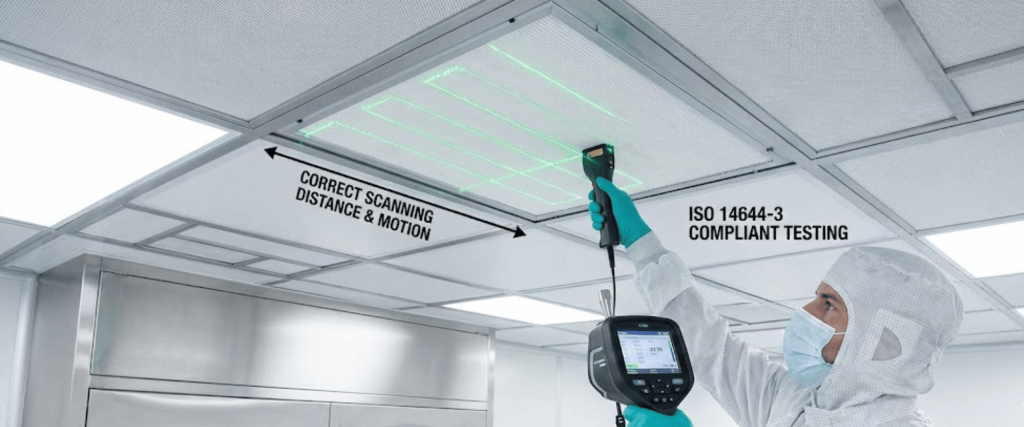

Step-by-Step Scan Testing Procedure (ISO 14644-3)

Scan the Face

Pass/Fail Criteria

Regulatory Compliance & Standards

Your verification process must document compliance with the following.

Note on Temperature: While the filters operate at high temperatures, integrity testing is almost always performed at ambient temperatures during maintenance shutdowns. Testing at 250°C is hazardous and technically infeasible for most standard equipment.

Conclusion

Verifying the integrity of PTFE HEPA filters in high-temperature cleanrooms requires a deviation from standard glass-filter protocols.

By switching to Discrete Particle Counters to lower aerosol concentration and utilizing Laskin nozzle generation to avoid bleed-through, facility managers can prevent false failures and extend the life of their filtration systems.

Prioritize the perimeter seal inspection, as thermal cycling is the primary enemy of high-temperature filter integrity.

Frequently Asked Questions (FAQs)

1. Why are PTFE filters preferred over glass fiber in semiconductor cleanrooms?

PTFE filters are preferred because they are chemically inert and boron-free, preventing off-gassing that can damage semiconductor wafers. They also offer higher mechanical strength and a lower pressure drop compared to fragile glass fiber media.

2. What is the bleed-through effect in PTFE testing?

Bleed-through occurs when thermal aerosol particles are so small that they naturally pass through the PTFE membrane without it being a leak. This often leads to false failures during photometer testing, causing unnecessary filter replacement.

3. Why is a Discrete Particle Counter (DPC) better for PTFE than a photometer?

A photometer requires high aerosol concentrations that can quickly clog (load) the delicate PTFE membrane. A DPC is safer because it uses ultra-low aerosol concentrations to detect leaks without damaging the filter lifespan.

4. Should integrity testing be performed at high operating temperatures?

No. Although these filters operate in high-heat zones (up to 260°C), integrity testing should always be performed at ambient temperature during a maintenance shutdown to ensure operator safety and equipment accuracy.
