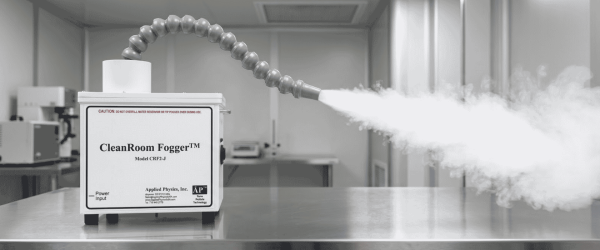

What is a cleanroom fogger?
A cleanroom fogger is a specialized device used in controlled environments to generate ultra-fine fog for airflow visualization and contamination control.
It helps detect airflow patterns, turbulence, and leaks in cleanrooms, ensuring compliance with industry standards in pharmaceuticals, semiconductor manufacturing, and biotech labs.
By producing a consistent and uniform mist, the fogger makes invisible air currents visible, allowing engineers to optimize ventilation and filtration systems.
This technology is essential for maintaining high-purity environments where even microscopic particles can affect product quality and safety.
What are the key features of the cleanroom fogger?
- Flexible Control Adjustable fog volume, density, and airflow via a built-in fan, allowing control from 0 to 100% output.
- Ultrapure Fog Produces dense, white fog using DI (Deionized) or WFI (Water for Injection) water, ensuring high purity.
- Portability Lightweight and portable design, making it easy to move and use in various cleanroom environments.
- Remote Operation Wireless remote control for device functionality, fan speed adjustment, and fog output.
- Sanitization Can be sanitized with 6% hydrogen peroxide, calcium hypochlorite, or isopropyl alcohol.
- Fine Particle Size Generates fog with droplet sizes ranging from <0.3 µm to 1.0 µm, ensuring minimal interference with cleanroom operations.
- Long Operation Time Can run continuously for up to 20 minutes or operate intermittently for 2-5 hours with a full tank and charged battery.
- High Visibility Visible fog distance of 7-14 meters, making airflow patterns easy to observe.
- Stainless Steel Construction Made from AISI 316L stainless steel, ensuring durability and resistance to corrosion.
- Compliance Suitable for ISO Class 5 environments and compliant with ISO 14644-3 standards for cleanroom testing.
How does a cleanroom fogger work?
A cleanroom fogger operates by generating ultra-fine fog particles that disperse into the air, making invisible airflow patterns visible. It typically works using the following steps.
Water or Liquid-Based Fog Generation
The fogger uses deionized water, purified water, or a special fogging solution to create mist. Some advanced models use ultrasonic or vaporization technology for ultra-fine particle production.
Fog Dispersion
Once the fog is generated, it is released into the cleanroom environment, where it spreads evenly without contaminating the air.
Airflow Visualization
The fine fog particles follow the air currents, revealing airflow direction, turbulence, and any unwanted leaks or dead zones in the cleanroom.
Detection & Optimization
Engineers and technicians analyze the fog movement to identify air leaks, pressure imbalances, or inefficient ventilation, allowing them to fine-tune the cleanroom’s filtration and air control systems.
Safe & Non-Contaminating
High-quality cleanroom foggers ensure they dissipate completely without leaving any residue, making them ideal for pharmaceutical, semiconductor, and biotech applications.
Applications of the cleanroom fogger, applied physics
Cleanroom foggers play a crucial role in maintaining sterile environments through the application of precise physical principles. These devices generate ultra-fine particles of disinfectant solution, typically ranging from 1-5 microns in size, which remain suspended in the air due to their small mass and aerodynamic properties.
The fog particles follow thermal currents and Brownian motion patterns, allowing them to reach and settle on all surfaces within the cleanroom, including difficult-to-access areas.
The effectiveness of these foggers relies on the physical concepts of fluid dynamics, particle dispersion, and surface tension, ensuring uniform coverage and maximum contact time between disinfectant and surfaces.
In modern cleanroom facilities, foggers are often integrated with automated monitoring systems that use advanced sensors to optimize particle distribution and maintain ideal humidity levels based on real-time environmental data.
How does the cleanroom fogger support USP 797 compliance?
1) Visualization of Airflow Patterns
- Helps verify the uniformity of airflow in cleanroom environments
- Enables detection of turbulent locations and dead spots
- Assists in confirming room-to-room airflow balance
2) Environmental Quality Monitoring
- Supports compliance with ISO Class 5 environment requirements
- Helps validate air cleanliness levels and pressure differentials
- Enables verification of proper air change rates
3) Certification Support
- Aids in the required 6-month cleanroom recertification processes
- Helps validate air quality and airflow within compounding areas
- Supports documentation of environmental controls
4) Safety and Contamination Prevention
- Uses only DI water, sterile water, or WFI water for pure fog generation
- Leaves no contamination behind after smoke studies
- Helps maintain sterile conditions during testing
5) Facility Design Validation
- Assists in verifying HEPA filtration effectiveness
- Helps evaluate proper room pressurization
- Supports assessment of overall cleanroom design efficiency
6) Quality Assurance
- Enables visual verification of environmental controls
- Supports compliance with FDA and USP 797 guidelines
- Helps maintain patient safety standards through proper environmental monitoring
What are the benefits of using the cleanroom fogger in ISO suites?
Enhanced Environmental Control
Generates ultra-fine disinfectant particles that uniformly reach all surfaces, ensuring thorough decontamination.
Improved Air Quality and Sterility
Helps maintain a contaminant-free environment by ensuring effective distribution, which is critical to ISO suite standards.
Efficient Recertification Support
Assists in visualizing airflow and determining room pressurization, thereby streamlining recertification and compliance checks.
Compliance Assurance
Supports adherence to strict ISO standards and regulatory guidelines by maintaining controlled, sterile conditions.
Cost-effectiveness
Reduces labor-intensive cleaning practices and minimizes downtime, ultimately lowering operational costs
Technical Specifications of the CRF2 Cleanroom Fogger
| Specification | Value/Range | Description |
|---|---|---|
| Fog Output | 0.26 cubic meters per minute (9 CFM) | It provides a consistent and steady fog flow that is ideal for airflow visualization in small-scale setups. |
| Fog Density | 57 ml per minute | Ensures sufficient fog concentration for effective visualizing of airflow patterns. |
| Operation Duration | Approximately 50 minutes | Typical continuous fog generation per water fill cycle |
| Water Volume Capacity | 3.75 liters | Designed to operate with DI water, sterile water, or water for injection within a single cycle. |

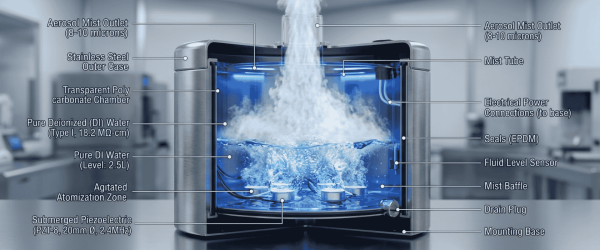

| Piezo Devices | 9 high-performance piezo transducers | Generates the fog by ultrasonic mechanism, ensuring uniform droplet production |
| Droplet Size | 8-10 microns | Optimized for creating a visible yet safe fog that evaporates properly within airflow streams. |
| Visible Fog Distance | Around 7-8 feet | Provides a clear visual representation of airflow in controlled environments |
| Power Requirements | 110 VAC or 220 VAC | Flexible power options to meet various facility standards. |
| Design and Portability | Compact, lightweight, portable | Facilitates ease-of-use in fume hoods, glove boxes, and small cleanroom applications. |
What is the output capacity of the CRF2 cleanroom fogger?
The CRF2 Cleanroom Fogger boasts an output capacity of 0.26 cubic meters of fog per minute, which translates to approximately 9 cubic feet per minute (CFM).
This consistent and robust fog production makes it well-suited for visualizing airflow patterns, identifying potential contamination risks, and ensuring proper cleanroom protocols are maintained.
How does the cleanroom fogger operate in terms of cubic meters per minute?
Steady Output Rate
The fogger operates at an output capacity of 0.26 cubic meters per minute, ensuring consistent fog generation.
Ultrasonic Mechanism
This output is facilitated by high-performance piezo transducers, which use ultrasonic vibrations to produce a fine mist.
Efficient Airflow Visualization
The controlled output helps in visualizing airflow patterns by dispersing the fog uniformly across the cleanroom.
Uniform Distribution
The steady emission rate guarantees that the fog reaches all areas of the room, aiding in the detection of turbulence and dead zones.
Optimized for Recertification
The precise output supports facility evaluations and recertification processes by providing reliable, measurable data on air movement within ISO-controlled environments
Conclusion
Cleanroom foggers serve as indispensable tools for visualizing invisible airflow patterns, detecting turbulence, and identifying air leaks within controlled environments.
By providing ultrapure mist dispersion, these devices ensure strict compliance with international standards such as ISO 14644-3 and USP 797 guidelines.
Ultimately, utilizing precision models like the CRF2 streamlines facility recertification, optimizes filtration performance, and safeguards critical product sterile quality.
Frequently Asked Questions (FAQs)
1. What types of water are used in cleanroom foggers?
Cleanroom foggers utilize Deionized (DI) water, sterile water, or Water for Injection (WFI) to generate a dense, white fog that leaves absolutely no residue behind after dissipation.
2. What is the precise output capacity of the CRF2 cleanroom fogger?
The CRF2 cleanroom fogger delivers a highly consistent and steady fog output of 0.26 cubic meters per minute, which is equivalent to approximately 9 cubic feet per minute (CFM).
3. Which key regulatory standards do cleanroom foggers help satisfy?
These devices actively support compliance with ISO Class 5 environmental requirements, ISO 14644-3 cleanroom testing standards, and FDA/USP 797 compounding guidelines.
