Optimizing Hydrogen Peroxide Sterilization in Small-Scale Medical Enclosures: A CRF2-S Guide

Small medical enclosures, isolators, and compact cleanroom spaces present unique decontamination challenges.

Traditional spraying or manual wiping often leaves residue, misses hidden surfaces, and exposes staff to chemicals.

Hydrogen peroxide (H₂O₂) fogging has emerged as a preferred method for residue-free sterilization, but not all foggers deliver the same performance in tight spaces.

This guide explains how to optimize hydrogen peroxide sterilization for small-scale medical environments and highlights the CRF2-S Sanitizing Fogger as a practical, portable solution designed specifically for these settings.

Why Hydrogen Peroxide Fogging Works Well for Small Enclosures

Hydrogen peroxide breaks down into water and oxygen after use, leaving no harmful residue.

This makes it ideal for medical devices, pharmaceutical compounding areas, and sensitive equipment where chemical remnants are unacceptable.

In small enclosures (often under 3,000 cubic feet), fogging offers advantages over manual methods.

Reaches air and surfaces in hard-to-access spots (under shelves, behind equipment, ceiling corners)
Treats the entire volume uniformly without requiring staff to wipe every surface
Effective against a broad spectrum of organisms, including bacteria, viruses, fungi, and spores
Compatible with USP <797> and ISO 14644-3 guidelines for cleanroom and compounding environments

The CRF2-S Sanitizing Fogger: Designed for Small Medical Spaces

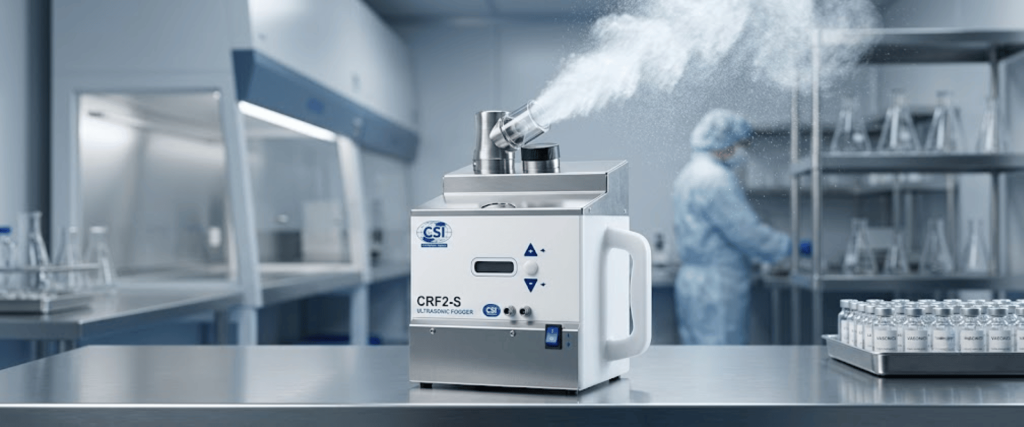

The CRF2-S from us is a portable ultrasonic fogger built for localized decontamination in medical enclosures, small cleanrooms, hospital rooms, and similar controlled environments.

It uses hydrogen peroxide solutions to generate a fine, visible fog that evaporates into vapor for thorough air and surface contact.

Key Features and Performance

Droplet size: 9–10 microns, significantly finer than typical sprayers (25–75 microns), allowing better suspension and evaporation.
Fog output: 0.26 m³ per minute; one 50-minute cycle treats up to ~3,000 cubic feet (87 m³).
Portability: Lightweight polyethylene unit (~20 lbs) with carry handle and rolling carry case for easy room-to-room movement.
Operation: Simple on/off via 10-foot remote cable; constant fog volume with no complex adjustments.
Sterilant flexibility: Works with H₂O₂ concentrations from 3.5% to 35% mixed in distilled or deionized water.
Maintenance: Built-in level sensor protects transducers; typical transducer life ~3,000 hours.

How the CRF2-S Works

Users mix the appropriate hydrogen peroxide concentration with distilled water and fill the reservoir. Nine ultrasonic piezo devices create the fine fog droplets.

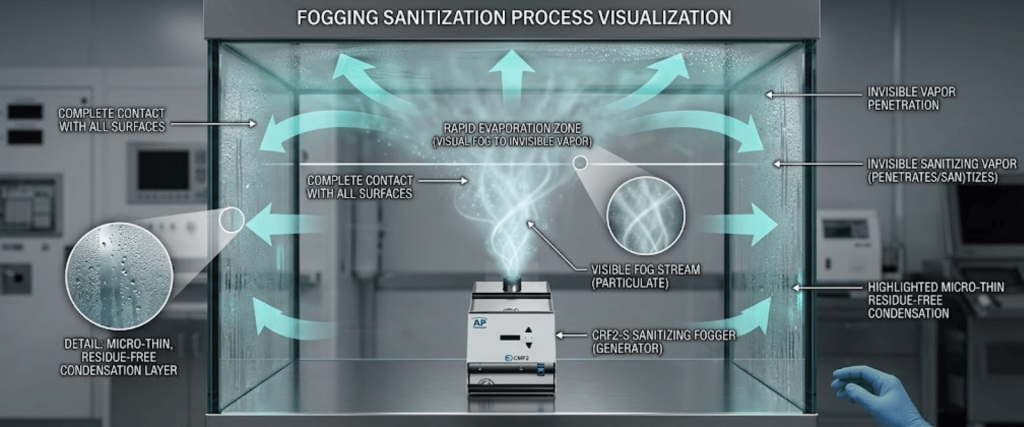

The visible fog floats and spreads, then evaporates exponentially into vapor that contacts walls, ceilings, equipment undersides, and air throughout the space. After the cycle, the fog dissipates completely, leaving no residue.

This process provides broad-spectrum efficacy against envelope viruses, bacteria, fungi, molds, and spores while remaining safe for the treated environment once the cycle completes and aeration occurs.

A Practical Step Toward Better Contamination Control

For facilities managing small medical enclosures, compounding suites, or localized clean areas, hydrogen peroxide fogging with the right equipment offers a reliable, efficient path to thorough decontamination without the drawbacks of traditional methods.

The CRF2-S Sanitizing Fogger stands out for its portability, fine droplet performance, and straightforward operation, making professional-grade sterilization accessible for everyday use in medical and healthcare settings.

If you’re looking to upgrade your small-scale decontamination process, the CRF2-S provides a focused, effective tool that aligns with modern cleanroom and USP standards.

Common Challenges in Small-Scale Medical Decontamination

Oversized equipment that is difficult to maneuver in tight rooms.
Inconsistent droplet sizes from cheap sprayers that leave visible residue and require extra cleanup.
Long setup times and the need for multiple staff members.
Concerns about material compatibility and staff exposure during application.

Comparing Fogging Methods for Small Medical Enclosures

Choosing the right application method makes a big difference in results and effort.

Method	Droplet Size	Residue & Coverage	Best For Small Enclosures
CRF2-S Ultrasonic Fogger	9–10 microns	No residue; evaporates fully; reaches hidden surfaces via vapor	Excellent, portable, consistent, minimal setup
Backpack / Handheld Sprayer	25–75+ microns	Often leaves residue; uneven coverage; requires wiping	Poor, labor-intensive, inconsistent results
Converted Humidifier / DIY Fogger	Variable, often larger	Unreliable droplet control; risk of residue and incomplete kill	Not recommended for validated medical use

Benefits for Medical Facilities and Staff

Residue-free sterilization reduces post-treatment cleaning and risk of chemical exposure.
Portable design allows one person to treat multiple small rooms efficiently.
Lower operating cost, uses affordable, locally sourced hydrogen peroxide.
Supports compliance with USP <797> and cleanroom validation requirements.
Improved staff safety and reduced physical strain compared to manual spraying/wiping.

Conclusion

Hydrogen peroxide fogging with the CRF2-S Sanitizing Fogger provides an effective, residue-free solution for decontaminating small medical enclosures, isolators, and compact cleanrooms.

Its ultrasonic technology produces fine 9–10-micron droplets that reach hidden surfaces and evaporate completely, eliminating the drawbacks of manual wiping and chemical residue.

The portable design, simple operation, and compatibility with USP <797> guidelines make it a practical choice for facilities seeking reliable sterilization without the need for complex equipment.

For small-scale medical environments, the CRF2-S delivers consistent, efficient decontamination that improves safety and operational efficiency.

Frequently Asked Questions (FAQs)

1. What size spaces can the CRF2-S effectively treat?

One 50-minute cycle typically covers up to approximately 3,000 cubic feet (about 87 cubic meters), making it well-suited for small to medium medical enclosures, isolators, and compact cleanroom areas.

2. Does it leave any residue after use?

No. When used correctly with proper hydrogen peroxide concentrations, the fog evaporates fully into vapor and leaves no residue on surfaces.

3. Can I use any hydrogen peroxide concentration?

The CRF2-S works with H₂O₂ solutions from 3.5% up to 35% diluted in distilled or deionized water. Always follow manufacturer guidelines for your specific application and safety requirements.

4. How does the CRF2-S compare to larger fogging systems?

Larger systems are better for whole-room or facility-wide treatment. The CRF2-S is optimized for portability and targeted use in smaller or multiple separate enclosures where bringing in big equipment is impractical.

5. Is special training required to operate it?

Operation is straightforward with simple on/off controls. However, proper training on solution preparation, safety protocols, aeration times, and maintenance is recommended to ensure consistent, validated results.
