Description
Features: 1. 50 sample positions. 2. 56 reagent positions. 3. 120 reaction cuvettes. 4. 300 tests per hour. 5. Probe with anti-collision function, liquid level dectection function.
Technical Parameters:
| Model | BK-360 | |
| Overall Performance | Throughput | 300 Tests/hour |
| Analysis Method | End-point, Fixed-time, Rate(Kinetic), Turbidimetry | |
| Certificates | CE, FDA, ISO9001, ISO14001, ISO13485 | |
| System | Optional open or close system, continuous working for 24 hours | |
| Sample&Reagent System | Sample Positions | 50 sample positions |
| Reagent Position | 56 reagent positions | |
| Sample Volume | 2~70μl | |
| Reagent Volume | 20~350μl | |
| Probe | With anti-collision function, liquid level detection function(sample&reagent) | |
| Probe Washing | Automatic washing interior and exterior | |
| Reagent Cooling | 2~12℃ for 24 hours | |
| Reaction System | Temperature Control | 37±0.2℃, real-time monitoring |
| Cuvettes | 120 reusable cuvettes | |
| Mixer Probe | Independent stirring, automatic frequency conversion | |
| Washing | Automatic cuvettes washing | |
| Optical System | Light Source | Halogen lamp, water-cooling |
| Spectrophotometry | Post-spectral spectrophotometry | |
| Wavelength | 340~800nm(340, 405, 450, 480, 505, 546, 570, 600, 630, 700, 750, 800nm) | |
| Absorbance | 0~3.5Abs | |
| Calibration&QC | Calibration | Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Ogarithm, Logit-4P, Logit-5P |
| Quality Control | Real-time QC, Westgard multi rule, Cumulative Sum Check, Twin Plot(2D) | |
| Data Management | Software | Windows 7/8/10, 32 or 64 bit |
| LIS System | Bi-direction, support HL7 protocol | |
| Interface | LAN port access | |
| Printer | External, multiple reporting mode available | |
| Working Conditions | Power Supply | AC220V±10%, 50/60Hz(Standard), Auxiliary UPS system |
| Temperature | 15~30℃(±2℃) | |
| Water Consumption | Deionized water＜5L/h | |
| Humidity | 40~85% | |
| Size&Weight | External Size(W*D*H) | 873*585*500mm |
| Net Weight | 80kg | |
| Package Size(W*D*H) | 1130*735*1040mm | |
| Gross Weight | 125kg | |
| Other Accessories | Automatic built-in barcode sample and reagent scanning, External barcode scanner |
| ISE(Ion-Selective Electrode)module, to simultaneously measure critical electrolytes,sodium(Na+), potassium(K+), and chloride(Cl-)in blood samples | |
| Needle blocking detection, detect flow restriction from air bubbles or clots | |
| System | Prevent contamination from sample to sample(sample carry over)and from reagent to reagent(reagent carry over)and from cuvette to cuvette |
| Independent mixing unit | |
| Capable of photometric and turbidity analysis,and capable of single-color and dual-color measurement | |
| With reflex testing capabilities | |
| Automatic pre-dilution and re-dilution of samples | |
| Dual chemistry(Twin Chemistry) | |
| 300 free programable tests | |
| Results traceability | |
| Analyze Samples | Serum, plasma, whole blood, urine and cerebrospinal fluid, etc |
| Onboard automatic hemolysate preparation for whole blood samples | |
| Reaction Volume | 100~500μl |

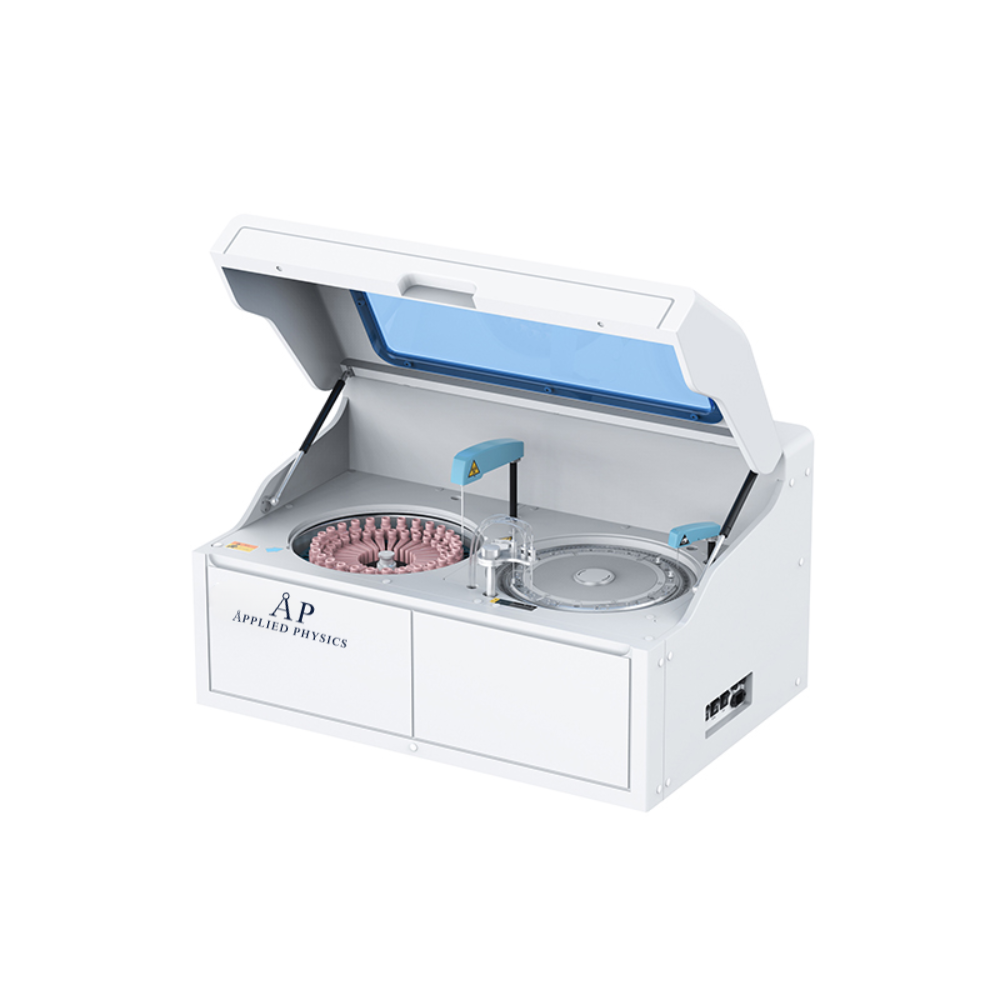

This BK-360, Fully Automated Random Access, Benchtop, Clinical Chemistry Analyzer is designed forease of use, outstanding performance, ease of maintenance, economy and durability. It features a new intuitive and powerful software with a user-friendly interface, and easy handling and control. It offers various functions which simplifie the laboratory work, by giving freedom to the operator to programand run extra tests, according to their needs. System alerts the operator promptly on all functions(e.g.needle blocking detection, liquids level detection etc) The equipment is LlS-connected and can efficiently process and graphically display samples. It enhances productivity and turnaround time and can handle the demands of an increased workload It can provide faster, easier, more accurate medical diagnosis using the smallest amount of whole blood, serum, plasma, urine, cerebrospinal fluid etc. All components are made of solid materials to ensure precise measurement results with the highest sensitivity and linearity.
