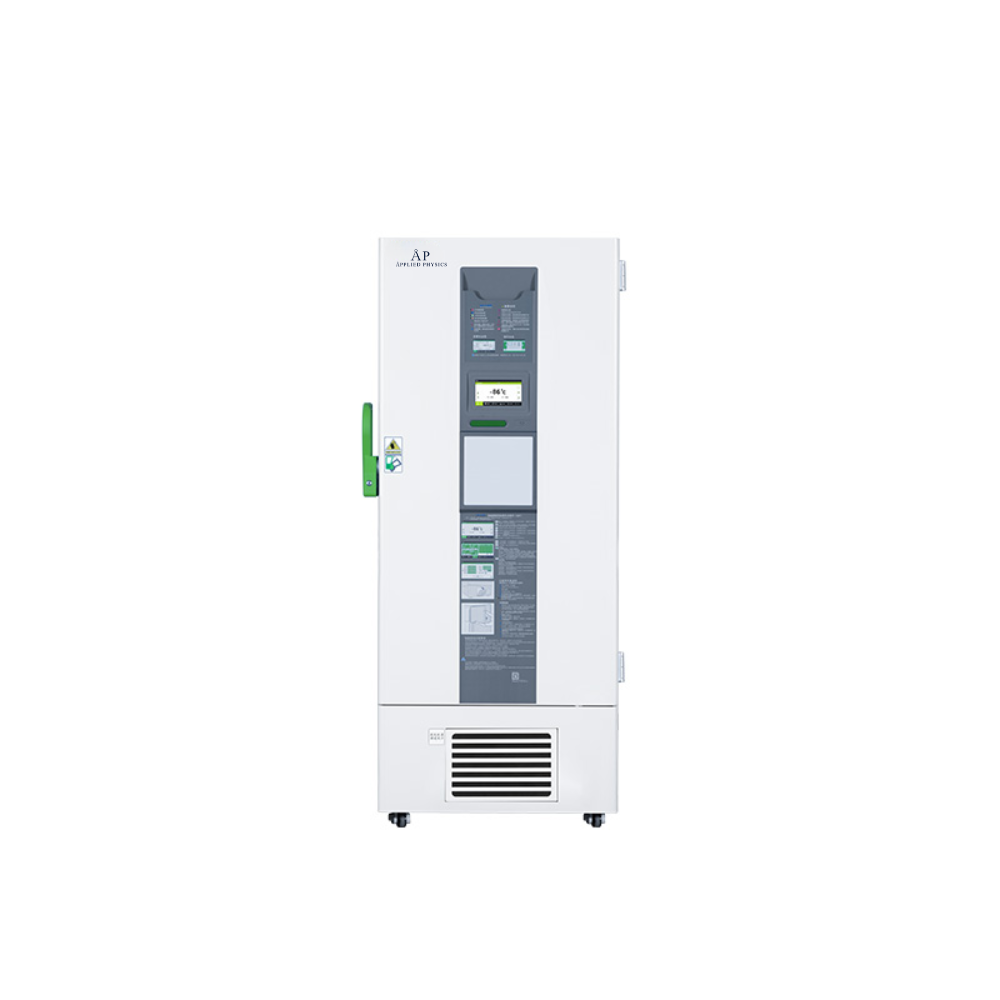

‘-86℃ Freezer BDF-86V408D BDF-86V588D BDF-86V838D

Description

‘-86℃ Freezer BDF-86V408D BDF-86V588D BDF-86V838D

Technical Parameters:

Model

BDF-86V408D

BDF-86V588D

BDF-86V838D

Capacity

408L

588L

838L

Temp. Range

-40~-86℃

Temp. Accuracy

0.1℃

Temp. Uniformity

≤4℃

Temp. Stability

≤6℃

≤7℃

Recovery Time(Recover to -75℃ in an ambient temp. of  25℃)

21min

16min

35min

Cooling Time(Cool down to -80℃ in an ambient temp. of  25℃)

173min

117min 229min

Control System

Microprocessor control

Display

7-inch LCD touch screen

Alarm

Audible and visual alarm, high and low temperature alarm, sensor fault alarm, condenser dirty blocked alarm, abnormal ring temperature alarm, abnormal voltage alarm, power off alarm, door opening alarm, low battery alarm, remote alarm interface, all alarm information and history can be queried on the LCD screen

Refrigeration Type

Direct-cooling

Refrigerant

R4001, 300g R4001, 320g R4001, 400g

Compressor

Imported brand SECOP compressor/2

Condenser & Evaporator

Copper tube, copper tube plate

Defrost

Manual defrost

Construction

High density polyurethane foam, CFC free

Material

Internal Material

304 stainless steel

External Material

Sprayed steel plate

Door

Outer door: Sprayed steel plate door*1

Inner door: 304 stainless steel door*2

Consumption

1350W

1500W

1700W

Power Supply

AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)

Casters

Yes

Shelf

3

Standard Accessory

Remote alarm interface, USB interface, test port, handwriting drawing board function, A4 paper slot function, automatic air pressure balance hole

Optional Accessory

Temperature recorder, liquid nitrogen backup system

Internal Size(W*D*H)

606*575*1180mm

606*738*1310mm

894*718*1310mm

External Size(W*D*H)

891*992*1945.5mm

891*1155*1994.5mm

1179*1135*1994.5mm

Package Size(W*D*H)

965*1035*2120mm

975*1190*2200mm

1275*1170*2200mm

Net Weight

235.5kg

283kg

310kg

Gross Weight

278kg

345.5kg

333.5kg
