Description

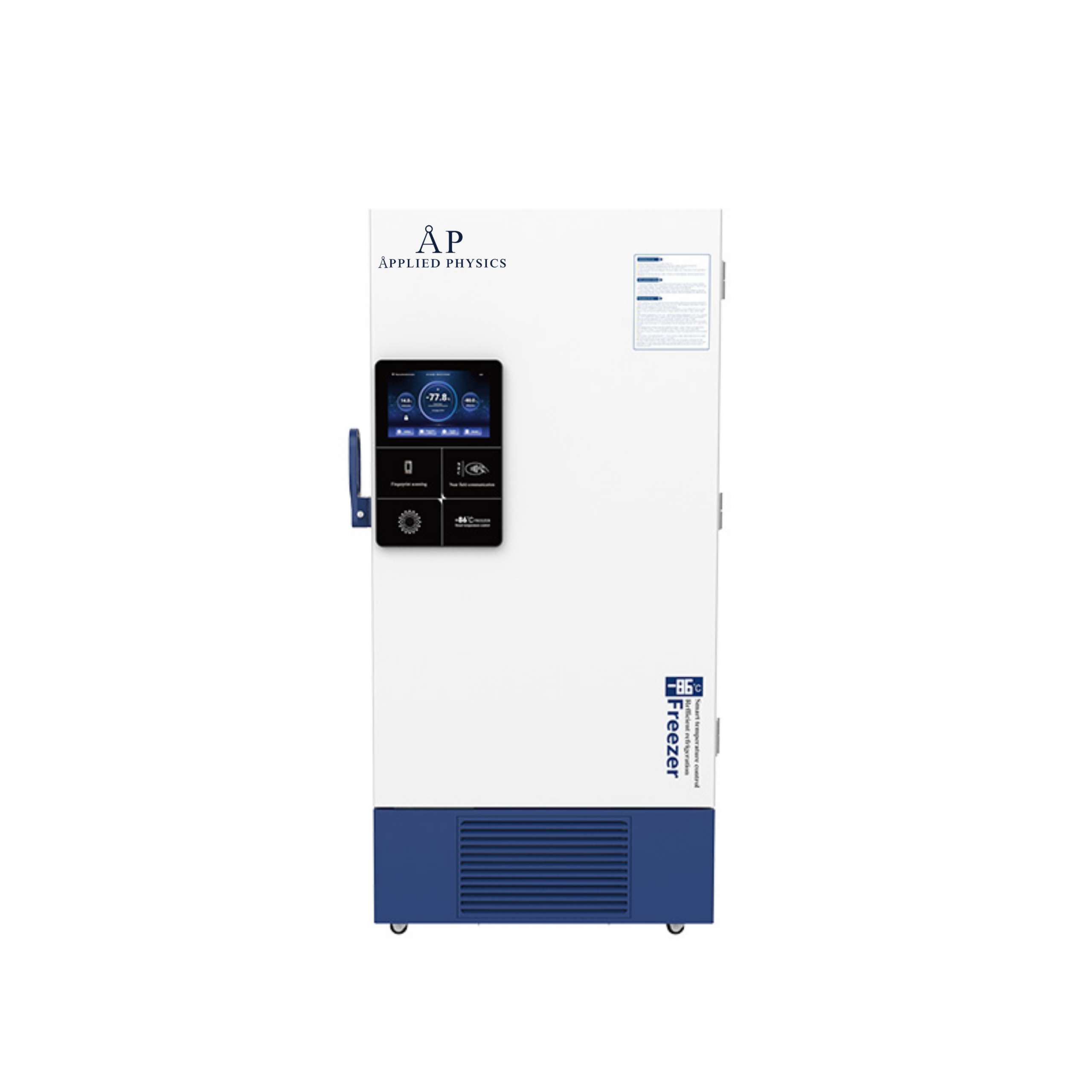

Features: 1. The exterior is made of spray-coated cold-rolled steel plates, the interior is constructed with SUS304 stainless steel. 2. The 10.1-inch smart full-touch Android screen displays precision at 0.1℃. 3. Dual independent cooling systems ensure uninterrupted operation, if one system fails, the other continues to function normally. A single system can maintain long-term stable temperatures below -80℃. 4. Five-layer door seal design ensures more uniform temperature distribution and enhanced energy efficiency. 5. The three-lock design, incorporating a door handle lock, a padlock, and an electromagnetic lock, ensures the security of stored items. Equipped with three standard login methods: fingerprint, NFC, and password, for user convenience. 6. Equipped with smart IoT capabilities, it allows users to monitor the freezer’s status anytime via a computer-based platform. 7. It features a sample library system that aggregates and processes information such as sample inventory, outbound status, sample quantity, and type, making it convenient for users to query. Technical Parameters:
| Model | BDF-86V418BD | BDF-86V608BD |
| Capacity | 418L | 608L |
| Environment Temp. | 10~32℃ | |
| Temp. Range | -40~-86℃ | |
| Temp. Accuracy | 0.1℃ | |
| Temp. Uniformity | ≤5℃ | |
| Temp. Stability | ≤6℃ | |
| Control System | Electronic temperature control | |
| Display | 10.1-inch full-touch Android screen | |
| Sensor Type | PT100 | |
| Alarm | High/low temperature alarm, power failure alarm(72-hour duration), door open alarm, internal sensor fault alarm, condenser sensor fault alarm, ambient temperature sensor fault alarm, condenser clogging alarm, high ambient temperature alarm, power board fault alarm, power supply overpressure alarm, low battery alarm, battery disconnection alarm, reverse battery connection alarm | |
| Refrigeration Type | Direct-cooling | |
| Refrigerant | R600a/R1150/R14, 252g | R600a/R1150/R14, 255g |
| Compressor | International famous brand inverter compressor/2 | |
| Defrosting Method | Manual | |
| Condenser & Evaporator | Condenser: finned; copper tube Evaporator: internal coil; copper tube | |
| Shelf | 3/Stainless steel | |
| Noise | ≤52dB(A) | ≤60dB(A) |
| Outer Door | 1/Cyclopentane integral foaming | |
| Inner Door | 4/Cyclopentane integral foaming | |
| Consumption | 650W | 740W |
| Power Supply | Standard: 220V, 50Hz Optional: 220V, 60Hz; 110V, 60Hz | |
| Caster | Universal casters*4 + leveling feet*2 | |
| Standard Accessory | RS485, USB port, test port*2(φ30mm), remote alarm | |
| Optional Accessory | Barcode scanner, temperature recorder, liquid nitrogen backup system | |
| Inner Size(W*D*H) | 600*612*1150mm | 620*755*1280mm |
| External Size(W*D*H) | 980*988*1940mm | 1000*1147*1996mm |
| Package Size(W*D*H) | 1130*1170*2150mm | 1150*1280*2210mm |
| Net Weight | 270kg | 308kg |
| Gross Weight | 350kg | 380kg |
