Description
Lab Automatic Glassware Washer provides standard and automatic cleaning and disinfection for most of medical equipments, so as to eliminate the possibility of infection in cleaning and disinfecting. Features: 1. Adopt PLC microcomputer control technology. Standard printer and 7-inch color LCD touch screen. 2. Complete protection functions: The door cannot be opened during operation to ensure safe use; dual temperature protection of water temperature and air temperature; power failure protection function; water seal design of drainage pipeline to prevent reverse flow of sewage; installed with leak-proof detection, if liquid leakage is detected, The program is cancelled, the inlet valve is closed, and the drain pump is started. Cleaning Procedure: 1. Standard procedure: Meet the general contaminant blood cleaning. 2. Quick cleaning program: Meet the cleaning of lightly polluted utensils. 3. Customized cleaning program: According to different cleaning needs, users can customize the combined cleaning program. 4. Drying program: Equipped with a high-performance drying system, which can quickly complete the drying and cleaning of various instruments. 5. Manual test procedure: Self-check the operation status of each component of the equipment. Cleaning Racks:
Technical Parameters:
| Model | BKX-CQS-120 | BKX-CQZ-120 | BKX-CQS-220 | BKX-CQS-320 | |
| Cleaning | Capacity(L) | 120 | 120 | 220 | 320 |
| Washer Load Level | 1 | 1 | 2 | 3 | |
| Water Wash Power(KW) | 5 | 5 | 7 | 7 | |
| Water Heater Power(KW) | 3 | 3 | 4 | 4 | |
| MAX. Power(KW) | 6 | 6 | 9 | 9 | |
| Water Consumption/Step(L) | 15 | 15 | 20 | 20 | |
| Tank Internal Temperature(℃) | 0~95 | ||||
| Water Supply Pressure(Mpa) | Tap water: 0.3~0.8 Pure water: 0~1 | ||||
| Peristaltic Pump for Cleaning Agent | 2 | ||||
| Cleaning Agent Level Sensor | YES | ||||
| Washing Pump | Sweden 430L/min | Sweden 430L/min | Sweden 1000L/min | Sweden 1000L/min | |

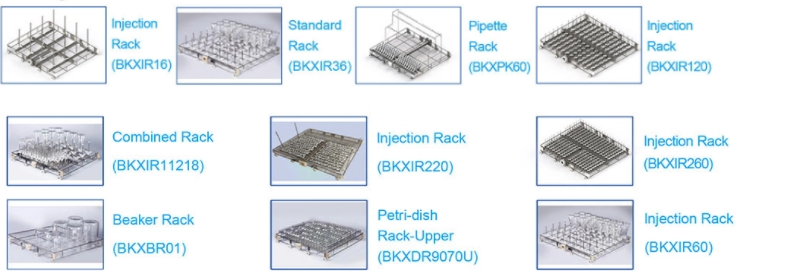

| Standard Cleaning Racks | BKXIR36, 1pc | ||||
| Drying | Drying Function | YES | |||
| Steam Condenser | YES | ||||
| Dry Power(KW) | 3 | 3 | 4 | 4 | |
| Control System and Traceability | Control System | 7" color LCD touch screen display, microprocessor | |||
| Cleaning Program | 12 pre-set programs+4 PLC free programming | ||||
| Password Protection | YES | ||||
| Safety Emergency Button | YES | ||||
| USB Port | YES | ||||
| Integrated Printer | YES | ||||
| Online Monitor Performance of Washing | NO | ||||
| Dimension&Weight | Chamber Dimension(W*D*H,mm) | 600*630*460 | 600*630*460 | 600*610*750 | 600*610*920 |
| Exterior Dimension(W*D*H,mm) | 980*740*870 | 890*800*1630 | 700*800*1850 | 700*800*2000 | |
| Package Dimension(W*D*H,mm) | 1150*940*1060 | 1100*970*1900 | 850*950*2250 | 850*950*2250 | |
| Net Weight(Host only, kg) | 190 | 260 | 290 | 310 | |
| Gross Weight(Host with rack, kg) | 220 | 290 | 330 | 350 | |
| Others | Door | Double-layered glass door, 304 stainless steel | |||
| Safety Door Lock | YES | ||||
| Built-in RO Water Pump | YES | ||||
| Noise(dB) | <50 | ||||
| Voltage(V/Hz) | Standard: AC220V, 50Hz Optional: AC220V, 60Hz; 110V, 50/60Hz | ||||
