Air volume meters are designed for measuring air volume, temperature and humidity in HVAC ducts, HEPA outlets, FFUs, and laminar flow systems. They determine total room air volume for calculating air changes, while interchangeable hood sizes accommodate all types of supply and exhaust duct terminals.
$0.00

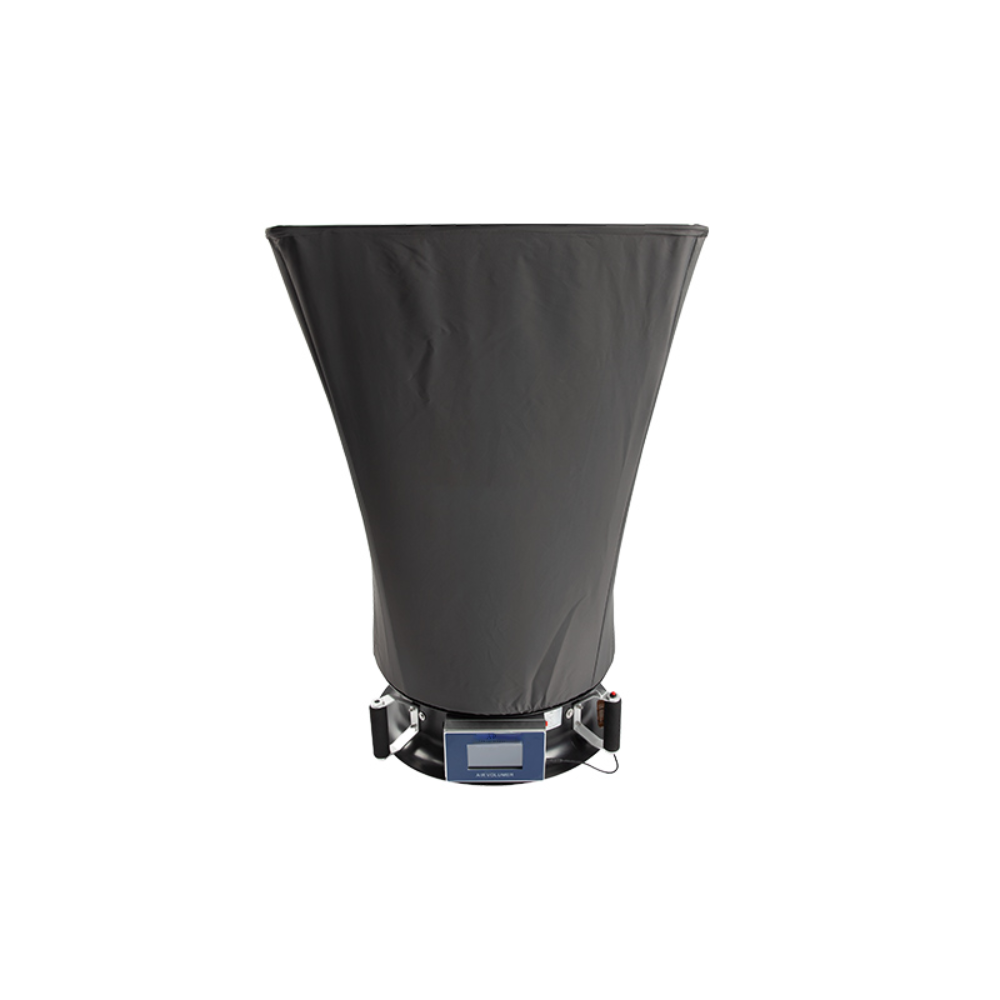

Air Volume Meter – BK-AVM-1、BK-AVM-1S
Features:
1. BK-AVM-1: Push-button LCD screen, BK-AVM-1S: LCD touch screen.
2. BK-AVM-1: Nylon windproof fabric, BK-AVM-1S: Polyester fiber-specific fabric.
3. A tripod is standard with the BK-AVM-1S but optional for the BK-AVM-1.
Notice: Do not measure corrosive gases, gases containing metal particles, and gases containing large particles and high concentration of dust.
Technical Parameters:
Model
BK-AVM-1
BK-AVM-1S
Air Volume
Range
100~3500m³/h
Accuracy
±5%(F•S)
Resolution
1m³/h
Temp. Measurement
Range
/
0~60℃
Accuracy
/
±0.5℃
Resolution
/
0.1℃
Humidity Measurement
Range
/
0~100%RH
Accuracy
/
±0.1%RH
Resolution
/
0.1%RH
Power Supply
DC
8.4V
AC
100~240V, 50/60Hz
Storage
Up to 1000 test results
Up to 5000 test results
Standard Printer
Bluetooth printer
Operating Environment
Temperature: 5~35℃
Relative Humidity: 30~70%RH
Storage Environment
Temperature: -30~45℃
Relative Humidity: 0~70%RH
Air Flow Hood
Standard: 570*570mm, 830*830mm
Package Size(W*D*H)
650*650*200mm
650*650*200mm; 990*100*100mm
Gross Weight
12kg
11kg; 3kg
| Model | BK-AVM-1、BK-AVM-1S |
|---|
