Description

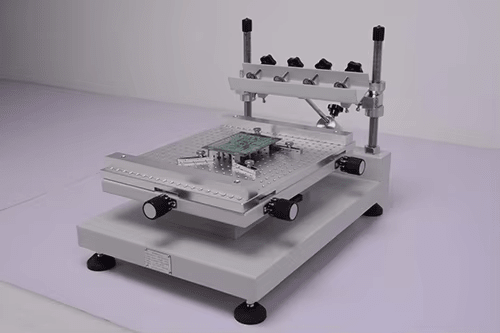

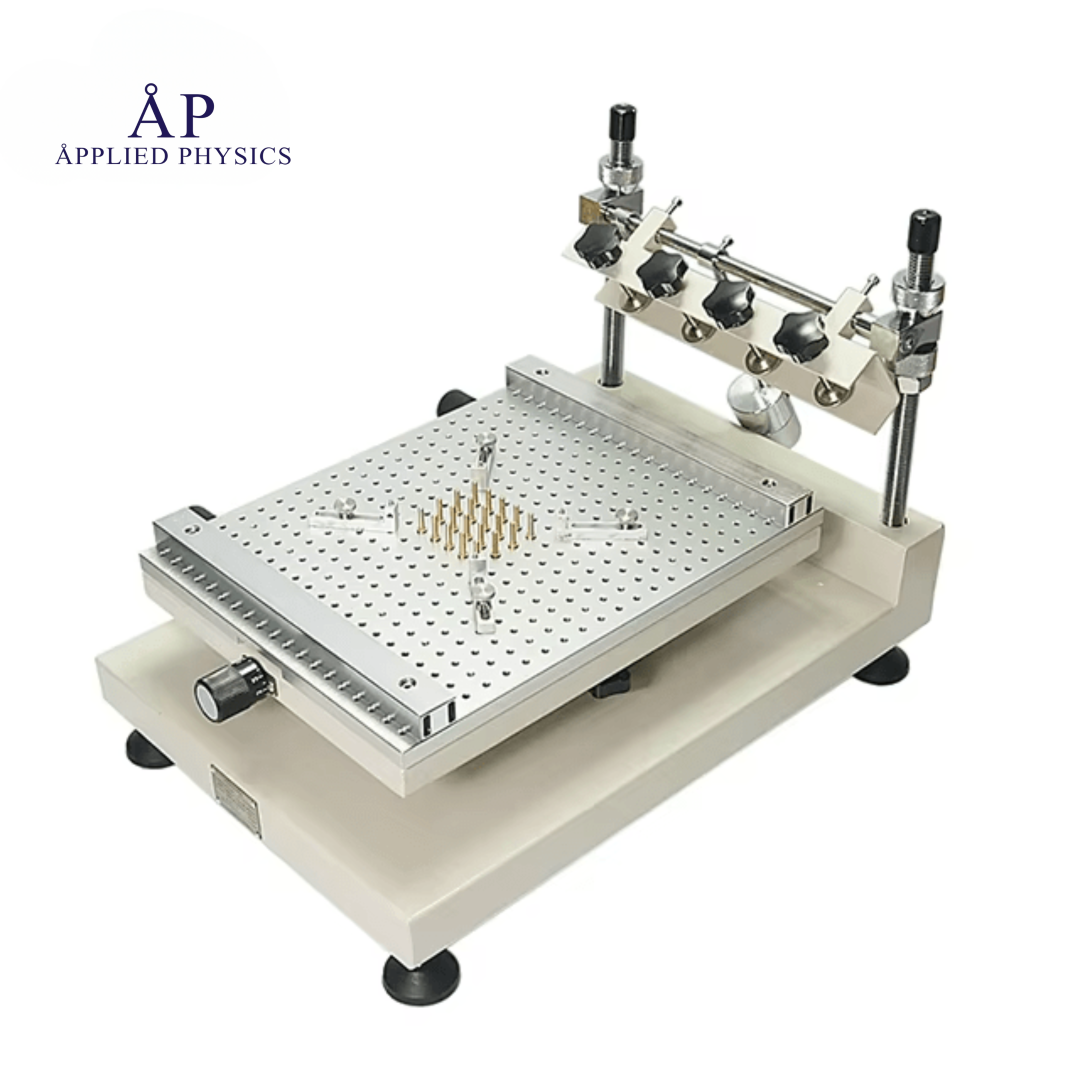

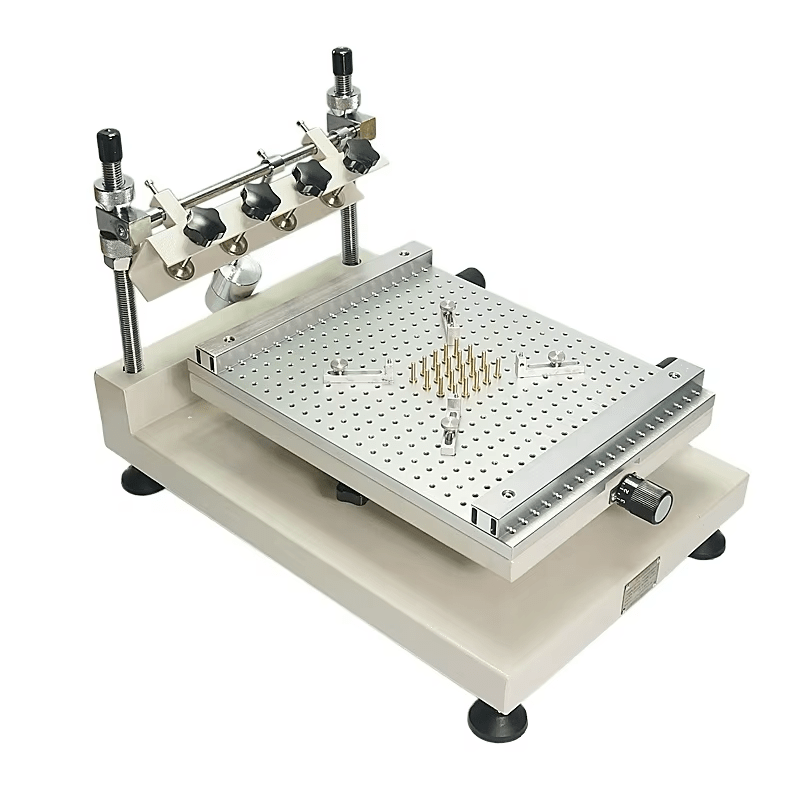

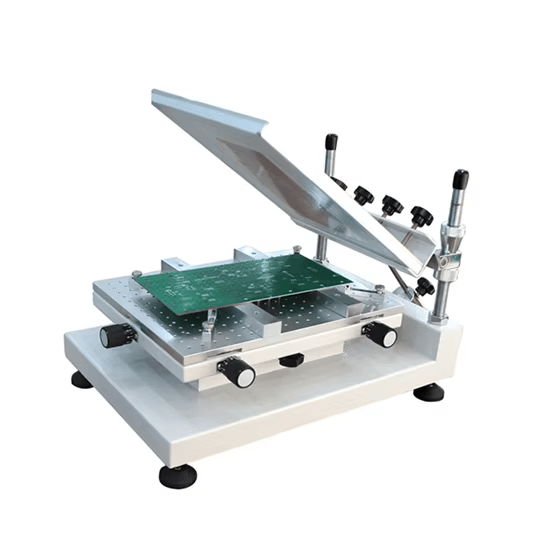

The Applied Physics Semiconductor W-3088A Standard Semi-Automatic Solder Paste Printer is engineered for precision, reliability, and ease of use in modern Surface Mount Technology (SMT) production environments. Designed to meet the rigorous demands of electronics manufacturing in the United States, this solder paste printing machine delivers exceptional accuracy and repeatability for both single- and double-sided PCB assembly. Whether you are producing high-density consumer electronics, automotive modules, or aerospace components, the W-3088A offers the flexibility and performance required for today’s competitive market.
Key Features
- Precision Linear Guide Rail & Imported Motor: Ensures high-accuracy blade movement and consistent printing results.
- Rotatable Printing Scraper: The printing scraper can be rotated 45 degrees and fixed in place, simplifying stencil and squeegee cleaning and replacement.
- Adjustable Blade Position: The blade block can be adjusted forward and backward, allowing for optimal printing position selection.
- Versatile PCB Support: Features a fixed groove printing platen and adjustable PINs for easy installation and alignment, supporting both single- and double-sided PCB printing.
- Fine Adjustment in X, Y, Z Axes: The steel mesh and PCB can be finely adjusted in all three axes for precise alignment.
- Multiple Printing Modes: Supports both one-way and two-way printing methods to accommodate various production requirements.
- Automatic Output Counting: Integrated counting function for real-time production output statistics.
- Adjustable Blade Angle: Compatible with both steel blades and rubber scrapers for different solder paste types and applications.
- Touchscreen Interface with Screen Saver: User-friendly touchscreen with adjustable screen saver to extend interface lifespan.
- Adjustable Printing Speed Display: Printing speed can be monitored and adjusted to match production needs.
Technical Specifications
| Parameter | Specification |
| Model No. | W-3088A |
| Printing Table Size | 320 × 550 mm |
| Frame Size | 370 × 470 mm – 550 × 650 mm |
| Max PCB Size | 300 × 500 mm (customizable size) |
| PCB Thickness | 0.2 – 2.0 mm |
| PCB Fixed Method | PCB Outer Or Pin Positioning |
| Platen Fine-tuning | Front/back ±10 mm, Right/Left ±10 mm |
| Printing Accuracy | ±0.05 mm |
| Machine Repeatability | ±0.02 mm |
| Minimum Spacing | 0.35 mm |
| Compressed Air | 4–6 kgf/cm² |
| Power Supply | Single Phase 220V 50/60Hz / 100W |
| Dimensions | L900 × W900 × H1650 ± 20 mm |
| Weight | Approx. 300 kg |
Applications
- Surface Mount Technology (SMT) Assembly Lines
- Prototyping and Low-to-Medium Volume PCB Production
- Consumer Electronics Manufacturing
- Automotive Electronics
- Aerospace and Defense Electronics
- Research and Development Labs
Why Choose Applied Physics Semiconductor?
- US-Based Support and Service: Applied Physics Semiconductor provides responsive technical support and service across the United States, ensuring minimal downtime and maximum productivity.
- Industry-Leading Precision: Our equipment is engineered for the highest levels of accuracy and repeatability, meeting the stringent requirements of advanced electronics manufacturing.
- Flexible Solutions: Customizable options are available to fit unique production needs, including specialized PCB sizes and configurations.
- Commitment to Innovation: With a focus on continuous improvement and customer-driven innovation, Applied Physics Semiconductor is a trusted partner for leading manufacturers nationwide.
Optimize Your SMT Production with the W-3088A
The W-3088A Standard Semi-Automatic Solder Paste Printer is the ideal solution for manufacturers seeking reliable, high-precision solder paste deposition for a wide range of PCB assembly applications. Its robust construction, advanced features, and user-friendly interface make it a valuable addition to any modern electronics production line. Contact Applied Physics Semiconductor today to request a quote, schedule a demo, or discuss your specific application needs.
