Description

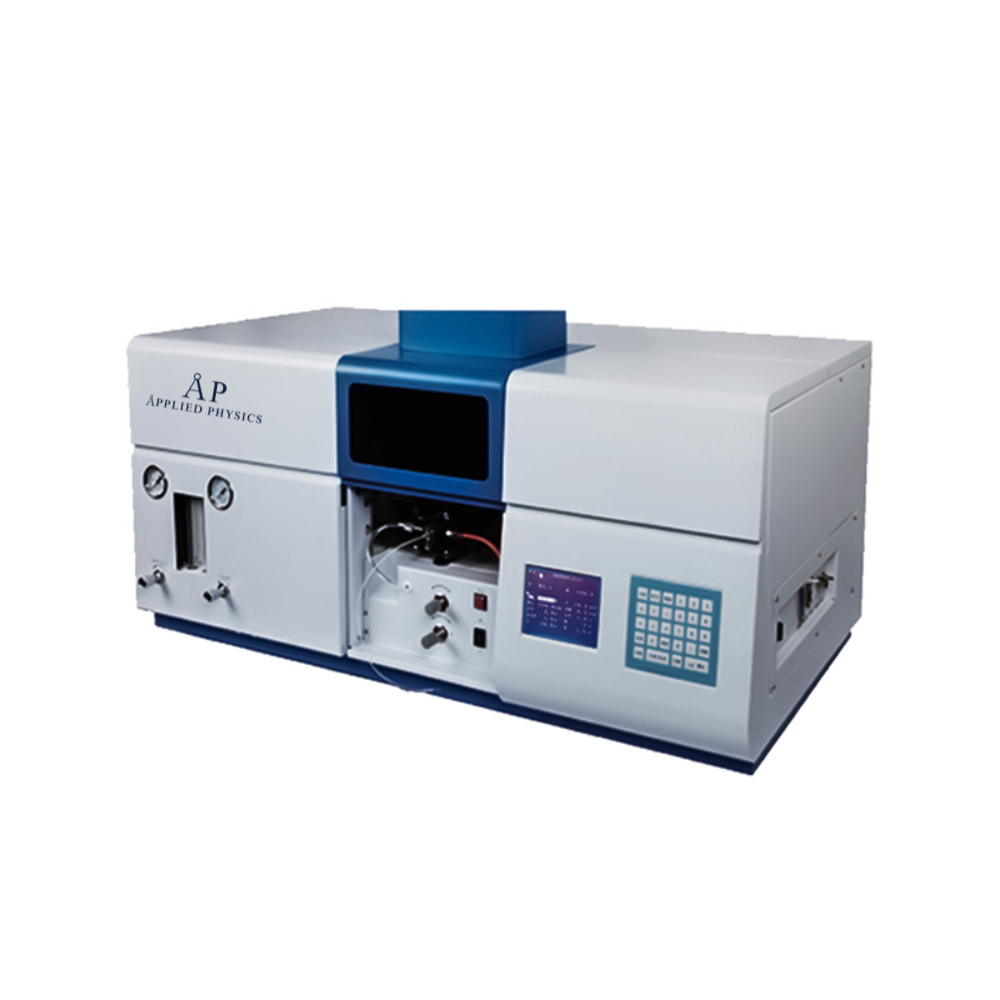

Features: 1. Build-in computer data processing and LCD display. 2. Stability: Double-beam system can automatically compensate the light source drift and wavelength drift caused by the variation of temperature and electronic circuit drift. 3. Quickly: The cathode lamp does not need to be pre-heated for long time and sample can be analyzed immediately. 4. High Precision of Measurement: Gas path system is equipped with precision pressure stabilizing and current stabilizing devices to reach stable flame and low noise. Specially designed fine light beam passes through the flame to ensure a high precision analytical test and low characteristic concentration. 6. High Energy Optical Path. 7. Long-life and anti-corrosive atomization system. 8. Multi-functional Analysis Mode: (1) Flame absorption. (2) Flame emission. (3) Graphite furnace atomic absorption. (4) Gydride generation. 9. Safe and Reliable Gas Path System: Special devices of quick gas conversion and safety protection can be used to analyze air-acetylene flame as well as nitrous oxide-acetylene flame and extend the analytic elements to reach more than 60. Technical Parameters:
| Model | BK-AA320N |
| Wavelength Range | 190~900nm |
| Wavelength Accuracy | ≤±0.5nm |
| Wavelength Repeatability | ≤ 0.3nm(single direction) |
| Spectral Bandwidth | 0.2nm, 0.4nm, 0.7nm, 1.4nm, 2.4nm, 5.0nm |
| Grating | 1800 lines/mm |
| Resolution | <40% |
| Base Line Stability | ±0.004Abs/30min |
| Characteristic Concentration | ≤ 0.04μg/ml/1%(Cu) |
| Detection Limit | ≤0.008μg/ml(Cu) |
| Background Calibration | ＞30 times |
| Power Supply | 220V, 50Hz |
| Packing Size(mm) | 1250*795*765(Main instrument) 545*445*1385(Accessories ) |
| Gross Weight(kg) | 138kg(Main instrument) 56kg(Accessories ) |
| Standard Accessories | RS232 serial port Oil-free air compressor Glass atomizer Cu hollow cathode lamp Atomizer unit burner unit dust cover Water-separating gas filter Titanium burner-10cm |
| Optional Accessories | Software Model GA3202 HGA graphite furnace system Hydride generator Graphite tubes Recirculating cooling water system Hollow cathode lamp(Ag, Au, Ca, Cd, Cr, Fe, Hg, K, Mg, Mn, Na, Ni, Pb, Zn, A |
