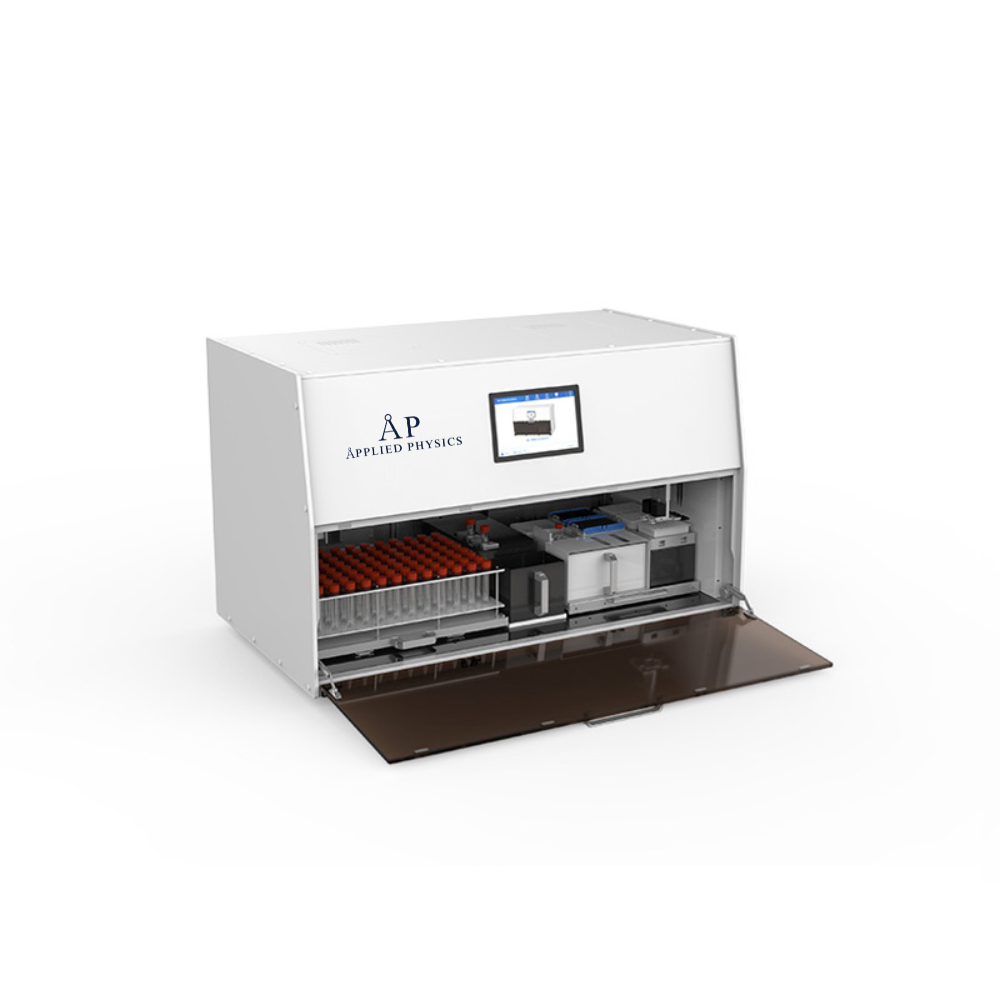

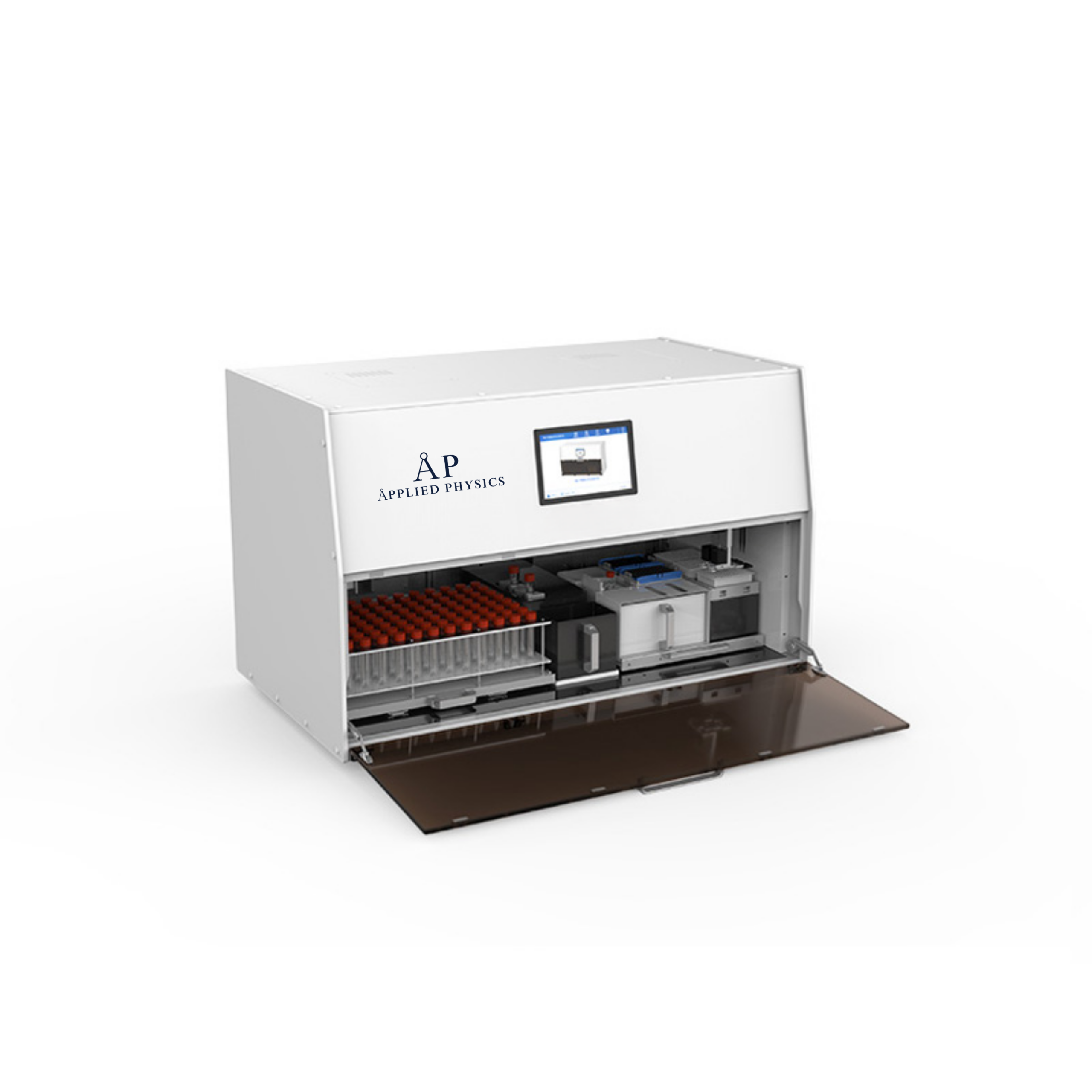

Automated Sample Processing System BK-PR96

Automated Sample Processing System BK-PR96 Application: Sample processing for clinical diagnosis, epidemic surveillance, food safety, forensic identification, scientific research, etc., especially for samples of SARS-CoV-2 or other virulent infectious diseases. Work Process: Features: 1. Safety: Equipped with double independent, specific anti aerosol cross contamination device, high efficiency ultraviolet disinfection module, external liquid trap tray. 2. Efficient: 96 samples were processed within 25 minutes, with double manipulator, double sample addition and double screw cover channel. 3. Convenient: 10.1-inch HD touch screen, user-friendly operation interface, one-click software operation, quick mastery; Pull-out scrap TIP storage box design, more convenient cleaning. 4. Compatibility: Compatible with a variety of pipette tips, deep well plates, sampling tubes.(including blood collection tubes) specifications. 5. Smart: One-key operation, smart dispensation. Technical Parameters: Model BK-PR96 Throughput 1~96 Processing Time 96 samples/25min Sample Type Plasma, serum, whole blood, swab solution and other samples Sample Rack 1pc(Compatible with a variety of sampling tubes) Robot Arm 2pcs(Dispensation arm and screw cap arm) Clamping Arm 2pcs, independence movement Pipetting Method Specific mechanical pipetting fluids Plate Position 3pcs(Compatible with multi-specification deep-well plates) Tip Position 3pcs(Including tip waste box position) Reagent Rack Yes, 4*4 reagent carrier, can hold bullet cryotube Pollution Prevention&Control External droplet capture tray design Aanti-aerosol cross-pollution device UV light Air-tight and anti-drip design Liquid Detection Pneumatic liquid level detection principle, intelligent detection of blocked needle Pipetting Volume 5~1000μl Pipetting Accuracy 20μl, CV≤2%, Accuracy≤5.0%, 50μl tip 1000μl, CV≤0.5%, Accuracy≤1.0%, 1000μl tip Power Supply Standard: 220V, 50/60Hz; Optional: 110V, 50/60Hz Power 350W External Size(W*D*H) 1180*680*760mm Net Weight 105kg Package Size(W*D*H) Main instrument: 1293*793*970mm Accessory 1: 645*185*440mm Accessory 2: 645*185*440mm Gross Weight Main instrument: 156kg Accessory 1: 6.1kg Accessory 2: 4kg
