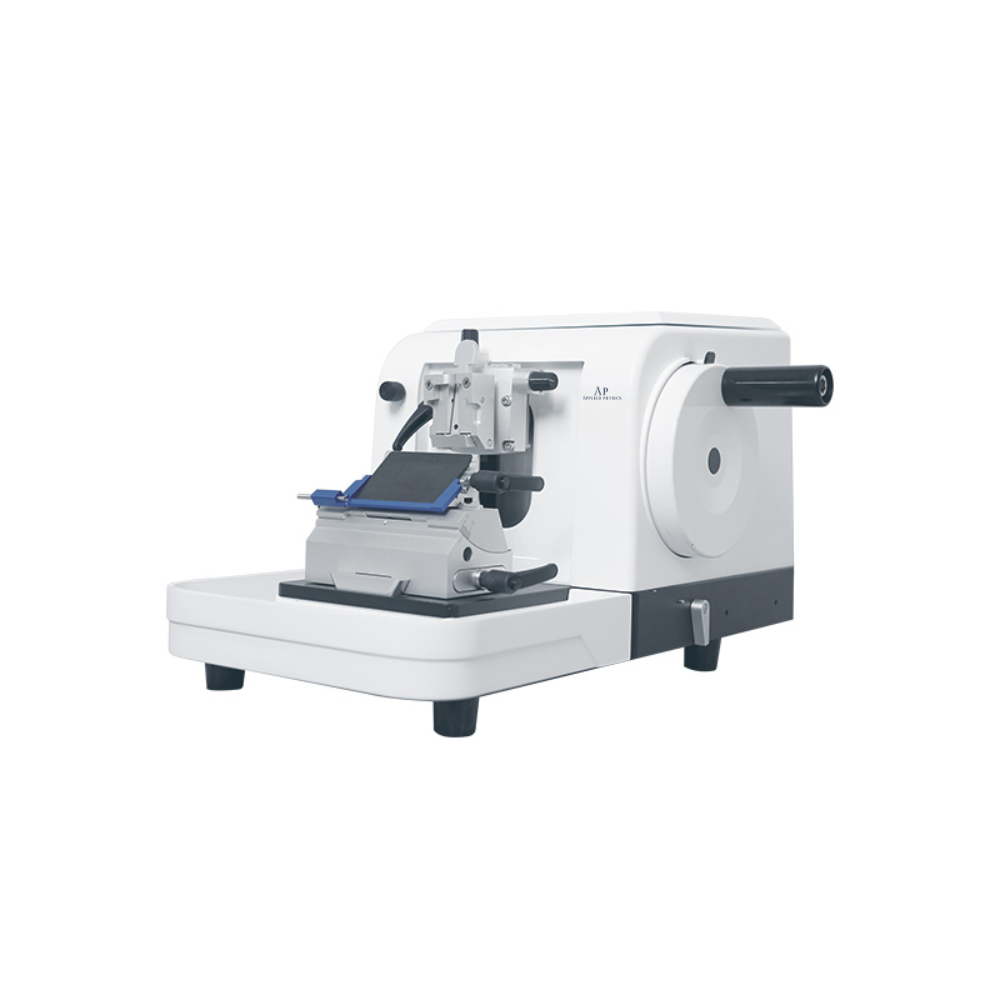

Automatic Microtome BK-2178

Automatic Microtome BK-2178 Features: 1. Precision cross-roller guide, equipped with stainless steel holder, to ensure long-lasting operation of the equipment. 2. Equipped with multi-angle adjustment device, easy to use.(Optional embedding chuck) 3. Magnetic removable waste chute, easy to clean. 4. Two-piece storage board, which can place blade embedding box and other related disposable items. 5. Large hand wheel double lock, and can be single-locked at any point, also double-locked at the highest point and any point, to ensure the safe exchange of knives and samples. Technical Parameters: Model BK-2178 Sectioning Thickness Range 0~60μm Trimming Thickness Range 0~60μm Mini. Sectioning Thickness 0.5μm Precision ±5% Max Specimen Size 50*70mm Specimen Stroke Horizontal: 28mm, Vertical: 52mm Tool Holder Stroke The maximum movement of the tool holder base is 60mm, and the maximum left and right movement of the tool holder is 23mm Sample Adjustment Direction Horizontal 8° Vertical 8° Rotation 90° External Size(W*D*H) 540*470*310mm Net Weight 29kg Packing Size(W*D*H) 660*590*600mm Gross Weight 45kg
