Description

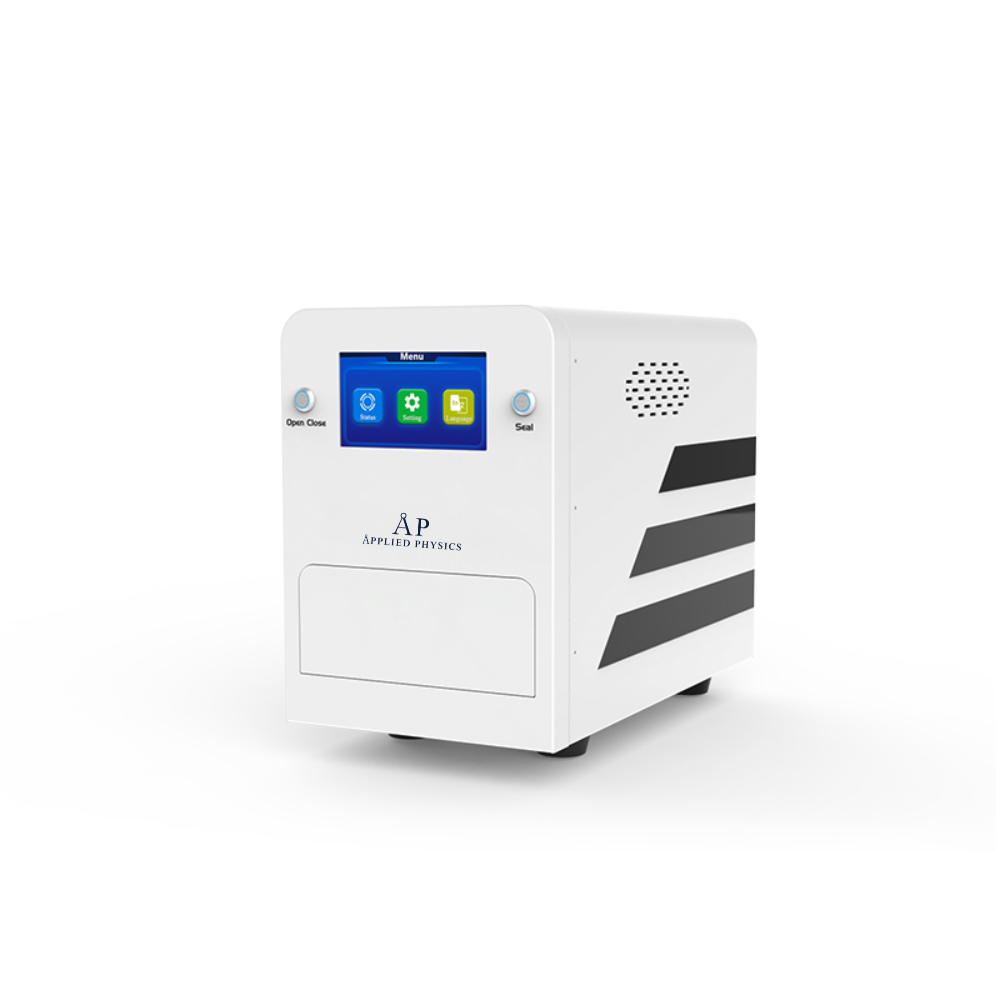

Automatic Sealing and Capping Machine BH-FM01
Application:
Widely used ininspection institutions, hospitals, reagent manufacturers, universities and other places.
Features:
1. 4.3-inch touch screen, easy to operate.
2. Real-time observation of the operating state of the instrument, can be used as a single machine.
3. Customize the sealing temperature as required.
4. Complete the whole process automatically, with stable results and good repeatability.
5. Suitable for a variety of heat sealing films.
6. Multifunctional limit column to prevent heat seal film offset.
7. With emergency stop function and standby function.
Technical Parameter:
Model
BH-FM01
Temp. Range
RT~210℃
Temp. Precision
±1℃
Heating Rate
Heat to 170 ℃ in 240 seconds
Cooling Keep
When sealing the film, the heating body drops temperature: ≤3℃, and rises to the preset temperature within 20s
Sealing Membrane Time
0.1~15s
Film Sealing Time Accuracy
0.1s
Pressure Level
1~5 level can be set, multi-level adjustable
Plate Type
Deep well plate, PCR plate, ELISA plate, etc.
Optional: ELISA plate adapter, 384 well plate adapter, PCR plate adapter
Consumption
400W
Power Supply
Standard: 220V, 50/60Hz
Optional: 110V, 50/60Hz
External Size
325*176*262mm
Package Size
530*230*290mm
Net/Gross Weight
10.5/11.5kg
