This instrument performs accurate surface and interfacial tension measurements across a wide range of liquids. It features an LCD for instant result display and automatic averaging of multiple tests. With a unique dual-calibration system–using standard weights for certification compliance and reference liquids for precision and repeatability–it ensures reliable results through a simple and efficient calibration process.
$0.00

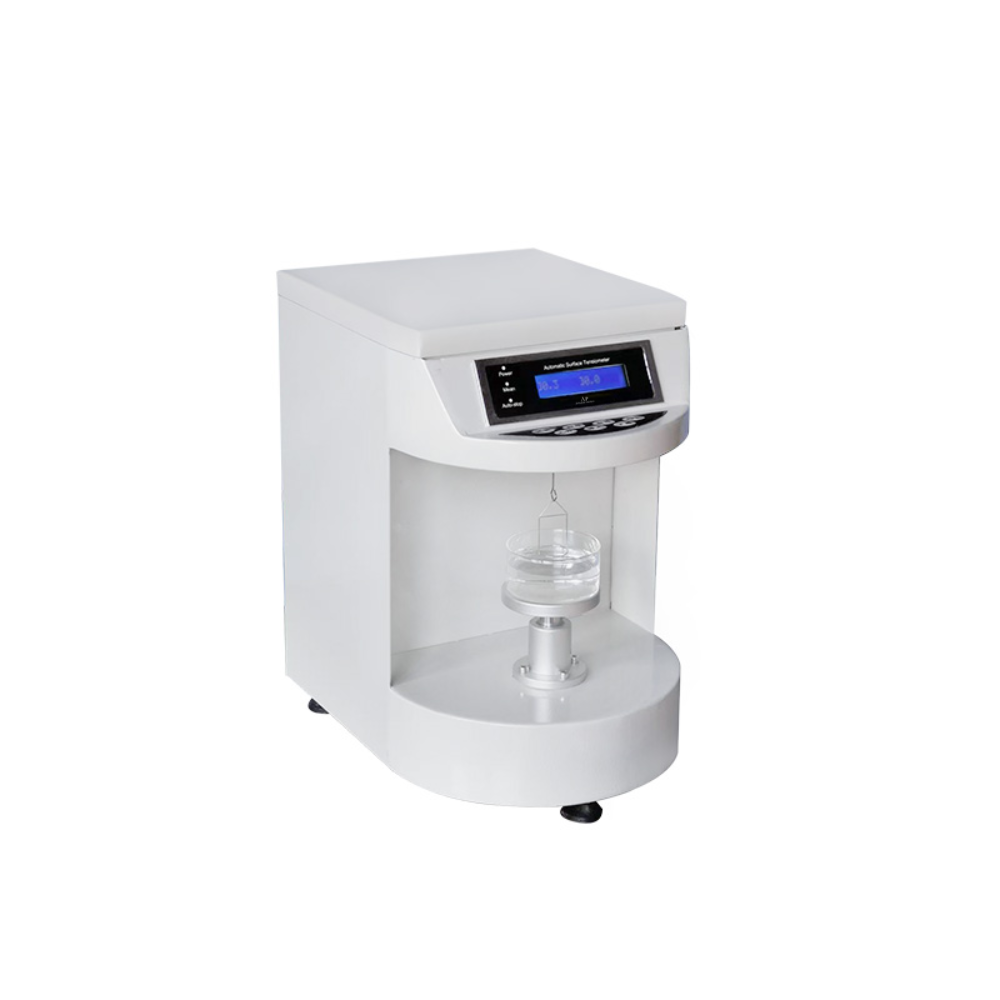

Automatic Surface Tensiometer
Features:
1. Features a unibody casing and precision direct-drive mechanism, significantly enhancing instrument reliability and durability. The vibration-free transmission ensures physical stability for improved testing accuracy.
2. Utilizes a micro stepper motor for the lifting platform, enabling high-speed adjustment to enhance efficiency and reduce testing time. Automatically switches to standard speed during measurement to guarantee precision.
3. Equipped with a 32-bit ARM microcontroller for high-speed operation and computational accuracy. A proprietary filtering algorithm ensures stable and accurate readings.
4. Incorporates a 24-bit AD converter for rapid signal conversion and highly accurate force value acquisition.
5. An improved torsion wire lever mechanism guides the sensor core in a near-linear path, ensuring excellent test linearity.
6. Employs a high-end domestic LVDT displacement sensor with superior linearity, sensitive signal output, and precise impedance matching, guaranteeing repeatable test accuracy.
7. Includes an auto-stop function configurable for surface tension tests. The platform halts automatically upon completion and displays the tension value.
8. Offers an automatic averaging function, which calculates and displays the mean of multiple tests, reducing operator workload and effort.
9. Features a digital LCD screen that simultaneously displays real-time data and final test results, allowing for direct and convenient reading.
Technical Parameters:
Model
BKST-200A
Measuring Range
0~200.0mN/m
Resolution
0.01mN/m
Accuracy
≤±1%FS
Repeatability Error
≤±1%FS
Platinum Ring Specification
Ring radius(R) 9.55mm, wire radius(r) 0.3mm
Standard Accessory
Platinum ring, hook, glass vessel, 1000-milligram weight*2, 500-milligram weight*1
Power Supply
AC110/220V, 50/60Hz
External Size(W*D*H)
260*200*310mm
Package Size(W*D*H)
300*300*400mm
Net Weight
10kg
Gross Weight
12kg
| Model | BKST-200A |
|---|
