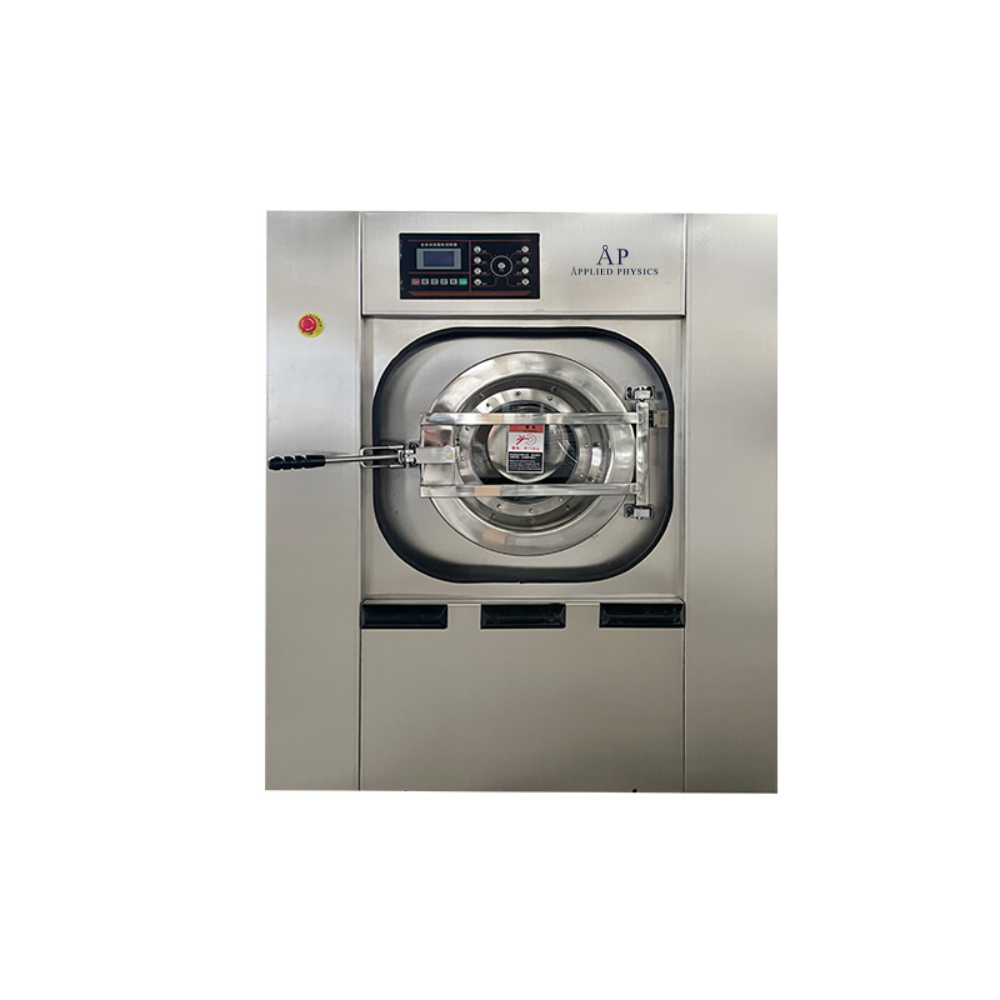

Automatic Washing and Dewatering Machine

Description

Automatic Washing and Dewatering Machine

Features:

1. Equipped with a large-diameter loading door, it effectively reduces operator labor intensity. The external refueling design, compliant with ergonomic principles, minimizes the workload of equipment maintenance.

2. Integrates a computerized controller and a large-screen LCD display, boasting high automation, user-friendly operation, and clear visualization of washing procedures.

3. This fully automatic offline washing equipment is equipped with an auto-manual switching device, enabling manual control when needed. Key parameters such as washing cycles, cleaning frequency, and dehydration duration can be freely adjusted via operation buttons.

4. Adopts a mechanical damping structure and hydraulic dampers to achieve low vibration. Equipped with variable frequency drive, it ensures smooth speed regulation, low noise, efficient and stable washing, and high separation efficiency—no foundation installation is required.

Technical Parameters:

Model

BK-WD30FA

BK-WD50FA

Capacity

30kg

50kg

Drum Size

φ800*500mm

φ980*680mm

Drum Speed

31rpm

Motor Power

3KW

5.5KW

Electric Heating Power

15KW

27KW

Water Consumption Per Cycle

380kg

480kg

Power Consumption Per Cycle

1.5KWh

2.1KWh

Cycle Time

30~40min

Power Supply

AC380V, 50Hz(Standard),

AC220V, 50/60Hz;

AC380V, 60Hz(Optional)

AC380V, 50Hz(Standard);

AC380V, 60Hz(Optional)

External Size(L*W*H)

1150*1200*1600mm

1750*1650*1850mm

Package Size(L*W*H)

1350*1400*1800mm

1950*1850*2050mm

Net Weight

850kg

1800kg

Gross Weight

950kg

2000kg
