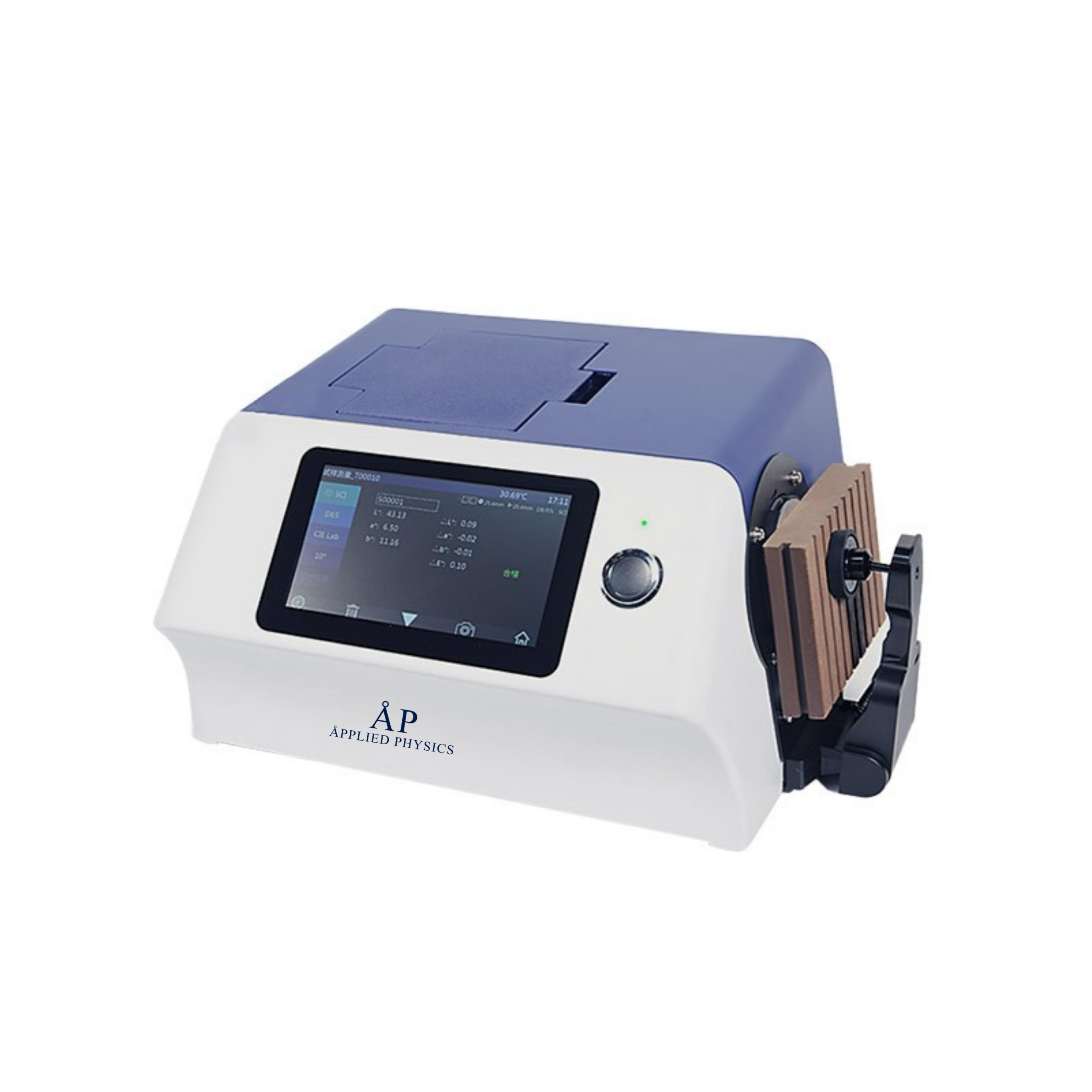

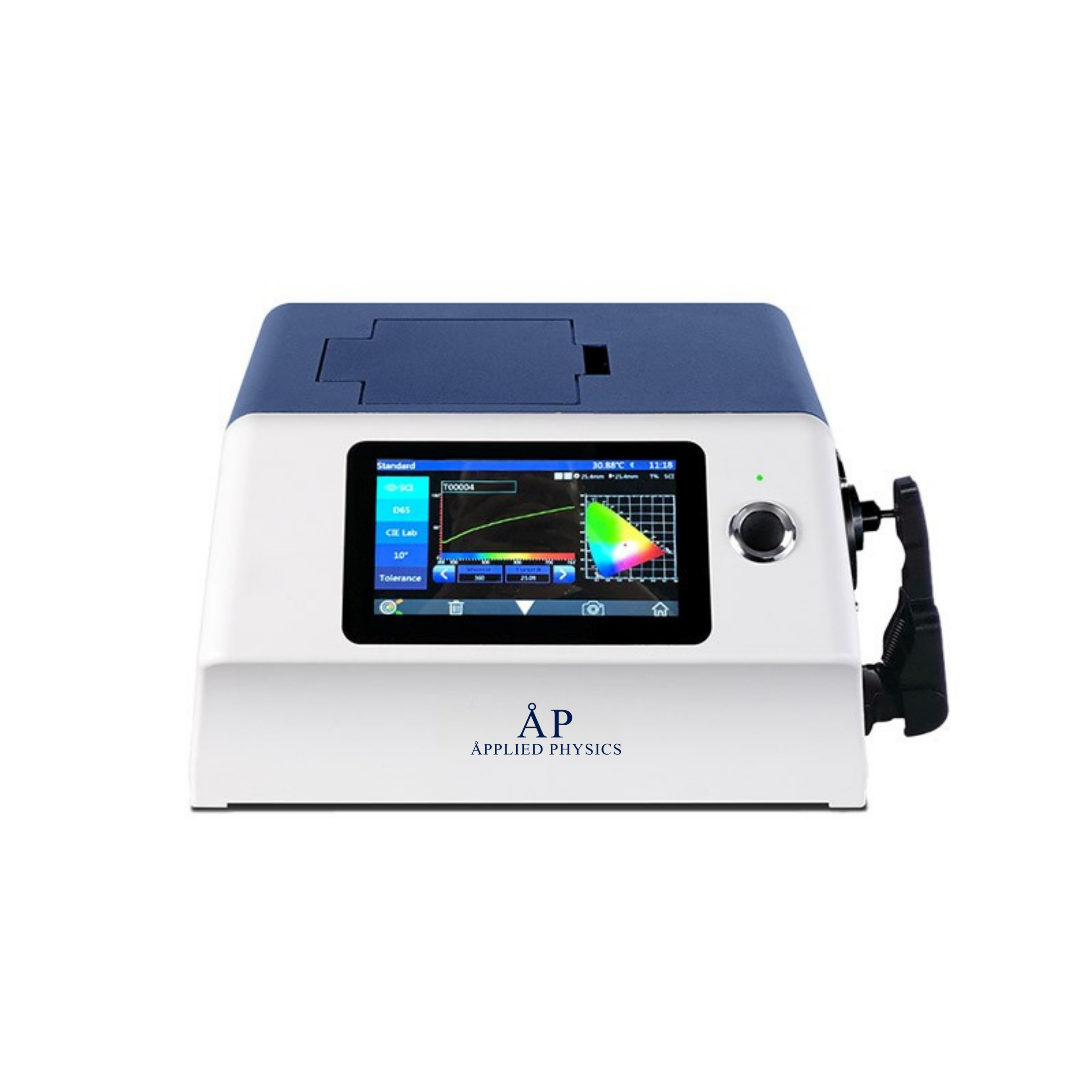

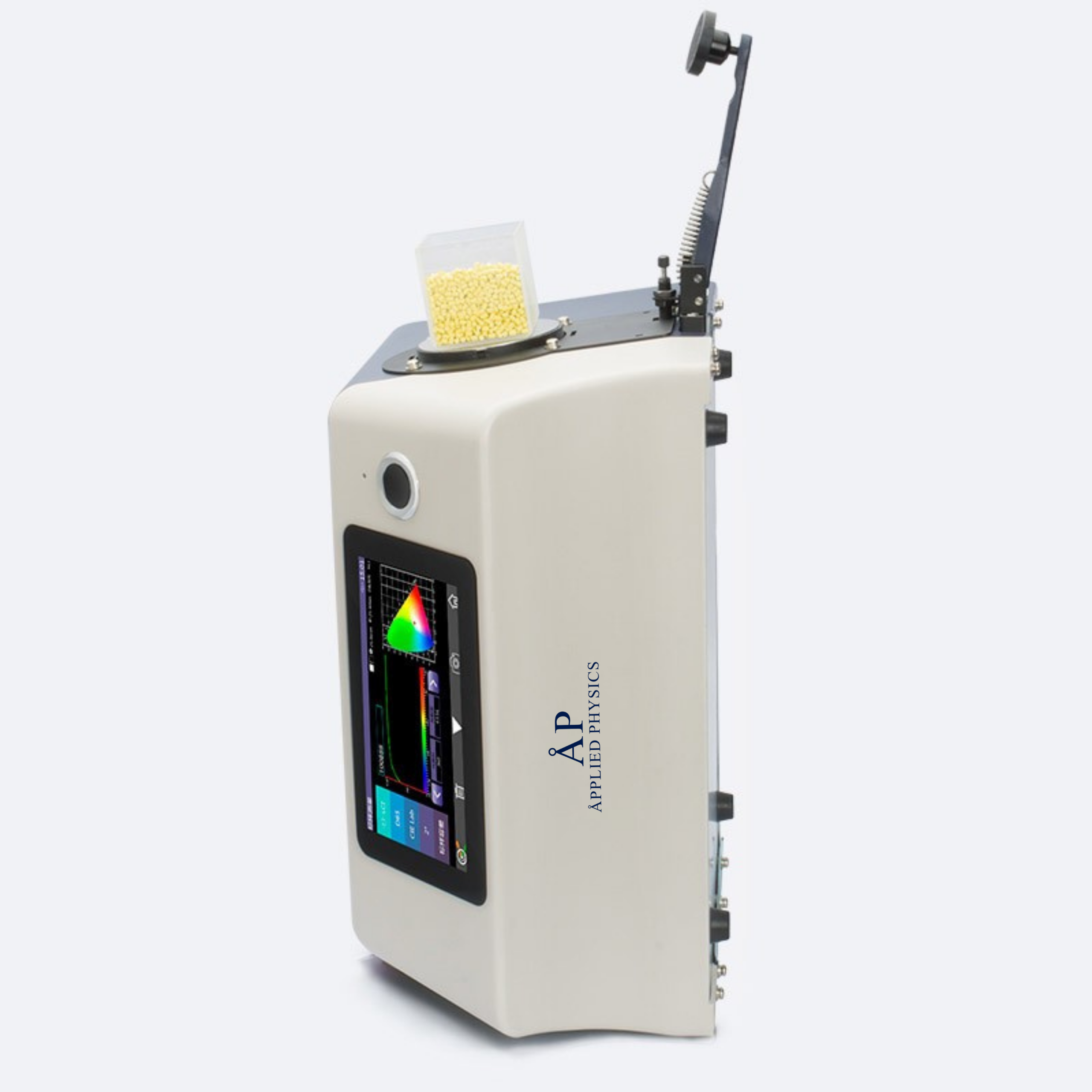

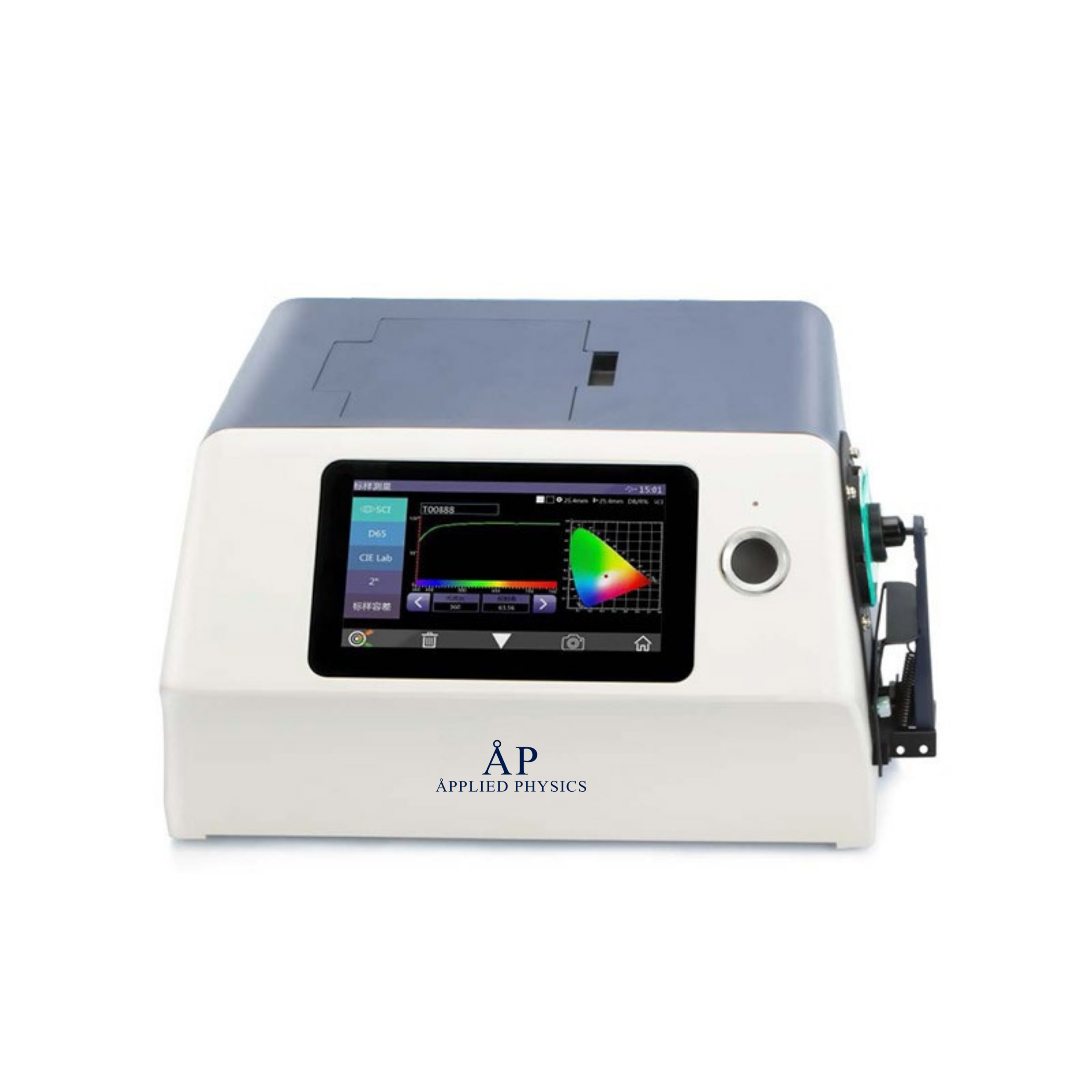

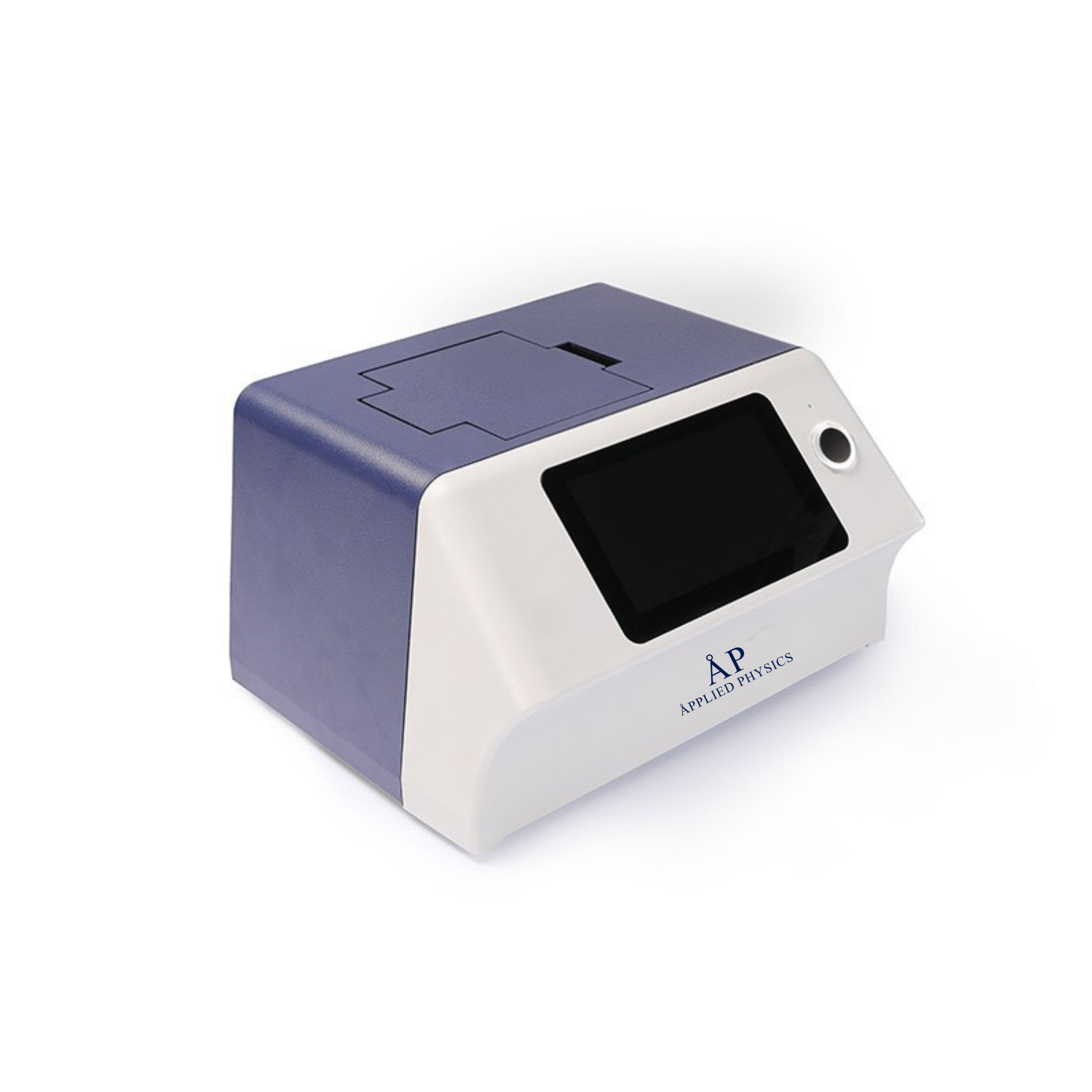

Benchtop Grating Spectrophotometer BK-GS6060

Benchtop Grating Spectrophotometer BK-GS6060 Features; 1, High configuration of hardware: 7 inches TFT Color Capacitive Touch screen Display; Concave Grating. 2, Double Array 256 Image Element CMOS Sensor; Long life-span stable LED, UV LED and xenon lamp. 3, With reflective and transmissive spectrum, accurate Lab value, good to calculate color formula and do precise color transmission. 4, Auto identify measuring aperture. Freely switchable between 4 measuring apertures: φ25.4mm/15mm/8mm/4mm. Users also can customize apertures. 5, Built-in temperature sensor to monitor and compensate the measuring temperature to ensure the measurement more precision. 6, Wavelength range 360nm ~780nm. Built-in 400nm cut off/420nm cut off/460nm cut off (only xenon lamp edition), more professional in UV measurement. 7, Independent light source detector, continuously monitor the condition of light sources to ensure the light source reliable. 8, Multiple measurement modes: Quality Management Mode, Sample Mode; Meet more users’ requirement. 9.Multiple accessories, sample holders, fixation clamp, suitable to more working condition. 10, Big capacity data storage, for 20000 pieces test result. 11, Built-in camera locating. 12, More powerful extended functions at the PC software. Application： BK-GS6060 benchtop spectrophotometer is used to do precise color analysis and transmission in laboratories. It can be widely applied in different industries, such as plastics, electronics, paint and ink, printing, garments, leather, paper, auto, medical, cosmetics, food, science institutes, laboratories.   Technical Specification： Model BK-GS6060 Optical Geometry Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle) ;          SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source Transmittance: di:0°, de:0° (diffuse illumination: 0° viewing) ;                      SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source; Haze(ASTM D1003), Conforms to CIE No.15，GB/T 3978,GB 2893,GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7 Application It is used for accurate analysis and transmission of laboratory color.     Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control. Integrating Sphere Size Φ154mm Light Source 360 nm to 780 nm, Combined LED Light, 400nm cut-off light source,420nm Cut-off light source, UV Lamp Spectrophotometric Mode Concave Grating Sensor 256 Image Element Double Array CMOS Image Sensor Wavelength Range 360-780nm Wavelength Interval 10nm Semi-band Width 10nm Measured Reflectance Range 0-200% Measuring Aperture Reflective: Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm; Transmissive: Φ30mm/Φ25.4mm;                     Specular Component Reflectance: SCI&SCE / Transmittance: SCI&SCE Color Space CIE LAB, XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab, βxy, DIN Color Difference Formula ΔE * ab, ΔE * uv, ΔE * 94, ΔE * cmc(2:1), ΔE * cmc(1:1) , ΔE * 00 , DINΔE 99 ,ΔE (Hunter), Other Colorimetric Index WI (ASTM E313, CIE/ISO, AATCC, Hunter, YI (ASTM D1925, ASTM 313),TI (ASTM E313, CIE/ISO), MI (Metamerism Index), Staining Fastness, Color Fastness, Color Strength, Opacity, Gardner Index, Pt-Co Index, 555 Index Observer Angle 2°/10° Illuminant D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12 Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset Measuring Time About 2.4s (Measure SCI & SCE about 5s) Repeatability Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.04% (400 nm to 700 nm: within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.01 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)                                                                                        Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Inter-instrument Error Φ25.4mm/SCI, Within ΔE*ab 0.12 (Average for 12 BCRA Series II color tiles) Illuminant Life Span 5 years, more than 3 million times measurements Display 7-inch TFT color LCD, Capacitive Touch Screen Data Port USB & Bluetooth Data Storage Standard 5000 Pcs, Sample 40000 Pcs (One PCS can include both SCI and SCE) Language Chinese, English Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m Storage Environment -20~50℃, 0~85%RH (no condensing) Standard Accessory White and Black Calibration Board, Checking Green Board, Sample Holder,∮4mm, ∮8mm, ∮15mm, ∮25.4mm Aperture, Power Adapter, USB Cable, User Guide, PC Software Optional Accessory Micro printer, Transmissive Test Clamp Component Power Supply DC 24V, 3A; Power adapter: 110~230V 50/60HZ External Size(L*W*H) 370*300*200mm Weight 9.6kg Package Size (W* D*H) 350*470*520mm Gross Weight 18kg
