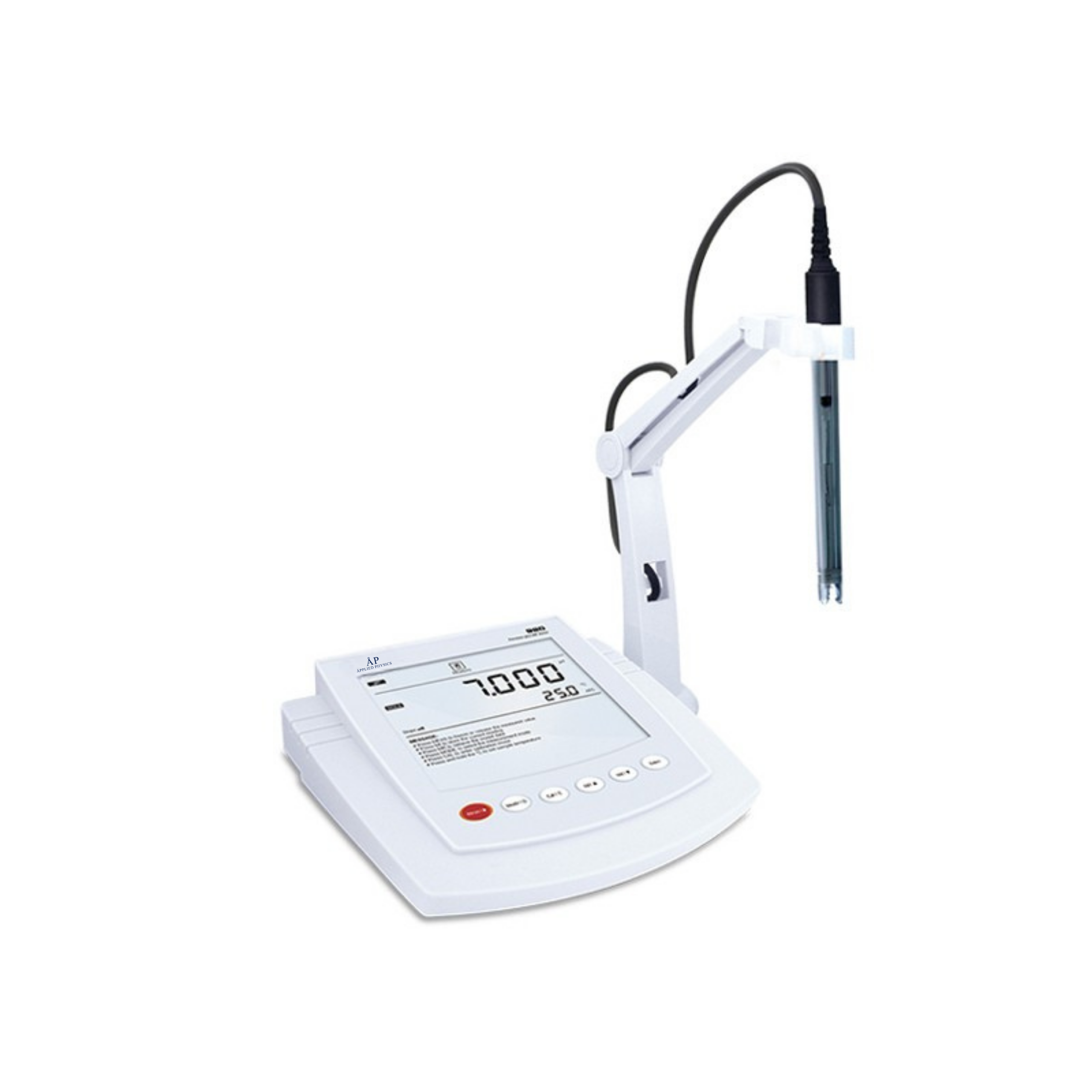

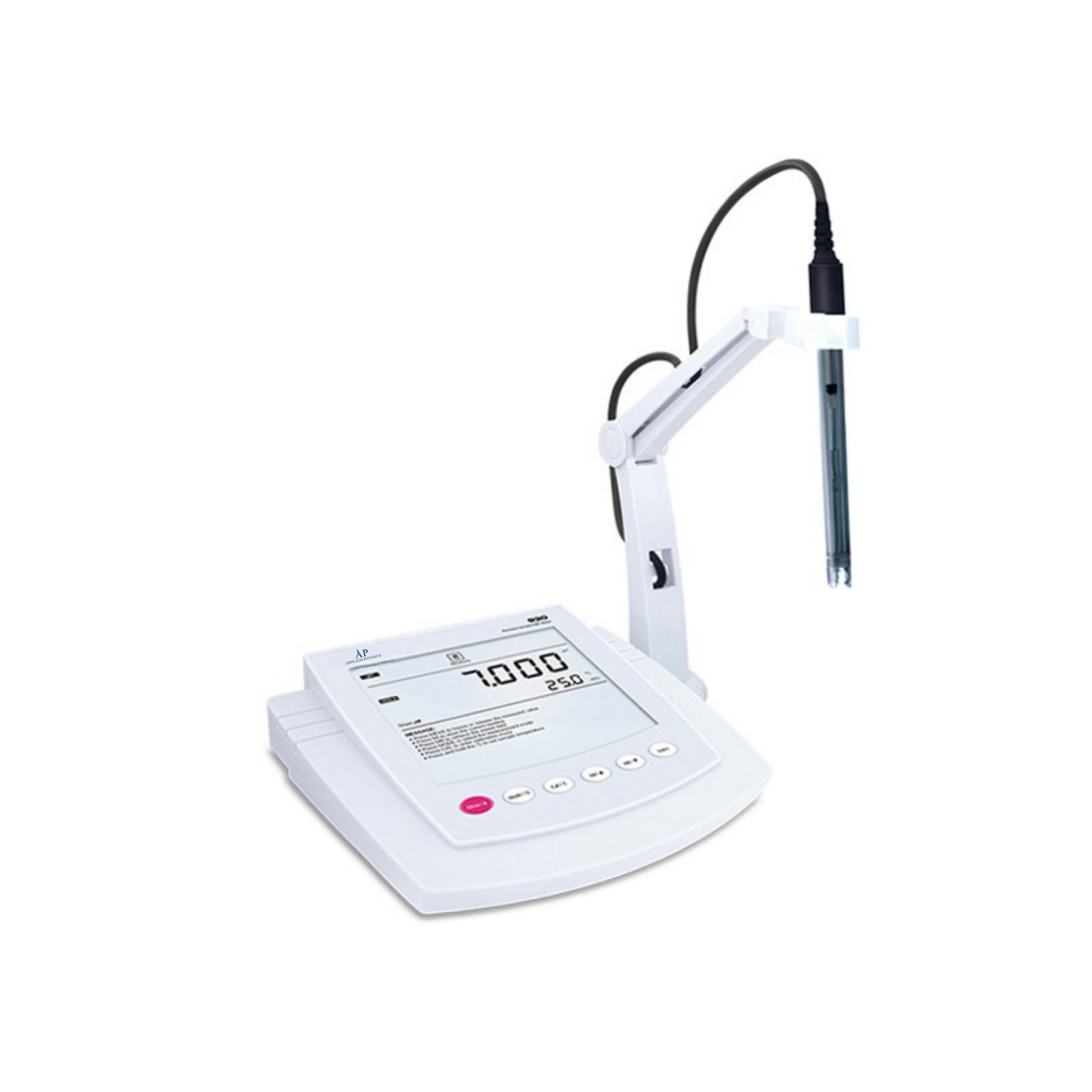

Benchtop pH/ORP/lon Meter PH-920 PH-930

Description

Benchtop pH/ORP/lon Meter PH-920 PH-930

pH：

1. 1 to 5 points calibration with automatic recognition for USA, NIST and DIN buffers.

2. Automatic electrode diagnosis shows the pH slope and offset.

3. Automatic temperature compensation ensures accurate readings over the entire range.

4. Calibration due alarm prompts user to calibrate the meter regularly.

ORP:

1. 1 point offset calibration allows adjusting the displayed value to a known standard.

2. Relative and absolute millivolt modes ensure the reliable ORP measurements. Ion Concentration(For PH-930).

3. 2 to 5 points calibration, including the 8 concentration points can be selected.

4. Direct ion concentration readout simplifies the measurement process.

5. Automatic electrode diagnosis shows the calibration points and slopes.

6. Selectable concentration units(ppm, mg/L, mol/L, mmol/L) and ionic valency.

General Features：

1. Auto-Read function senses and locks the measurement endpoint.

2. Setup menu allows setting the pH buffer set, number of calibration points, resolution, stability criteria, temperature unit, date and time, etc.

3. Reset function automatically resumes all settings back to the factory defaults.

4. Expanded memory stores or recalls up to 500 data sets.

5. USB communication interface for data transfer and timed interval readings.

Accessories:

E201-BNC plastic body pH electrode, temperature probe, pH buffer sachets, electrode holder, DC5Vpower adapter.

Technical Parameters:

Model

PH-920

PH-930

PH

Range

-2.000~20.000pH

Accuracy

±0.002pH

Resolution

0.1, 0.01, 0.001pH, Selectable

Calibration Points

1~5 points

Calibration Solutions

USA, NIST, DIN, 2 custom buffers

ORP

MV Range

±1999.9mV

Relative mV Range

±1999.9mV

Resolution

0.1,1mV, Selectable

MV Accuracy

±0.2mV

Calibration Points

1 point

Ion

Range

/

0.001~19999ppm, mg/L, mol/L(deponding on the range of ISE)

Resolution

/

0.001, 0.01 ,0.1, 1

Accuracy

/

±0.5%F.S(Monovalent),

±1%F.S(Divalent)

Measurement Units

/

ppm, mg/L, mol/L, mmol/L

Calibration Points

/

2 to 5 points

Calibration Solutions

/

0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000

Temperature

Range

0~105°C/32~221°F

Resolution

0.1°C/0.1°F

Accuracy

±0.5°C/±0.9°F

Offset Calibration

1 point, reading ±10°C

Other

Specifications

Temperature Compensation

0~100°C, Manual or Automatic

Stability Criteria

Low or high

Calibration Due Alarm

1 to 31 days or off

Slope/Offset Display

Yes

Hold Function

Manual or auto-endpoint

Memory

500 data sets

Communication Interface

USB

Connector

BNC, 3.5mm jack socket

Display

Custom LCD(125*100mm)

Power Requirements

DC5V power adapter

Dimensions(mm)

210*188*60mm

Weight(kg)

1.5kg

Package Size(W*D*H)mm

310*240*180mm

Gross Weight(kg)

1.7kg
