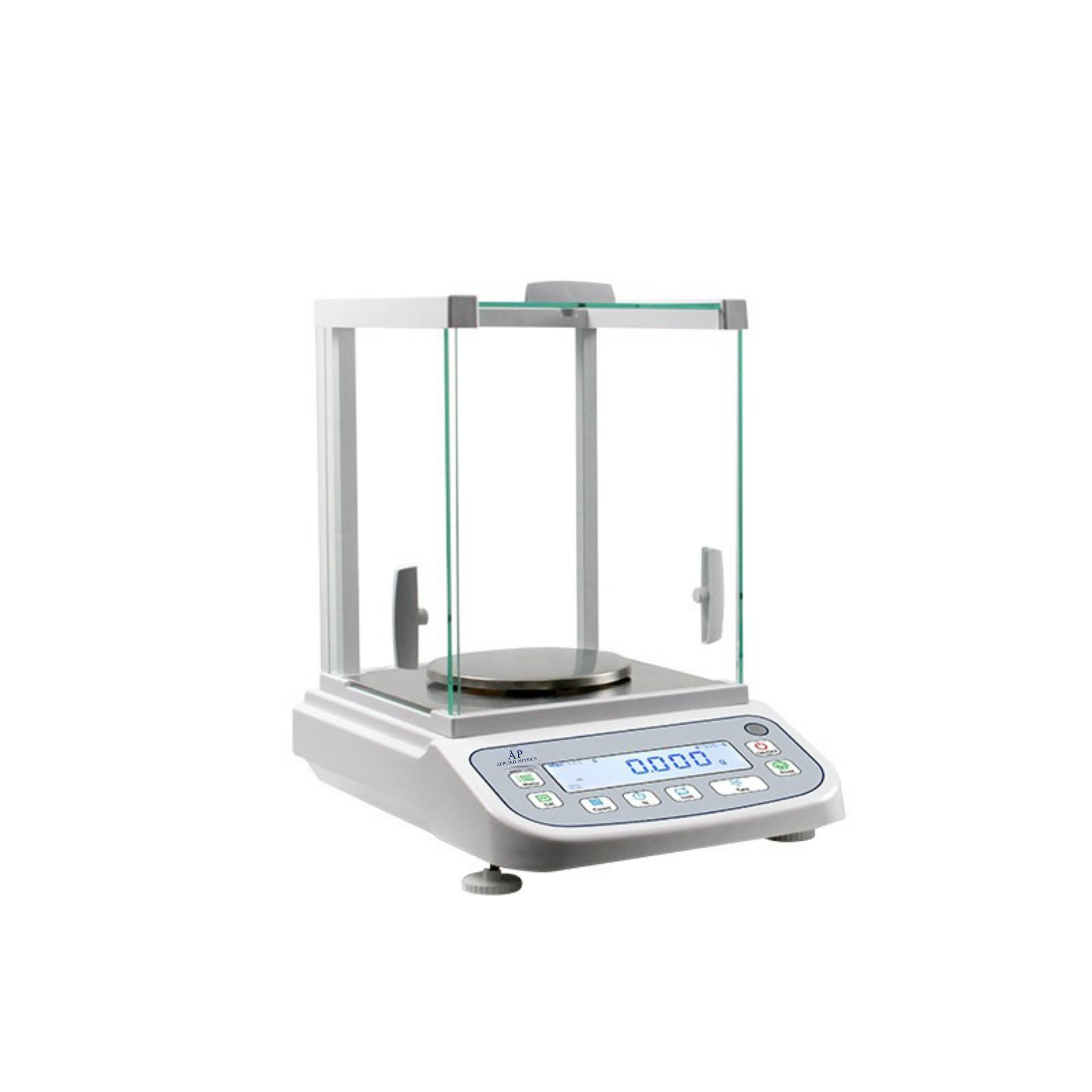

BH-B Series Electronic Precision Balance

Description

BH-B Series Electronic Precision Balance

Features:

1. The gold-plated ceramic sensor ensures excellent accuracy, stability, and fast response speed for weighing tasks.

2. A gold-plated ceramic variable capacitance sensor is adopted.

3. A high-precision humidity sensor is applied, effectively reducing the impact of environmental humidity on weighing.

4. A highly sensitive temperature sensor is applied, effectively reducing the sensitivity to temperature changes.  With an outstanding design offering high cost-effectiveness, it can excellently complete various weighing tasks.
5. An LCD liquid crystal display is adopted.  The screen is clear and bright with a reasonable layout, making it convenient for users to read the weighing results.
6. The transparent glass windproof cover makes the sample visible from multiple directions during the weighing process.  It can also be disassembled and cleaned for quick cleaning.

7. It has the function of multiple weighing unit conversion, allowing free switching among units such as grams (g), carats (Ct), ounces (Oz), etc.

8. Multiple weighing modes: basic weighing, counting weighing, percentage weighing, and check weighing mode.

9. The whole machine adopts a streamlined design, with improved strength.  It has the characteristics of anti-leakage, anti-static, and anti-corrosion, and is suitable for use in various occasions.

10. It has a built-in RS232 two-way communication interface, which can realize the connection between the balance and a computer or a micro printer.  The weighing results can also be transmitted to other open applications such as a PC.

Technical Parameters:

Model

BH1203B

BH2203B

BH3203B

BH4203B

BH5203B

BH6203B

Readability

1mg

Maximum Range (max)

120g

220g

320g

420g

520g

620g

Repeat Ability

士2mg

Liner

士0.2mg

Stable Time

≤2.5s

Sensitivity Drift

5ppm/k

Pan Diameter

Ф115mm

Height of Weighing Chamber

210mm

Operational Temperature Range

13~25℃

Relative Humidity

10%~70%

Calibration Mode

External

Optional Accessories

USB port, printer, under-hanging weighing device, density module for both solid and liquid

Power Supply

AC100~240v, 50/60Hz

External Size(W*D*H)

210*310*315mm

Package Size(W*D*H)

350*450*420mm

Gross Weight

5.5kg
