Description

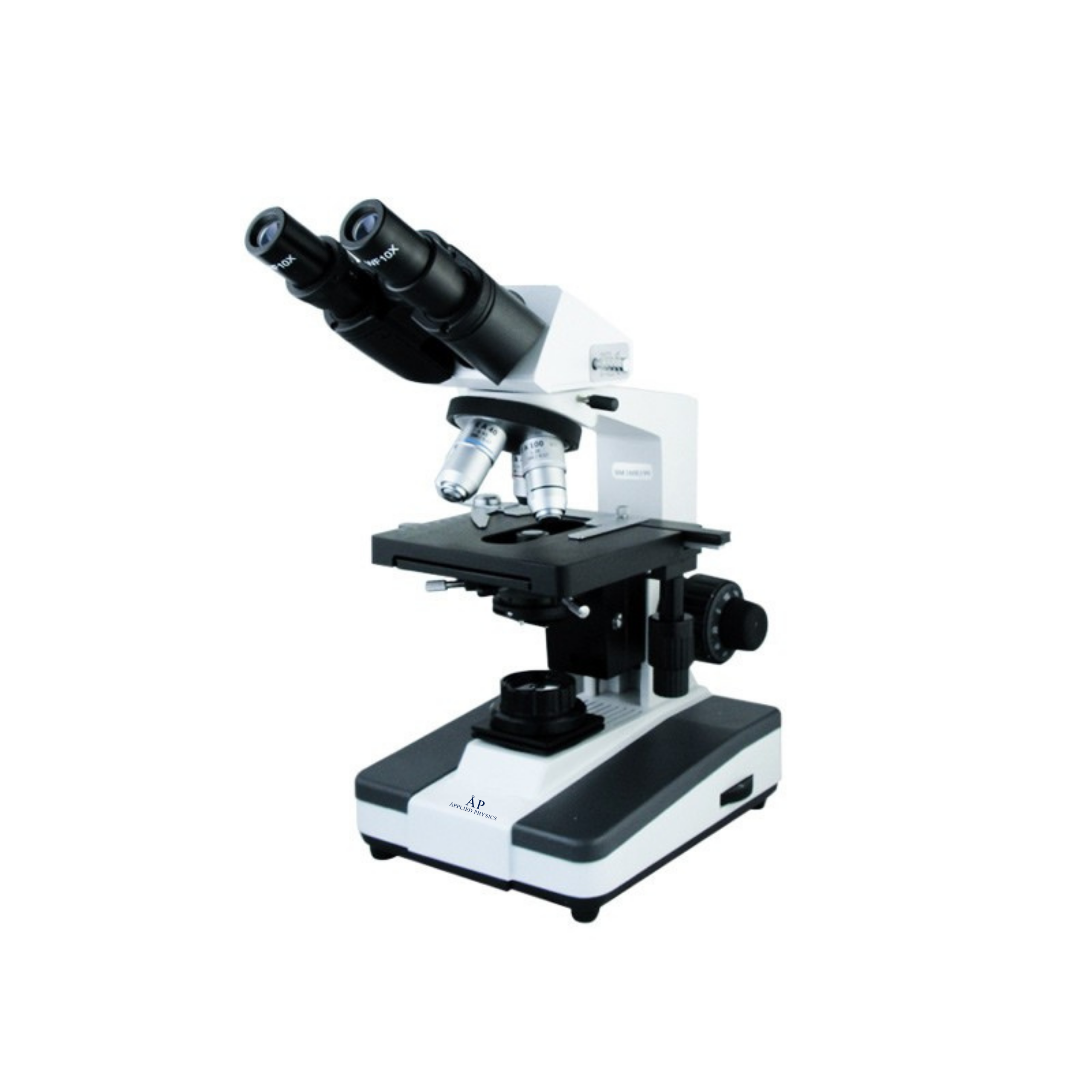

Biological Microscope BM-8C Technical Parameters: Model BM-8C View Head Compensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 55~75mm Eyepiece P10X/18mm, P16X/11mm Achromatic Objective 4X N.A=0.10 WD=37.50mm 10X N.A=0.25 WD=7.31mm 40X N.A=0.65 WD=0.63mm 100X(Oil) N.A=1.25 WD=0.18mm Focusing Coaxial Coarse＆Fine Adjustable System, Range 30mm, Fine Division 0.002mm Stage Double Layers Mechanical Stage 155*145mm, Moving Range 80*50mm Condenser Abbe NA1.25 condenser with Iris Diaphragm＆Filter Illumination Halogen lamp 6V/20W, Kohler illumination, brightness adjustable Filter Blue, yellow, green Power Supply AC85~240V, 50/60Hz Package Size 355*265*495mm Gross Weight 6kg
Product relationship
Available Through Applied Physics
Applied Physics supplies and supports quotation of this product. Product branding and manufacturer information, where stated on the product page or supporting documentation, remain authoritative.
Applied Physics portfolio: Medical
Catalog relationship: Available Through Applied Physics
Related Applied Physics resources
Continue through the Medical portfolio
Use these technical and portfolio pages to compare applications and related equipment. To keep this exact product attached to an RFQ, use the product’s existing Request a Quote or Add To Order control.
Reviews
There are no reviews yet.
