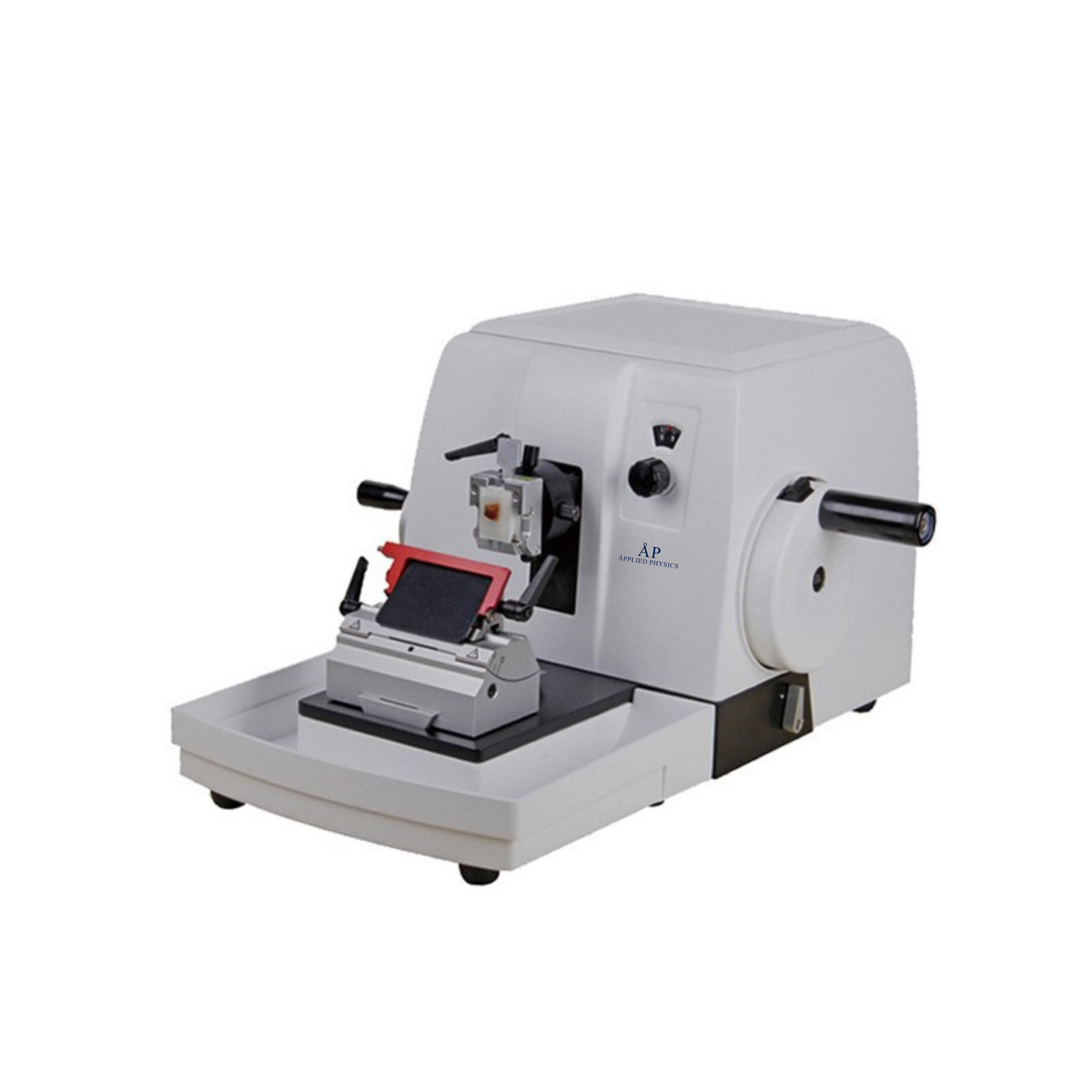

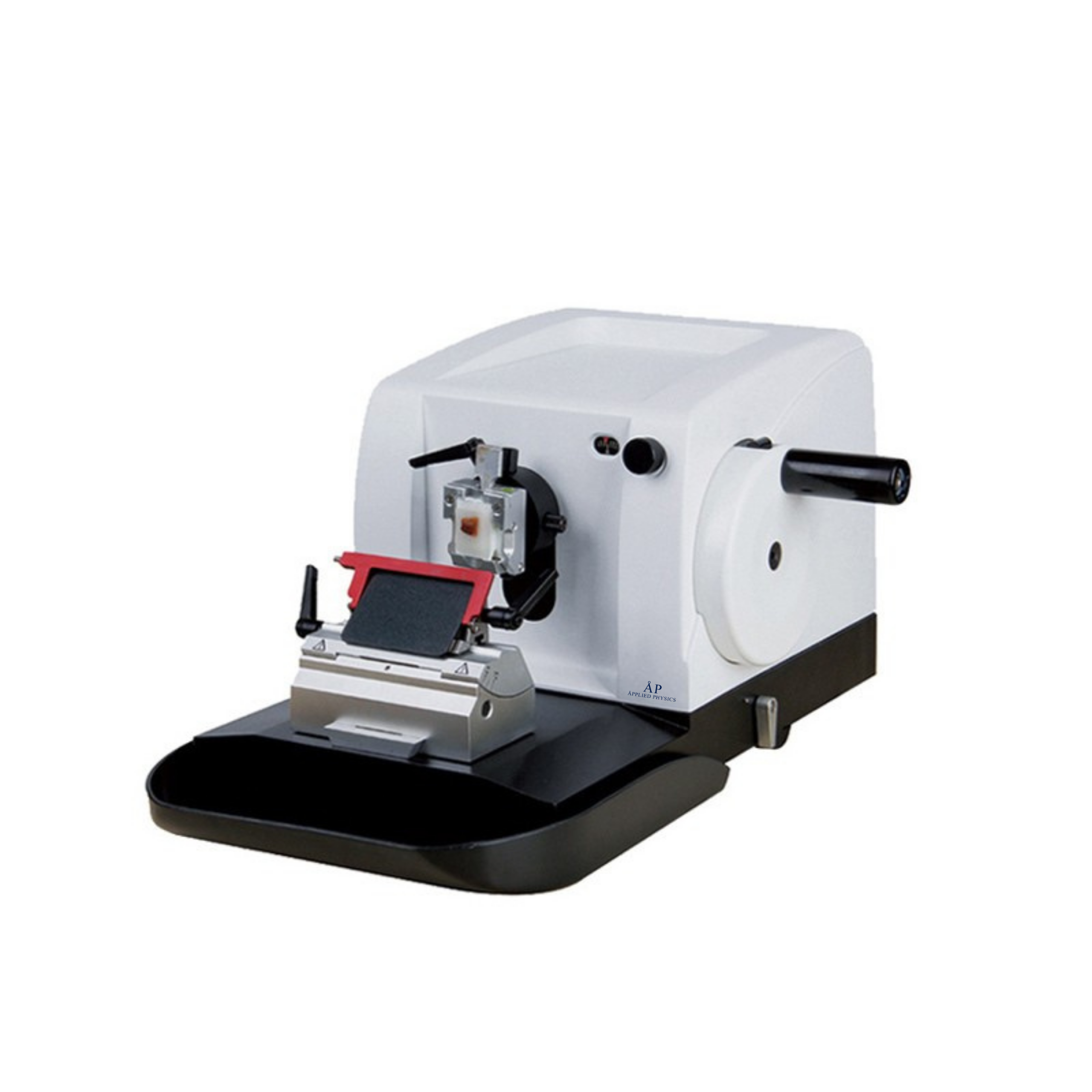

BK-2218 BK-2268 Manual Rotary Microtome

Description

AP Medical BK-2218 BK-2268 Manual Rotary Microtome

Features:

*Large-volume removable waste tray on the top of housing, convenient to use.

*Imported cross-roller guide rails and high precision screw motion mechanism.meihuatrade

*Advanced high-precision micro-drive feed system enables stable and high-precision sectioning.

* Small coarse-advance hand-wheel is close to the operator, in accordance with an ergonomic design.

*The precise positioning system is not only easy to use, but also provides accurate X- and Y- axis adjustment

*Hand-wheel balance is precisely adjusted and locked at any position, ensuring safety and convenience of sectioning.

* Fast switching between paraffin block clamp and cassette clamp; Paraffin Block Clamp is for Standard Conficuration, cassette clam is optional.

* Blade holder can be laterally moved without direct contact, enabling use of the entire length of the blade.(three different segments)

* Cassette clamp can be locked at any position along each of the three axes, enabling easy adjustment of the specimen

sectioning angle.

* The red bar on the blade holder covers the whole length of blade to protect the user and enables easy changing of the blade.

Models:

Model

BK-2218

BK-2268

Function

Sectioning, trimming, fast forward, fast backward, quick conversion; automatic retraction (Only for BK-2268).

Sectioning Thickness

Range

0~60μm

Section Thickness

Setting Options

0〜2μm increment 0.5μm

2〜10μm increment 1μm

10~20μm increment 2μm

20〜60μm increment 5μm

0〜2μ m increment 0.5μm

2〜20μm increment 1μm

20~60μm increment 5μm

Trimming Thickness Range

0〜60μm

Mini. Sectioning Thickness

1pm

Max. Specimen Size

60*70mm (optional clamp)

70*70mm (optional clamp)

Precision

±1%

Specimen Horizontal Stroke

29mm

28mm

Specimen Vertical Stroke

60mm

70mm

Specimen Orientation

XY-8°

External Size(W*D*H)

570*440*290mm

590*500*330mm

Package Size(W*D*H)

620*530*450mm

690*590*500mm

Gross Weight

40kg

54kg
