BK-3000 Automatic Cryostat Microtome

Description

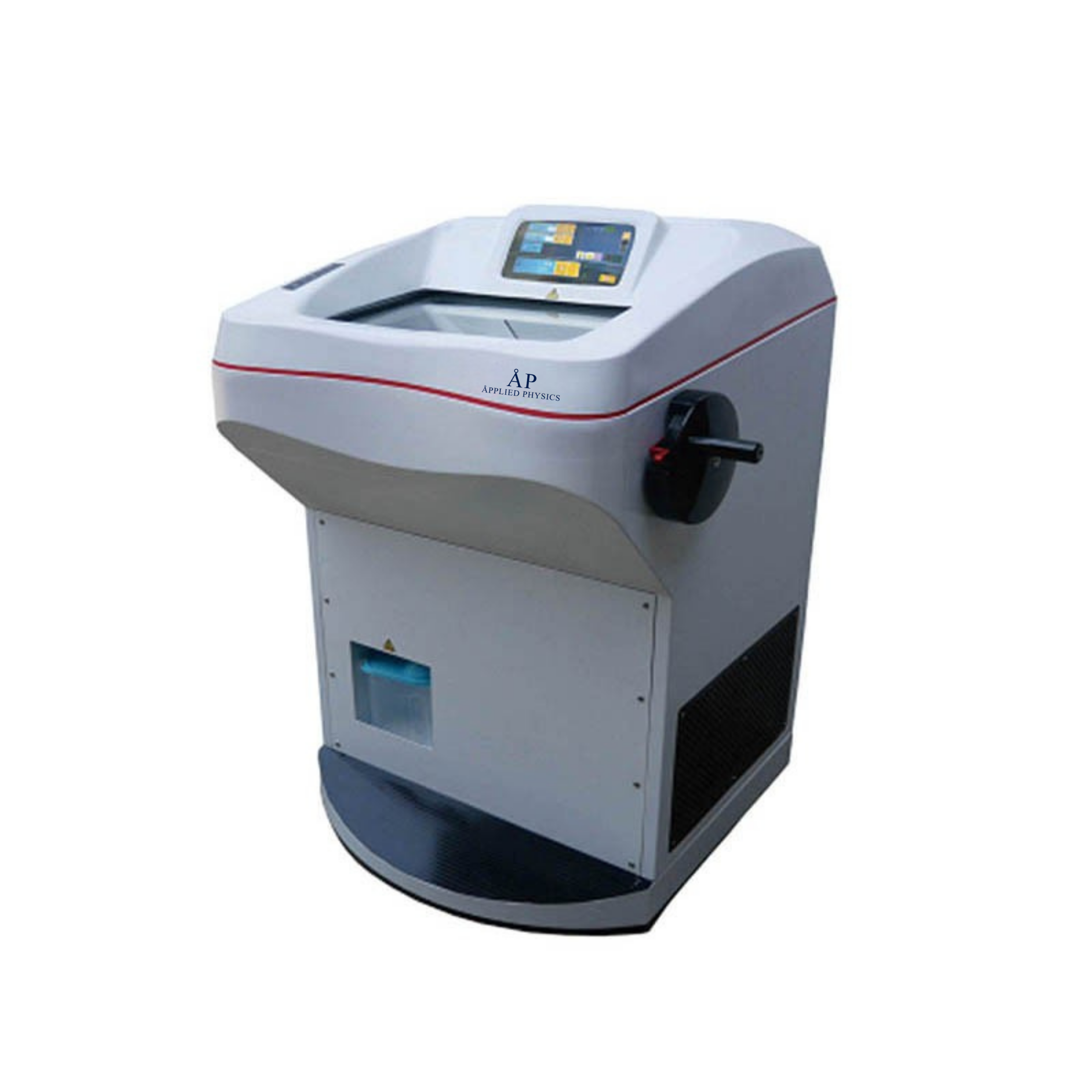

AP Medical BK-3000 Automatic Cryostat Microtome

Features:

1. The 10-inch color LCD touch screen can separately display the total number of slices and the total slice thickness, slice thickness, specimen retraction value, temperature control, date, time, temperature, timing sleep switch, defrost and other functions. The operation display can be set to switch between Chinese and English operation interface, which is convenient for different users all over the world to operate.

2. Humanized hibernation function: After selecting the hibernation state, the temperature of the freezer compartment can be automatically controlled between -1 and -9°C. After the hibernation is canceled, the sectioning temperature can be reached within 15 minutes.

3. Imported dual compressors refrigerate the freezing box, freezing table, knife holder, sample chuck, and tissue presser at five points respectively.

4. The knife holder is equipped with a blade thruster and a knife guard to cover the full length of the blade, which protects the user safely.

5. Equipped with rubber instrument rack and waste box X-axis 360°, Y-axis 12°universal rotation, snap-on tissue chuck, easier and faster to install the organization

6. Anti-adhesive tissue flattening device, with specimen refrigeration, the temperature can reach -50°, which is convenient for freezing the tissue and saving operation time

The machine is mainly composed of four parts:

1. The upper part of the machine is a microcomputer control part and panel operation, temperature display, and working status display part.

2. The middle part is a low-temperature freezer, which is the part for quick freezing of biopsy tissue and sectioning operation.

3. The lower part is the refrigeration part of the compressor unit.

4. The middle and rear parts are mechanical transmission and motor drive parts.

Models:

Model

BK3000

Chamber temperature

10℃ ～ -50℃

Freezing shelf temperature

0℃ ～ -50℃

Temperature control range of sample chuck

10℃ ～ -50℃

Additional semiconductor refrigeration in the freezer

-60℃

Number of freezing station

36 pcs

Pelletier number

8 pcs

Semiconductor fast cooling working time

15 minutes

Maximum specimen size

55mm×80mm

Vertical stroke

65mm

Horizontal stroke

22mm

Electric feed speed

0.9mm/s、0.45mm/s

Disinfection method

UV

Section thickness range

0.5μm～100μm Adjustable

0.5μm～5μm Increment0.5μm

5μm～20μm Increment1μm

20μm～40μm Increment2μm

40μm～100μm Increment5μm

Trimming thickness range

10μm～600μm Adjustable

10μm～50μm Increment5μm

50μm～100μm Increment10μm

100μm～600μm Increment50μm

Specimen retraction

0～100μm Adjustable，Increment5μm

Dimension size(mm)

700×760×1160mm

Weight

135 KG
