Description
Models: Technical Parameters

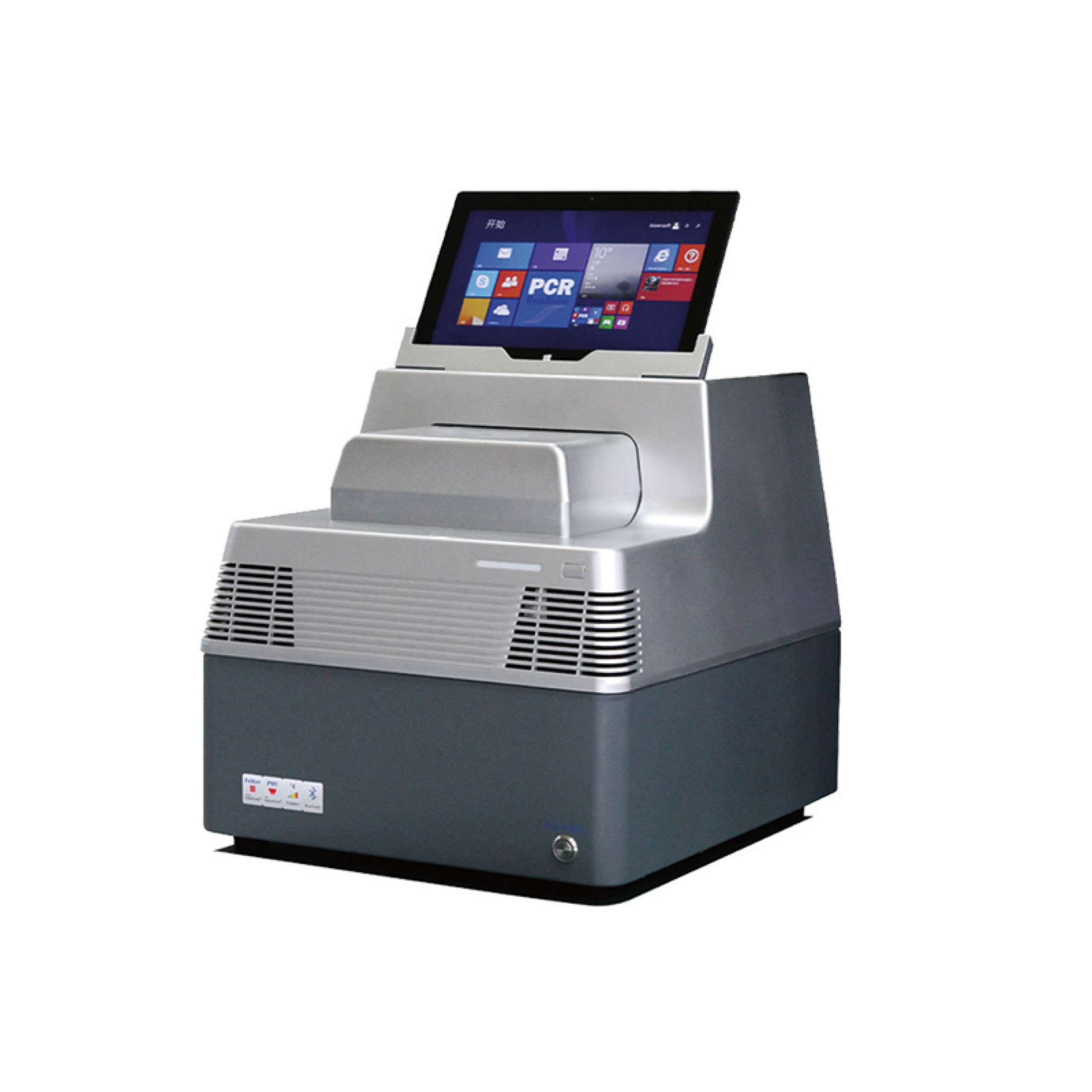

| Product Name | Fluorescence Quantitative PCR Detection System | |||||
| Model | FQD-96A | |||||
| Sample Capacity | 96x0.2ml PCR plate, 12x8-strip tubes, 96*0.2ml single tube(Transparent Bottom) | |||||
| Reaction system | 5~100μl | |||||
| Dynamics Range | 1-1010 | |||||
| Medical instrument registration certificate | G.X.Z. 20153400273 | |||||
| Channel | 4 | |||||
| Emission Wavelength | 500-800nm | |||||
| Detection path | F1 | F2 | F3 | F4 | F5 | F6 |
| Suitable probe.dye | FAM,SYBR GREEN I | HEX/VIC/TET/JOE/CY3/NED/TAMRA | ROX,TEXAS-RED | Cy5 | Cy5.5 | Reserved path |
| Excitation wavelength | 300~800nm | |||||
| Detection wavelength | 500~800nm | |||||
| Module temp. range | 4-105℃(resolution:0.1℃) withSOAK Low Temp.storage Function | |||||
| RampRate | 4.0℃/s(max) | |||||
| Temp. Control accuracy | ±0.1℃ | |||||
| Temp. uniformity | ≤ ±0.3℃ | |||||
| Temp. control mode | Block mode andTube Mode (Automaticcontrolbasedonliquid level) | |||||
| Operation mode | Continuous operation | |||||
| Gradient Temp. Range | 1-36℃ | |||||
| Hot-lid Temp. Range | 30-110℃(Adjustable, Defaultby105℃ and Automatic Hot-lid) | |||||
| FluorescenceintenseDetection Repeatability | 5% | |||||
| Scanning Mode | Full plate scanning and designated line scanning | |||||
| Programming | Max 20 Segments for Each Program, Max 99 Cycles | |||||
| Operation Mode | Continuous | |||||
| Scanning time | 5.5s | |||||
| Special function | Absolute quantitative automatic analysis, relative quantification, SNP Analysis, melting curveanalysis,6 independent temperature zones, HRMmulti-channel crosstalk calibration, background correction, auto gain, customized parameters,etc | |||||
| Operation system | Microsoft:Windows7/Windows8.1/ Windows10 Software:excel2000/2002/2003/2007/2012 | |||||
| Min computer configuration | RAM:512M,hardware space:10GB CPU:Pentium 4 virtual memory≥1000MB | |||||
| Power supply | 100-240V 50/60Hz 600W | |||||
| Dimension(L*W*H) | 410*386*352mm | |||||
| Port method | SupportUSBandRS232data port andBluetoothport | |||||
| Certification | Ferrotec Peltier/CE/EMC/RoHS2.0/PICC Product quality liability insurance/IVD/MET | |||||
| Packing size | 720*680*640mm | |||||
| Gross weight | 55kg | |||||
