Table Top Full-automatic Glassware Washer BK-LW200A

The small and flexible Mini body can be placed on the table to maximize the immediacy of cleaning and convenience.It is suitable for cleaning utensils with small cleaning amount and laboratories with …

$0.00

Description

The small and flexible Mini body can be placed on the table to maximize the immediacy of cleaning and convenience.
It is suitable for cleaning utensils with small cleaning amount and laboratories with many cleaning tasks, eliminating manual cleaning consumes time and effort, meanwhile greatly reducing operating costs.

Features:

1. The cleaning agent is automatically and quantitatively added by peristaltic pump.

2. PLC micro-computer control, self-setting cleaning procedures, automatic operation, with audit tracking, three-level authority, automatic alarm and other management, monitoring functions.

3. Two water inlets controlled by electromagnetic valve, users can choose the tap water and pure water in wash and rinse phase.

4. Pure water inlet adopts built-in booster pump, which can directly inhale pure water without external booster.

5. With overflow protection, if there is too much water in cleaning chamber, the program will been stopped after alarm, and the water will be automatically drained at the same time.

6. Independent drainage pump, with the water seal design of the drainage pipeline to prevent the back flow of sewage.

7. The cleaning agent shortage reminder function, which can remind operators to add cleaning agent in time.

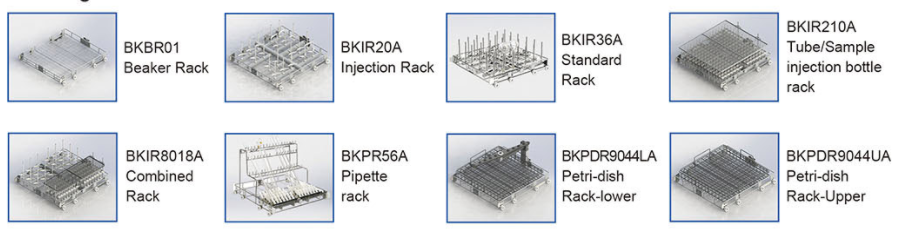

Cleaning Racks:
Full-automatic Glassware Washer

Technical Parameters:

Model BK-LW200A










Cleaning

Capacity 200L
Washer Load Level 2
Water Wash Power 0.75KW
Water Heater Power 3KW
MAX. Power 4KW
Water Consumption/Step 15L
Tank Internal Temperature 0~99℃
Water Supply Pressure 0.3~1.0Mpa
Peristaltic Pump for Cleaning Agent 2 independent pumps control detergent agent and neutralizing agent
Cleaning Agent Level Sensor YES
Washing Pump Sweden 430L/min
Standard Cleaning Racks BKIR36A*2
Drying Drying Function NO
Steam Condenser NO
Dry Power NO
Control System and Traceability Control System 7″ color LCD touch screen display, microprocessor
Cleaning Program 12 pre-set programs(editable)+99 PLC free programming
Password Protection 3 levels password
Safety Emergency Button NO
USB Port YES
Integrated Printer NO
Online Monitor Performance of Washing NO
Dimensions&Weight Chamber Dimension(W*D*H) 526*542*645mm
Exterior Dimension(W*D*H) 600*860*1040mm
Package Dimension(W*D*H) 720*980*1230mm
Net Weight(Host only) 125kg
Gross Weight(Host with rack) 165kg
Others Door Foam SS door
Safety Door Lock YES
Built-in RO Water Pump YES
Noise <50dB
Power Supply AC220V, 50Hz(Standard);

AC220V, 60Hz; 110V, 50/60Hz(Optional)

Additional information

Model

BK-LW200A (110V | 50/60Hz), BK-LW200A (220V | 50Hz), BK-LW200A (220V | 50Hz), BK-LW200A (220V | 60Hz), BK-LW200A (110V | 50/60Hz), BK-LW200A (220V | 60Hz)
