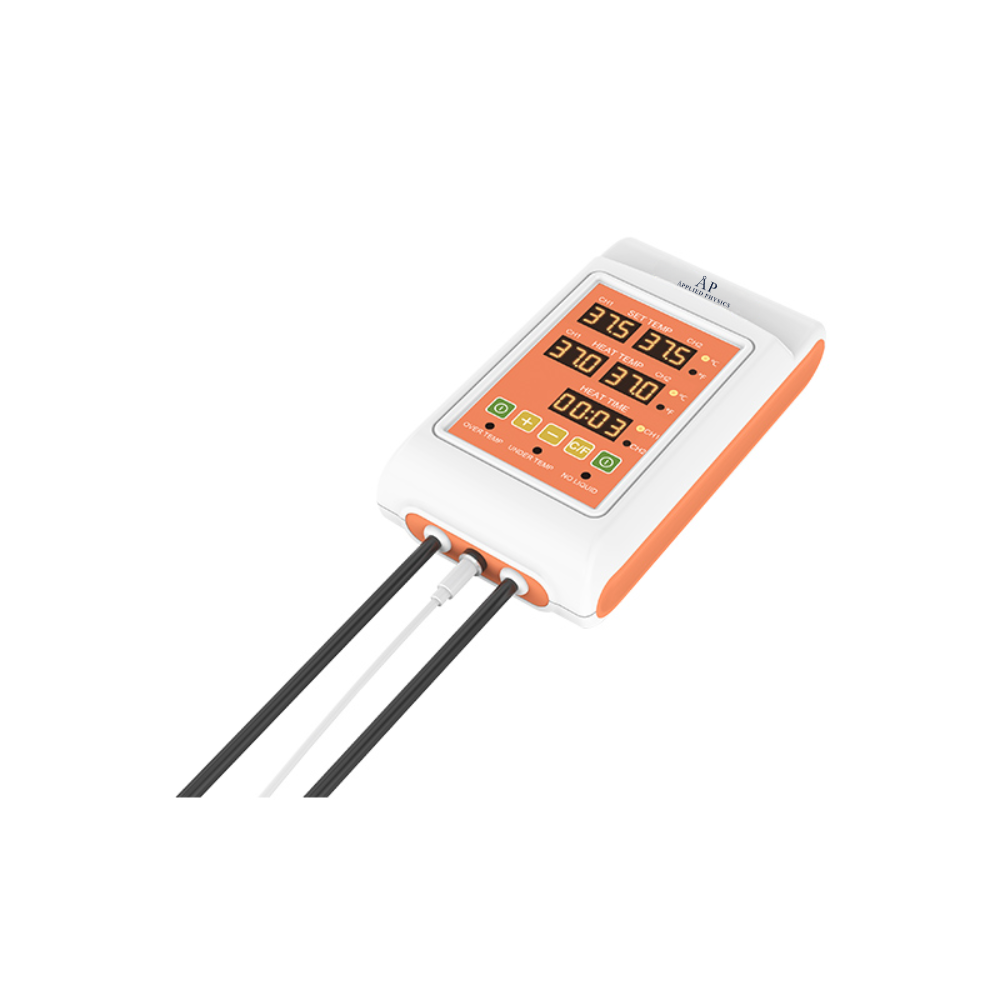

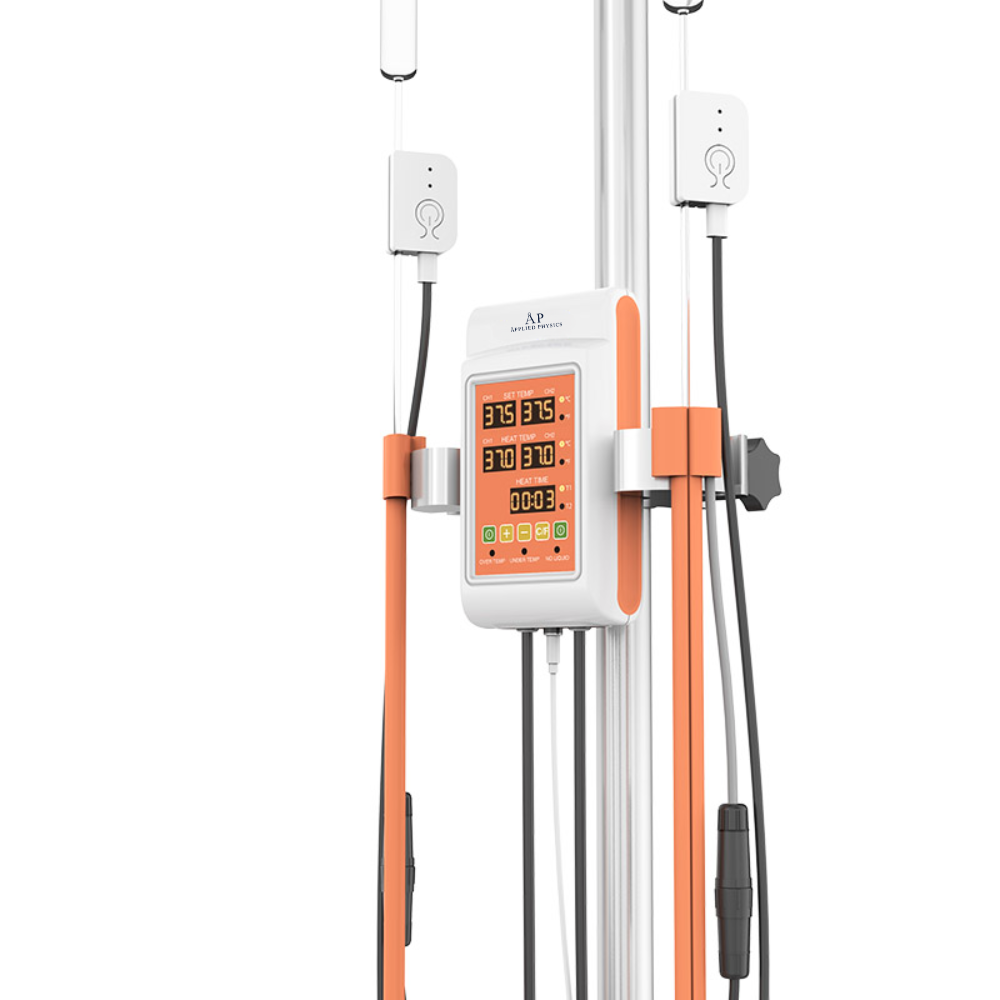

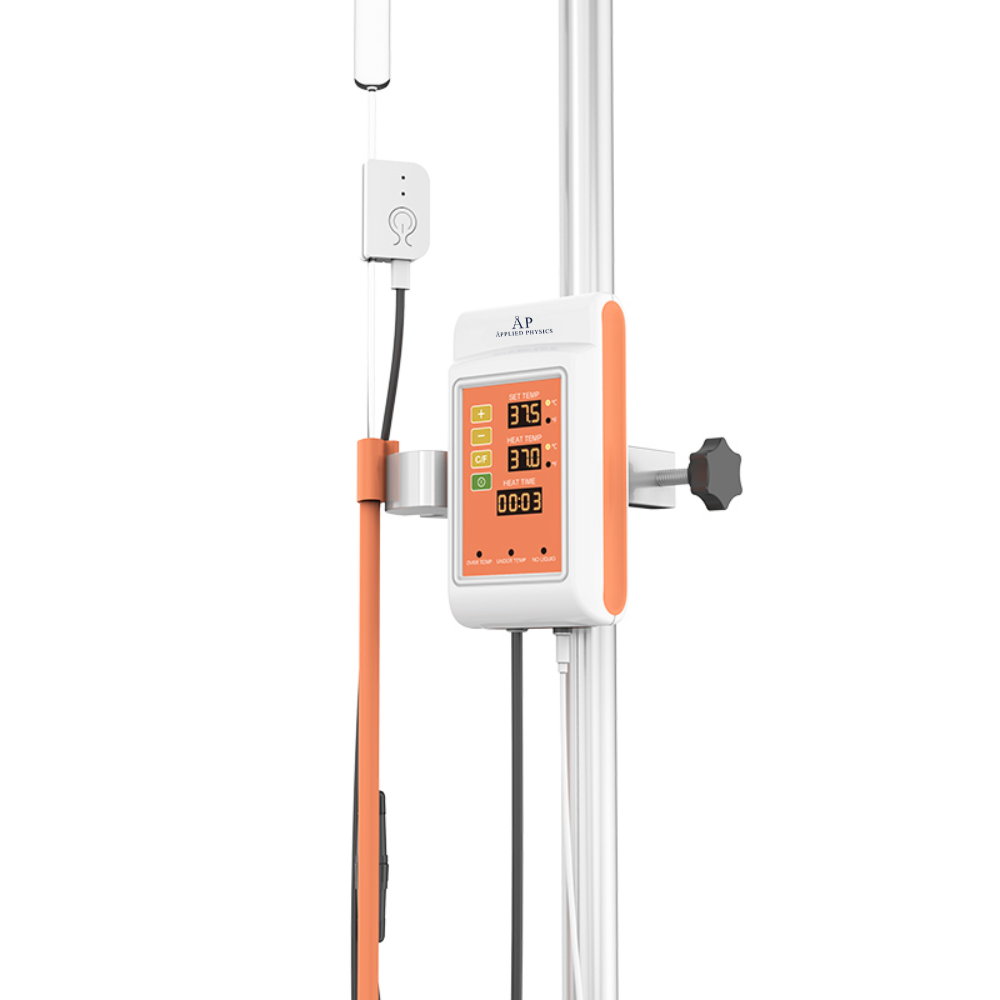

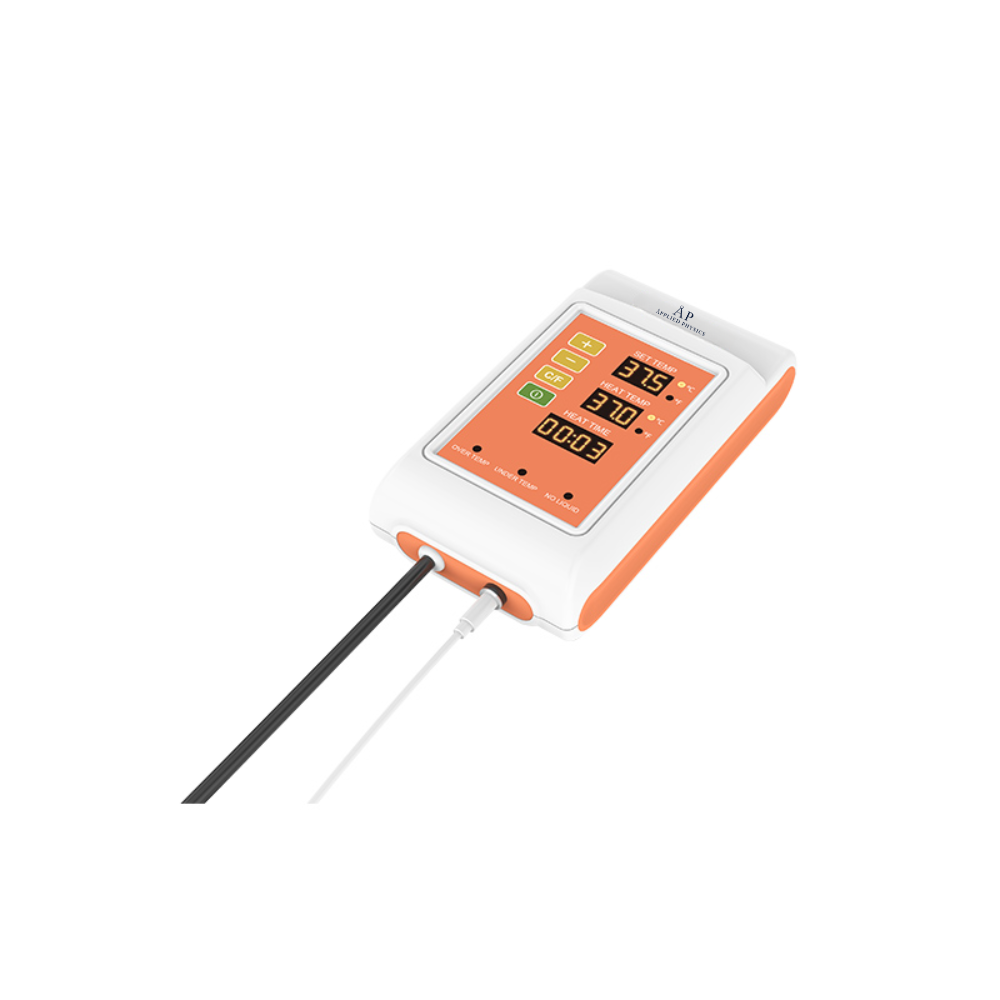

Blood and Fluid Warmer BK-TW110 BK-TW210

Blood and Fluid Warmer BK-TW110 BK-TW210 Features: 1. BK-TW110 is single-channel blood and fluid warmer, BK-TW210 is dual-channel blood and fluid warmer. 2. Dry heating method, short preheating time, rapid heating. 3. High-quality heating tube assembly, full-wrapped heating, fast heating in cold environment. 4. Heating tube assembly is plug-and-play, convenient and fast. 5. Directly heat conventional blood transfusion and infusion lines, no special consumables required, cost saving. 6. Real-time display of set temperature, real-time temperature, alarm information, working status, etc. 7. With over temperature alarm, under temperature alarm, no liquid alarm function. Technical Parameters: Model BK-TW110 BK-TW210 Channel Count Single-channel Dual-channel Adjustable Temp. Range 32.0~42.0°C Temp. Accuracy 0.1°C Preheating Time ≤2min(From 20°C to 36°C) Display LED Display Information Heating time, set temperature, heating temperature, alarm information indication Inner Diameter of Heating Tube Standard: 3.5~5mm Optional: 6~7mm Safety Control The system has built-in alarm test function, and the alarm function can be tested on the panel to see if it is normal Over-temperature Alarm An alarm will sound if the actual temperature of the heating pipe exceeds the preset temperature by 2°C Under-temperature Alarm An alarm will sound if the actual temperature of the heating pipe falls below the preset temperature by 3°C Heating Tube Structure Three-cavity silicone flexible heating sleeve, integrated with 4 sets of heating wires, two sets of independent temperature sensors Power 60VA 80VA Power Supply AC100~240V, 50~60Hz External Size(W*D*H) 172*95*175mm 195*115*175mm Packing Size(W*D*H) 250*220*230mm Net Weight 1.7kg 2.3kg Gross Weight 2.1kg 2.7kg
