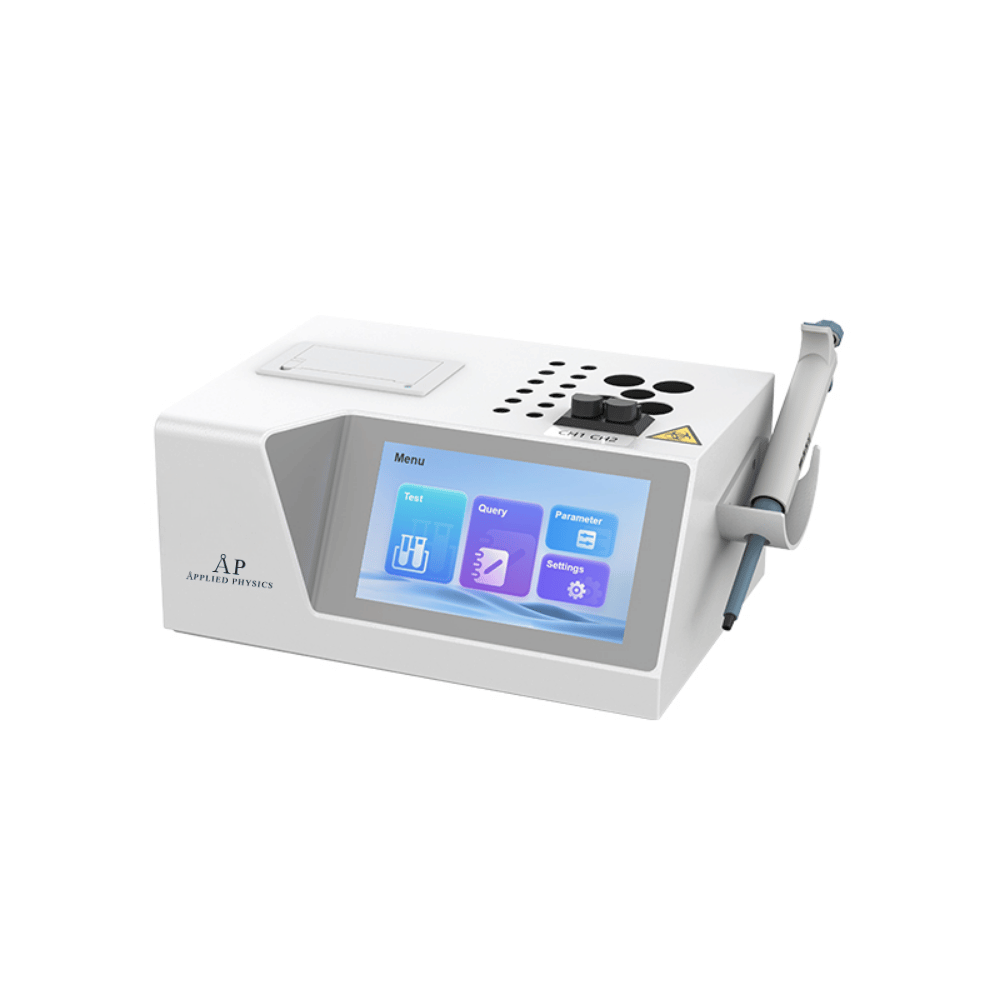

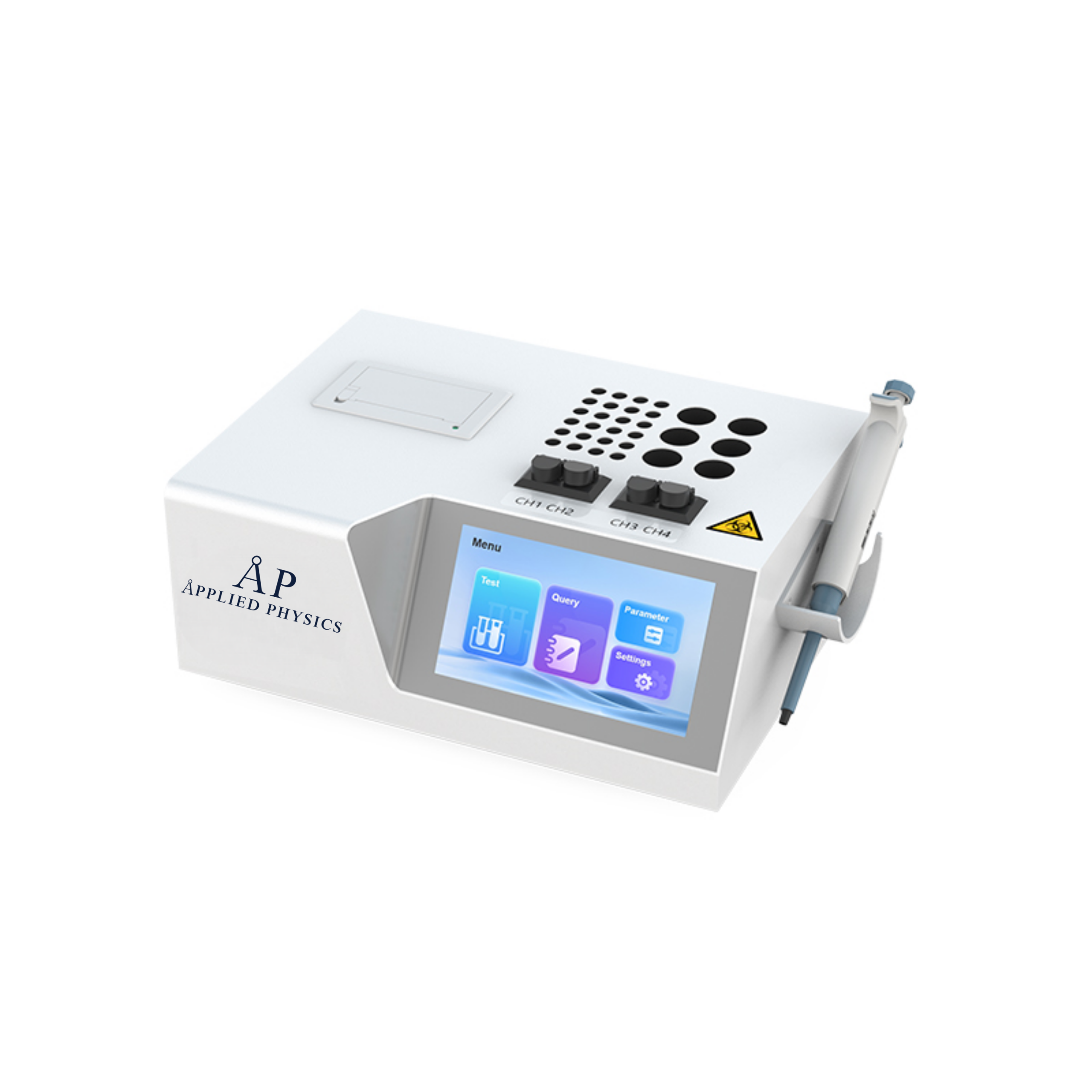

The blood coagulation analyzer adopts the principle of optical colorimetry for detection. After the reagent is mixed with the plasma, fibrinogen is converted into fibrin and coagulated, which leads to the change of the optical density of the test specimen, and the instrument detects the coagulation end point.
$3,995.00
Application:
It is suitable for the detection of prothrombin time(PT), activated partial thromboplastin time(APTT), thrombin time(TT) and fibrinogen(FIB) in plasma. .
Widely used in blood laboratory, biochemical laboratory, hospital blood laboratory and so on.
Features:
1. Dual-channel independent detection, can analyze different items at the same time.
2. 5-inch high-definition touch screen, easy to operate.
3. Open system, good compatibility, Supports reagents of various specifications.
4. 20,000 results storage.
5. Equipped with multiple pre-temperature positions to improve detection efficiency.
6. Built-in thermal printer.
7. The pipette automatically triggers the measurement, and the measurement time can be accurate to tenths of a second.
8. Less reagent consumption.
Technical Parameters:
| Model | BK-CA02 | BK-CA04 |
| Test Principle | Optical colorimetry | |
| Test Items | PT, APTT, TT, FIB | |
| Test Channel | 2(can test different projects at the same time) | 4(can test different projects at the same time) |
| Wavelength | 470nm | |
| Detection Time | Normal sample detection time is 20 to 40 seconds, and can be set arbitrarily from 20 to 99 seconds | |
| Sample Incubation Position | 12 | 24 |
| Reagent Incubation Position | 5 | 6 |
| Detection Position Temperature | 37.0±1.0°C | |
| Incubation Position Temperature | 37.0±1.0°C | |
| Incubation Time | 1~999s | |
| Reaction Time | 1~99s | |
| Reagent Dosage | Minimum dosage 20μl | |
| Sample Volume | 20μl~40μl | |
| Display | 7-inch high-definition color touch screen | |
| Storage | 200,000 results storage, automatically save measurement data when power off | |
| Communication Interface | RS232 serial interface, support LIS system | |
| Printer | Built-in thermal printer | |
| Power Supply | AC100~240V, 50/60Hz | |
| Consumption | 70VA | |
| Ambient Temperature | 10℃~30℃ | |
| Relative Humidity | ≤80% | |
| Atmospheric Pressure | 86kPa~106kPa | |
| External Size(W*D*H) | 360*210*120mm | 390*250*135mm |
| Net Weight | 3.5kg | 4.96kg |
| Package Size(W*D*H) | 376*246*316mm | 445*305*265mm |
| Gross Weight | 5kg | 7kg |
| Model | BK-CA02, BK-CA04 |
|---|
