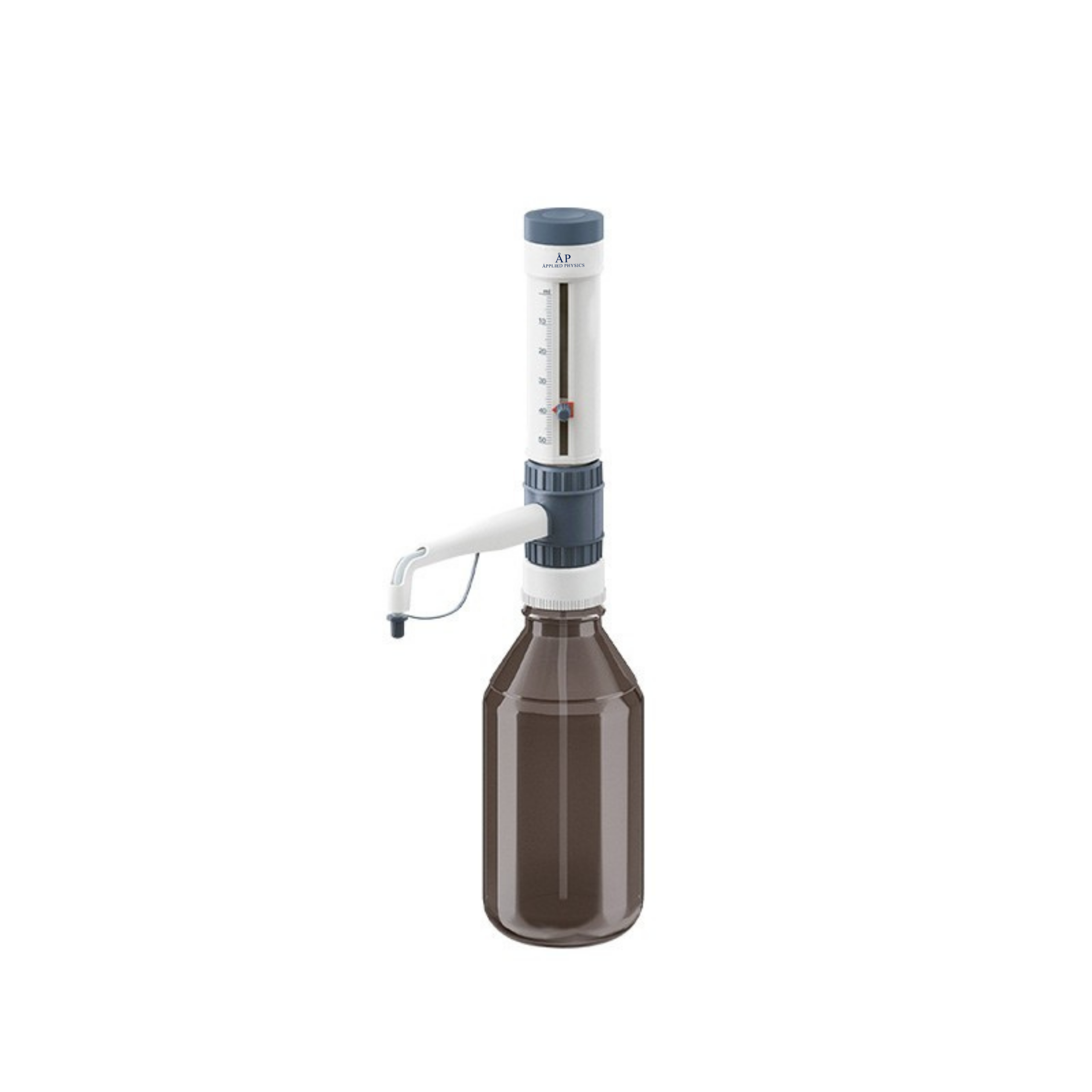

Bottle-Top Dispenser

Description

Bottle-Top Dispenser

Features:

1. Excellent chemical resistance.

2. Fully autoclavable at 121℃.

3. Adjustable control knob makes setting the volume easy.

4. Made of PTFE, FEP, BSG, PP.

5. Vapor pressure Max.500mbar, viscositymax. 500mm2/s, temperature max.40°C, density max.2.2g/cm2.

Technical Parameters:

Cat. No.

Volume Range

Subdivision

Accuracy

Precision

Package

Gross Weight(kg)

Package Size(mm)

30013010

1ml

/

±2.00%, 20μl

1.00%, 10μl

20pcs/carton

14

595*430*275mm

30013020

0.5~5ml

0.1ml

±0.50%, 25μl

0.10%, 5μl

20pcs/carton

14

595*430*275mm

30013030

1~10ml

0.2ml

±0.50%, 50μl

0.10%, 10μl

20pcs/carton

14

595*430*275mm

30013040

2.5~25ml

0.5ml

±0.50%, 125μl

0.10%, 25μl

20pcs/carton

14

595*430*275mm

30013050

5~50ml

1.0ml

±0.50%, 250μl

0.10%, 50μl

20pcs/carton

14

595*430*275mm

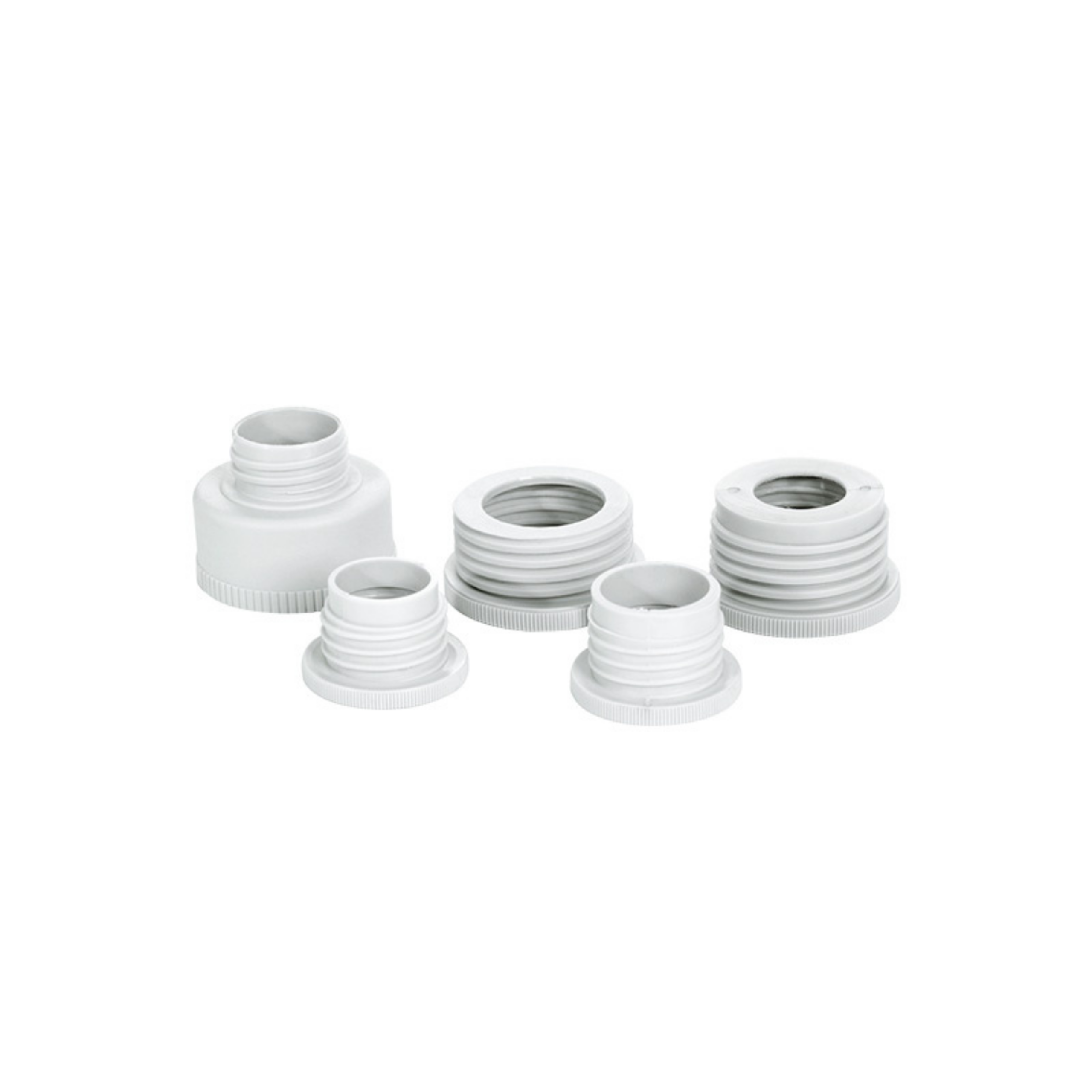

Accessories:

Accessory Code

Description

Accessory Code

Description

30013110

Adapt 45/40mm

30013150

Adapt 32/28mm

30013120

Adapt 45/32mm

30013160

Bottle(Brown, 1L)

30013130

Adapt 45/38mm

30013170

Filling tube(m)

30013140

Adapt 32/25mm

30013180

Discharge tube(m)
