Description

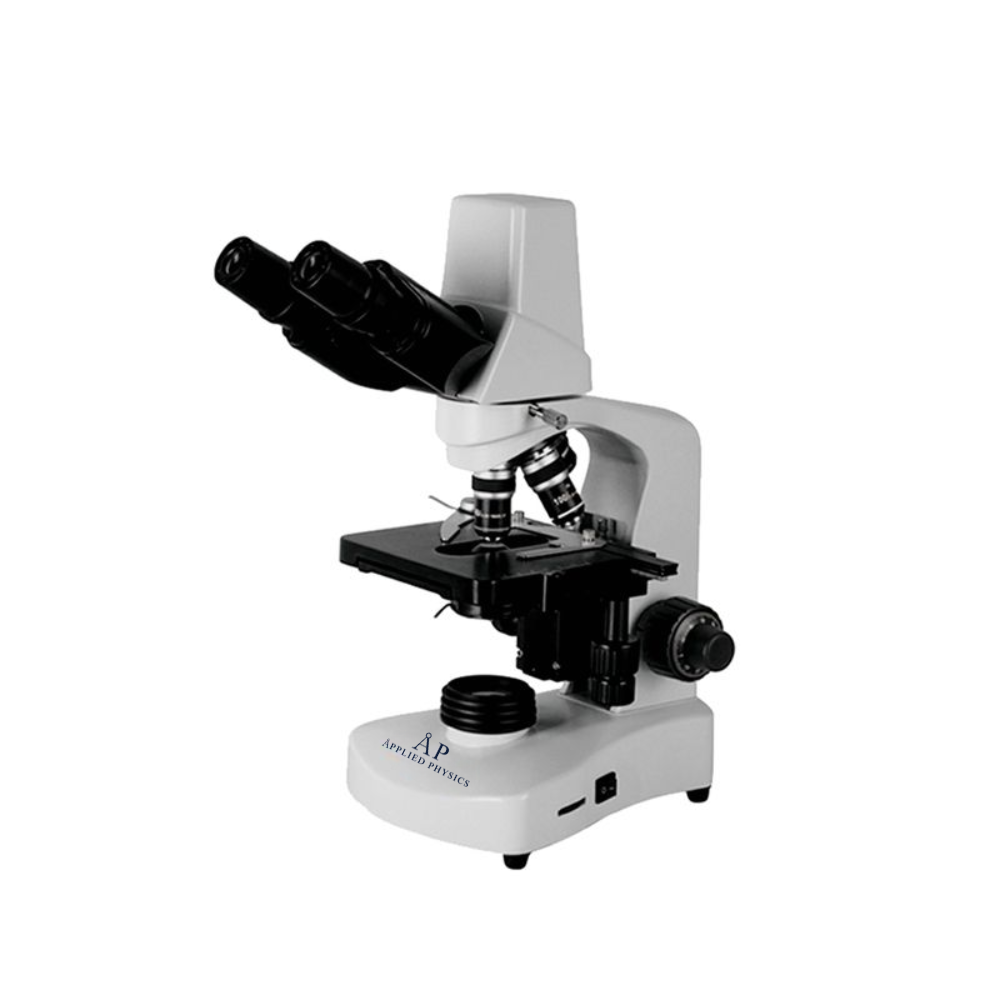

Build-in Camera Biological Microscope BMB-117M BMB-300M
Technical Parameters:
Note: √Standard Outfit, ●Optional, Without this feature
Model
BMB-117M
BMB-300M
Viewing Head
Compensation Free Binocular Head, Inclined at 30°,
Interpupilary Distance 48~75mm
√
√
Camera
System
Valid Pixel
1280*1024(1.3M Pixel)
√
/
1600*1200(2.0M Pixel)
●
/
2048*1036(3.0M Pixel)
●
√
2052*1944(5.0M Pixel)
/
●
Output Mode
USB2.0
√
√
Operation System
WINDOWS7/8 2000/XP/VISTA
√
√
Software
Scope image 9.0
√
√
Range of Viewing Field
>90%(BMB-117M); 18mm(BMB-300M)
√
√
Eyepiece
WF10X/18
√
√
P16X/11
●
/
Extra Wide Filed Eyepiece EW10X/20 with Diopter Adjustment
/
●
Objective
Achromatic Objective 4X, 10X, 40X, 100X
√
/
Infinite Plan Achromatic Objective 4X, 10X, 40X, 100X
/
√
Infinite Plan Achromatic Phase Objective 10X, 20X, 40X, 100X
/
●
Oil Darkfield Objective with Iris Diaphragm 100X(NA0.36~1.25)
/
●
Nosepiece
Backward Quadruple Nosepiece
√
/
Quintuple Nosepiece
/
/
Quadruple Nosepiece
/
√
Stage
Double Layers Mechanical Stage 140*140mm, Moving Range 75*50mm
√
√
Condenser
Abbe NA1.20 with Iris Diaphragm&Fliter
√
/
Swing Condenser N.A.0.9/0.25
/
√
Turret Phase Contrast Condenser
/
●
Dark Field Condenser(Dry)
/
●
Dark Field Condenser(Oil)
/
●
Focusing
Coaxial Coarse&Fine Adjustment System, Range 24mm, Fine Division 0.004mm
√
/
Coaxial Coarse&Fine Adjustment System, Range 20mm
/
√
Illumination
LED 3W, Brightness Adjustable
√
/
Halogen Lamp 6V/20W, Brightness Adjustable
●
/
S-LED Powerful Illumination
/
√
Power Supply
AC110~220V, 50/60Hz
√
√
Accessories
Phase Contrast Kit
●
●
Dark-Field Attachment
●
●
Polarization Attachment
●
●
Package Size
396*262*492mm(BMB-117M), 334*334*533mm(BMB-300M)
√
√
Gross Weight
7.5kg(BMB-117M), 12.5kg(BMB-300M)
√
√
