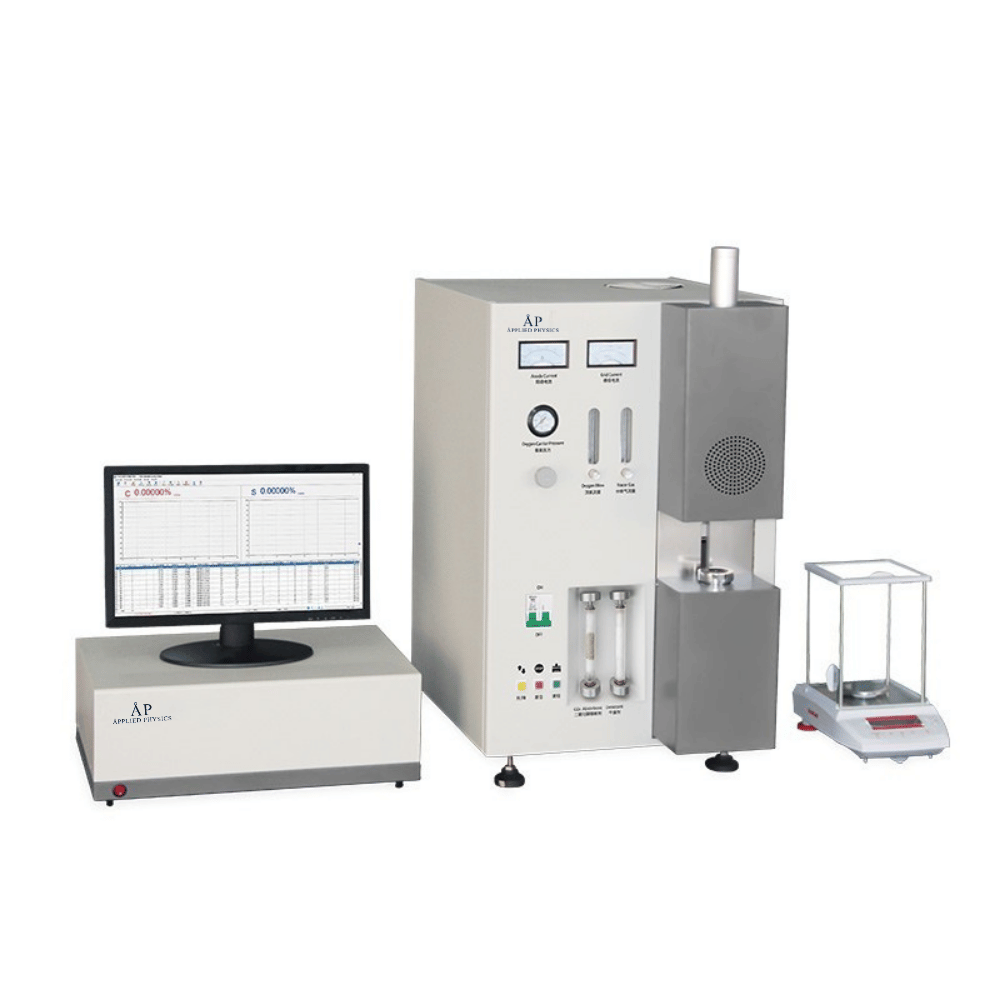

Carbon & Sulfur Analyzer

Description

Carbon & Sulfur Analyzer

Technical Parameters:

Working Principle

High-frequency inductive combustion and infrared absorption system

Sample Weight(Solid steel)

Standard 0.5g

Accuracy

C/S: 0.1ppm

Analysis Time

25~60s adjustable(normally: 35s)

Working Cycle

24 hours

The difference between BK-CSA5 and BK-CSA6:

Model

BK-CSA5

BK-CSA6

Appearance

Desktop detector, with desktop high-frequency furnace, save space

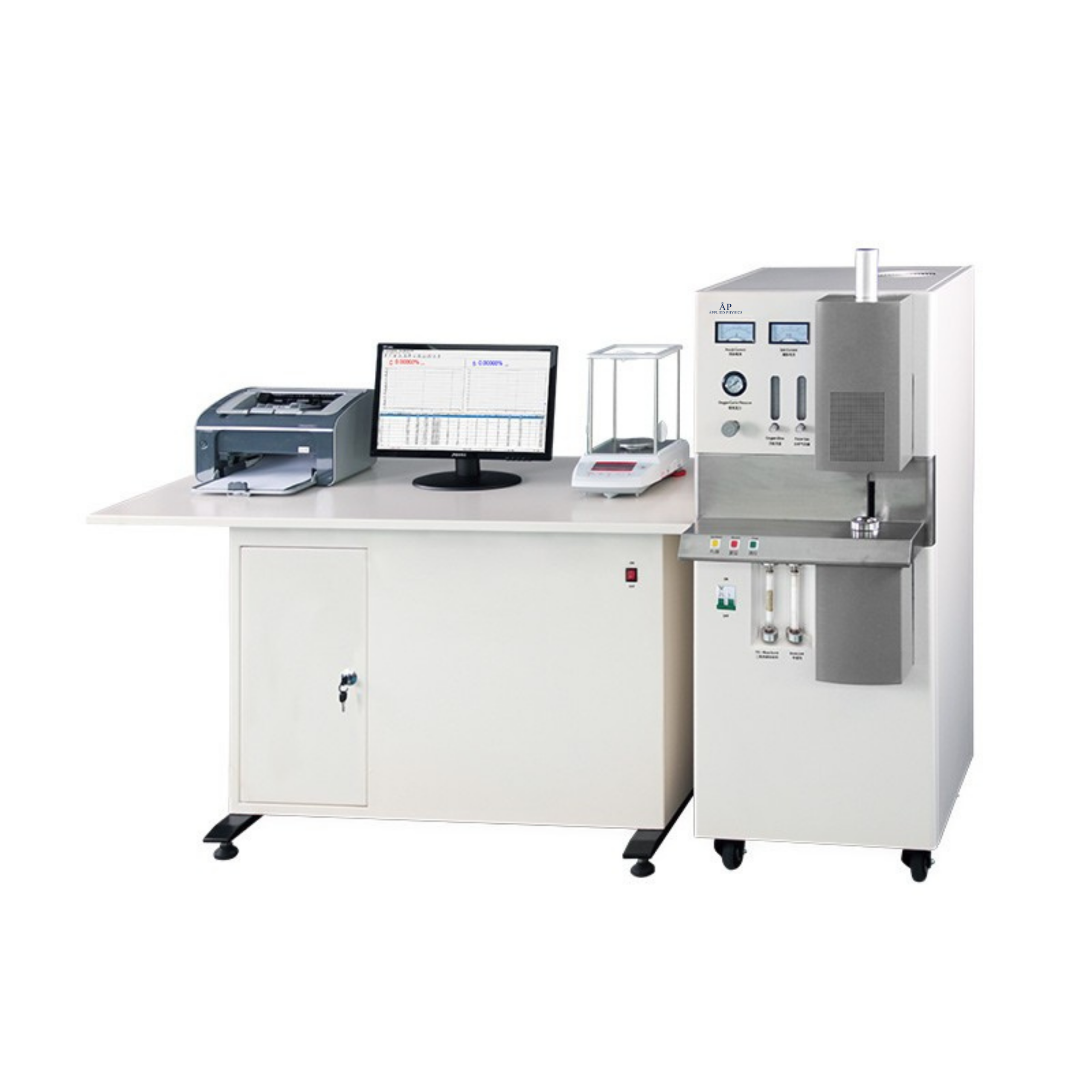

Separate work station, with vertical high-frequency furnace

Analysis Range

C: 0.0005%~6.0000%(can be extended to 99.999%)

S: 0.0005%~0.5000%(can be extended to 99.999%)

C: 0.0001%~10.0000%(can be extended to 99.999%)

S: 0.0001 %~3.50000%(can be extended to 99.999%)

Analysis Pool

2 pools

2 pools(optional 4 pools)

Consumption

2.2KW

2.5KW

Power Supply

AC220V±10%, 50/60Hz

Package Size(W*D*H)

1380*760*980mm

1670*750*960mm, 750*580*1430mm

Gross Weight

193kg

150kg, 180kg

Standard Accessories

Main unit, high frequency automatic inductive combustion furnace, electric balance

1000 times effective analysis of spare parts
