Description

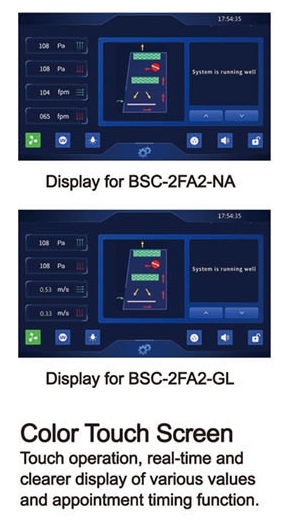

The NSF Certified Class II Biosafety Cabinet is a top-tier laboratory safety enclosure designed to provide maximum protection for operators, samples, and the environment when working with moderate-risk biological agents. Features: 1. Motorized front window. 2. 7-inch large touch color display: touch operation, real-time and clearer display of various values of the safety cabinet, dynamic air flow pattern diagram, fault alarm sound and light prompt. 3. The power-on password can be set to prevent mis-operation by irrelevant personnel. 2. EC Fan, automatically adjust the wind speed. 3. With power-off memory function, the state before power-off will be restored after power-on and there will be visual prompts and alarms. 4. The integrated design of the operation area makes it easy to disassemble and clean. 5. The cabinet is separated from the base. The height of the adjustable base can be customized. 6. Interlocking function:UV lamp and front window; UV lamp and fan; fan and front window. 7. It has the function of appointment timing, which can automatically set the time of starting and shutting down the safety cabinet and the running time of ultraviolet lamps, fan and sockets. 8. The front window closes the trigger signal, so that the sterilization and disinfection function of the ultraviolet lamp is normally turned on. 9. The one-piece hand resting surface has a larger contact area with the arm and is more comfortable. air speed adjustable with filter block.
Technical Parameters:
| Model | BSC-2FA2-NA |
| BSC-2FA2-GL | |
| External Size(W*D*H) | 700*650*1920mm |
| Internal Size(W*D*H) | 600*500*540mm |
| Work Surface Hight | 750mm |
| Max Opening | 370mm |
| Tested Opening | Safety height 254mm(10") |
| Inflow | 290m³/h (170cfm) |
| Downflow | 55%: 360m³/h (211cfm) |
| Exhausl | 45%: 290m³/h (170cfm) |

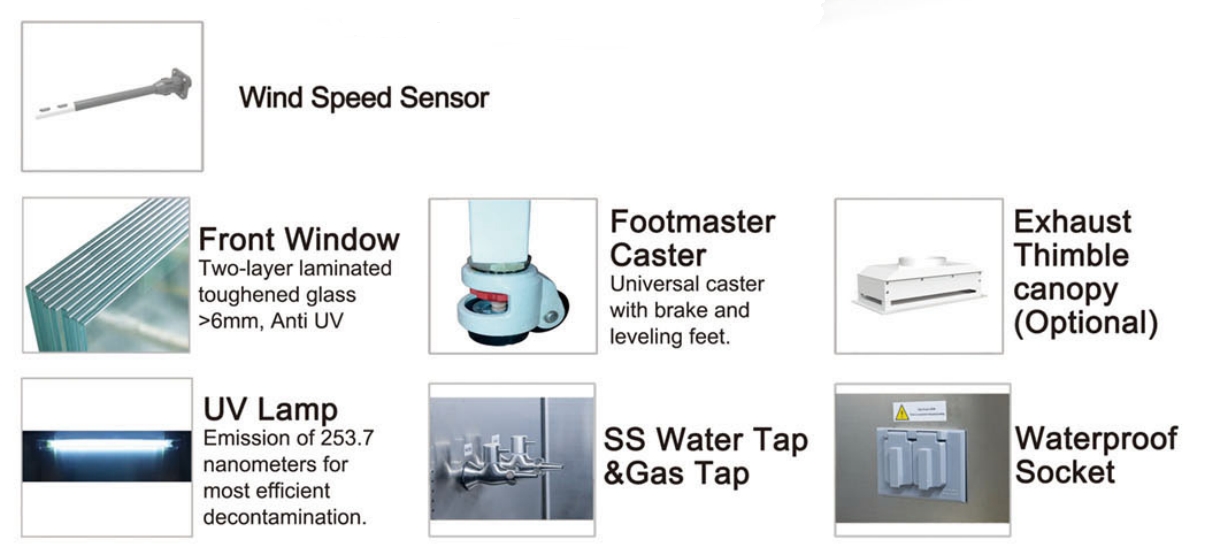

| Front Window | Two-layer laminated toughened glass>6mm, Anti UV |
| U PA Filter | ≥99.9995% efficiency at 0.12μm |
| Filter Guard Type | Aluminum alloy frame |
| Noise | NSF 49≤67dB |
| Ilumination | ≥1000Lux |
| Display | Capacitive touch screen |
| Waterproof Socket | Two, total consumption≤500W |
| Ground Resistance | ≤0.1Ω |
| Power Supply | AC230V, 50/60Hz; AC115V, 60Hz, Full load Amps: 9A, BTU/Hr: 1689 |
| Consumption | ≤500W |
| Alarn | Abnormal airlow velocity; Filter replacement; Front window at unsafe height |
| Motor | EC motor, 115V&230V acceptable, speed adjustable, high efficiency and low power consumption |
| Material | Working area: 304 stainless steel |
| Frame and decoratve plate: cold-rolled steel with anti-bacteria power coating | |
| UV Lamp | 15W |
| LED Lamp | 10W*2 |
| Standard Accessory | LED Lamp*2, UV lamp*2, Base stand, Drain valve, Waterproof sockets, Remote control |
| Optional Accessory | Armrest, Airlow tester, Formalin fumigation sterlizer, Infrared sterlizer, Remote control, SS water tap*1&gas tap*1 |
| Net Weight | 150kg |
| Package Size(W*D*H) | Carton: 820*910*1500mm |
| Gross Weight | 190kg |
Product relationship
Available Through Applied Physics
Applied Physics supplies and supports quotation of this product. Product branding and manufacturer information, where stated on the product page or supporting documentation, remain authoritative.
Applied Physics portfolio: Medical
Biological safety cabinet quote checklist
Confirm cabinet class/type, biological agents or procedures, chemical use, work opening, exhaust/ducting requirement, room HVAC interaction, electrical service and certification/documentation requirements.
