Description

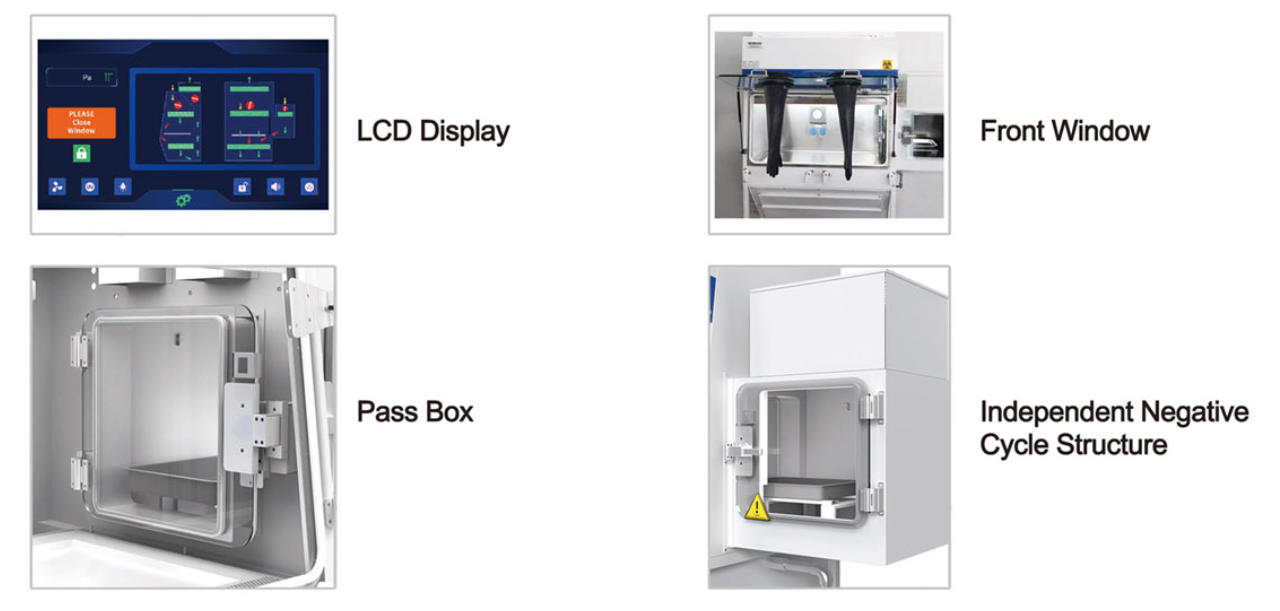

Features: 1. 7-inch touch color display screen: Touch operation, real-time, more clear and dynamic display of various values. 2. Power-off memory, restore the state before power-off after power-on, and have visual prompts to alarm. 3. Screen lock function: Touch the screen lock button lightly, and the operation interface is locked to prevent mis-operation and facilitate management. 4. The three side walls of the working area adopt high-quality 304# stainless steel integrated structure, which is easy to clean. 5. The work surface is made of high-quality 304# stainless steel, which is designed in a basin shape and is easy to clean. 6. Convenient front window design, the front window glass can be opened and closed freely, which is convenient for putting in large equipment and cleaning operations. 7. The work surface can be easily lifted or taken out, which is convenient for cleaning and disinfection operations. 8. The magnetic opening and closing design of the transmission window, the interlocking device of the transmission window, and the independent negative pressure cycle structure protect the safety of the operator. 9. The cabinet body and the top of the transfer window are equipped with a pre-filter to effectively prolong the service life of the main filter. 10. The whole machine is equipped with four ULPA ultra-high efficiency filters. 11. The design of butyl rubber gloves has good corrosion resistance, and the replacement of gloves is simple and convenient.
Technical Parameters:

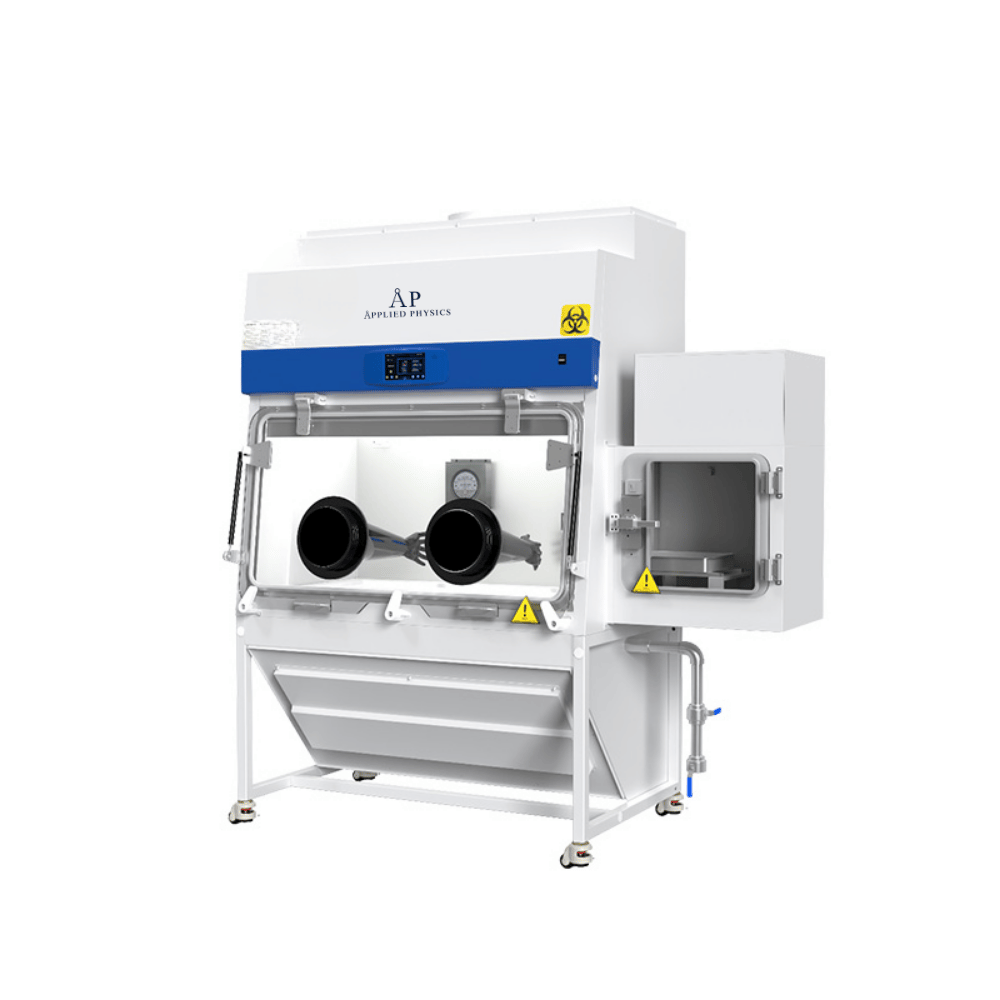

| Model | BSC-1100IIIX-H | BSC-1500IIIX-H |
| External Size | 1667*950*2180mm | 1920*950*2180mm |
| Internal Size | 917*640*600mm | 1170*640*600mm |
| Pass Box Size | 580*440*560mm | 580*440*560mm |
| Gloves | One pair of 800mm butyl rubber gloves | |
| Front Window | 12mm tempered glass, anti-ultraviolet radiation | |
| Display | Touch LCD display | |
| Pre-filter | Polyester fiber, washable | |
| Pressure | Negative, ≥120Pa | |
| ULPA Filter | Operating area supply air filter: 99.9995%(0.12μm in diameter) Base cabinet exhaust filter: 99.9995%(0.12μm in diameter) Top exhaust filter: 99.9995%(0.12μm in diameter) Pass box supply air filter: 99.9995%(0.12μm in diameter) | |
| Noise | ≤67dB | |
| Alarm | Audio and visual alarm, abnormal pressure | |
| Work Zone Material | 304 stainless steel | |
| lllumination | ≥1000lux | |
| Consumption | 1200W | 1300W |
| LED Lamp | 12W*2 | 14W*2 |
| UV Lamp | 20W*2, 8W*1 | 30W*2, 8W*1 |
| Emission of 253.7nm for most efficient decontamination | ||
| Power Supply | Standard: AC220V, 50/60Hz; Optional: AC110V, 50/60Hz | |
| Packing Size | 1810*1100*2350mm | 2060*1100*2350mm |
| Gross Weight | 420kg | 480kg |
Product relationship
Available Through Applied Physics
Applied Physics supplies and supports quotation of this product. Product branding and manufacturer information, where stated on the product page or supporting documentation, remain authoritative.
Applied Physics portfolio: Medical
Biological safety cabinet quote checklist
Confirm cabinet class/type, biological agents or procedures, chemical use, work opening, exhaust/ducting requirement, room HVAC interaction, electrical service and certification/documentation requirements.
