Description
It is suitable for the extraction of cells, bacteria and emulsifying chemical nanometer material, suitable for small batch production or to provide accurate technical parameters for the future industrial production.
Features:
1. LCD Display.
2. Automatic tracking the frequency.
3. Storage capacity: 20 groups of program data.
4. It can test and control temperature of the sample.
5. Function of automatic feeding and computer control can be optional equipped.
Technical Parameters:
|
Model |
UCD-4000W-II |
|
Frequency |
19.5~20.5KHz |
|
Standard Amplitude-change Poleφ |
40mm |
|
Crushing Capacity/Once |
500~10000ml |
|
Crushing Capacity/Continuously |
100L/Day |
|
Ultrasonic Power(W) |
1000~4000W, Adjustable |
|
Time Set |
Optional: Continuous/Pulse |
|
Max. Working Time |
99h59min59sec |
|
Safety System |
Over temperature; Time; Overload; No load |
|

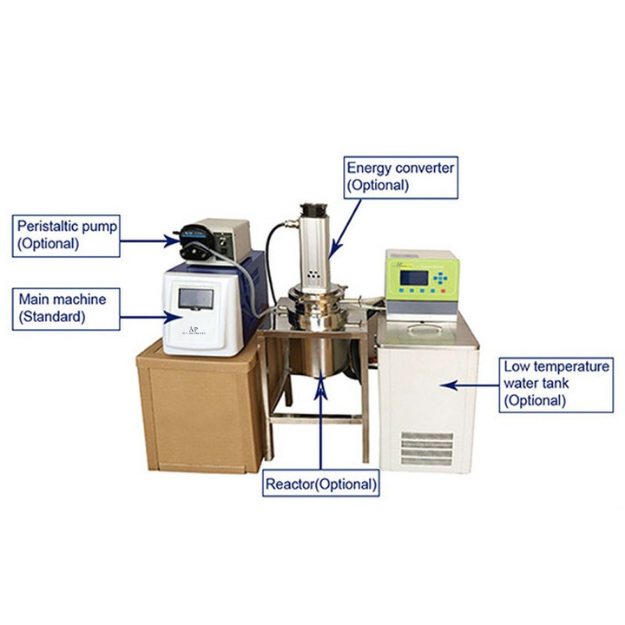

Standard Accessories |
Main machine, energy converter, standard amplitude, sound proof box(or supporting frame) |
|
Optional Accessories |
Stainless steel reactor, peristaltic pump, low temperature water tank |
|
Power Supply |
AC220V±10%, 50/60Hz(Standard); AC110V, 60Hz(Optional) |
|
Package Size(W*D*H) |
675*305*450mm(Main body); 430*415*730mm(Soundproof box) |
|
Gross Weight |
32kg |
