DF4S Decontaminating Fogger

DF4S Decontaminating Fogger generates from 360,000 to 8,493,000 cubic feet of sterilant fog to kill bio-organisms after contact in the air and on all open surfaces. The DF4S can use Minncare sterilant or H2O2 mixed in Deionized Water to kill viruses, and envelope viruses such as Coronavirus, bacterial growth, molds, spores, fungi, and bio-organisms @ 99.997% efficiency.

What are the key advantages of the DF4S DryFog Sanitizing System?

1. Wireless Remote Control of DF4S setup and operation
2. 360-degree Directional Control of sanitizing fog
3. Velocity control of sanitizing fog
4. Droplet diameter control of the fog vapor
5. Output Volume control of sanitizing fog volume to cover small buildings up to very large buildings
6. Use highly effective, Minncare sterilant against coronavirus and CoVID-19. EPA Reg. NO.: 52252-4; EPA Est. NO.: 52252-MN-01
7. Use highly effective, H2O2, Hydrogen Peroxide sterilant against coronavirus and CoVID-19
8. Very little preventive maintenance and much, much higher sanitizing volume, compared to electro-spray, vaporizer sterilizing machines
9. Liquid sterilant converted to 5 microns, 8 microns, or 10-micron aerosol fog, which then evaporates, going into all open areas, killing mold, viruses, yeast, fungi, gray mold, bacteria
10. 100% vapor deployment throughout very large areas, killing bio-organisms after contact
11. Easy rapid deployment of sterilant followed by 2-3 room airflow changes by HVAC or assisting fans
12. 99.997% prevention of unwanted bio-organisms in large conference centers, manufacturing companies, indoor stadiums, etc.

What are the advantages of using Minncare Sterilant?

1. Disrupts Sulfhydrl (-SH) and Sulfur (S-S) bonds in proteins and enzymes
2. USP 1072 recommends a daily bactericidal disinfectant combined with a weekly or monthly use of a sporicidal agent
3. Minncare uses two chemical hammers to kill bio-organisms, such as coronavirus and COVID-19
4. A peracetic acid penetrates the outer cell membrane of bio-organism, allowing hydrogen peroxide to enter the cell and kill the inner cell
5. Destroys cellular activity by rupture or dislocation of cell walls, thus destroying yeast, enveloped viruses such as coronavirus, mold, fungi, and bacteria
6. 99.997% kill rate for spores, fungi, molds, viruses, envelop viruses, and bio-organisms
7. Far more effective than lesser chemicals used to simply wet surfaces with ineffective mild chemicals
8. Far more effective than chlorine-based sterilants, as the chlorine molecules rise to the top atmosphere depleting Earth's OZONE protection
9. Minncare dissolves into hydrogen, oxygen, and a form of vinegar, unlike chlorine, which stays in our atmosphere

DF2S Dry Fog Disinfectant and Room Sanitizer Fogger –
A Better Way to Disinfect ISO Suites, Sterile Rooms, Medical Rooms and Compound Pharmacies

• EPA Registered
• 700 + DF2S Dry Fog machines are now used in the Pharmaceutical industry to support USP 1072
• Superior “DryFog” Delivery System
• Better Dispersion than “Wet” Systems
• Effective for small to very large areas: 7000 cubic feet to 35,000 cubic feet
• Effective for small enclosures also
• Better for Critical Applications
• Less Preparation Work
• Less Corrosion

DF2S Sanitizing Fog Provides Superb Aerosol Dispersion Throughout Room

• Dry Fog Creates a Vapor State
  • Disperses Throughout the Room More Completely Than a Liquid Mist
• Better Dispersion Equals Much More Surface Contact
  • Ability to Contact Hard to Reach Surfaces that people can not reach
    • On light fixtures and ceiling lights
    • Under tables
    • Behind appliances and cabinets
• Less Condensation
  • A few Items Need to be Covered Before the Fog Application

Benefits of DF2S Dry Fog, Room Sanitizer, Sterilizing Dry Fogger

• Superior Biocidal Activity to kill yeast, mold, fungi, and bacteria
• All Components are Ultra-pure, Pharmaceutical Quality
• US EPA (Environment Protection Agency) Registered Sterilant
• No Heavy Metal Trace Contamination / Stabilizers.
• Biodegradable – Decomposes to Acetic Acid, Water and Oxygen
• No Toxic Aldehyde Type Vapors, Easy to Vent
• Validated Residual Vapor Detection System

DF2S Dry Fogger

• Machines
  • 6 Atomizing Nozzles per Machine to decontaminate areas up to 35,000 cubic feet in volume
• Accessories
  • Dry Fog Remote Control
  • Dry Fog Vapor Detection System
  • Cable-Free Thermo Hygrometer and Sensors
  • Test Strips for Air Quality tests after DF2S has finished decontamination
• Service Parts
  • Nozzles, Gaskets, O-rings, etc.

NO CHANCE For Micro-Organisms to Build a Resistance When Using Dry Fogger

Dry Fog Surface Residuals

• Much Less Than Levels Found in OTC Hydrogen Peroxide Solutions After Venting
  • OTC Concentration = 3%
    • Mar Cor Purification Tests Show
      • 0.01% on Glass
      • 0.02% on Paper
      • 0.04% on Cotton

Dry Fog Environmental Testing (Safety)

• Oral toxicity
• Inhalation Toxicity Testing
• Skin Irritation
• Mucous Membrane Sensitivity Tests
• Dermatological Testing
• IV Toxicity Testing

Sep Up and Process Operation
Setup

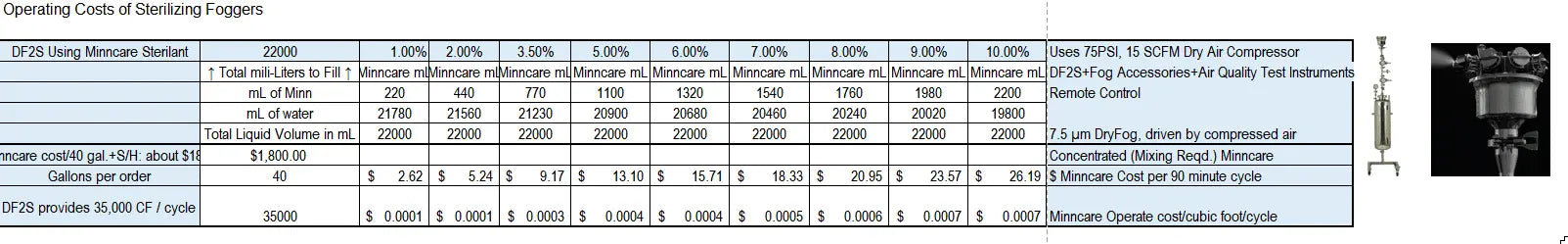

Amount of Minncare: 1.5 ml / M³ of Room Volume
Total Solution Volume: Function of the Initial RH
Ideal Initial Relative Humidity: 40-50%
Ideal Room Temperature: 20-25°C

Process
Fog Dispersion Time: 15 - 120 min
Exposure Time: 1 hour
Venting Time: 0.5 - 2 hours
TOTAL PROCESS TIME: Typical 2 - 5 hours (including venting)

DRY FOG SOFTWARE REPORTS

Process Recipe - Software Operational Support

• System Setup
  • A mix of Minncare Disinfectant solution and Water
  • Estimated Diffusion Times
• Reports
  • Actual Cycle Results (Actual Diffused Volume, Time, etc)
  • Room Configuration
  • Tracking of Room Relative Humidity
  • Customizable Reports
    • Chemical Measurements
    • Residuals
    • Customer Defined Factors

Compare the performance of Biocides typically used: WHICH WOULD YOU PREFER TO USE?

The 7.5-micron aerosol droplets have surface tension, thus bouncing off surfaces preventing wetting

7.5 micron droplets evaporate to form a very large disinfecting vapor to reach every point in the room

• The Dry Fog System Produces 7.5 µm Droplets
  • Droplets Behave Like Gas Particles
    • Bounce-Off Surfaces
    • Do Not Wet Surfaces
  • Float in the Air Due to Brownian Motion.

Liquid Disinfectant droplets are large, bursting on contact with surfaces, creating unwanted residuals

CURRENT SANITIZING METHODS

• Surface Wiping – does not come into contact with all surfaces thus micro-organism growth occurs after wiping down
• Manual Spraying (with Spray Bottles) – Moist Spray comes into contact with surfaces leaving residue, but does not contact all surfaces
• Heating Process (Vaporization) – requires raised temperature in the room being Disinfected
• Cold Process - Wet fogging

Chemical Products Currently Used:

• hydrogen peroxide
• Formaldehyde based
• Glutaraldehyde based
• Quaternary Ammonium Compounds
• Cocktails of the above

Current Problems:

• Long Venting time
• Neutralization Needed
• Corrosion of metal surfaces
• A variety of Chemicals are used
• Residual contamination

BENEFITS of DF2S DRY FOG, Room Sanitizer

• Superior Biocidal Activity
• All Components are Ultra-pure, Pharmaceutical Quality
• US EPA (Environment Protection Agency) Registered Sterilant
• No Heavy Metal Trace Contamination / Stabilizers.
• Biodegradable – Decomposes to Acetic Acid, Water and Oxygen
• No Toxic Aldehyde Type Vapors, Easy to Vent
• Validated Residual Vapor Detection System

Dry Fog Biocidal Activity

Hydrogen Peroxide with peracetic acid is a potent antimicrobial disinfectant agent and is effective against a broad spectrum of microorganisms, including:

Bacteria
Yeast and Molds
Mycobacteria
Bacteria Spores
Viruses

DF2S DryFog Decontaminating Fogger from Applied Physics Inc.
