Description
Technical Parameters:

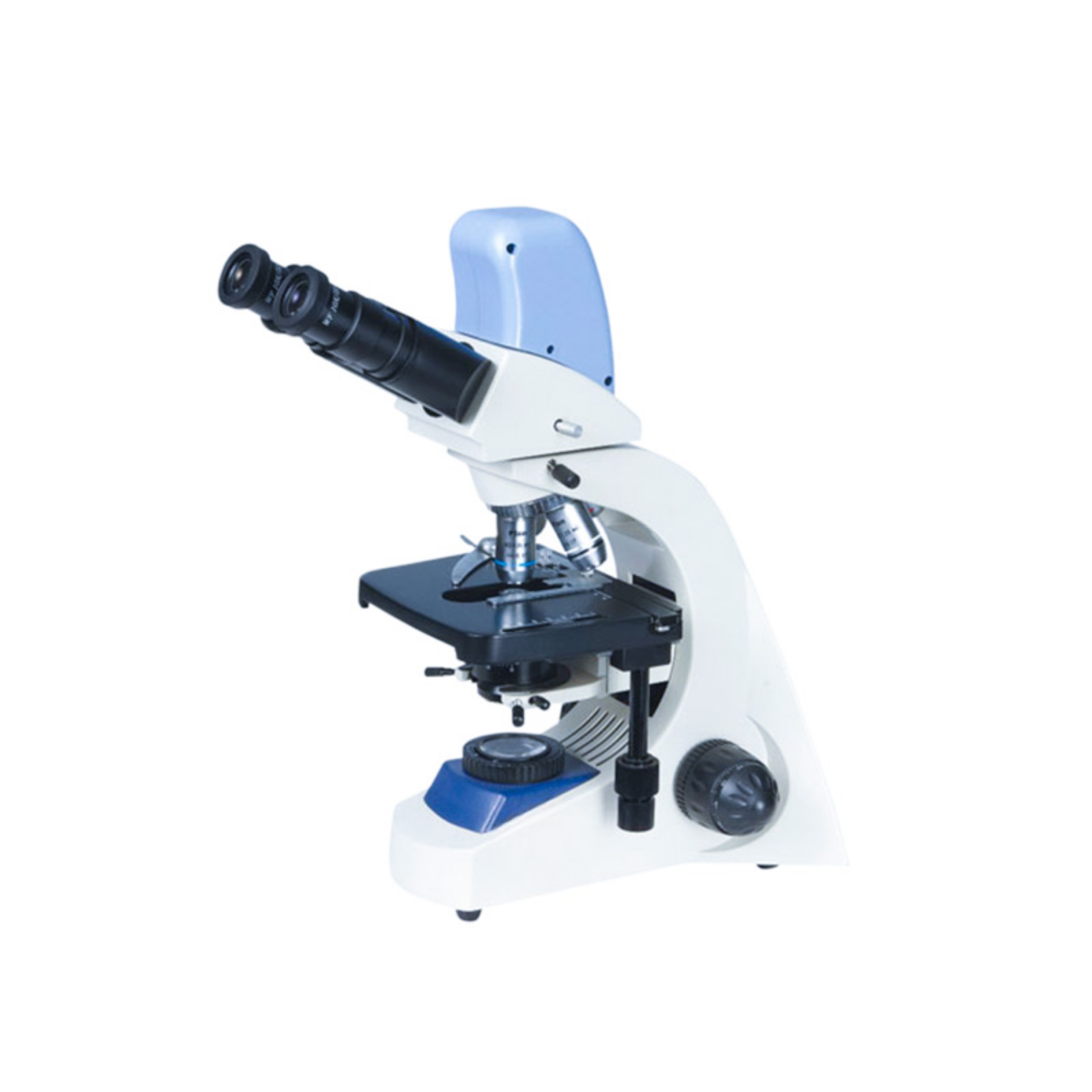

| Model | DM-18NS |
| View Head | Compensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 55~75mm |
| Eyepiece | WF10X/22mm |
| Infinite Plan Achromatic Objective | 4X, 10X, 40X(S), 100X(S, Oil) |
| Focusing | Coaxial Coarse&Fine Adjustable System, Range 30mm, Fine Division 0.002mm |
| Stage | Double Layers Mechanical Stage 180*150mm, Moving Range 75*50mm |
| Condenser | Abbe NA1.25 centerable condenser with Iris Diaphragm&Filter |
| Illumination | Halogen lamp 6V/20W, Kohler illumination, brightness adjustable |
| Filter | Blue, yellow, green |
| Imaging System | 3M CMOS |
| Power Supply | AC85~240V, 50/60Hz |
| Package Size | 380*300*580mm |
| Gross Weight | 8.4kg |
