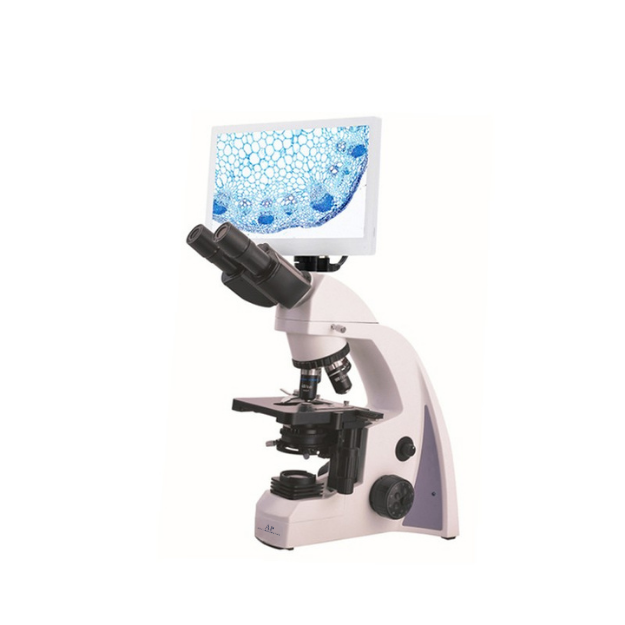

Digital biological microscope with integrated high-resolution imaging for clinical pathology and academic research.

Digital Biological Microscope

$0.00

The Biological Microscope is a powerful scientific instrument for studying the microscopic world of biology. It offers high-resolution imaging, versatile observation modes, and precision controls, making it an indispensable tool for researchers, educators, and enthusiasts.

SKU: AP-BK-MICD-1 Categories: , Catalog relationship: Available Through Applied Physics
Related Applied Physics resources

Continue through the Medical portfolio

Use these technical and portfolio pages to compare applications and related equipment. To keep this exact product attached to an RFQ, use the product’s existing Request a Quote or Add To Order control.

Applied Physics Medical Clinical & Sterile Processing

Description

Technical Parameters:

Model DM125 DM-300M
Optical System Infinite Optical System / √
Finite Optical System √ /
Viewing Head Seidentopf Binocular Viewing Head Inclined at 30°, Interpupillary 47~78mm √ /
Seidentopf Trinocular Viewing Head Inclined at 30°, Interpupillary 47~78mm ● /
Seidentopf Binocular Viewing Head, 30° Inclined, Interpupillary 48~75mm / √
Seidentopf Trinocular Viewing Head, 30° Inclined, Interpupillary 48~75mm / ●
MD101 Microscope Camera with HD Monitor, 5M pixels, Colour CMOS ● ●
Eyepiece Wide Field Eyepiece WF 10X/18 √ √
Extra Wide Field Eyepiece EW10X/20 with Diopter Adjustment / ●
Objective Achromatic Objective 4X, 10X, 40X, 100X √ /
Infinite Semi-plan Achromatic Objectives 4X, 10X, 40X, 100X / √
Infinite Plan Achromatic Objectives 4X, 10X, 40X, 100X / ●
Nosepiece Backward Quadruple Nosepiece √ /
Quadruple Nosepiece / √
Stage Double Layers Mechanical Stage 140mm×140mm/75mm×50mm √ √
Condenser NA1.25 Abbe Condenser √ /
Sliding-in Centerable condenser NA1.25 / √
Dark Field Condenser(Dry, Oil) ● /
Focusing System Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm,

Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation,

Moving Range 20mm

 / √
Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 25mm √ /
Illumination 6V/20W Halogen Lamp, Brightness Adjustable ● ●
S-LED Illumination, Brightness Adjustable √ √
Accessories Phase Contrast Kit, Fluorescent Attachment, Polarization Set ● ●
Power Supply AC110~220V, 50/60Hz √ √
Packing Size(mm) 380*270*470mm(DM-125 Main body); 350*350*640(DM-300M) √ √
Gross Weight(kg) 8.5(DM-125 Main body);12(DM-300M) √ √

Note: √ Standard Outfit, ● Optional, Without this feature Trinocular microscope can be installed camera and screen.

Additional information

Model

DM-125, DM-300M
