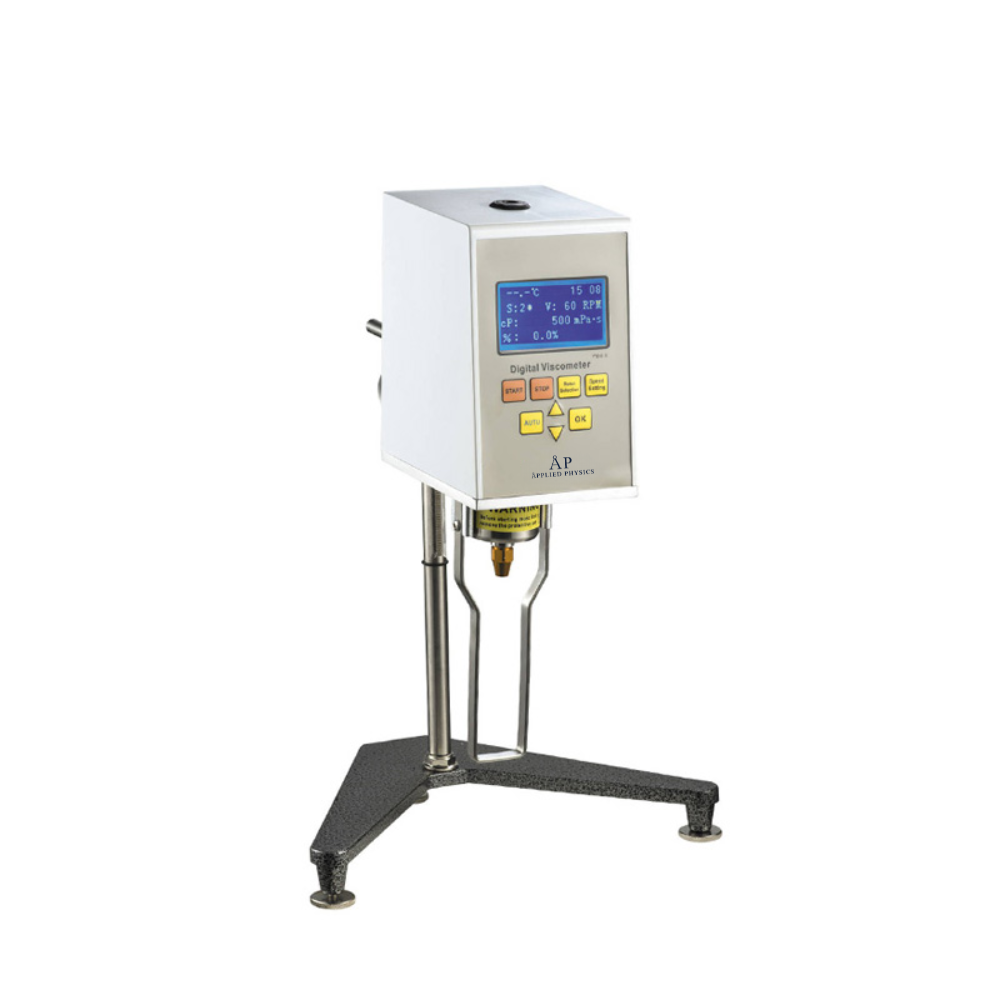

Digital Viscometer BDV-S BDV-N Seires

Description

Digital Viscometer BDV-S BDV-N Seires

Features:

BDV-S series digital viscometer:

1. Central control circuit: 16 bit MCU.

2. Gearless driving, LCD display.

3. Optional accessories: Printer(BDV-5S and BDV-8S) and RTD temperature probe(Not including BDV-1S).

BDV-N series digital viscometer:

1. Measurement is more larger than BDV-S series.

2. Rotating speed is improved to non-polar shift.

3. RTD temperature probe can timely monitor the temperature of the sample.

4. Optional software: Data Collecting, Analysis and Plot Software(Only BDV-N series).

Technical Parameters:

Model

BDV-1S

BDV-9S

BDV-5S

BDV-8S

BDV-1N

BDV-2N

BDV-3N

BDV-4N

Measured Range(mPa.s)

1~100,000

1~6,000,000

20~100,000

20~2,000,000

20~600,000

12~6,000,000

160~80,000,000

50~10,000,000

Rotation Speed(rpm)

6, 12, 30, 60

0.1, 0.3, 0.6, 1.5, 3, 6, 12, 30, 60

6, 12, 30,

60

0.3, 0.6, 1.5, 3, 6, 12, 30, 60

1~60

0.1~99.9

0.1~99.9

0.1~200

Number of Spindle

4 types(L1~L4)

4 types(L1~L4)

4 types(21.27.28.29)

Measurement Accuracy

±5%(FS)(Newtonian Fluid)

±3(FS)(Newtonian Fluid)

±1%(FS)(Newtonian Fluid)

Repeatability

±0.5%(FS)(Newtonian Fluid)

Power Supply

AC100~240V, 50/60Hz

Standard Accessory

/

/

RS232 standard

output interface

RTD temperature probe

RS232 standard output interface

Optional Accessory

/

RTD temperature probe

RTD temperature probe, Specially used printer

Specially used printer

LO Spindle is for Option Measured Range(mPa.s)

1~10

1~100

1~2000

1~600

0.6~6000

6~6000

3~6000

Package Size(W*D*H)

460*390*230mm

400*350*360mm

400*350*550mm

Gross Weight

7.5kg

9kg

10.5kg
