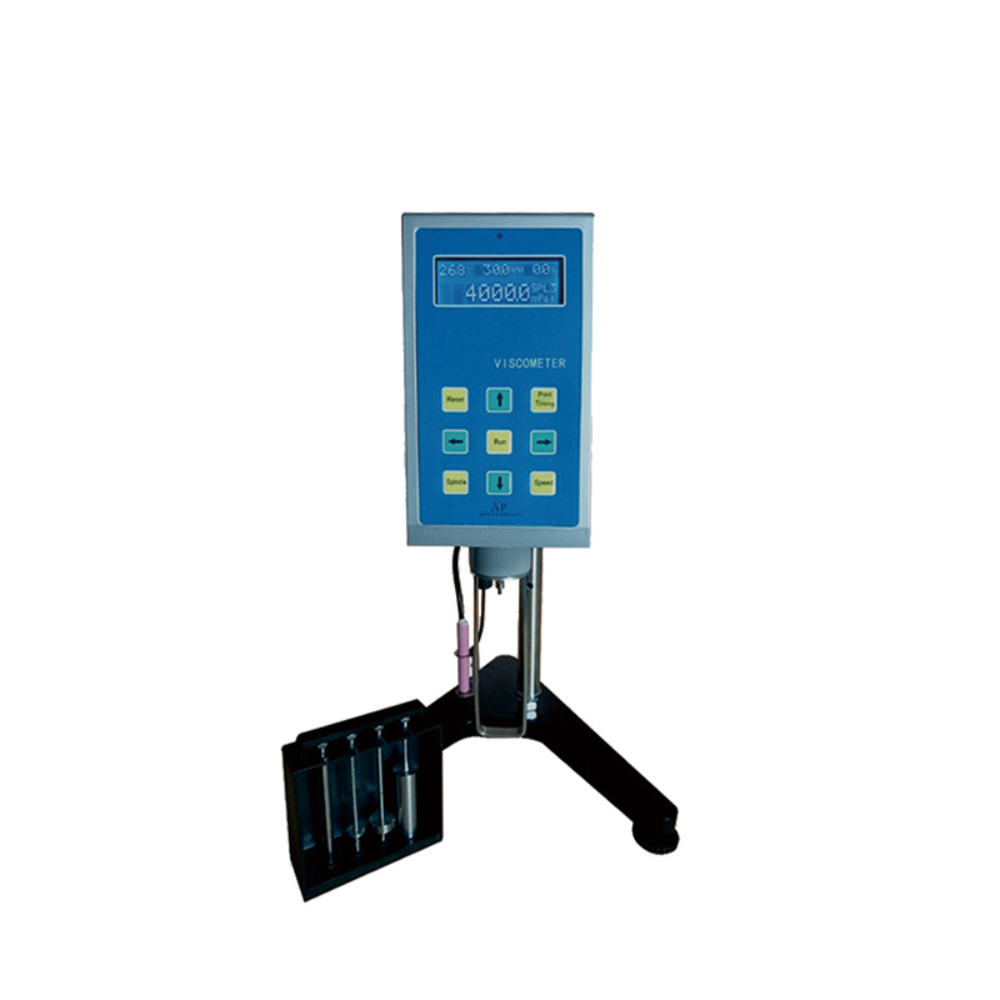

Digital Viscometer BDV Series

Description

Digital Viscometer BDV Series

Features:

1. Central control circuit: 16 bit MCU.

2. RTD temperature probe can timely monitor the temperature of the sample.

3. LCD can display all information.

4. Optional software: DV Program Control Download Software&Data Collecting, Analysis and Plot Software.

Technical Parameters:

Series

BDV-1

BDV-2

Model

BDV-1A

BDV-1B

BDV-1C

BDV-2A

BDV-2B

BDV-2C

Measured Range(mPas)

12~6M

80~40M

640~320M

6~6M

40~40M

320~320M

Rotation Speed(rpm)

0.1~99.9 non-polar shift

0.1~200 non-polar shift

Number of Spindle

4(L1~L4)

6(R2~R7)

6(R2~R7)

4(L1~L4)

6(R2~R7)

6(R2~R7)

Measurement Accuracy

±1%(FS)(Newtonian Fluid)

Repeatability

±0.5%(FS)(Newtonian Fluid)

Power Supply

AC100~240V, 50/60Hz

Standard Accessory

RS232 standard output interface, RTD temperature probe

Optional Accessory

Specially used printer

L0 Spindle is for Option

Measured Range(mPas)

0.6~6000

6~60000

50~500000

0.3~6000

3~60000

25~500000

R1 Spindle is for Option

Measured Range(mPa.s)

/

20~100000

160~800000

/

10~100000

80~800000

Package Size(mm)

400*350*360

400*350*550

400*350*550

400*350*360

400*350*550

400*350*550

Gross Weight(kg)

9

10.5

10.5

9

10.5

10.5
