The disintegration tester is a pharmacopeial instrument designed to assess the disintegration time of tablets, capsules, and pills in compliance with the Chinese Pharmacopoeia. It is critical for quality control of solid dosage forms and pharmaceutical formulation development. By measuring disintegration duration, it evaluates drug release kinetics to ensure in vivo performance meets specifications. This instrument plays a vital role in production monitoring, quality assurance, and formulation optimization.
$0.00

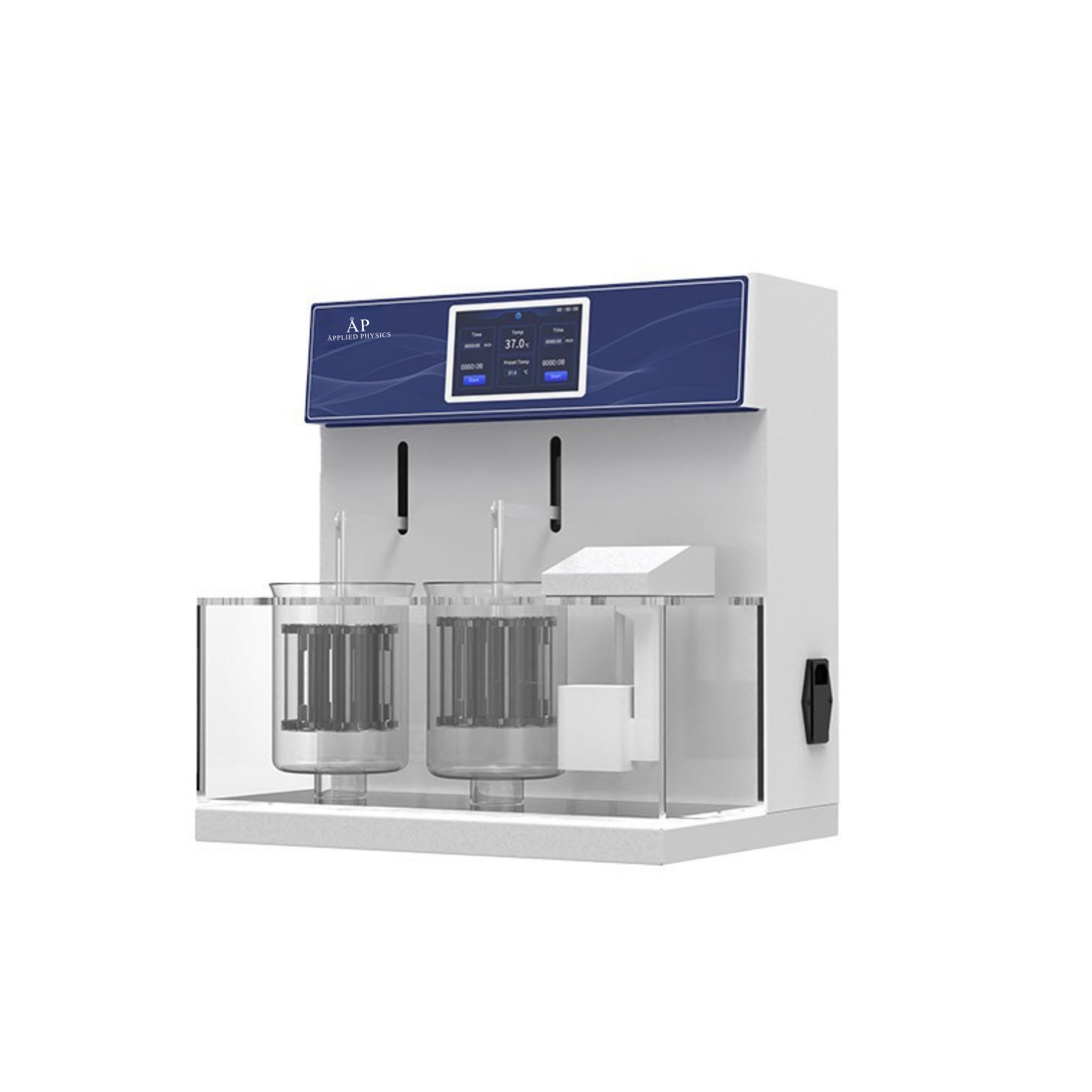

Disintegration Tester BBJ-2
Features:
1. Dual-basket system for simultaneous disintegration testing.
2. Two independent baskets enable parallel experiments.
3. Electronic temperature sensors monitor and display real-time water bath and vessel temperatures.
4. Automatic temperature control at 37. 0℃(pharmacopeia-compliant) with customizable presets.
5. Programmable lifting cycle duration(default: 15 minutes; adjustable bidirectionally).
6. User-friendly capacitive touchscreen with high-resolution interface.
7. Overheat alarm and automatic protection for water bath temperature.
Technical Parameters:
Model
BBJ-2
Basket
2pcs
Beaker Capacity
1000ml
Basket Lifting Frequency
30~31 times/min
Basket Lifting Height
55±1mm
Minimum Spacing
25±1mm
Mesh Size
Standard 2mm(0.425mm, 1mm is optional)
Temp. Range
RT~45℃
Temp. Precision
±0.5℃
Timing Range
1~900min
Time Precision
±0.5min
Working Time
>24h
Power Consumption
550W
Power Supply
AC220V, 50Hz(Standard);
AC220V/110V, 60Hz(Optional)
External Size(W*D*H)mm
400*320*440
Package Size(W*D*H)mm
470*370*500
Net Weight(kg)
16
Gross Weight(kg)
19
| Model | BBJ-2 |
|---|
