Peristaltic pump is mainly used for the transmission of various liquids. The drive provides power to drive the pump head, and the rotor inside the pump head rotates, relying on several rotors along an elastic hose alternately extruding and releasing the pump efficiency to work. The squeezed fluid in the hose produces flow output, the pressure disappears after the hose relies on its own elasticity to restore the original state, the volume increases, the vacuum is generated, the suction fluid, the cycle of action.
$0.00

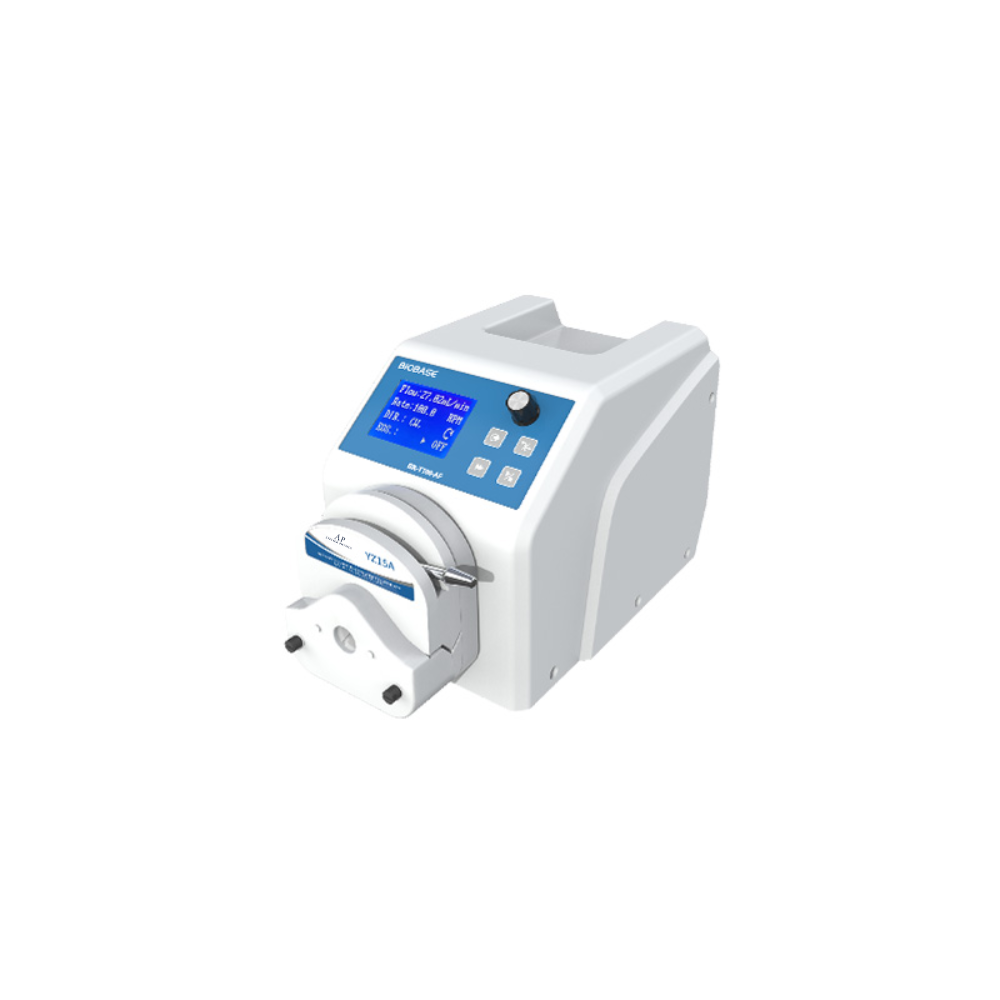

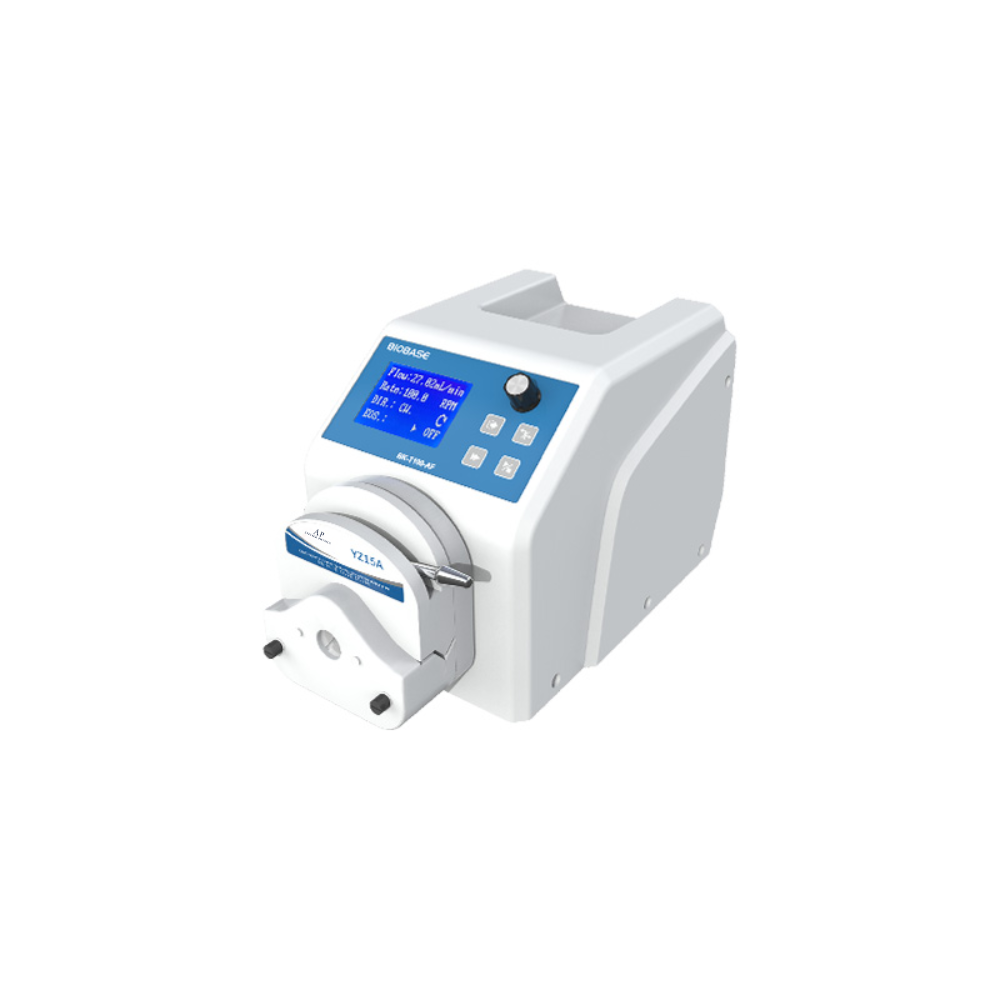

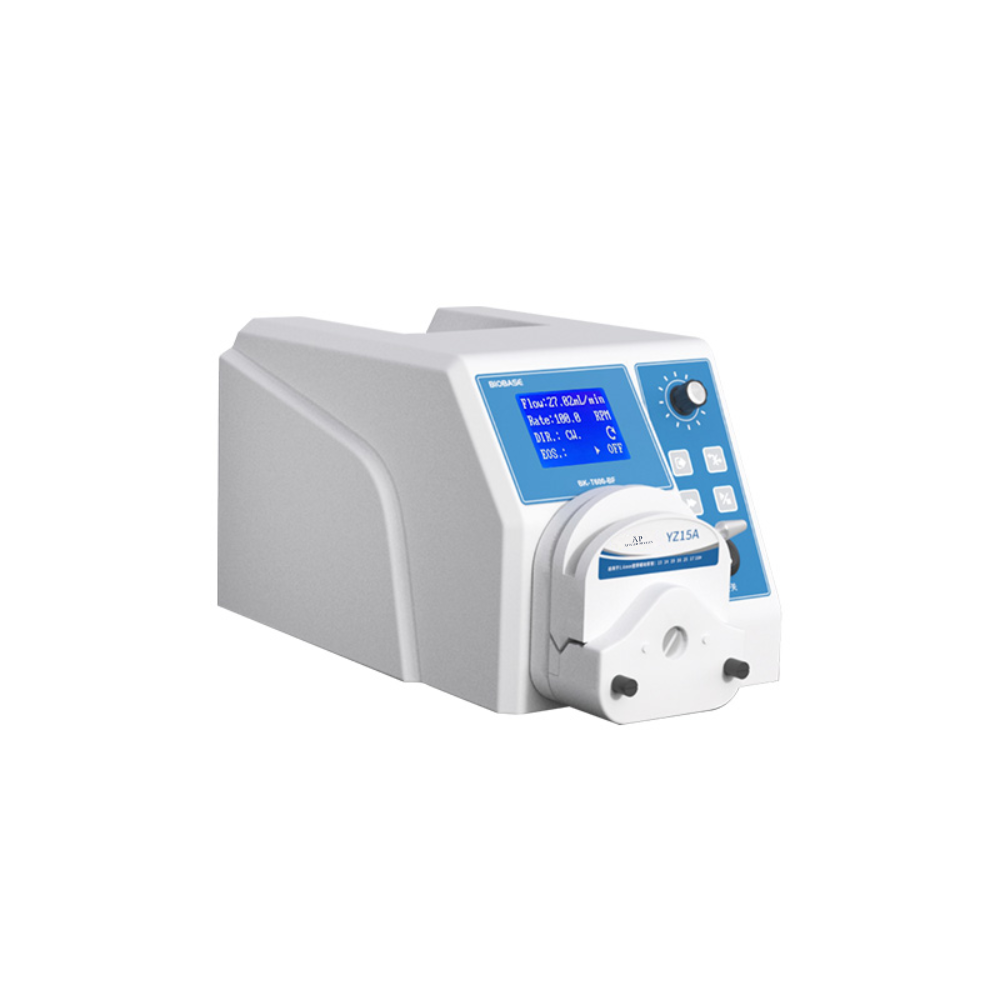

Dispensing Peristaltic Pump DPP-100-BF DPP-300-BF DPP-600-BF
Features:
1. Direction control, reverse direction.
2. With fast cleaning, empting function, back suction function, prevent liquid dripping.
3. LCD display.
4. The function of communicating with the upper computer or computer.
5. Distribution function includes distribution liquid quantity, distribution times, time interval and other functions.
6. Automatic storage of various user parameters.
7. Can be calibrated for flow and distribution fluid volume to improve accuracy.
8. Forced air cooling heat dissipation, to ensure the normal use of products.
Technical Parameters:
Model
DPP-100-BF
DPP-300-BF
DPP-600-BF
Speed Range
0.1~100rpm
0.1~300rpm
0.1~600rpm
Speed Resolution
0.1rpm
0.1rpm
0.1rpm
Flow Range
0.16μL/min~500mL/min
1.6μL/min~1.5L/min
0.052~3000ml/min
Dispensed Fluid Volume
0.01mL~9.99L
0.01mL~99.99L
Dispensed Number
0~9999
Dispensing Interval Time
0.1s~99.9min
Suction Back Time
0~99.9s
External Control Input
4~20Ma, 0~5V, 0~10V, 0~10KHz flow control, forward and reverse, start and stop control
External Control Output
Start/stop, direction signal, speed signal
Power Supply
90~264V, 50Hz/60Hz
Power
<40W
<60W
<140W
Working Condition
Ambient Temperature: 0~40℃; Relative Humidity: <80%
Protection Class
IP31
Adjustable Pump Head
YZ15A, YZ25, YZII15, YZII25, DG-1, DG-2, DG-4
Operation Method
Mechanical buttons and knob coding switches complete all operations
Direction Control
Reversible in both directions
Full Speed Function
Quick cleaning and emptying function
Back Suction Function
Prevent liquid from dripping
Display
128*64 dot matrix Chinese character LCD displays all information
Communication Function
It has the function of communicating with the host computer or computer
Flow Function
It can deliver liquid according to the set flow rate
Distribution Function
Including the functions of dispensing liquid volume, dispensing times, time interval, etc.
Standard Accessories
YZ15A pump head, 2 meters of 14# pump tube
Optional Accessories
Foot switch, 4~20mA, 0~5V, 0~10V, 0~10KHz external control
External Size
300*171*189mm
330*250*190mm
Net Weight
3.2kg
5.0kg
Packing Size
390*340*240mm
450*390*270mm
Gross Weight
4.1kg
6.8kg
| Model | DPP-100-BF, DPP-300-BF, DPP-600-BF |
|---|
